Wilden T1510 Brahma Turbo-Flo AODD Pumps

3″ | 76 mm

Wilden T1510 Brahma Turbo-Flo Bolted Metal AODD Pump were specifically designed for maximum solids passage and high performance in the toughest applications.

Because of its unique top inlet, bottom discharge orientation and flap valves, the T1510 Brahma allows passage of large-size solids and avoids damage from product entrapment and settling of solids in intermittent-duty applications. It features bolted construction for superior containment and the ability to pass certain solids up to 3″ (76mm).

It’s easy to maintain, externally serviceable and completely submersible, allowing usage in harsh environments, such as mine dewatering and sludge and slurry applications.

Available wetted path materials are aluminum or ductile iron.

Wilden T1510 Brahma Advanced Metal AODD Pumps come equipped with the Turbo-Flo™ Air Distribution System (ADS), which provides a durable, submersible and robust design, extensive installed base for proven technology and ease of maintenance.


Wilden T1510 Brahma Turbo-Flo Benefits and Features

  • Flap valve design for large-solids passage
  • Top inlet, bottom discharge for easy transfer of sediment and solid-laden fluids
  • Powered by Turbo-Flo™ ADS
AIR INLET:3/4″ FNPT
CONNECTION TYPE:DIN/ANSI (Flanged)
MAX PRESSURE:125 psi (8.6 bar)
LIQUID INLET:3″ (76 mm)
LIQUID DISCHARGE:3″ (76 mm)
MAX FLOW RATE:258 gpm (977 lpm)
MAX DIAMETER SOLIDS:3″ (76 mm)
MAX SUCTION LIFT CAPABILITY:DRY – 24.4′ (7.4m)  |  WET – 30.6′ (9.3m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes):1.47 gal (5.56 L)

Performance and Specifications

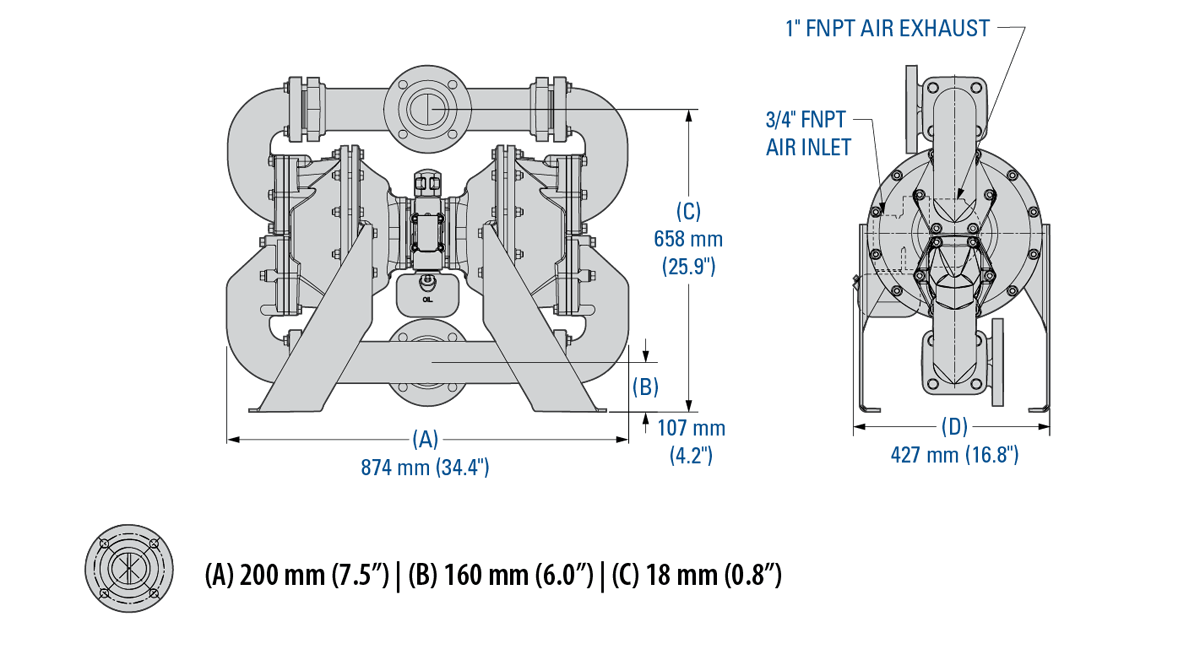

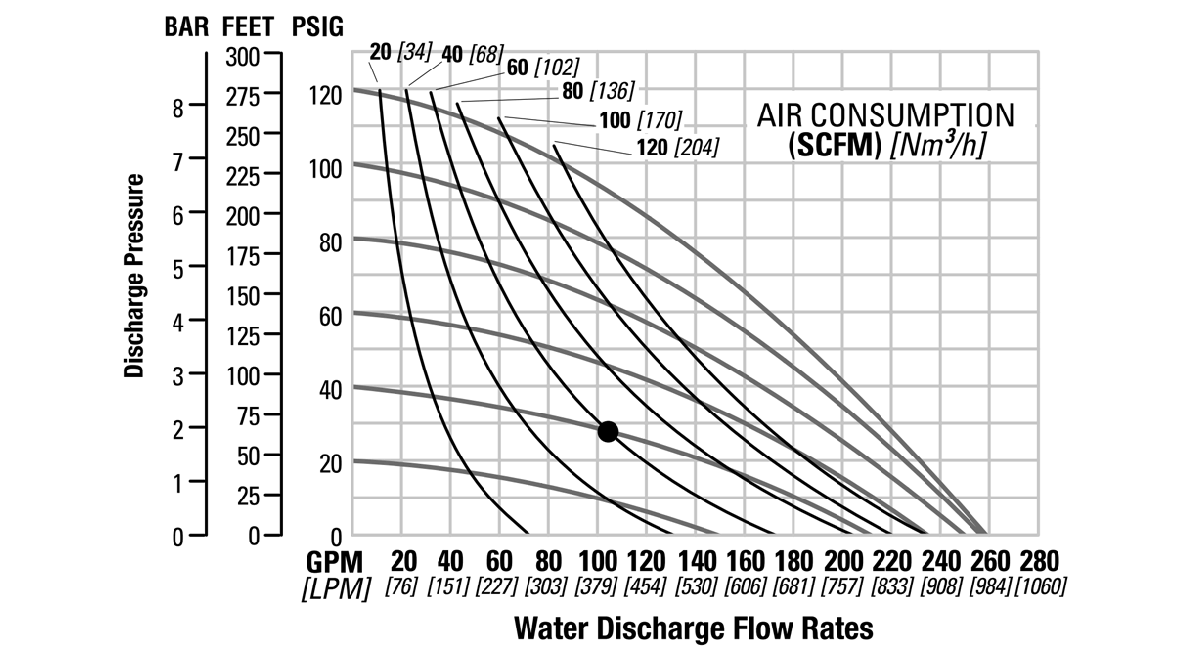

DimensionsFlow Curve
Wilden-T1510-Brahma-DimensionsWilden-T1510-Brahma-FlowCurve
Note: Dimensions vary by material and connection. For additional information, please refer to the T1510 EOM Manual.Note: Additional performance curves can be found in the T1510 EOM Manual.

Wetted Housings

Non-Wetted Housings

MATERIALSHIP WEIGHTDESCRIPTIONMATERIAL
Aluminum185 lbs (84 kg)Center SectionAluminum
Ductile Iron357 lbs (162 kg)Air ValveBrass with Oil Bottle
Air ChamberAluminum

Elastomer Options

MaterialTemperature Limits
Buna-N10°F to 180°F (12°C to 82°C)
Neoprene0°F to 200°F (-18°C to 93°C)

Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden CE Certification

Wilden T1510 Brahma Advanced Metal Pumps

Join our Mailing List

Resources

Wilden Brahma Series Brochure

Download
Size: 6 MB

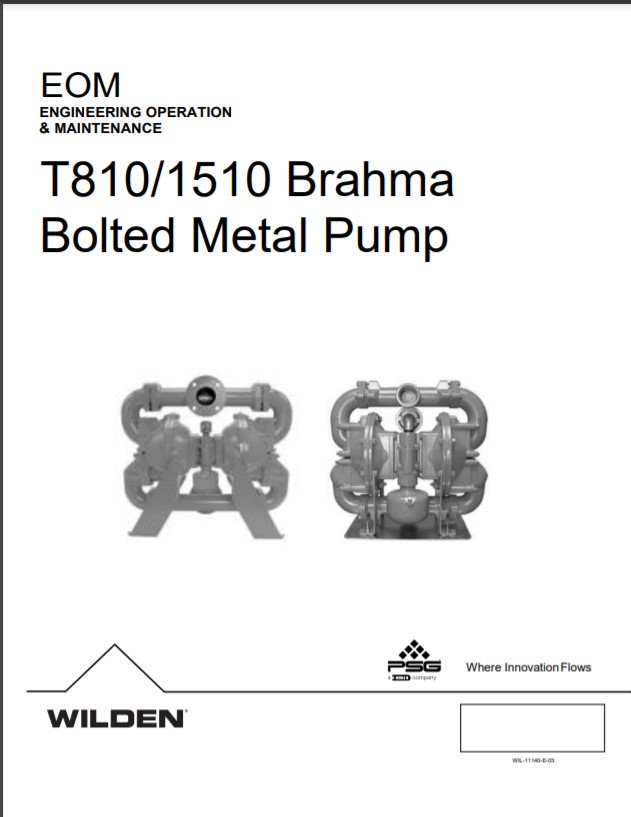

Wilden Brahma T1510 Turbo-Flo - EOM
