3″ | 76 mm

Wilden PS15 Stallion Metal AODD Pump is designed to transfer solid-laden slurries safely and effectively. Large internal clearances and flow-through design keep the pump from clogging while Wilden’s patented air distribution maintains ON/OFF reliability.

Stallion technology incorporates an altered ball/seat check valve assembly that maximizes part life, increases suction lift and maximizes flow rates.

The Wilden Stallion Series ensures reliability without sacrificing ease of maintenance. With simple installation and easy serviceability, it’s ready for rugged utilitarian applications that require a robust design.

Available wetted path material is aluminum.

Wilden PS15 Stallion Metal AODD Pumps come equipped with the Pro-Flo® SHIFT Air Distribution System (ADS) that provides 60% savings in air consumption, more yield per SCFM, precisely metered air consumption for less product waste and maximum Mean Time Between Repair (MTBR). Available Pro-Flo SHIFT center section material is aluminum.



Wilden PS15 Stallion Metal Benefits and Features



The Successful Solution

  • Decades of proven performance
  • Excellent for abrasive products and solid-laden slurries
  • Intrinsically safe
  • Clamped connections for faster maintenance
  • Large internal clearance and flow-through design to prevent clogging
  • ON/OFF reliability
  • Unique ball/seat check valve assembly to maximize part life, suction lift and rates
  • Ultra-Flex diaphragm technology increases parts life
  • Polyurethane screen base for added durability
  • Self-priming
  • Variable speed
  • Dry-run without damage
  • Single-point exhaust option
  • Shear-sensitive
  • Widest range of materials in the industry



Dependable

  • Longest Mean Time Between Repair (MTBR)
  • Proven air distribution system (ADS)
  • Simplicity of design
  • Superior anti-freezing
  • Increased On/Off reliability



Economical

  • Greater flow per SCFM input
  • Reduced air consumption and kilowatt usage
  • Lower operational costs and downtime
  • Optimized applications



Wilden PS15 Stallion Metal Performance



WETTED HOUSINGS

(Water Chambers and Manifolds)

Material Ship Wt
Aluminum 63 kg (138 lbs)

NON-WETTED HOUSINGS

Description Material
Center Section Aluminum
Air Valve Aluminum



FLOW RATE

  • TO 764 LPM (202 GPM)

MAX PRESSURE

  • 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY

  • 4.7 m (15.3’) Dry, 9.0 m (29.5’) Wet

MAXIMUM DIAMETER SOLIDS

  • 25 mm (1”)

DISPLACEMENT PER STROKE

  • TPE EZ-Install- 3.7 l (0.97 gal)



Elastomer Options

Material Temperature Limits
Geolast -40 to +82 °C (-40 to +180 °F)
Polyurethane -12 to +66 °C (+10 to +150 °F)
Saniflex -28.9 to +104.4 °C (+20 to +220 °F)
Wil-Flex -40 to +107.2 °C (-40 to +225 °F)

Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden-CE-Certification

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

ATEX (ATmosphere EXplosible)

Wilden-EX-Certification

It is only natural that the worldwide leading producer of air-operated double-diaphragm pumps complies with the ATEX 100A directive for explosive atmospheres. The European community and their safety are of utmost importance to us. We take responsibility for not only our product, but also for the supporting documentation and compliance of necessary directives. Wilden is proud to introduce our metallic X pumps that comply with ATEX 94/9/EC Group I, category M2 and Group II, category 2 zones G & D. Our plastic X pumps comply with ATEX 94/9/EC Group II, category 2, zone G.

Resources

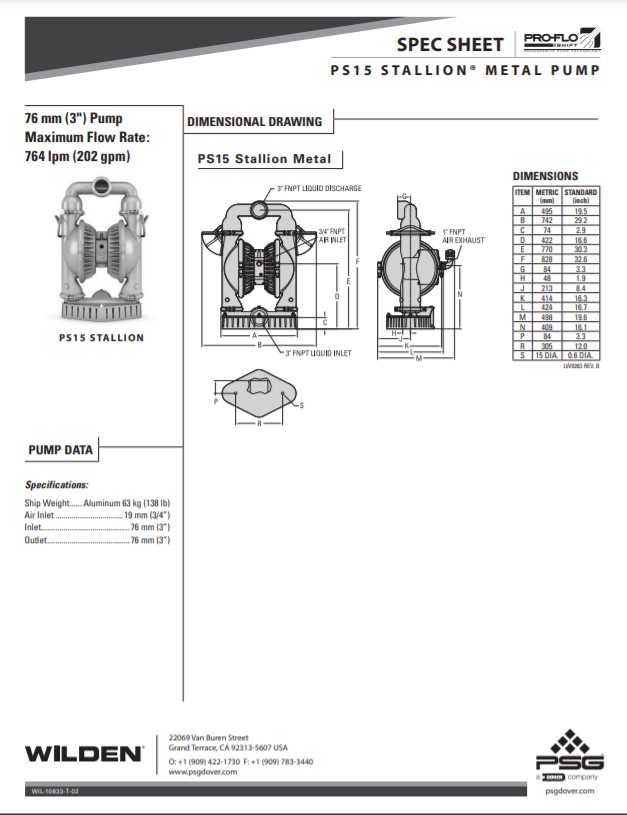

Wilden PS15 Stallion Original Clamped Metal Pump Spec Sheet

Wilden PS15 Stallion Original Clamped Metal Pump Spec Sheet

Download
Wilden PS Stallion Original Clamped Metal Pump

Wilden PS Stallion Original Clamped Metal Pump

Download
