Wilden A.025 Original Metal AODD Pumps

¼” | 6 mm

Wilden A.025 Original Metal AODD Pump ensures reliability without sacrificing ease of maintenance. With simple installation and easy serviceability, it’s ready for rugged utilitarian applications that require a robust design.

Available wetted path materials are aluminum, alloy C or stainless steel.

The Wilden A.025 comes equipped with the Accu-Flo™ Air Distribution System (ADS), which provides direct electrical interface control, reduced system costs, automated system operation and lube-free operation.


Wilden A.025 Original Metal Benefits and Features


The Successful Solution

  • Decades of proven performance
  • Intrinsically safe
  • Self-priming
  • Variable speed
  • Dry-run without damage
  • Single-point exhaust option
  • Shear-sensitive
  • Widest range of materials in the industry


Dependable

  • Longest Mean Time Between Repair (MTBR)
  • Proven air distribution systems (ADS)
  • Simplicity of design
  • Superior anti-freezing
  • Increased On/Off reliability


Economical

  • Low cost
  • Simple installation
  • Ease of maintenance


Wilden A.025 Performance


NON-WETTED HOUSINGS

Description Material
Center Section Polypropylene
Air Valve Aluminum

FLOW RATE

  • TO 16.3 LPM (4.3GPM)


MAX PRESSURE

  • 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY

  • 5.36 m (17.6′)

MAXIMUM DIAMETER SOLIDS

  • .4 mm (1/64)

WETTED HOUSINGS

(Water Chambers and Manifolds)

Material Ship
Aluminum 2 kg (5 lbs)
Stainless Steel 5 kg (11 lbs)
Alloy C 5 kg (12 lbs)

DISPLACEMENT PER STROKE

A.025T

  • Rubber- 0.024 l (.006 gal.)
  • PTFE- 0.017 l (.005 gal)

A.025P

  • Rubber- 0.019 (.005 gal)
  • PTFE- 0.02 (.005 gal)


Elastomer Options

Material Temperature Limits
Buna-N -12.2 to +82.2 °C (+10 to +180 °F)
PTFE +4.4 to +104.4 °C (+40 to +220 °F)
Wil-Flex™ -40 to +107.2 °C (-40 to +225 °F)


Certifications

CE Mark (Conformité Européene – European Conformity)

CE

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

Wilden A.025 Original Metal AODD Pumps


Resources

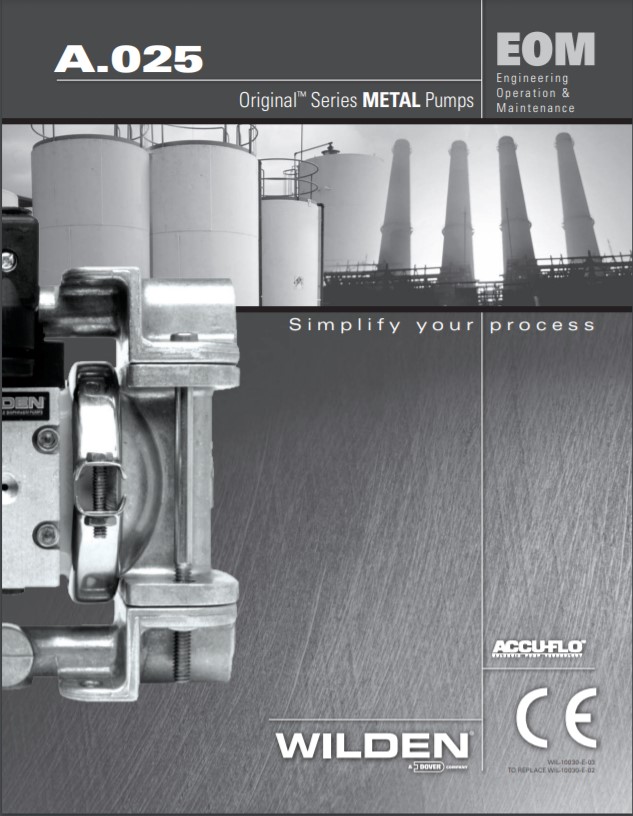

Wilden A.025 Original Clamped Metal Pump-EOM

Download
Size: 4 MB
