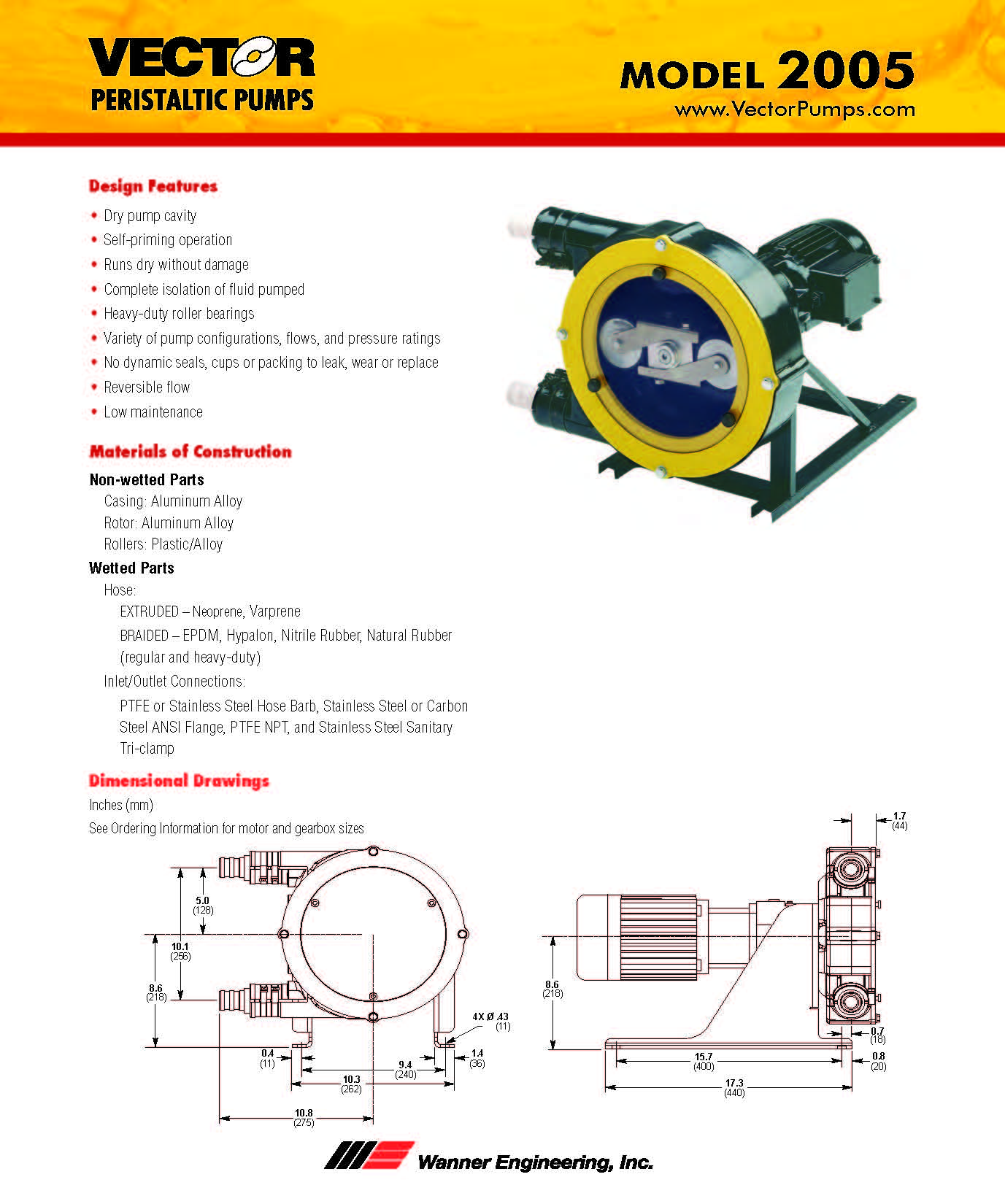

Vector Peristaltic Pump Model 2005
Design Features of Vector Peristaltic Pump Model 2005
The best solution for difficult process fluids
- Dry pump cavity
- Self-priming operation
- Runs dry without damage
- Complete isolation of fluid pumped
- Heavy-duty roller bearings
- Variety of pump configurations, flows, and pressure ratings
- No seals, cups or packing to leak or wear
- Reversible flow
- Low maintenance
Vector Peristaltic Pump Applications
Vector peristaltic pumps can handle the most difficult process fluids to serve a wide range of commercial, institutional, industrial, and municipal markets. Examples of many successful applications are listed in this section - but these are not limitations. If you have a difficult fluid to process not listed, contact one our pump experts for application assistance.
Building & Construction
- Adhesives, dyes, glues, grout, iron oxide pigments, paints, plaster, pottery, tile
Ceramic & Glass
- Clay slips, dyes, enamels, glazes, grinding water, grout, quartz paste, silicon
Chemical Processing
- Abrasive mixes, acids, adhesive resins, caustic soda, detergent paste, latex, pigments, polyester mixes, polymers
Distilleries
- Alcohol, spices, spirits
Electrical
- Polyester slurries for insulating wire
Food & Beverage Processing
- Bentonite and carbon slurries, butter, cake dough, cake frosting, caramel, chocolate, cream, egg yolks with whites, fats, flavorings, fruit juices, gelatins, ice cream, jams and preserves, milk, mustard, potato waste, syrups, tomato sauce, water and salt mixtures, yeast solution, yogurt
Marine
-
Sewage, wastewater, solid waste
Meat Processing
- Acids, animal and waste blood, hair and bone mixtures
Medical, Pharmaceutical & Cosmetics
- Face creams, latex, lotions, plasma, protein solutions, shampoo, vaccines, Vaseline
Mining, Tunneling & Quarrying
- Coal, copper and platinum slurries
Photographic
- Acids, diluents, thinners
Pulp & Paper
- Abrasive, fibrous fluids, aluminum sulfate, boiler wastewater, caustic soda (lye), cold seal, dyes, hydrochloric acid, inks, pre-paint coatings, sulfuric acid
Tanneries
- Acids, dyes, ferrous sulfate, waste fluids with solids
Textile Manufacturing
- Acids, adhesives, bleach, dyes, sizing
Water & Wastewater Treatment
- Acids, activated carbon, aluminum sulfate, caustic soda (lye), ferrous chloride, flocculants, foam inhibitors, lime slurries, solid waste
________________________________________________________________________________________________________________________
Specifications:
| Fluid Characteristics | |
| Viscosity: | 15,000 cps max. |
| Liquid Temperature: | 180°F (82°C) max. |
| Solid Size: | (See Selection Guide) |
| Fiber Length: | 1-1/4 inch (31.7 mm) max. |
| Specifications | |
| Discharge Pressure: | 50 psig (3.4 bar) max. |
| Suction Lift: | 16.5 ft. (5 m) |
| Suction Pressure: | 25 psig (1.7 bar) max. |
| Horsepower:* | 3/4 max. |
| Hose Size: | 25 x 43 x 860 mm |
| Displacement: | 0.085 gal/rev (0.032 l/rev) |
| Weight (pump only): | 40 lbs. (18 kg) |
| Weight (with drive): | 83 lbs. (38 kg) |
* Pumps are shaft driven and require a gearbox and motor.
