Vaughan Chopper Pumps for Municipal Applications

Vaughan Chopper Pumps are centrifugal pumps with the unique ability to chop all incoming solids prior to pumping.

This not only protects the pump from clogging, but also provides added benefit to downstream components, processes, and the environment.

All wear components are cast steel and heat treated for maximum impact and wear resistance. Combined together, these heavy duty patented components create the ultimate pump for handling severe solids.

This same basic concept has been used in Vaughan’s vertical wet well design for almost a half-century.

Chopping is accomplished by the scissor action of the leading edges of the impeller vanes cutting against the opposing edges of the cutter bar.

All solids are chopped as they enter between the cutter bar and the impeller vanes. The smaller solids are easily pumped by the centrifugal action of the impeller.

Vaughan Chopper Pumps – Features & Benefits:

  • Dry suction lifts up to 22 feet
  • Flows over 13,000 gallons per minute
  • Hydraulic efficiencies OVER 70%
  • Discharge sizes from 3″ to 16″
  • Heat-treated and hardened components
  • Direct or belt-drive configurations available
  • Over 50 years experience
  • Non-clogging guarantee on all Chopper pumps


Wastewater Applications for Vaughan Chopper Pumps:

RAW SEWAGE: Lift stations, CSO facilities, headworks, prisons, hospitals, restaurants.

SCREENINGS / SEPTAGE: Raw concentrated solids including rags, plastics and hair.

CLARIFIER SCUM PITS: Primary or Secondary scum without plugging or air binding.

SLUDGE TRANSFER: Eliminates “roping” and clogging in clarifier underflow to thickeners.

RAS / WAS: Continuously conditions Return and Waste Activated Sludges.

THICKENED SLUDGE / DIGESTED SLUDGE TRANSFER: Handles high sludge consistencies.

DIGESTER MIXING: Rotamix system conditions and mixes in a dual-zone rotational flow pattern.

DIGESTER RECIRCULATION: Eliminates heat exchanger clogging while conditioning sludge.


End of Section

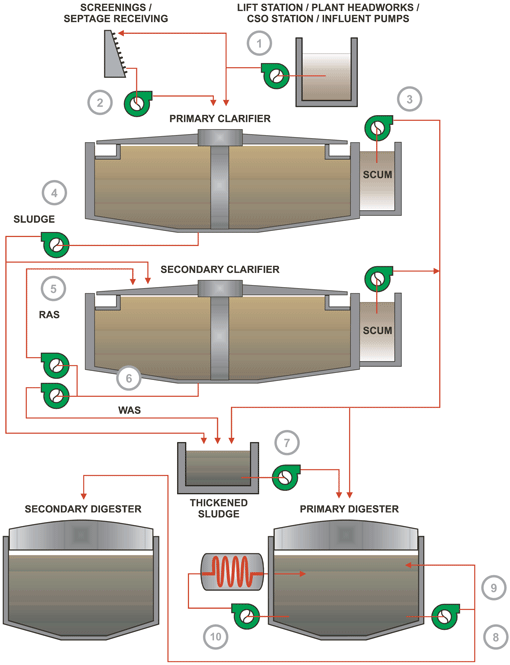

Typical Municipal Flow Diagram

Contact us today 1-877-624-5757 to help diagram your specific project needs

Vaughan Chopper Pump - Flow Diagram



Chopper Pump Configurations

A number of different options for your project. Contact us today 1-877-624-5757 to help identify your specific pump needs


Self-Primer

Outline Self Primer
  • Self-priming up to 25′
  • Heavy duty cartridge design assures dependability
  • 4″ – 10″ discharge available
  • Available in direct or belt drive

Wet Well

Outline Wet Well Vertical Wet Well
  • Vaughan’s most popular sump pump.
  • Reliable mechanical seal/oil bath design.
  • Eliminates suction piping.
  • Keeps motor and wiring out of the pit.
Cantilever Wet Well
  • Eliminates submerged seals and bearings.
  • Best for severe abrasive service.

Submersible

Electric Submersible E-Series
  • Popular for sewage lift stations.
  • Retrofits to most guide rail systems.
  • Ideal for deep sumps.
  • Available with rail system or portable.
  • Also available in HP-series configuration
Electric Submersible S-Series
  • Adaptable to most guide rail systems.
  • Explosion-proof motor.
  • Available with rail system or portable.
Hydraulic Submersible
  • Portable pump for tank cleaning.
  • Lighter weight than other submersibles.
  • Ideal for mobile equipment.

Dry Well

Horizontal Dry Well
  • Various sealing systems available.
  • Direct or belt drive.
  • Adjustable back pull-out design.
Pedestal Dry Well
  • Used primarily in dry well applications where floor space is limited.
  • Various sealing systems available.
  • Adjustable back pull-out design.

Specialty Recirculators

Vertical Recirculator
  • Allows Wet Well and Submersible Pumps to be used for mixing and pump out.
  • Ideal for mixing of floating or settled solids.
Submersible Recirculator
  • Adjustable back pull-out design.
Vaughan Chopper Pumps
