Tuthill Series 4300 Lubrication Pump

TUTHILL SERIES 4300 Lubrication Pump

Tuthill 4000 Series cast iron pumps employ the internal gear pumping principle. There are only two moving parts. Pumping action is based on a rotor, idler gear, and crescentshaped partition cast integral with the cover. Power applied to the rotor is transmitted to the idler gear with which it meshes. The space between the outside diameter of the idler and the inside diameter of the rotor is sealed by the crescent. As the pump starts, the teeth come out of mesh, increasing the volume. This creates a partial vacuum, drawing the liquid into the pump through the suction port. The liquid fills the spaces between the teeth of the idler and the rotor and is carried past the crescent partition through the pressure side of the pump. When the teeth mesh on the pressure side, the liquid is forced from the spaces and out through the discharge port.

Description

Tuthill Series 4300 lubrication pumps are provided with mechanical face type seals. Ten models provide capacities from 6 to 84 GPM. Series 4300 pumps are supplied with Woodruff keyway shafts. Pumps may be provided with outboard ball bearing, relief valve and choice of Buna N, Neoprene, Viton or EPR seal. An optional mounting foot is also available

These pumps are capable of handling inlet pressures to 250 psi at standard 1750 rpm motor speeds. Maximum discharge pressure capability is 300 psi. Maximum differential pressure capability is 150 psi.



Resources

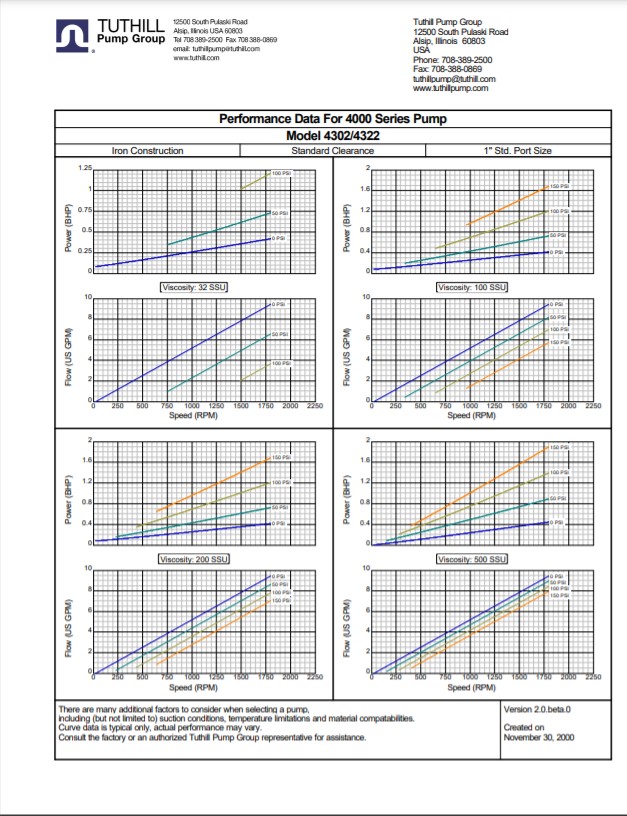

4300 Performance Curves US

4300 Performance Curves US

Download

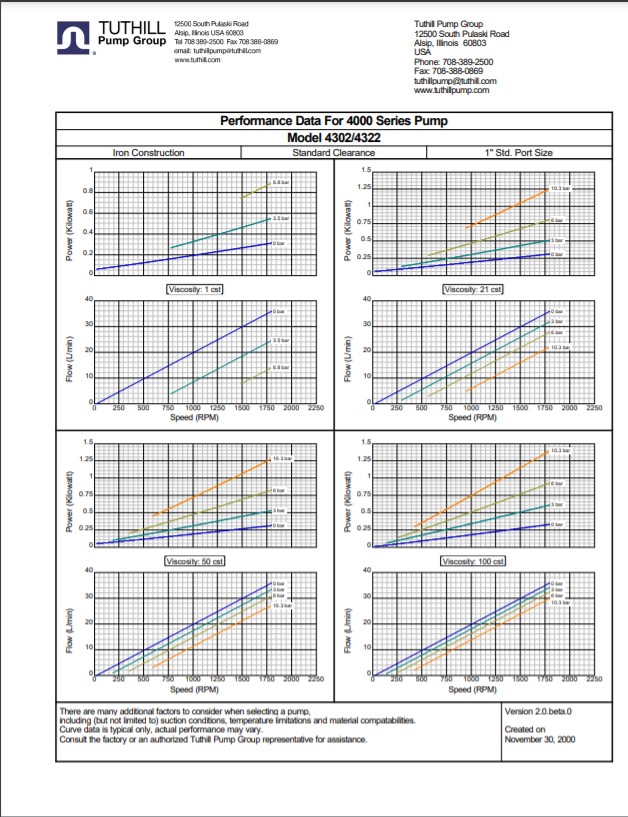

4300 Performance Curves - Metrics
