Tuthill M Series Magnetically Coupled MagDrive Pumps

Tuthill M Series Magnetically Coupled MagDrive Process Pumps

Tuthill M Series magnetic coupled pumps feature a robust design to better withstand the unexpected. Process upsets and cold starts can result in decoupling and permanent magnet damage that results in costly repairs and unplanned down time. Using generously sized high temperature magnets can often prevent this situation. That Is what Tuthill delivers in the M series magnetically coupled seal-less process pumps. With more robust components and superior engineering, these pumps are much less likely to decouple in upset, cold or high viscosity situations. Even in the event of decoupling or run dry, our high temperature magnets are more likely to survive than standard low temperature magnets found in other pumps .Invest in a better pump to avoid those costly magnetic drive pump repairs.

Tuthill M Series Description:

Flow Capacities: .5 to 80GPM (.11 to 18.2 m3/hr)
Pressure: Up to 500 psi(see model chart)
Viscosity: Up to 75,000 ssu (16,500 centistokes)
Temperature: 300°F (149°C) standard construction
500 °F (260°C) high temperature construction

Model Port Size USgpm Maximum PSI Maximum m3/Hr Maximum Speed Construction
ML0I .5″ NPT 1.8 500 0.4 3600 Iron
ML1I .5″ NPT 3.2 500 0.7 3600 Iron
ML2I 1″ NPT 6.2 500 1.4 3600 Iron
MC2I 1″ NPT 9.0 100 2.0 3600 Iron
MC3I 1.25″ NPT 18 100 4.1 3600 Iron
MC4I 1.5″ NPT 36 100 8.2 3600 Iron
MC5I 1.5″ NPT 62 100 14.1 1800 Iron
MC6I 2″ NPT 84 100 19.1 1800 Iron
MG015I 1.5″ NPT/BSP 15 200 3.4 1800 Iron
MG030I 1.5″ NPT/BSP 30 200 6.8 1800 Iron
MG080I 2.125″ ANSI/ISO 80 200 18.2 1500 Iron
MG015S 1.5″ NPT/BSP 12 150 2.7 1200 Stainless
MG030S 1.5″ NPT/BSP 22 150 5.0 1200 Stainless
MG080S 2″ ANSI/ISO 56 150 12.7 1000 Stainless



Resources

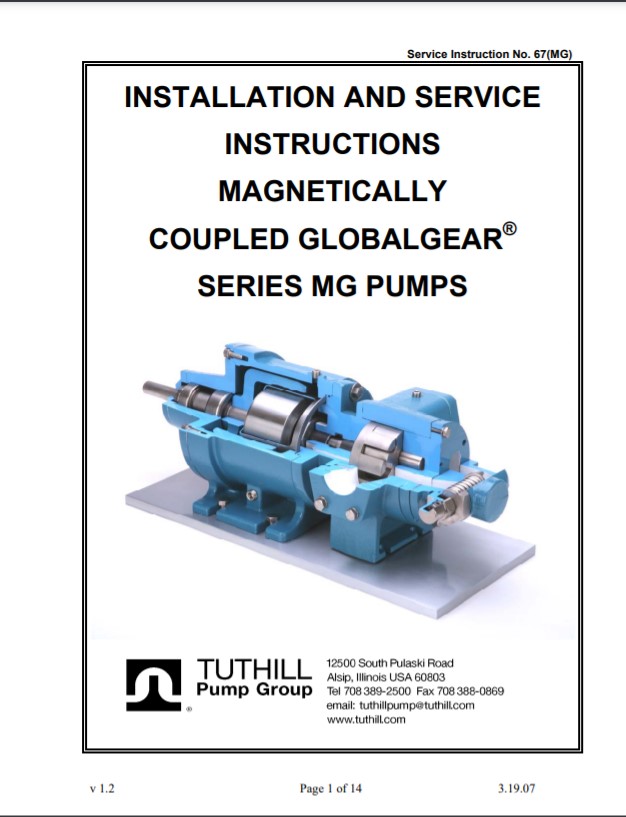

mg series pumps installation and service inst

mg series pumps installation and service inst

Download

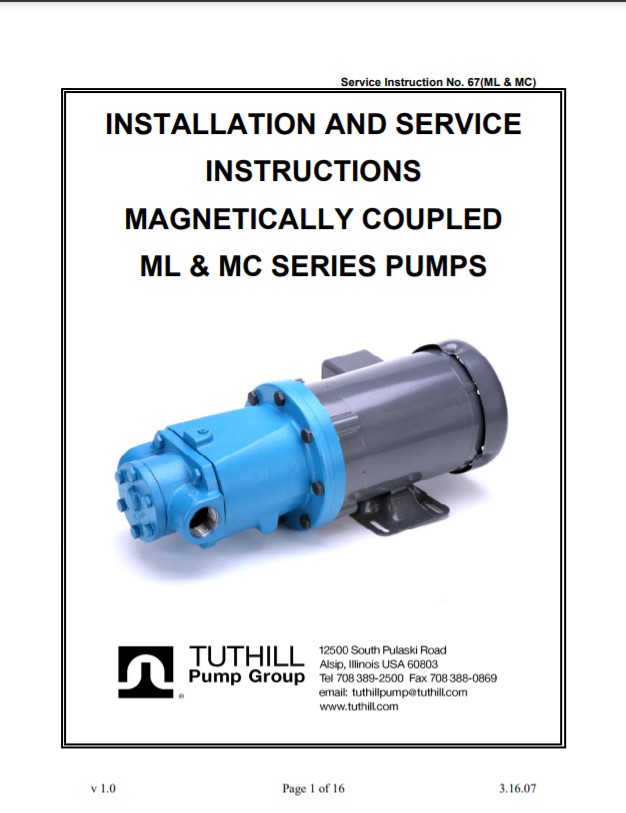

ml and mc series pumps installatio and servuce inst

ml and mc series pumps installatio and servuce inst

Download

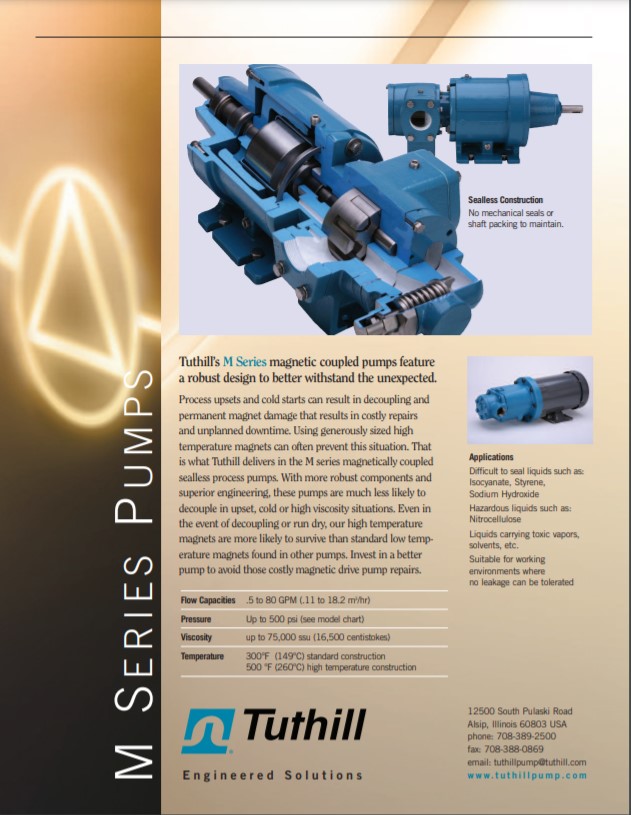

M series product sheet

M series product sheet

Download
