Tuthill D Series Magnetically Coupled Pumps

Tuthill D Series Magnetically Coupled Pumps

The magnetically coupled construction requires no packing or mechanical seals. This also means there are no diaphragms or plastic tubes to rupture, making them leak free. The external gear design offers flow that is relatively independent of pressure providing constant fluid delivery with no pulsations and controlled volume that is accurate and repeatable, making it highly suitable for metering applications. And it can meet these demands in circumstances with high differential pressures and high system pressures, as well as thin to moderate viscosity fluids. Quality 316 stainless steel, hastelloy, titanium, or engineered plastics construction with engineered plastic gears and bearings provides excellent resistance to chemicals and corrosive fluids. These features provide long life and, combined with efficient modular design, offer low maintenance and easy low-cost installation and start-up.

Description:

Details for Tuthill D Series Magnetically Coupled Pumps:

316 Stainless Steel, Hastelloy or Titanium

– Flow rates from 1 ml/min to 121 gph (458 L/hr)

– Differential pressures to 250psi (17.2 bar)

– System pressures to 500psi (34.5 bar)

– Temps to 350°F(176°C)

– Viscosities to 2000cps+.

– ATEX approved

Tuthill D Series Magnetically Coupled Pumps Performance Chart:

CONT.
MAXIMUM
SPEED
MAXIMUM   DIFFERENTIAL PRESSUREMAXIMUM
TEMPERATURE
FLOW   @ 0 PRESSURE
SIZEPUMPINTERMITTENTCONTINUOUS3500 RPM2900 RPM
ml/revSERIESRPMPSIBARPSIBAR°F°CUS GPHLPH
0.11D500025017.225017.23501775.818
0.19D500025017.225017.235017710.031
0.23D500025017.225017.235017712.138
0.38D500025017.225017.235017720.063
0.57D500025017.225017.235017730.094
0.68D500025017.220013.835017735.8112
0.80D500025017.220013.835017742.2132
0.99D500020013.81409.735017752.2164
1.20D500020013.81409.735017763.2198
1.30D500017512.11258.635017769.0215
1.60D500015010.31006.935017784.0264
2.00D500015010.31006.9350177105.0331
2.30D500015010.31006.9350177121.0380


Applications for Tuthill D Series Magnetically Coupled Pumps:
– Laboratory
– Water purification
– Heat transfer
– Lubrication
– Fluid transfer
– Recirculation
– Cooling chemical metering
– Sampling
– Temperature control
– Medical
– Additive delivery
– Proportioning
– Chemical handling
– Refrigerant recycling
– Ultra-pure water
– Lasers
– Oil filtration
– Metering
– Liquid chromatography
– General use


Join our Mailing List

Resources

Tuthill Magnetically Coupled Pumps- D, T and P Series Brochure

Download
Size: 1 MB

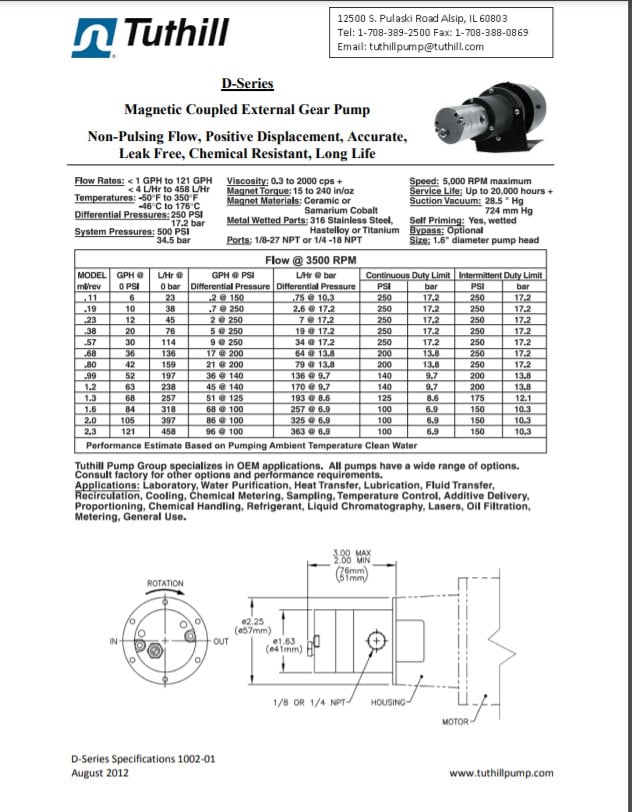

Tuthill D Series Magnetically Coupled Pumps- Specifications
