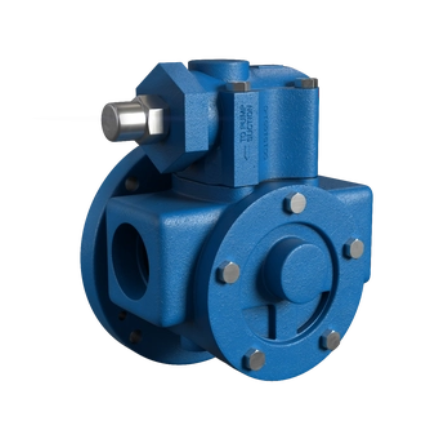

Tuthill CC Series Lubrication Pumps

Tuthill CC Series of close coupled pumps offer compactness and economy. With lots of pump performance in a relatively small space, the CC Series is ideal for package pumping skids or applications where space is limited. By eliminating the need for adapters, reducers, couplings, bases and guards, the CC Series also saves on first cost and eliminates the need for maintenance of these components down the road.

Tuthill CC Series Specifications

Model Port Number Nominal Flow Capacity – Rate at 750 ssu / 50 psi Speed (max)
009 1″ 9.4 gpm 35.5 lpm 1800 rpm
015 1-1/2″ 16.6 gpm 62.8 lpm 1800 rpm
020 1-1/2″ 22.2 gpm 84.0 lpm 1800 rpm
030 1-1/2″ 32.5 gpm 123.0 lpm 1800 rpm

Tuthill CC Series Applications

  • Lubrication
  • Fluid Transfer
  • Filtration
  • Lube Oil
  • Fuel Oil
  • Glycol Solutions (Anti-Freeze)
  • Water Treatment
  • Polymers
  • Filtering Waste Oil


Tuthill CC Series Competitive Advantages

  • Includes Carbon Bushing as Standard
  • Ductile Iron Rotor and Idler for Strength – CC curves go to 10,000 ssu

Eliminates Need for

  • Bases
  • Gear Reducers
  • Adapters
  • Couplings
  • Coupling Guards

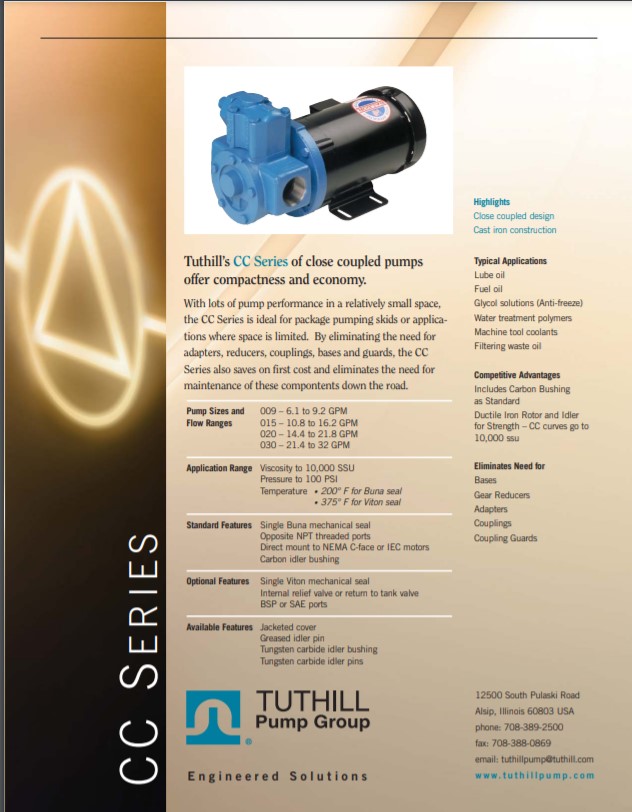

CC Series Brochure

CC Series Brochure

CC Series Performance Curve Metric

CC Series Performance Curve Metric

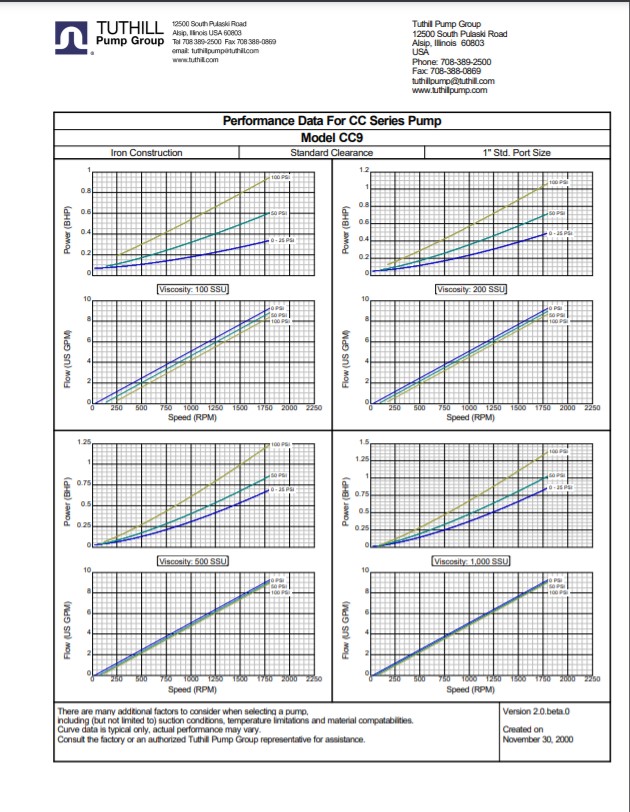

CC Series Performance Curve US Units

CC Series Performance Curve US Units
