Adding EXAIR's Flexible Stay Set Hose allows users to easily extend blowoff into hard-to-reach areas that would otherwise require an awkward position. EXAIR's Soft Grip Safety Air Gun is ideal for hours of continuous use without fatigue. The ergonomic design keeps the hand in a comfortable position and incorporates a large trigger that permits operation with one or more fingers. The durable cast aluminum body is suited for rugged industrial use and includes a convenient hanger hook for easy storage. These guns with EXAIR engineered nozzles minimize compressed air use, maintain OSHA pressure standard 1910.242(b) and reduce noise exposure by remaining under OSHA standard 29 CFR 1910.95(a) decibel limits.
| Product | Flow | Nozzle Type | Force | Stay Set Hose Length | Air Inlet |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | 6" (152mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | 12" (305mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | 18" (457mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | 24" (762mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | 30" (762mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | 36" (914mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Atto Super Air Nozzle | 9 oz/ 255 grams | 6" (152mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Atto Super Air Nozzle | 9 oz/ 255 grams | 12" (305mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Atto Super Air Nozzle | 9 oz/ 255 grams | 18" (457mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Atto Super Air Nozzle | 9 oz/ 255 grams | 24" (762mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Atto Super Air Nozzle | 9 oz/ 255 grams | 30" (762mm) | 1/4 FNPT |
|
10 SCFM (283 SLPM) | St. Steel Atto Super Air Nozzle | 9 oz/ 255 grams | 36" (914mm) | 1/4 FNPT |
 |

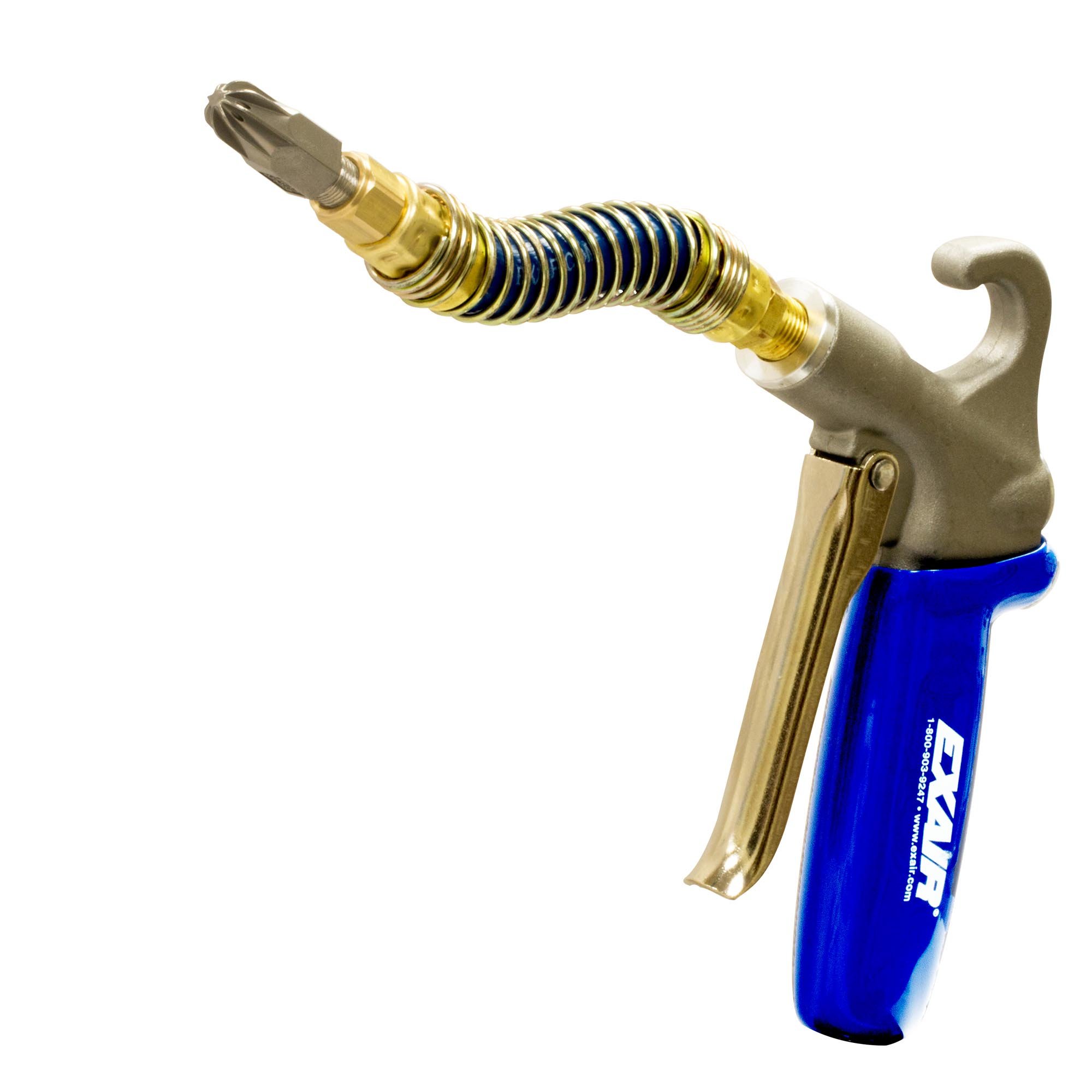

10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | 6" (152mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | 12" (305mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | 18" (457mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | 24" (762mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | 30" (762mm) | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | 36" (914mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | 6" (152mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | 12" (305mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | 18" (457mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | 24" (762mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | 30" (762mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | 36" (914mm) | 1/4 FNPT |
 |

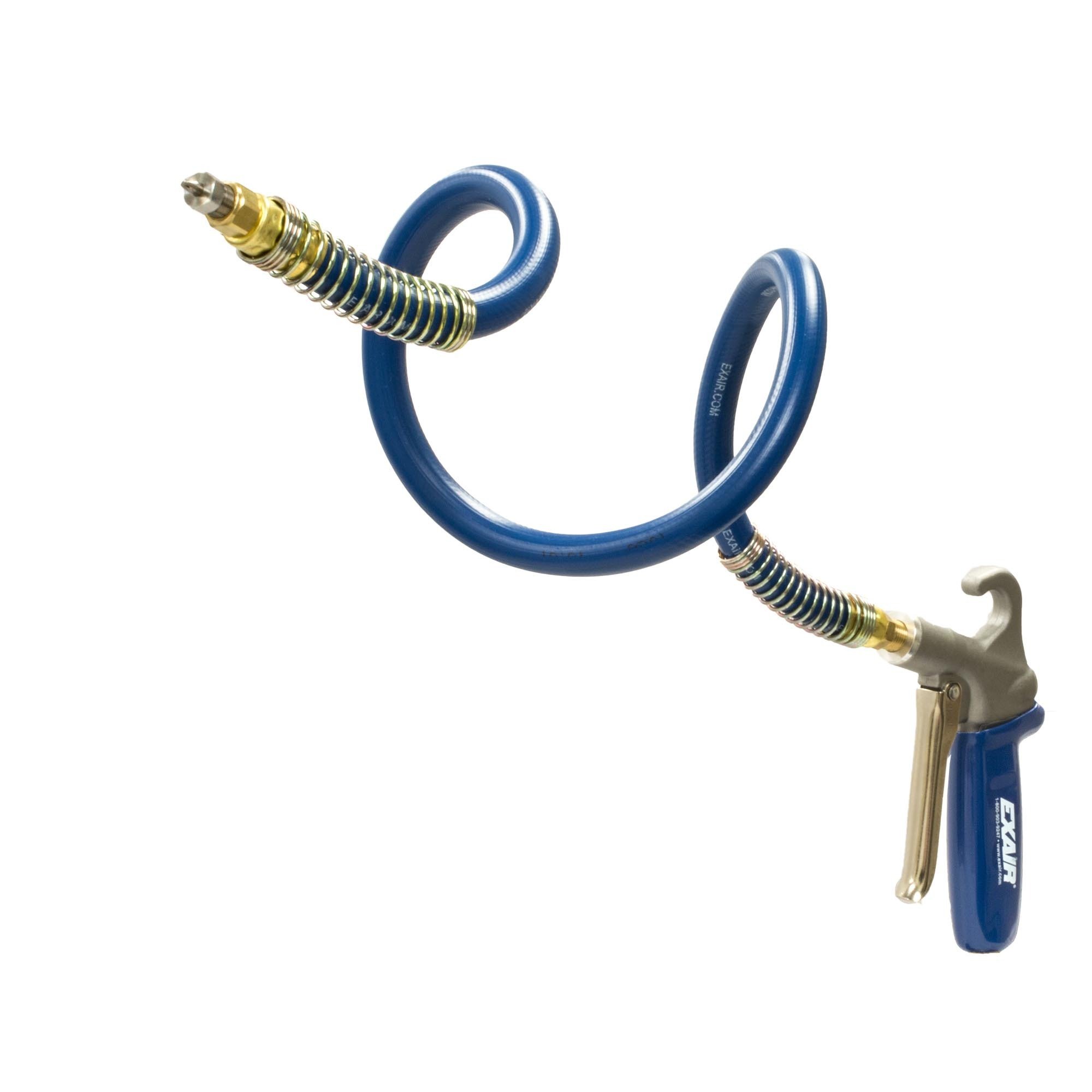

2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | 6" (152mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | 12" (305mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | 18" (457mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | 24" (762mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | 30" (762mm) | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | 36" (914mm) | 1/4 FNPT |
 |

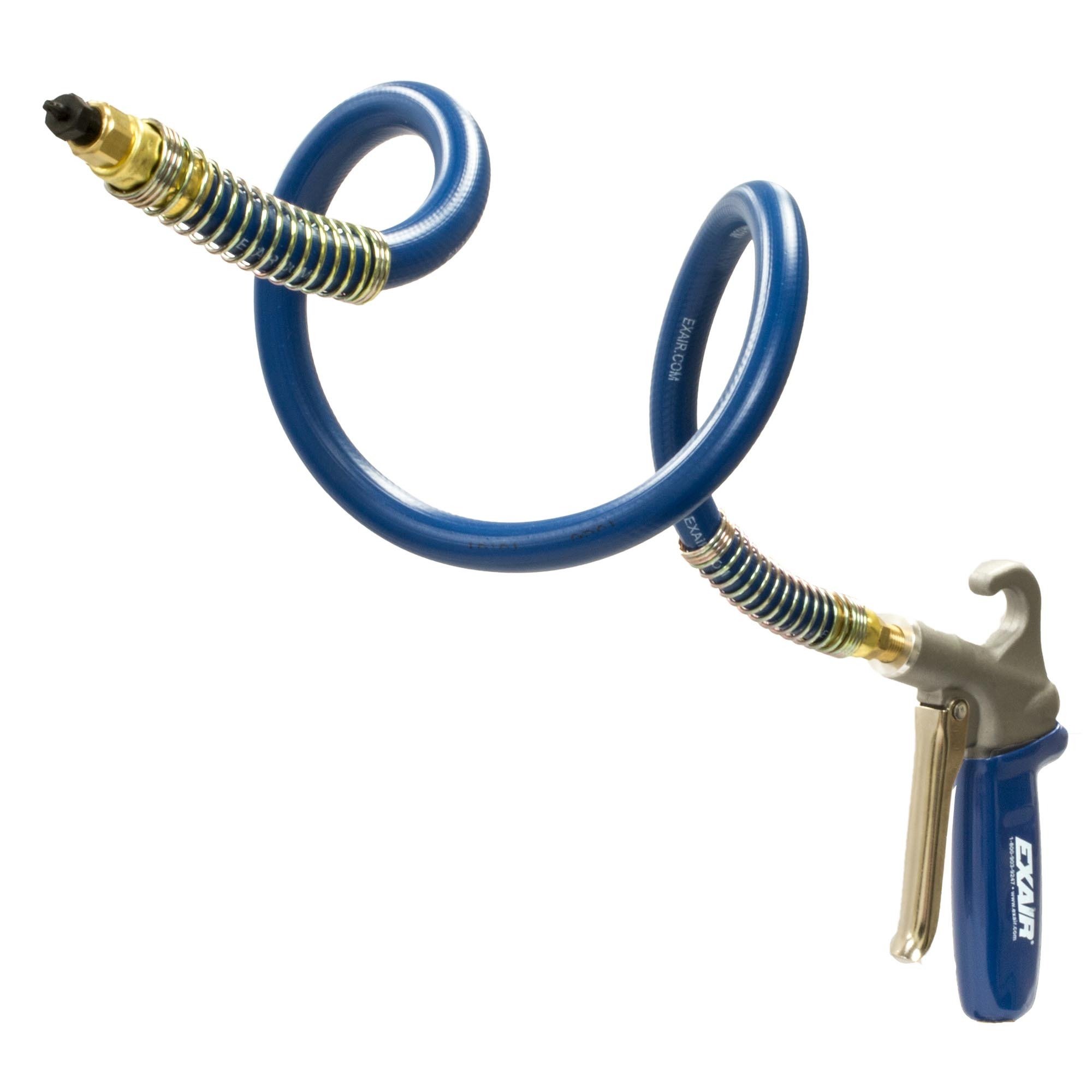

4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | 6" (152mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | 12" (305mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | 18" (457mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | 24" (762mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | 30" (762mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | 36" (914mm) | 1/4 FNPT |
 |

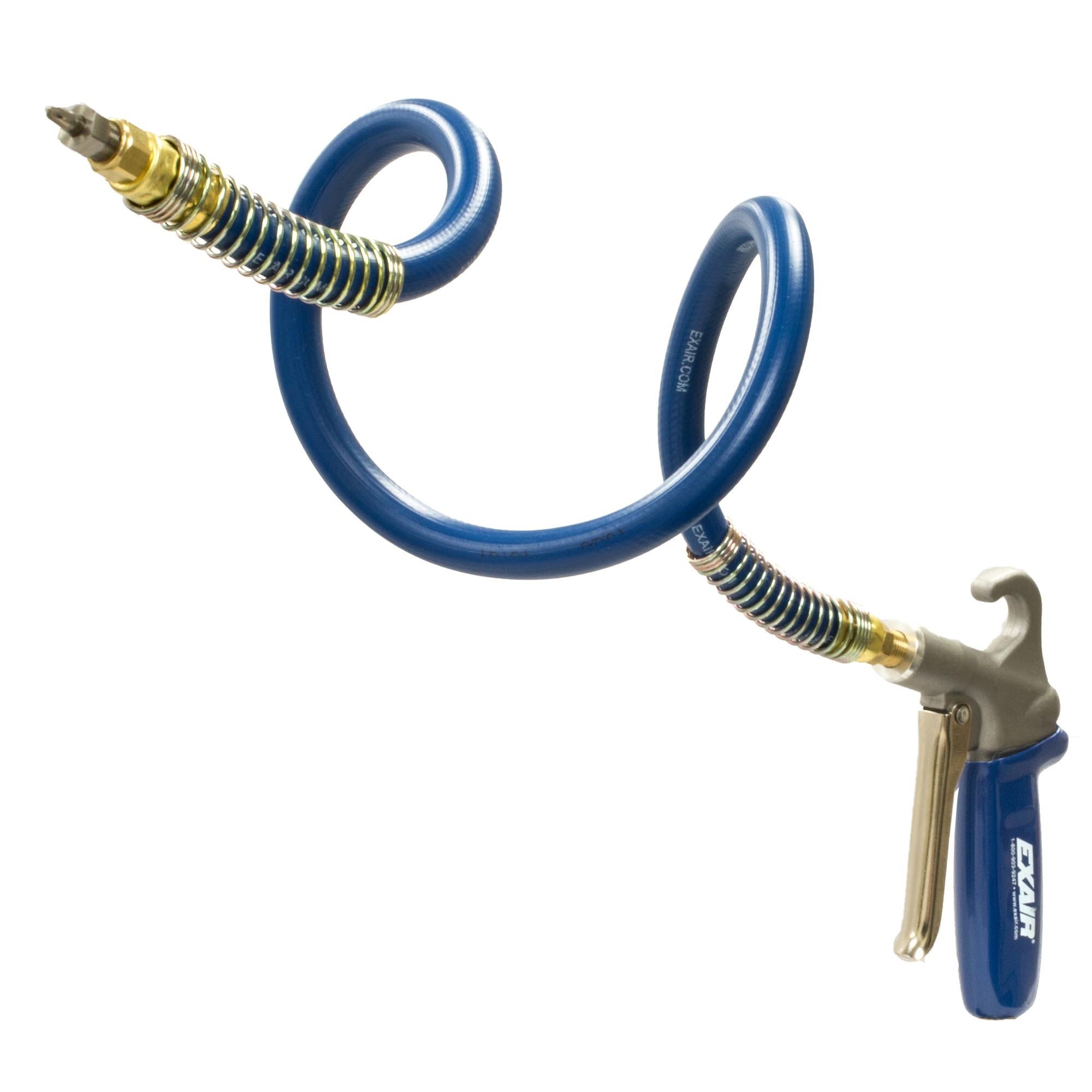

4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | 6" (152mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | 12" (305mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | 18" (457mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | 24" (762mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | 30" (762mm) | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | 36" (914mm) | 1/4 FNPT |
 |

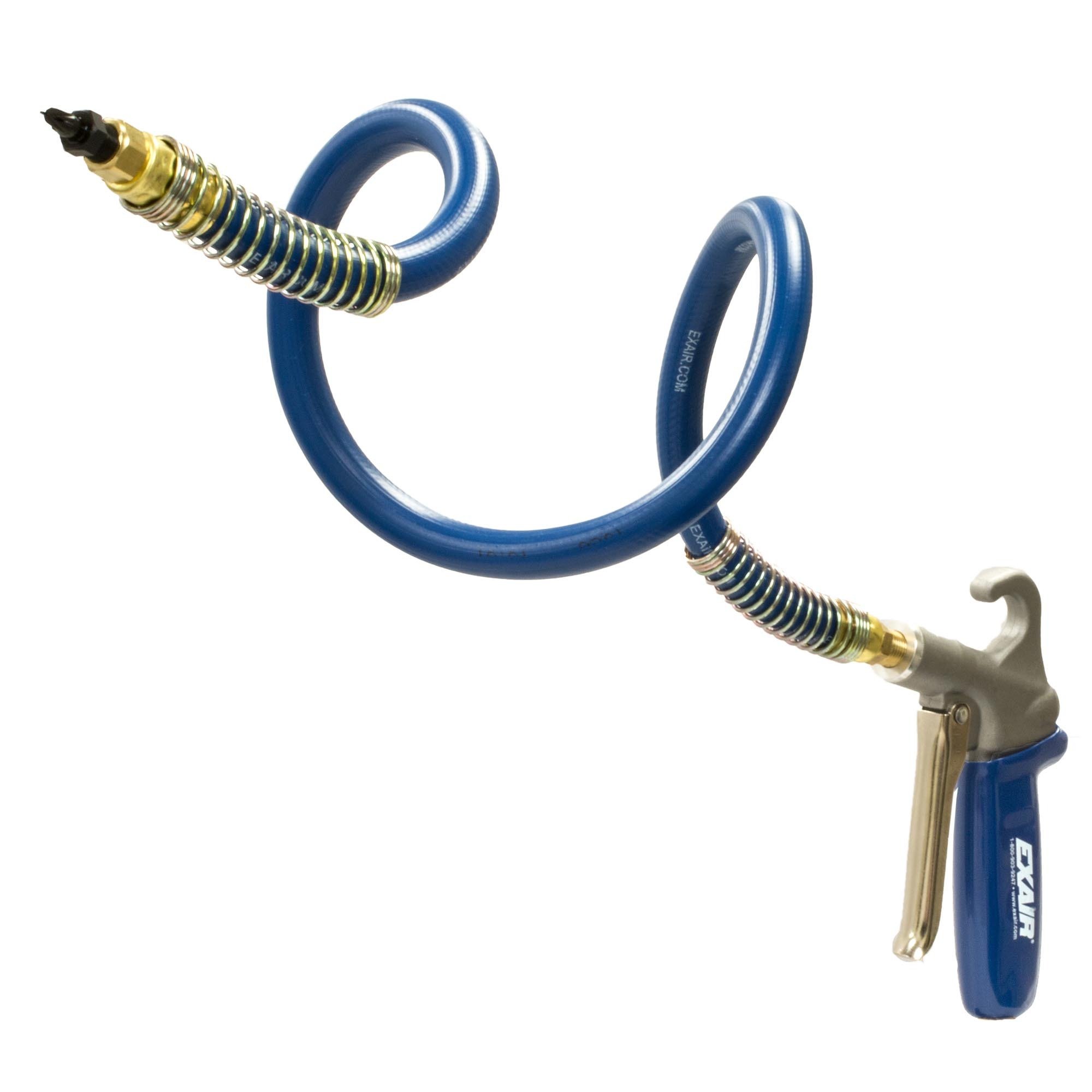

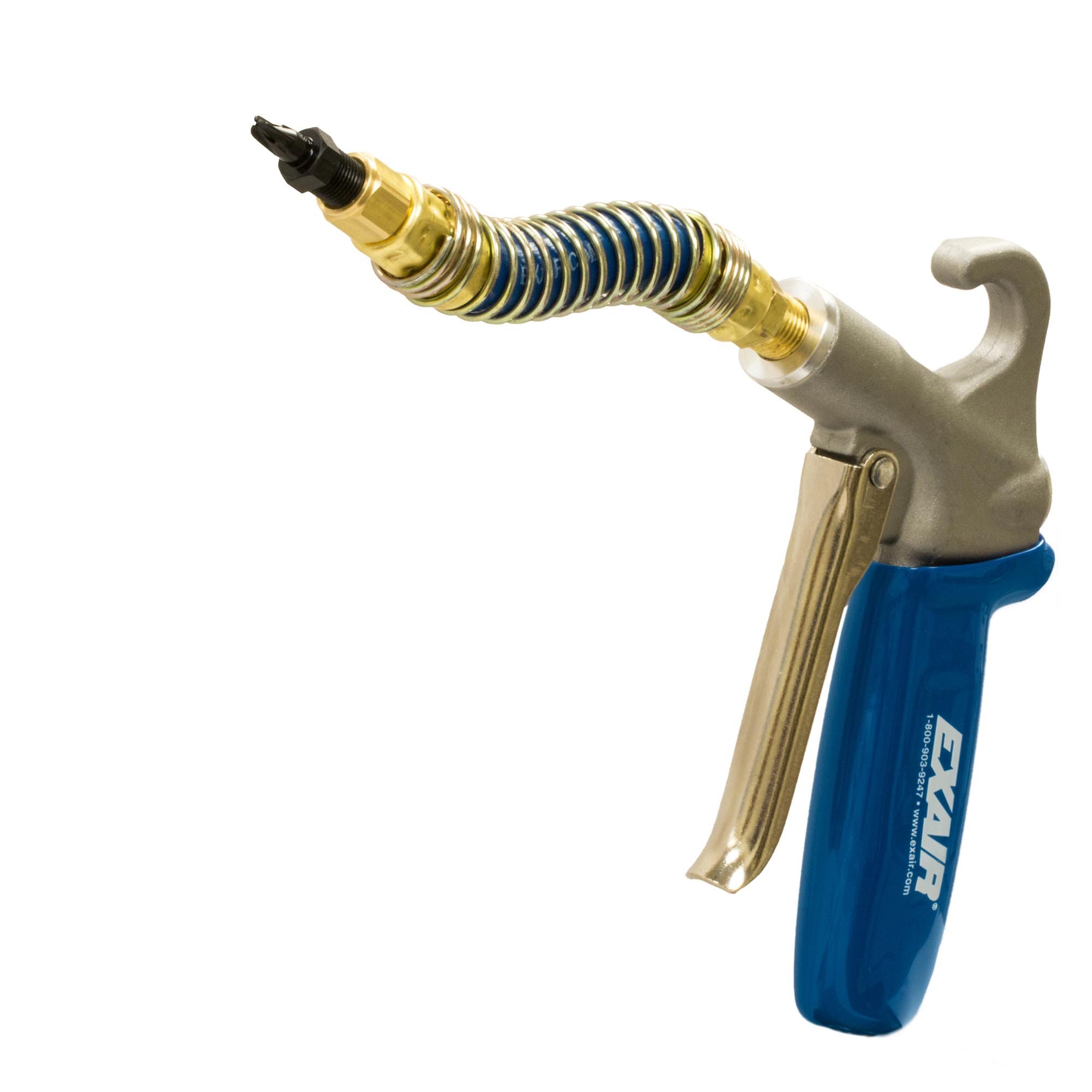

8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | 6" (152mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | 12" (305mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | 18" (457mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | 24" (762mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | 30" (762mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | 36" (914mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super | 8.1 oz/ 230 grams | 6" (152mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super | 8.1 oz/ 230 grams | 12" (305mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super | 8.1 oz/ 230 grams | 18" (457mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super | 8.1 oz/ 230 grams | 24" (762mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super | 8.1 oz/ 230 grams | 30" (762mm) | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super | 8.1 oz/ 230 grams | 36" (914mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 6" (152mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 12" (305mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 18" (457mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 24" (762mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 30" (762mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 36" (914mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 6" (152mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 12" (305mm) | 1/4 FNPT |
|
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 18" (457mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 24" (762mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 30" (762mm) | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | 36" (914mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | 6" (152mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | 12" (305mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | 18" (457mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | 24" (762mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | 30" (762mm) | 1/4 FNPT |
Extension Pipe Length and Chip Shield not applicable with EXAIR Soft Grip Safety Air Gun with Nozzle and Stay Set Hose.
| Product | Flow | Nozzle Type | Force | Stay Set Hose Length | |
 |
13 SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | 36" (914mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | 6" (152mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | 12" (305mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | 18" (457mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | 24" (762mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | 30" (762mm) | 1/4 FNPT |
|
13 SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | 36" (914mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | 6" (152mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | 12" (305mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | 18" (457mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | 24" (762mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | 30" (762mm) | 1/4 FNPT |
 |
13 SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | 36" (914mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 6" (152mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 12" (305mm) | 1/4 FNPT |
|
|
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 18" (457mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 24" (762mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 30" (762mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 36" (914mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT | 13 oz/ 368 grams | 6" (152mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT | 13 oz/ 368 grams | 12" (305mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT | 13 oz/ 368 grams | 18" (457mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT | 13 oz/ 368 grams | 24" (762mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT | 13 oz/ 368 grams | 30" (762mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT | 13 oz/ 368 grams | 36" (914mm) | 1/4 FNPT |
 |

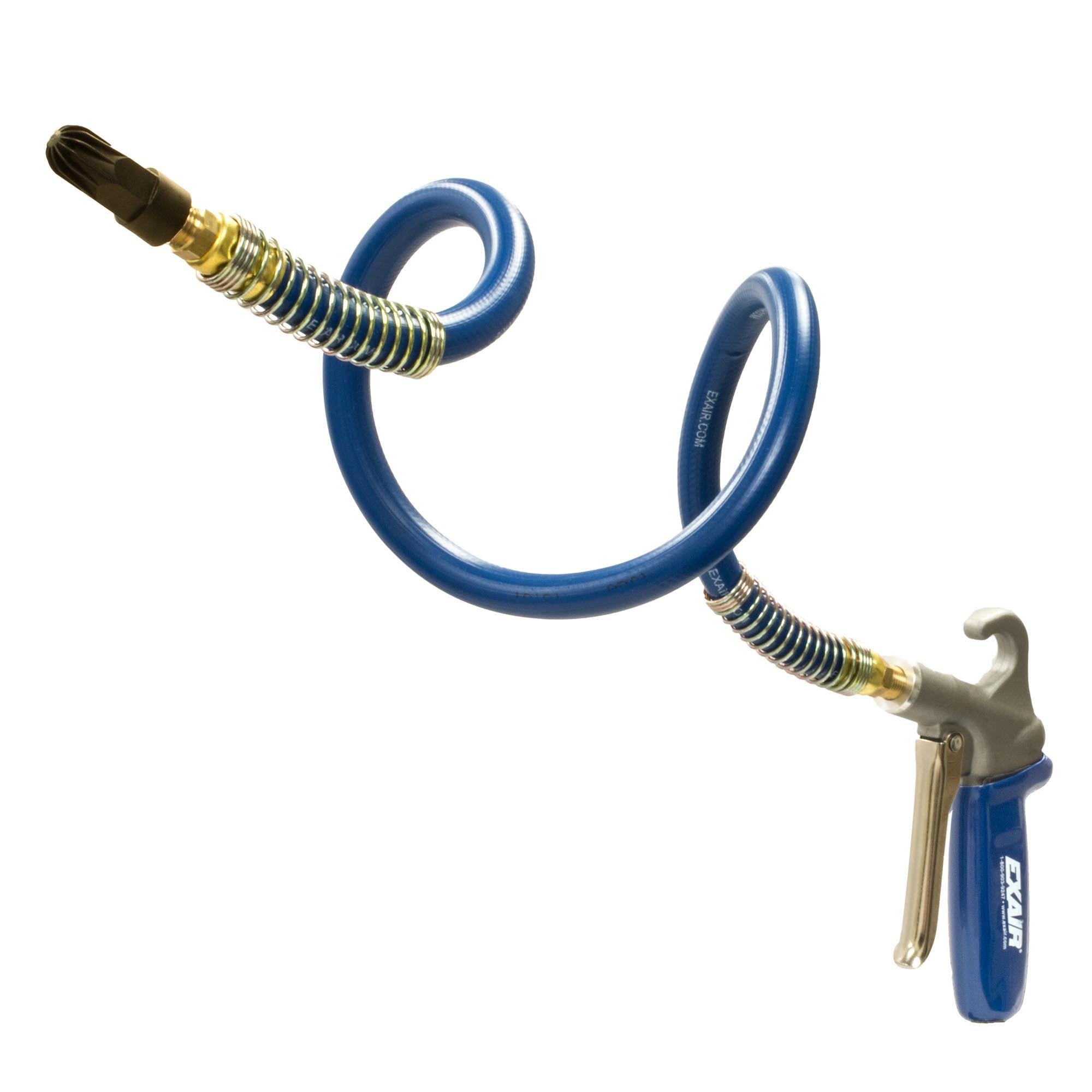

14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 6" (152mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 12" (305mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 18" (457mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 24" (762mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 30" (762mm) | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz/ 368 grams | 36" (914mm) | 1/4 FNPT |
 |

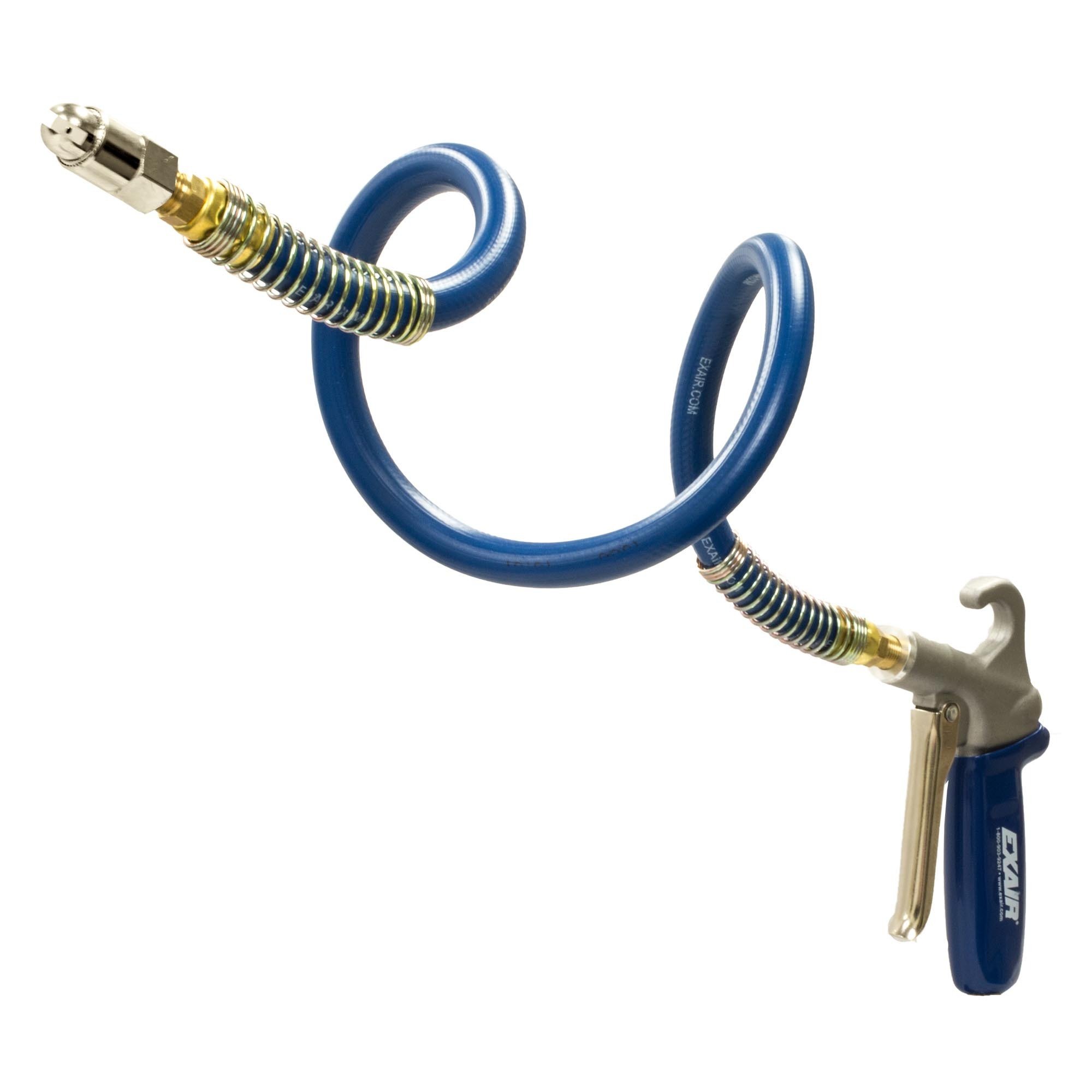

17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz/ 454 grams | 6" (152mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz/ 454 grams | 12" (305mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz/ 454 grams | 18" (457mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz/ 454 grams | 24" (762mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz/ 454 grams | 30" (762mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz/ 454 grams | 36" (914mm) | 1/4 FNPT |
 |

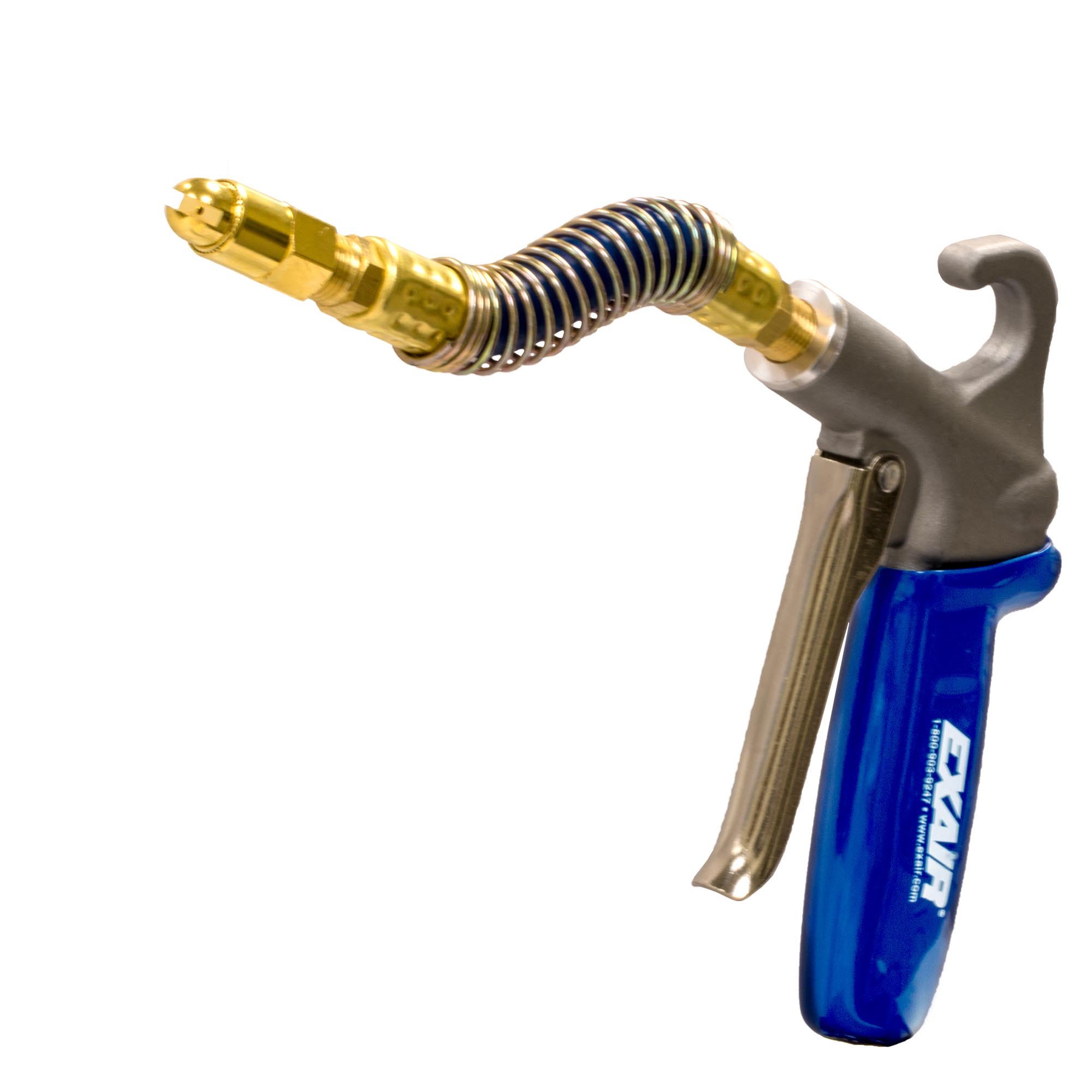

17 SCFM (481 SLPM) | Brass 1/4 NPT Safety Air Nozzle | 16 oz/ 454 grams | 6" (152mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | Brass 1/4 NPT Safety Air Nozzle | 16 oz/ 454 grams | 12" (305mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | Brass 1/4 NPT Safety Air Nozzle | 16 oz/ 454 grams | 18" (457mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | Brass 1/4 NPT Safety Air Nozzle | 16 oz/ 454 grams | 24" (762mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | Brass 1/4 NPT Safety Air Nozzle | 16 oz/ 454 grams | 30" (762mm) | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | Brass 1/4 NPT Safety Air Nozzle | 16 oz/ 454 grams | 36" (914mm) | 1/4 FNPT |
 |

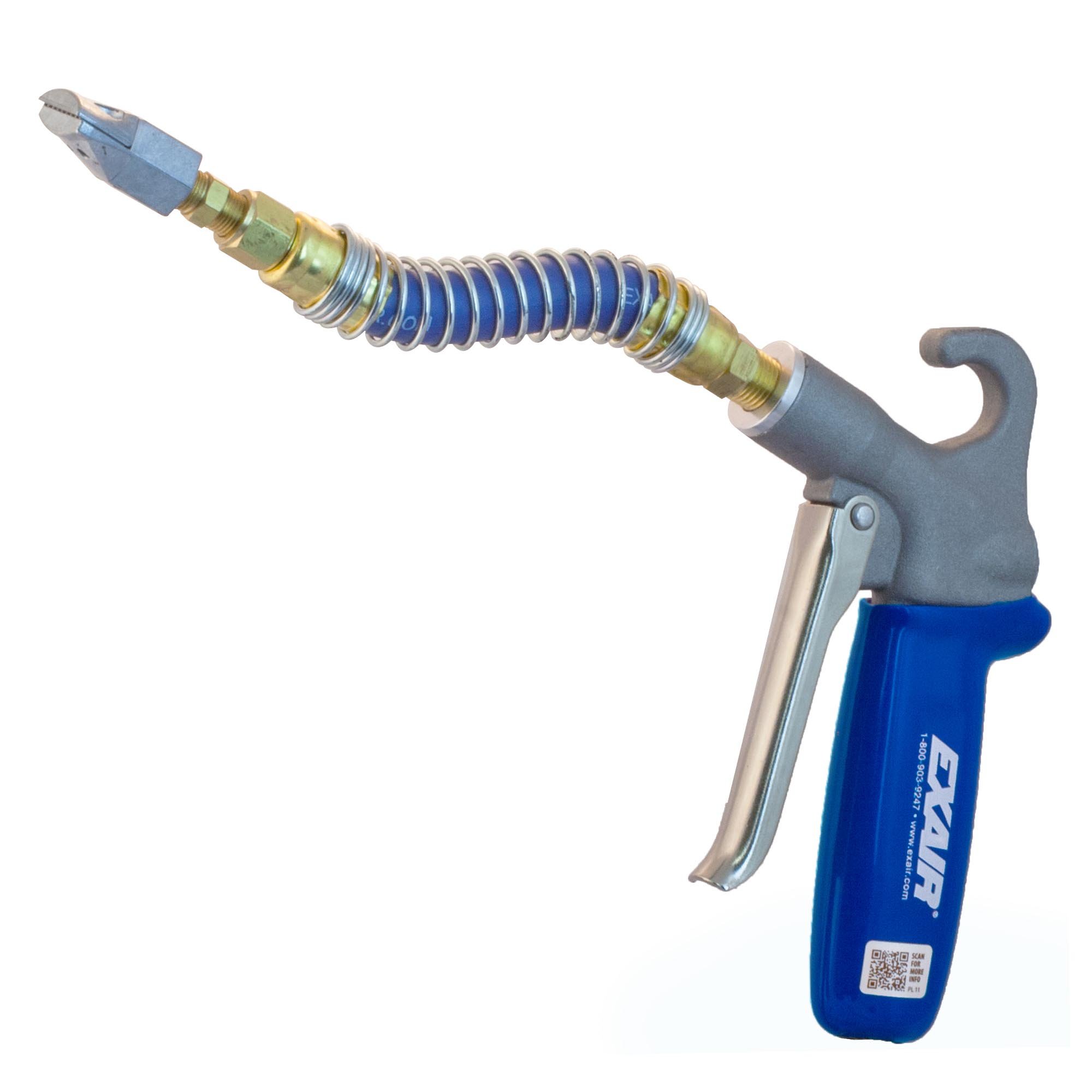

17.5 SCFM (495 SLPM) | St. Steel 1" HP Flat Super Air Nozzle | 16 oz/ 454 grams | 6" (152mm) | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | St. Steel 1" HP Flat Super Air Nozzle | 16 oz/ 454 grams | 12" (305mm) | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | St. Steel 1" HP Flat Super Air Nozzle | 16 oz/ 454 grams | 18" (457mm) | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | St. Steel 1" HP Flat Super Air Nozzle | 16 oz/ 454 grams | 24" (762mm) | 1/4 FNPT |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Part drying
Advantages:
- Lightweight
- Comfortable to operate during extended use
- Highly focused blast of air
- Small nozzle and extension can fit into tight spaces
- Reduced compressed air cost
- Improved blowoff performance
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
Materials:
Soft Grip Safety Air Gun Body:
- Durable cast aluminum with soft plastic grip.
Nozzle Options:
- Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
- Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).
- PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C).
Accessories:
Coiled Hose with Swivel - Heavy duty compressed air hose that's coiled to conveniently store it when not in use. Available in 12' (3.7m) lengths.
Chip Shields - durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splash back from drying operations.
Specifications:

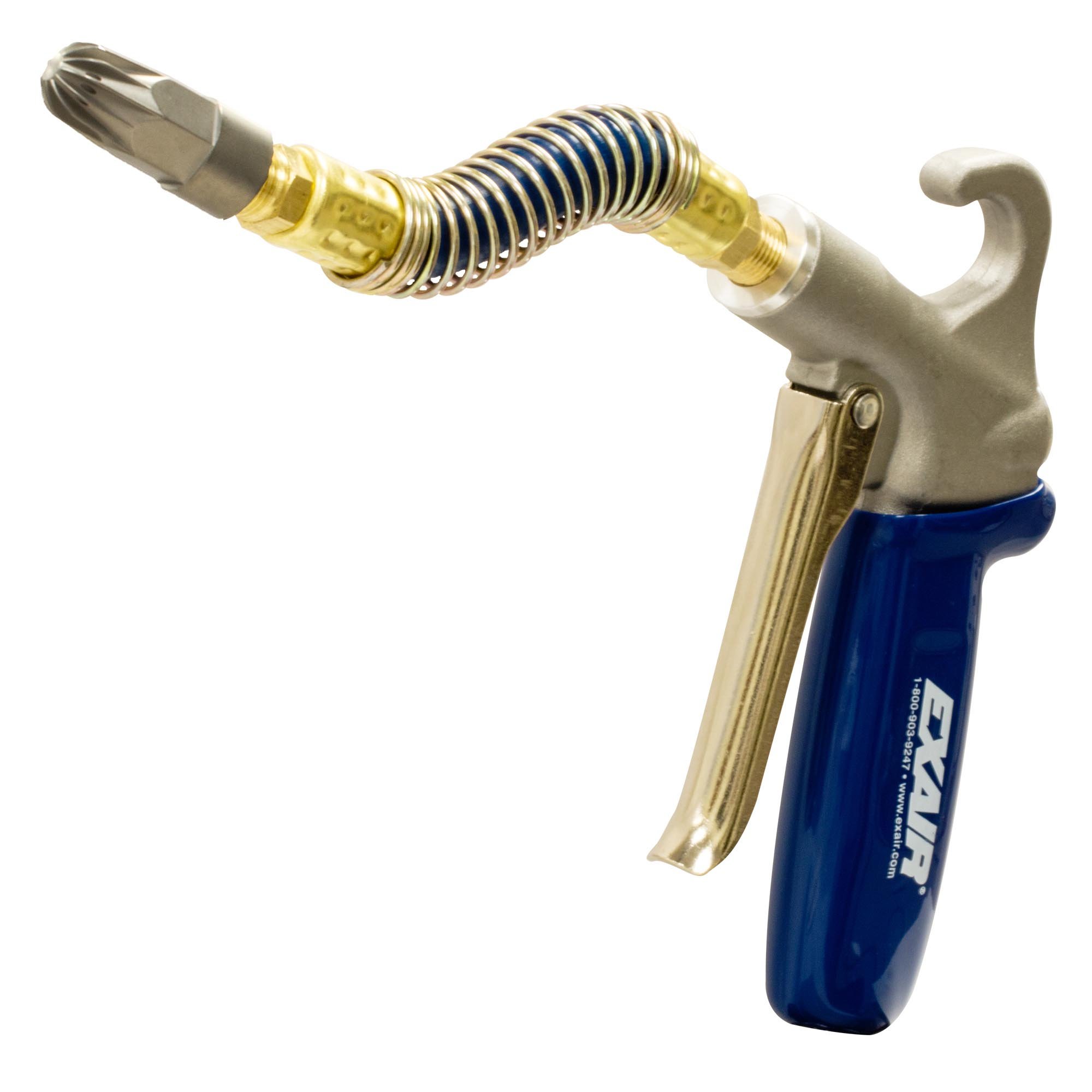

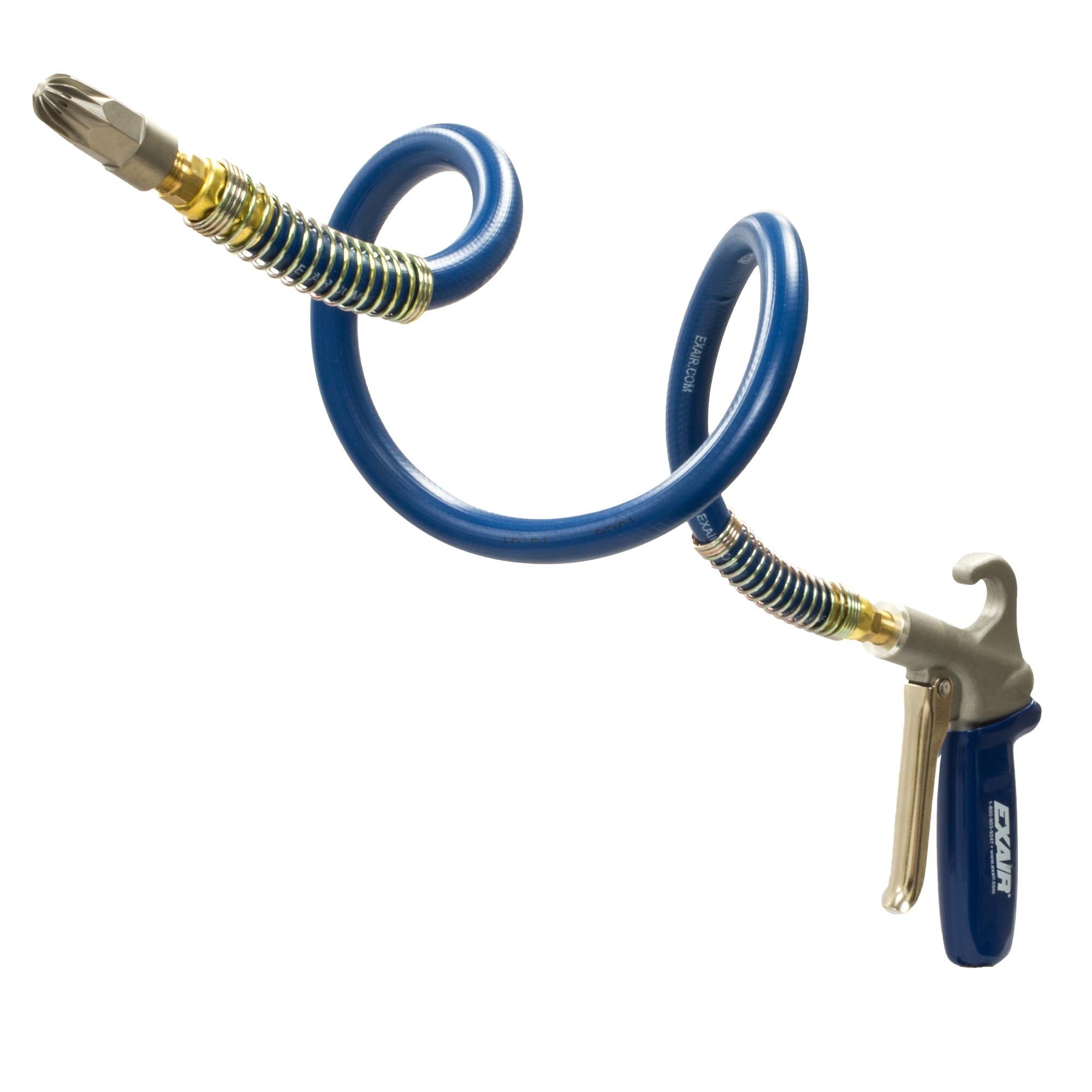

Model 1210SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1100SS Stainless Steel Super Air Nozzle |
|||||
|
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 14 | 396 | 13 | 369 | 74 | |
|

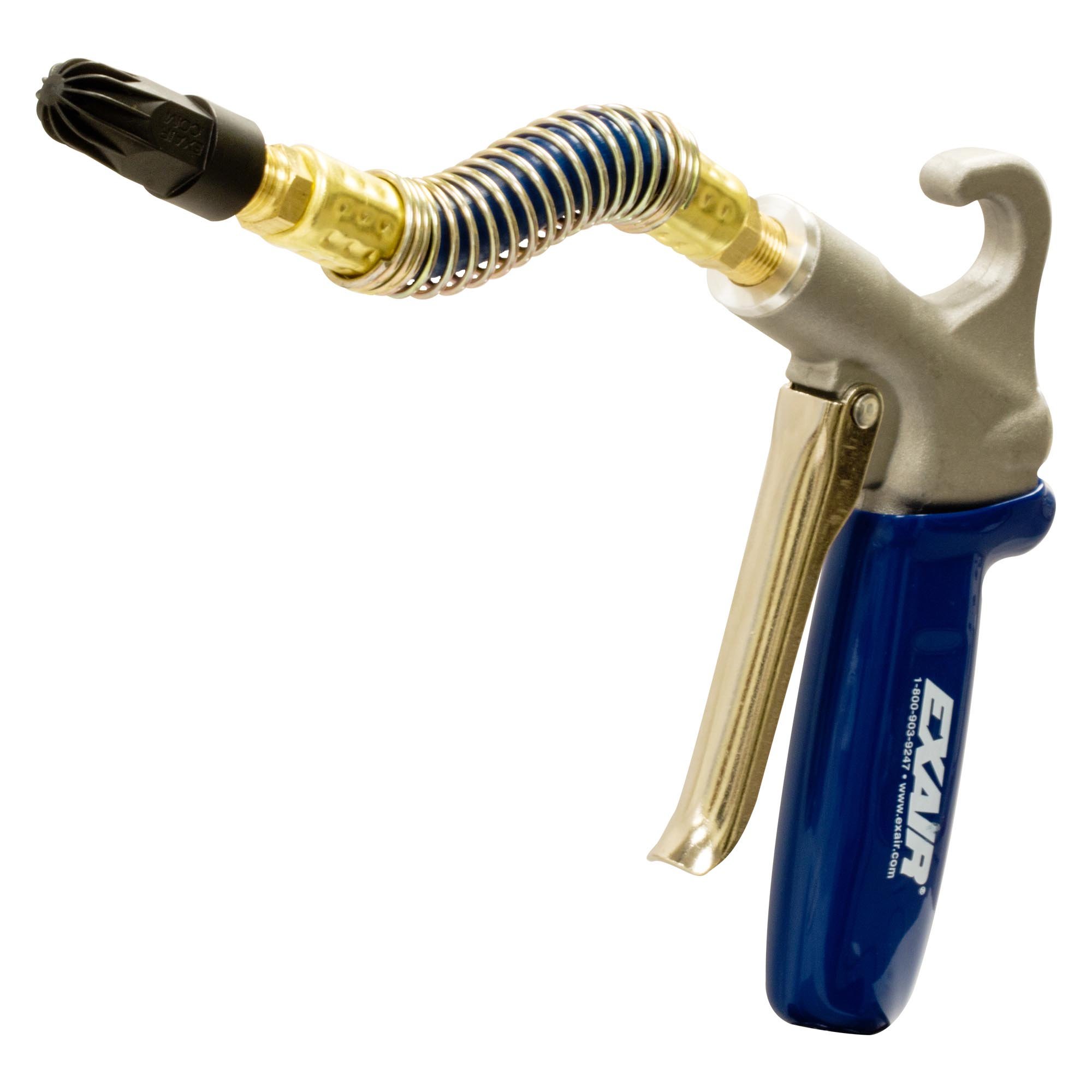

Also available: 1210 with 1100 Zinc Aluminum Super Air Nozzle 1210-PEEK with 1100-PEEK PEEK plastic Super Air Nozzle |
|||||

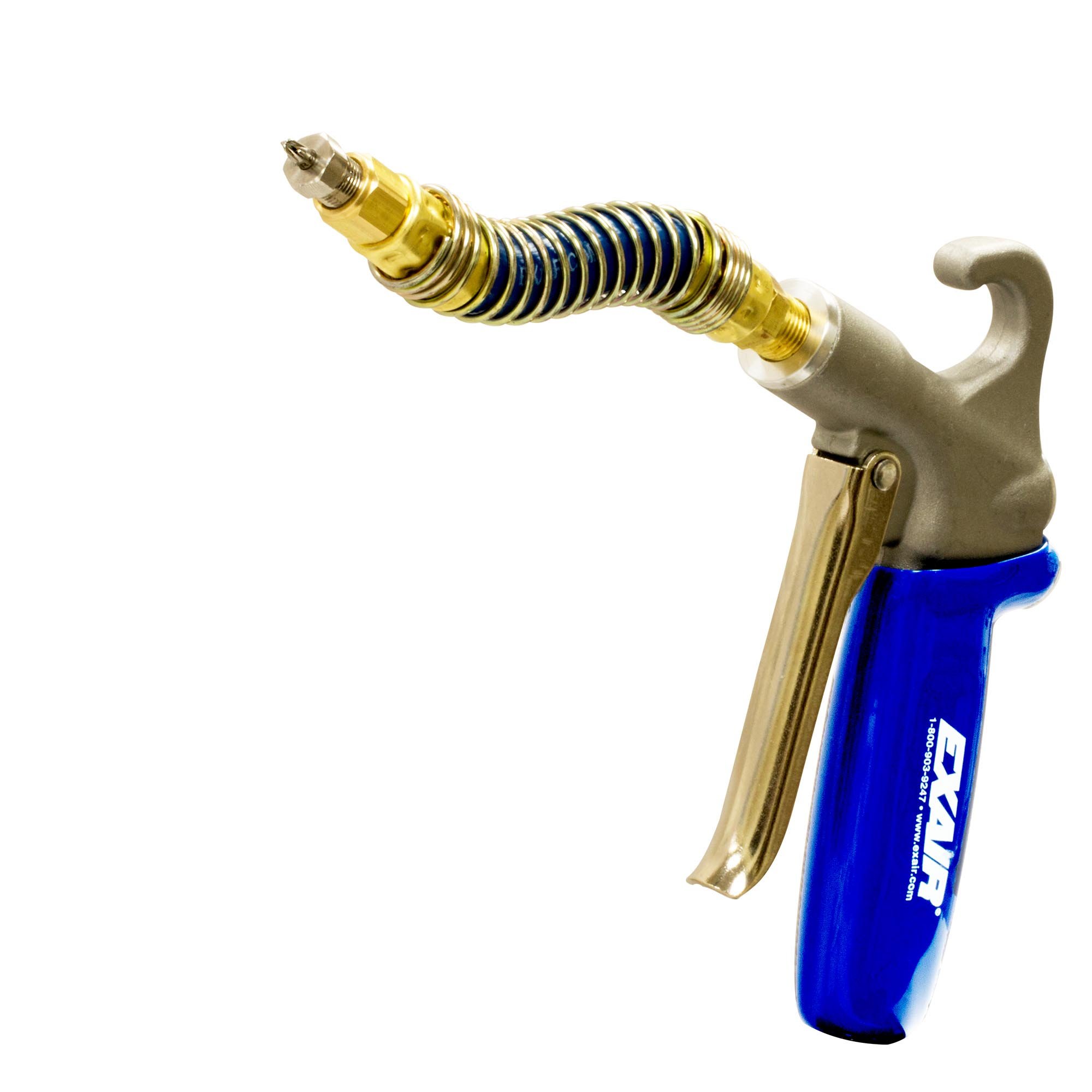

Model 1296SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1108SS Stainless Steel Atto Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 2.5 | 71 | 2.0 | 56.7 | 58 | |
|
Also available: 1296-PEEK with 1108-PEEK PEEK plastic Atto Super Air Nozzle |
|||||

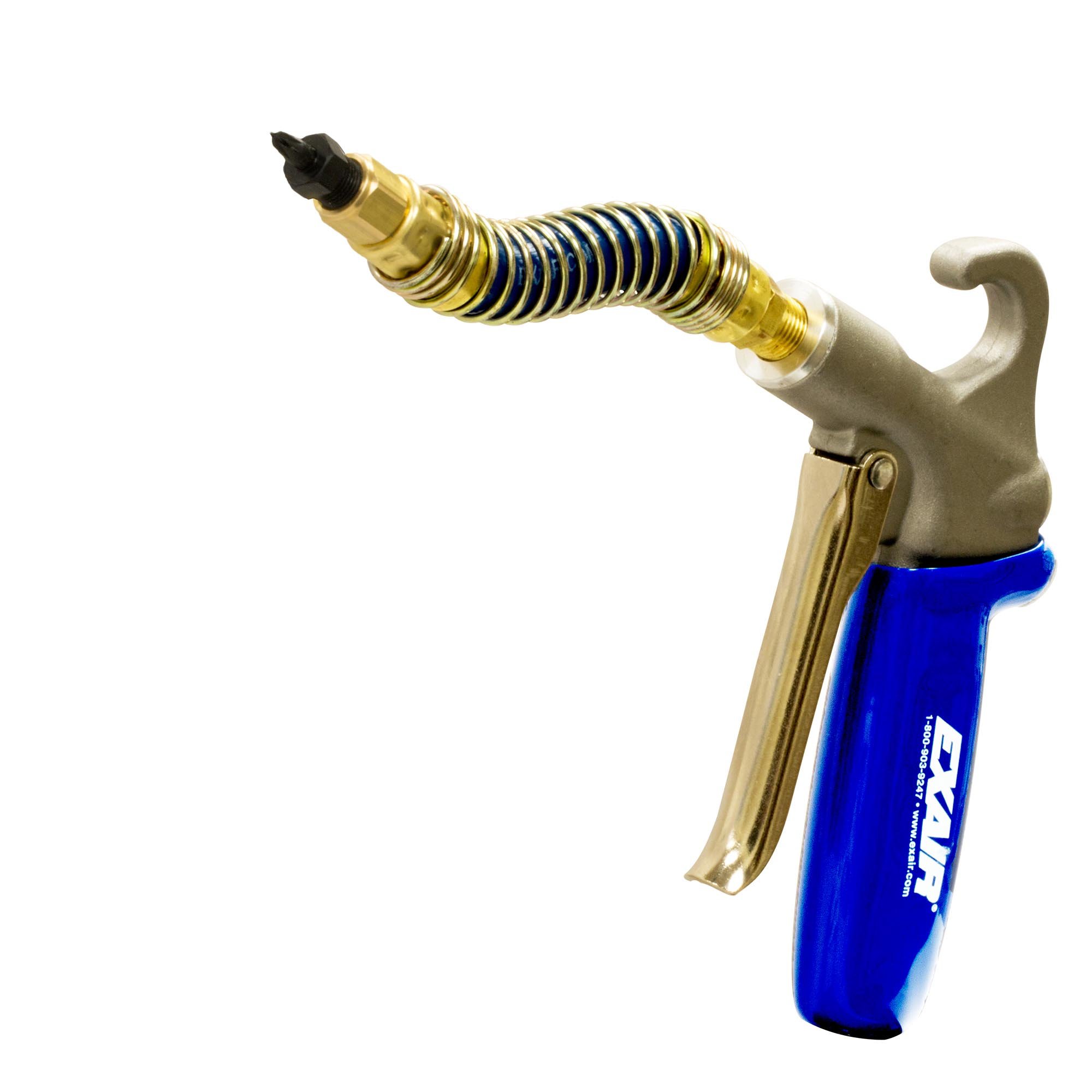

Model 1297SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1109SS Stainless Steel Pico Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 4.9 | 139 | 5.0 | 142 | 68 | |
|
Also available: 1297-PEEK with 1109-PEEK PEEK plastic Pico Super Air Nozzle |
|||||

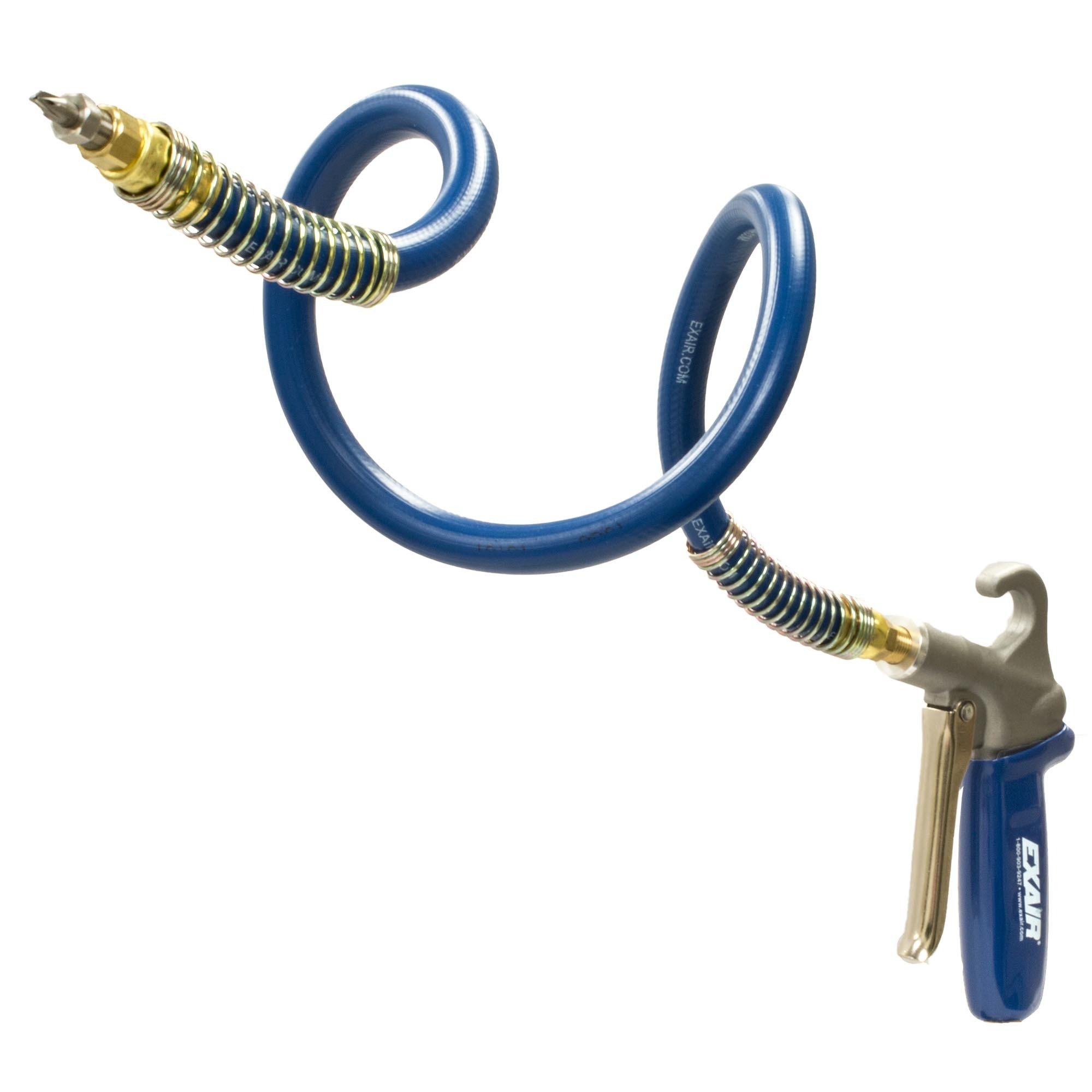

Model 1298SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1110SS Stainless Steel Nano Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 8.3 | 235 | 8.1 | 230 | 75 | |
|
Also available: 1298-PEEK with 1110-PEEK PEEK plastic Nano Super Air Nozzle |
|||||

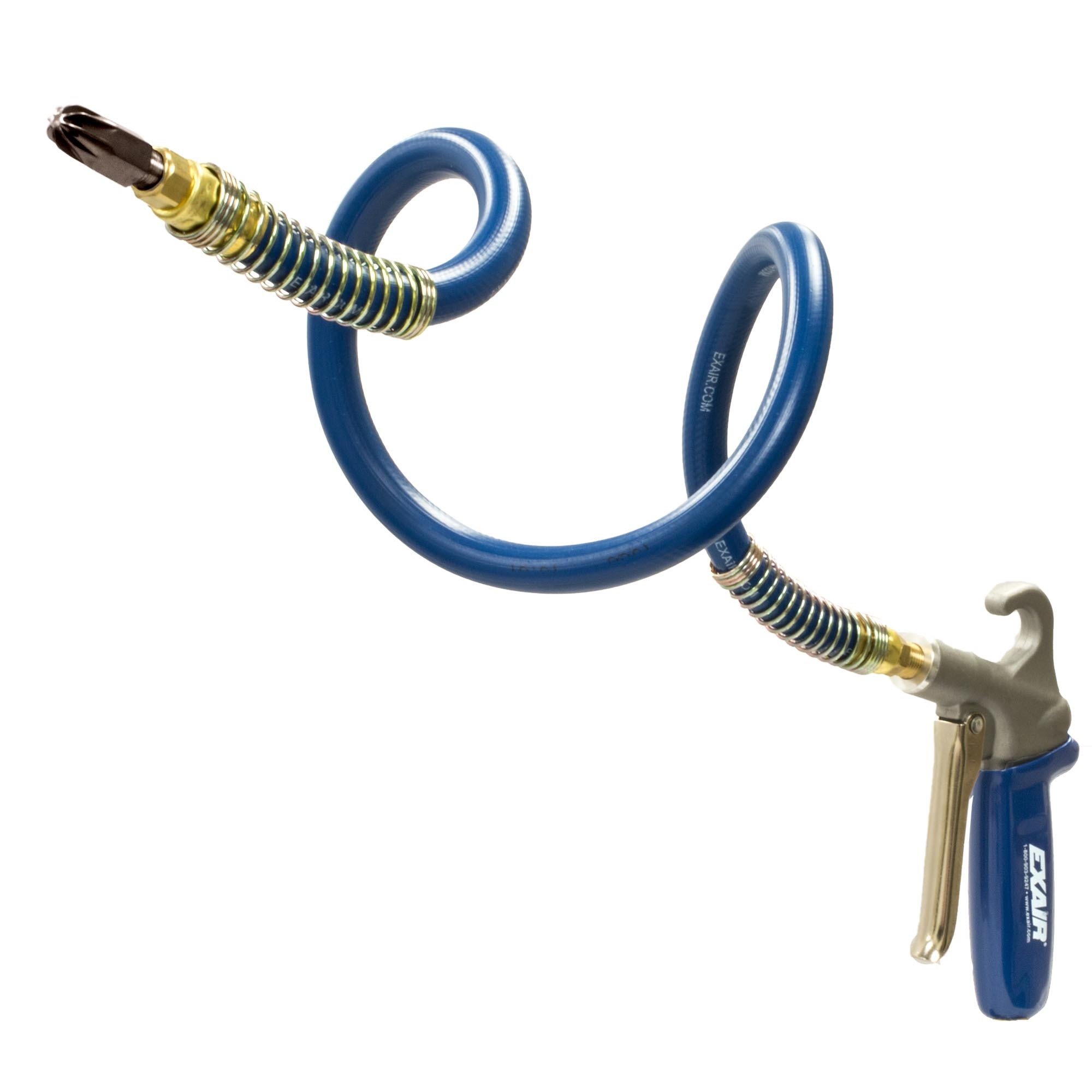

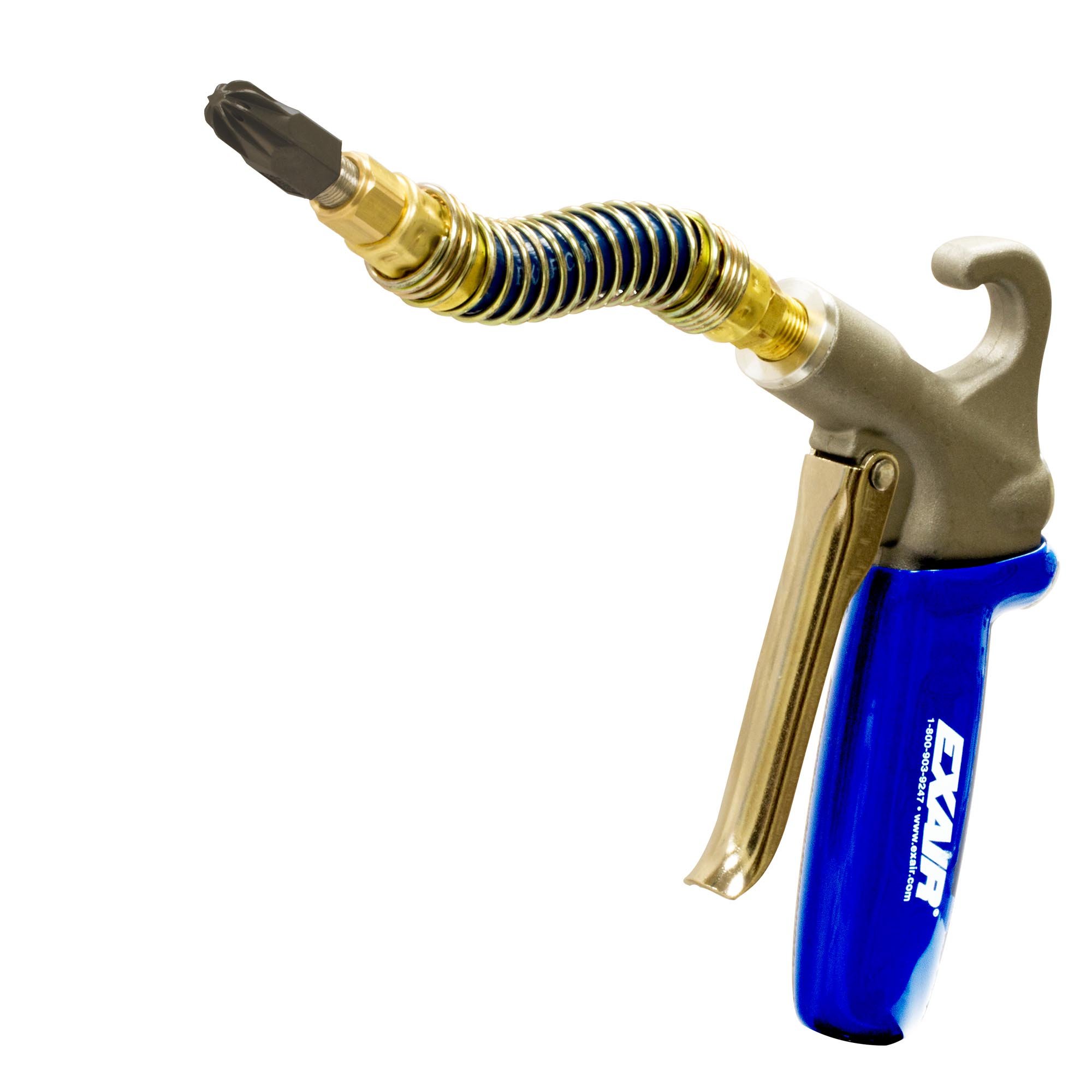

Model 1299SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1103SS Stainless Steel Mini Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 10 | 283 | 9.0 | 255 | 71 | |
|
Also available: 1299 with 1103 Zinc Aluminum Mini Super Air Nozzle 1299-PEEK with 1103-PEEK PEEK plastic Pico Super Air Nozzle |
|||||
Model 1229SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1126SS Stainless Steel 1" Flat Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 10.5 | 297 | 9.8 | 278 | 75 | |
|
Also available: 1229 with 1126 Zinc Aluminum 1" Flat Super Air Nozzle |
|||||

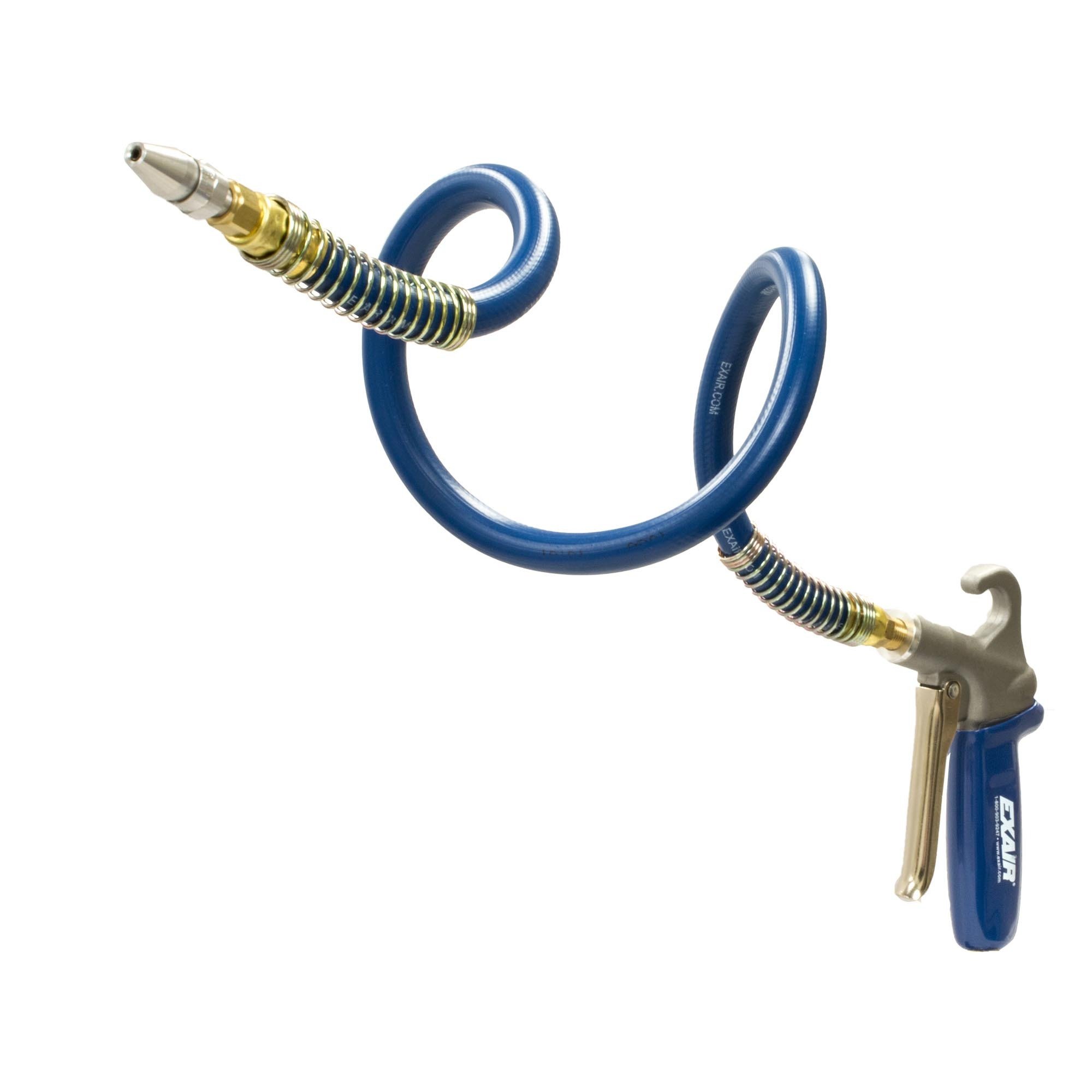

Model 1290SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1009SS Stainless Steel Adjustable Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 13 | 368 | 12 | 340 | 79 | |
|
Also available: 1290 with 1009 Zinc Aluminum Adjustable Air Nozzle |
|||||

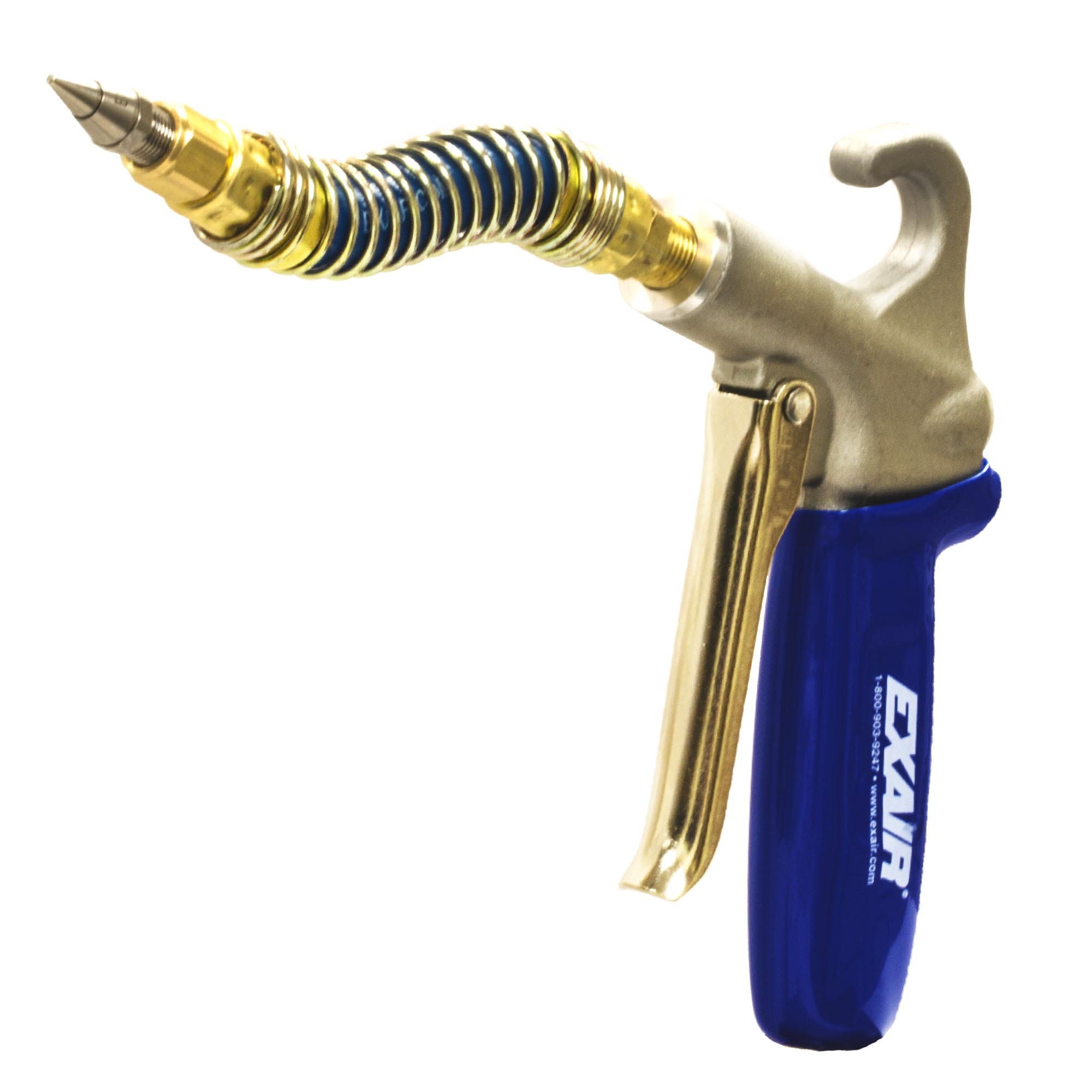

Model 1280SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1010SS Stainless Steel Micro Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 13 | 368 | 12 | 340 | 80 | |
Model HP1229SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1126SS Stainless Steel 1" High Power Flat Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 17.5 | 495 | 16 | 454 | 82 | |
|
Also available: HP1229 with HP1126 Zinc Aluminum 1" High Power Super Air Nozzle |
|||||
Model 1230SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1122SS Stainless Steel 2" Flat Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 22 | 622 | 22 | 624 | 77 | |
|
Also available: 1230 with 1122 Zinc Aluminum 2" Flat Super Air Nozzle |
|||||
Model 1250SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1104SS Stainless Steel Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 35 | 991 | 1.9 | 862 | 82 | |
|
Also available: 1250 with 1104 Zinc Aluminum Super Air Nozzle 1250-PEEK with 1104-PEEK PEEK plastic Super Air Nozzle |
|||||
Model HP1230SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: HP1125SS Stainless Steel 2" High Power Flat Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 37 | 1,039 | 2.2 | 998 | 83 | |
|
Also available: HP1230 with HP1125 Zinc Aluminum 2" High Power Flat Super Air Nozzle |
|||||
Model 1240 Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1111-4 Zinc Aluminum Air Nozzle Cluster |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 56 | 1,585 | 3.2 | 1,451 | 82 | |
Model 1260SS Soft Grip Safety Air Gun with Stay Set HoseNozzle: 1106SS Stainless Steel Super Air Nozzle |
|||||
 Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 60 | 1,699 | 3.3 | 1,497 | 87 | |
|
Also available: 1260 with 1106 Zinc Aluminum Super Air Nozzle |
|||||
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).
Safety Air Gun Standards and Certifications:
EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC).All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
