Price Pump 2MS75MD Mag-Drive Pump

Price Pump 2MS75MD Mag-Drive Pump – Horizontal Centrifugal Pumps

Price Pump 2MS75MD Mag-Drive Pump is a Horizontal Centrifugal Pump with Flows to 60 GPM (227 LPM) and Heads to 320 feet (98 Meters).

Size:

  •  2MS75MD – 3/4″ x 1″ x 6″

Applications:

  • Industry-Chemical process, de-ionized water, wastewater treatment, refrigerants and caustics
  • O.E.M.-Washers, filters, chillers, cooling towers, scrubbers, plating equipment
  • Agriculture-Acid fertilizers and other agricultural chemicals

Features:

  • Standard Bushings-Carbon Graphite
  • Optional Bushings-Alpha Silicon Carbide (Tungsten carbide coated shaft required)
  • Optional Tungsten carbide coated shaft
  • Standard NEMA 56C motors
  • Magnet Material-Samarium Cobalt

Materials of Construction:

  • Volute:  316SS
  • Bracket:  316SS
  • Shaft:  316SS (STD) Tungsten Carbide Coated
  • Impeller: 316SS
  • Fasteners:  316SS
  • “O”-Ring:  Viton (STD) Teflon, Buna, EPR, Neoprene, Kalrez, Flouro-Silicon
  • Bushings:  Carbon (STD), Silicon Carbide
  • Thrust Washers:  Carbon (STD), Silicon Carbide
  • Magnet Cup:  316SS

Technical Information:

  • Minimum Recommended Flow:  2 GPM
  • Max. Working Pressure:  300 PSIG
  • Maximum Solid Size*:  .03″
  • Max. Temperature:  350°F (177°C)

*Solids are not recommended for Mag Drive Pumps – contact a Pump Expert for more information – 1-877-624-5757

Resources

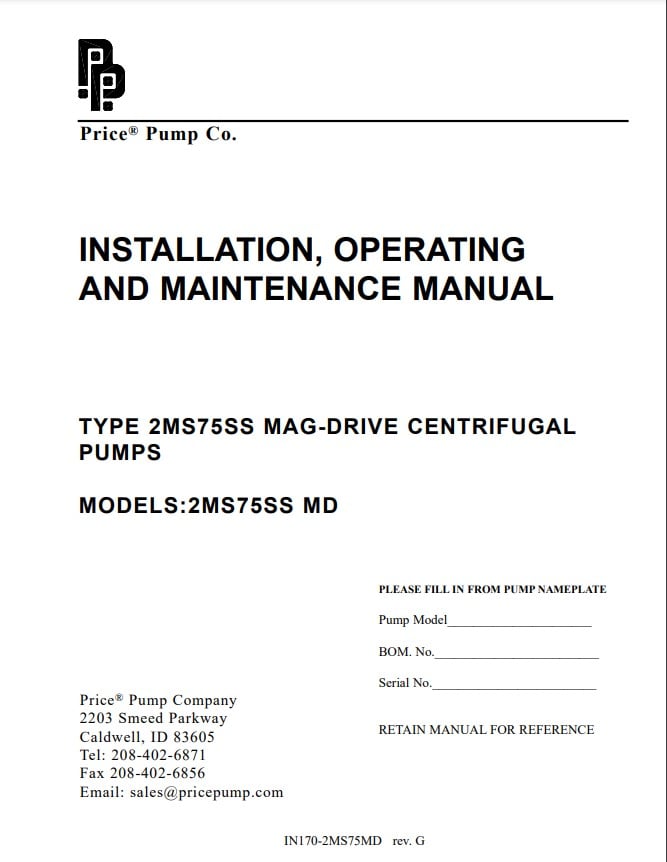

Price Pump 2MS75MD IO Manual

Price Pump 2MS75MD IO Manual

Download

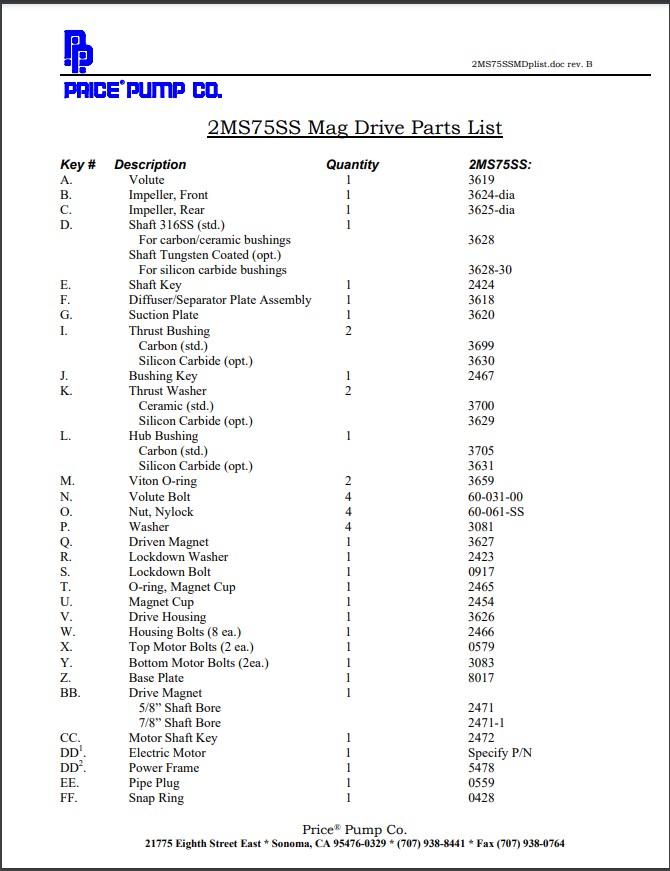

Price Pump 2MS75MD Parts List

Price Pump 2MS75MD Parts List

Download

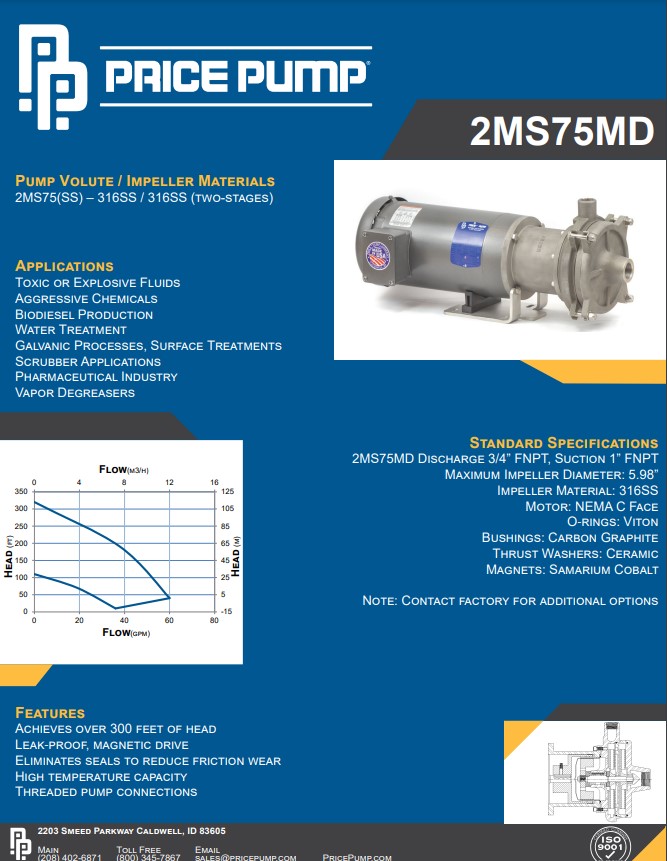

Price Pump 2MS75MD Technical Data Sheet

Price Pump 2MS75MD Technical Data Sheet

Download

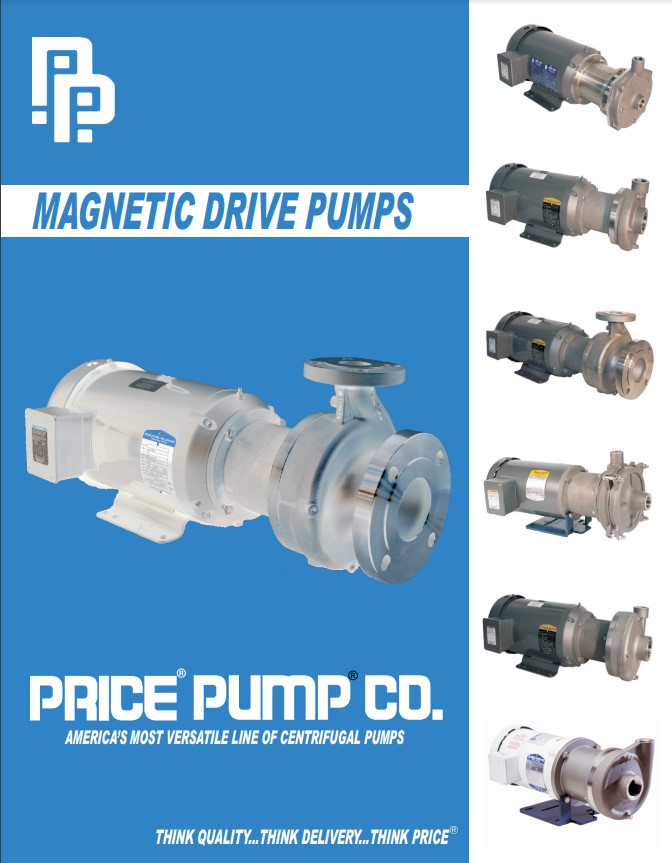

Price PumpMagDrive Brochure

Price PumpMagDrive Brochure

Download
