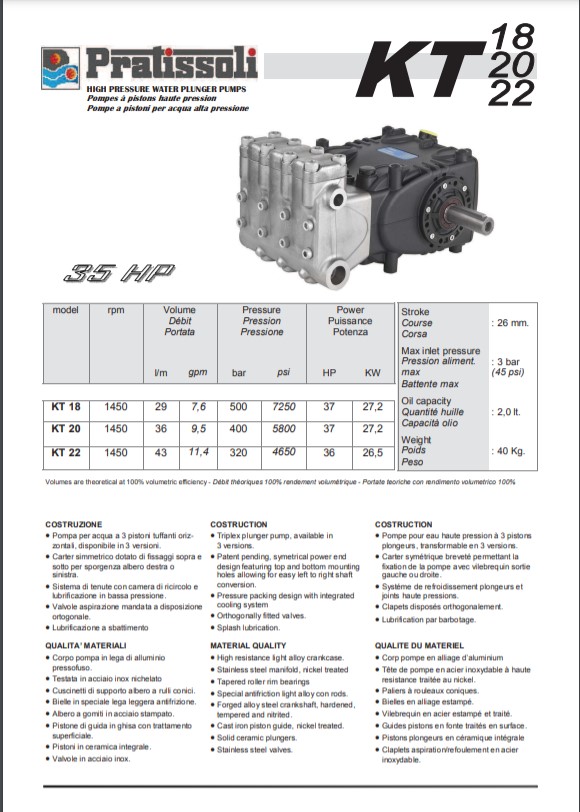

Pratissoli Series KT High Pressure Plunger Pumps

Pratissoli Series KT High Pressure Plunger Pumps


Construction

· Triplex plunger pump, available in 4 versions. · Patent pending, symetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. · Pressure packing design with integrated cooling system  · Orthogonally fitted valves. · Splash lubrication.

Material quality

· High resistance light alloy crankcase. · Stainless steel manifold, nickel treated  · Tapered roller rim bearings · Special antifriction light alloy con rods. · Forged alloy steel crankshaft, hardened, tempered and nitrited. · Cast iron piston guide, nickel treated. · Solid ceramic plungers. · Stainless steel valves.


Pump ModelVolumePressurePowerrpmWeight Kg.Dimensions mm.
L/minGPMbarpsikWHP
KT 16277,2500725026,236175040395X341X212
KT 18297,6500725027,237145040395x341x212
KT 18359,2400580026,536175040395x341x212
KT 20369,5400580027,237145040395X341X212
KT 204311,3320464026,236175040395X341X212
KT 224311,4320465026,536145040395X341X212
KT 225213,7250362524,834175040395X341X212
