Pitanco Precision Sanitary Gauge

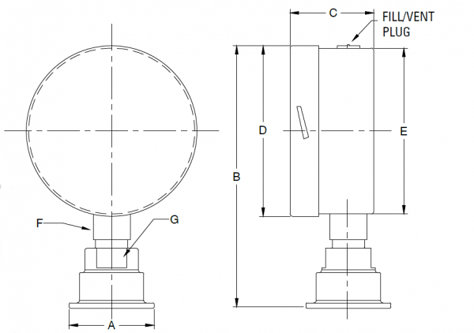

Model SDTC20025 and SDTC15040 Diagram



Sanitary-Gauge-Diagram-600x422

Specifications for Sanitary Gauge:



Gauge diameter 2 ½ in (63 mm) and 4 in (100 mm)
Case Polished 304 stainless steel
Dial White aluminum with in Hg or psi in black, bar and kPa x 100 in blue
Ring Bayonet type, polished 304 stainless steel
Lens Polycarbonate
Pointer Black anodized aluminum, adjustable
Wetted parts 316 stainless steel
Diaphragm seal fill Mineral oil
Case fill 99.7 % food grade glycerin
Body construction 1 piece polished 316 stainless steel
Diaphragm 316 stainless steel welded
Operating pressure Maximum 75 % of full scale value
Process connection 1 ½ in (40 mm) or 2 in (50 mm) “sanitary Tri-clamp®”
Application reference Diaphragm seal ASME B40.100(B40.2) Grade 1A ± 1 %
and pressure gauge ASME B40.100(B40.1) Grade 1A ± 1 %



Dimensions as per Diagram:

Model   A B C D E F G
SDTC15025 1.5 in Tri-Clamp / 2.5 in gauge 2 in (50 mm) 4.40 in (112 mm) 1.20 in (30 mm) 2.7 in (68.6 mm) 2.4 in (61 mm) Hex. 9/16 (14.5 mm)
SDTC15040 1.5 in Tri-Clamp / 4 in gauge 2 in (50 mm) 6.13 in (156 mm) 1.95 in (49 mm) 4 in (100 mm) 3.87 in (98 mm) Flat 7/8 (22 mm) Flat 1 1/16 (27 mm)
SDTC20025 2 in Tri-Clamp / 2.5 in gauge 2.5 in (63 mm) 4.40 in (112 mm) 1.20 in (30 mm) 2.7 in (68.6 mm) 2.4 in (61 mm) Hex. 9/16 (14.5 mm)
SDTC20040 2 in Tri-Clamp / 4 in gauge 2.5 in (63 mm) 6.18 in (157 mm) 1.95 in (49 mm) 4 in (100 mm) 3.87 in (98 mm) Flat 7/8 (22 mm) Flat 1 1/16 (27 mm)

Tri-Clamp® is a registered trade mark of Tri-Clover®



To order, use the code in the corresponding column :



  TRI-CLAMP® TRI-CLAMP® TRI-CLAMP® TRI-CLAMP®
  1 1/2 in (40 mm) 1 1/2 in (40 mm) 2 in (50 mm) 2 in (50 mm)
Gauge 2 1/2 in (63 mm) Ø 4 in (100 mm) Ø 2 1/2 in (63 mm) Ø 4 in (100 mm) Ø
Range
-30 in Hg to 30 psi/bar/kPa x 100 SDTC15025-03 SDTC15040-03 SDTC20025-03 SDTC20040-03
0 to 30 psi/bar/kPa x 100 SDTC15025-10 SDTC15040-10 SDTC20025-10 SDTC20040-10
0 to 60 psi/bar/kPa x 100 SDTC15025-11 SDTC15040-11 SDTC20025-11 SDTC20040-11
0 to 100 psi/bar/kPa x 100 SDTC15025-12 SDTC15040-12 SDTC20025-12 SDTC20040-12
0 to 160 psi/bar/kPa x 100 SDTC15025-13 SDTC15040-13 SDTC20025-13 SDTC20040-13
0 to 200 psi/bar/kPa x 100 SDTC15025-14 SDTC15040-14 SDTC20025-14 SDTC20040-14
0 to 300 psi/bar/kPa x 100 SDTC15025-15 SDTC15040-15 SDTC20025-15 SDTC20040-15
0 to 400 psi/bar/kPa x 100 SDTC15025-23 SDTC15040-23 SDTC20025-23 SDTC20040-23
