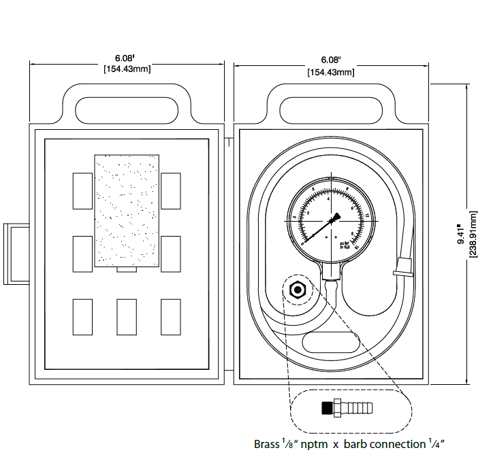

MODEL TKLP DIAGRAM
Specifications for Portable Low Pressure Test Kit:
| Case | Steel, painted black |
|---|---|
| Dial | 2 ½ in (63 mm) white aluminum with oz/in² or kPa graduations in black, H2O in blue |
| Lens | Snap-in poly-carbonate |
| Pointer | Aluminum, painted black |
| Re-calibrator | Screw located on back of gauge |
| Connection | ¼ in brass hose barb |
| Wetted parts | Brass |
| Capsule diaphragm | Phosphor bronze |
| Maximum process and ambient temperature | -40 to 150°F / -40 to 65°C |
Case Specifications:
| Material | Blue or black injection molded plastic with integral handle |
|---|---|
| Hose tube | Latex rubber 3 ft (91 cm) length, 0.197 (5 mm) in inside diameter x 0.315 in (8 mm) outside diameter |
| Hose end-connection | Latex rubber 0.390 in inside diameter (9.92 mm) x 0.660 in outside diameter (16,77 mm) x 0.545 in long (13.86 mm) |
| Hose adapter | Brass, ⅛ in nptm x ¼ in hose barb |
To Order Use The Code In The Corresponding Column :
| Range/Pressure | Product Code |
|---|---|
| 0 to 15 in H2O / 0 to 4 kPa | TKLP-250-15 |
| 0 to 35 in H2O / 0 to 20 oz/in² | TKLP-250-35 |
| 0 to 100 in H2O / 0 to 58 oz/in² | TKLP-250-100 |
