    Pitanco Precision Industrial Pressure Gauge Model 450PC6

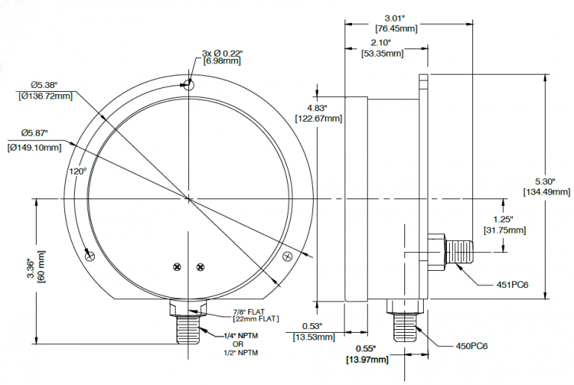

    Model 450PC6 and 451PC6  Diagram



    INdustrial-Pressure-Gauge-Model-450PC6-Diagram-768x516

    Specifications:

    Case Black molded aluminum, rear flange standard, also available without flange with extra
    Dial 4 ½ in (115 mm), white aluminum background, graduations psi and kPa in black
    Ring Steel chrome plated
    Lens Glass or polycarbonate
    Pointer Black painted aluminum, adjustable micrometer
    Connection ¼ or ½ in nptm bottom or lower back mount
    Wetted parts Brass
    Bourdon tube Phosphor bronze
    Maximum process and ambient temperature Maximum process and ambient temperature
    Operating pressure Maximum 75 % of full scale value
    Overpressure limit 25 % over full scale value
    Accuracy ASME B40.100(B40.1), Grade A ± 1 % also available Grade 2A ± 0.5 %

    To order, use the code in the corresponding column –



    Connection 1/4 in nptm 1/2 in nptm 1/4 in nptm 1/2 in nptm
      brass brass brass brass
      bottom bottom lower back lower back

    Range


    30 in Hg to 0 vac/kPa 450PC6-01 450PC6-01-50 451PC6-01 451PC6-01-50
    0 to 15 psi/kPa 450PC6-09 450PC6-09-50 451PC6-09 451PC6-09-50
    0 to 30 psi/kPa 450PC6-10 450PC6-10-50 451PC6-10 451PC6-10-50
    0 to 60 psi/kPa 450PC6-11 450PC6-11-50 451PC6-11 451PC6-11-50
    0 to 100 psi/kPa 450PC6-12 450PC6-12-50 451PC6-12 451PC6-12-50
    0 to 160 psi/kPa 450PC6-13 450PC6-13-50 451PC6-13 451PC6-13-50
    0 to 200 psi/kPa 450PC6-14 450PC6-14-50 451PC6-14 451PC6-14-50
    0 to 300 psi/kPa 450PC6-15 450PC6-15-50 451PC6-15 451PC6-15-50
    0 to 400 psi/kPa 450PC6-23 450PC6-23-50 451PC6-23 451PC6-23-50
    0 to 600 psi/kPa 450PC6-16 450PC6-16-50 451PC6-16 451PC6-16-50
    0 to 1,000 psi/kPa 450PC6-17 450PC6-17-50 451PC6-17 451PC6-17-50
    0 to 2,000 psi/kPa 450PC6-22 450PC6-22-50 451PC6-22 451PC6-22-50
