MAXX Pneumatically Actuated Ball Valves

MAXX Pneumatically Actuated 3-Piece Ball Valves are competitively priced and in-stock! Two Models are available C-SR (Spring Return) and C-DA (Double Acting).

MAXX C-SR

SPRING LOADED DESIGN

Download the DataSheet

Téléchargez la fiche technique

MAXX C-DA

DOUBLE ACTING DESIGN

Download the DataSheet

Téléchargez la fiche technique

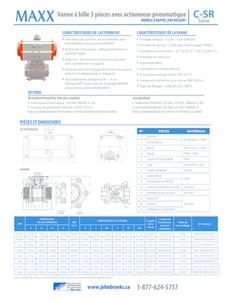

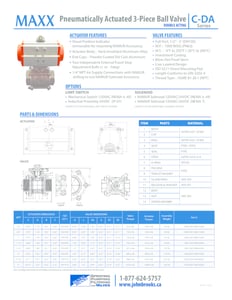

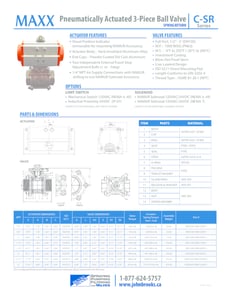

MAXX-C-SR-0620-F-Rev1-pdf MAXX-C-DA-0620-F-Rev3-pdf
MAXX-C-SR-F0920-French-pdf MAXX-C-DA-F0920-French-pdf

Actuator Features

  • Visual Position Indicator (removable for mounting NAMUR Accessory)
  • Actuator Body :  Hard Anodized Aluminum Alloy
  • End Caps :  Powder Coated Die Cast Aluminum
  • Two Independent External Travel Stop Adjustment Bolts (+ or – 5deg)
  • 1/4” NPT Air Supply Connections with NAMUR drilling to suit NAMUR Solenoid Accessory

Valve Features

  • Full Port, 1/2” – 3” (DN100)
  • W.P. :  1000 WOG (PN63)
  • W.T. :  -4°F to 392°F (-20°C to 200°C)
  • Investment Casting
  • Blow-Out Proof Stem
  • Live-Loaded Design
  • ISO 5211 Direct Mounting Pad
  • Length Conforms to DIN 3202-4
  • Thread Type :  ASME B1.20.1 (NPT)

Options

LIMIT SWITCH

  • Mechanical Switch 120VAC (NEMA 4, 4X)
  • Inductive Proximity 24VDC  (IP 67)

SOLENOID

  • NAMUR Solenoid 120VAC/24VDC (NEMA 4, 4X)
  • NAMUR Solenoid 120VAC/24VDC (NEMA 7)

Resources

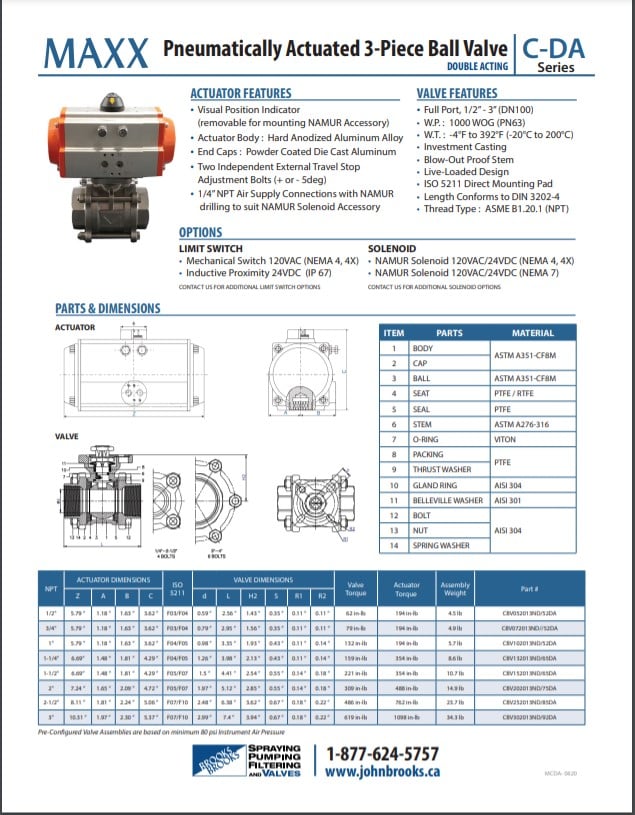

MAXX C-DA 0620 F Rev3

MAXX C-DA 0620 F Rev3

Download

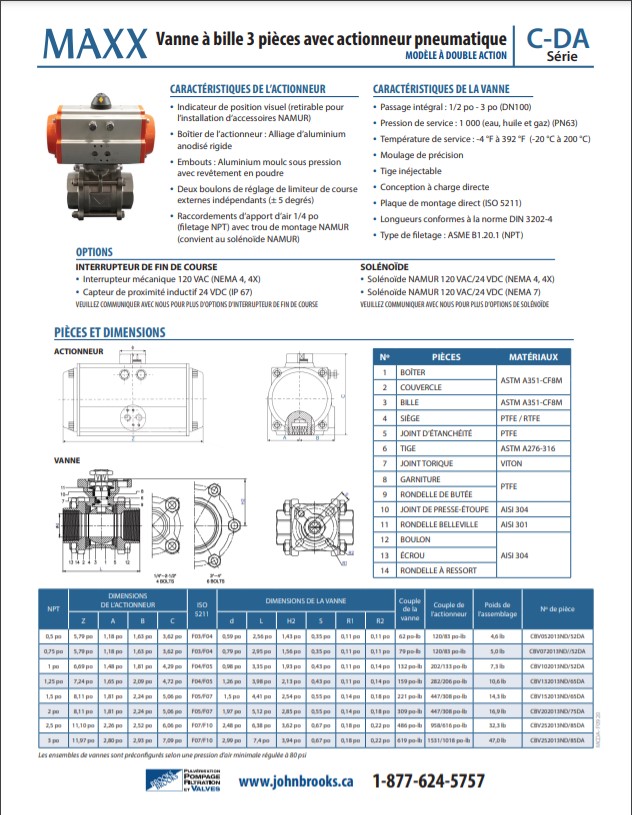

MAXX C-DA F0920-French

MAXX C-DA F0920-French

Download

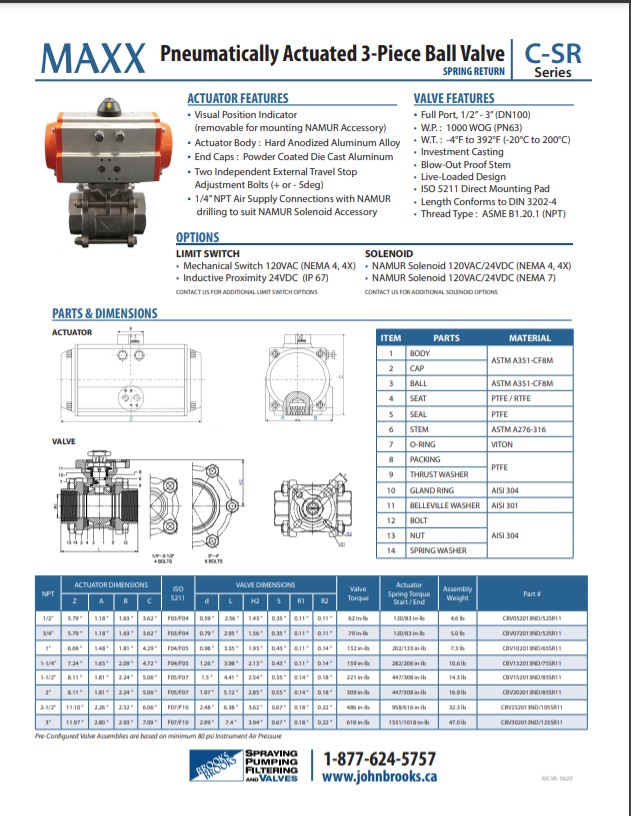

MAXX C-SR 0620 F Rev1

MAXX C-SR 0620 F Rev1

Download

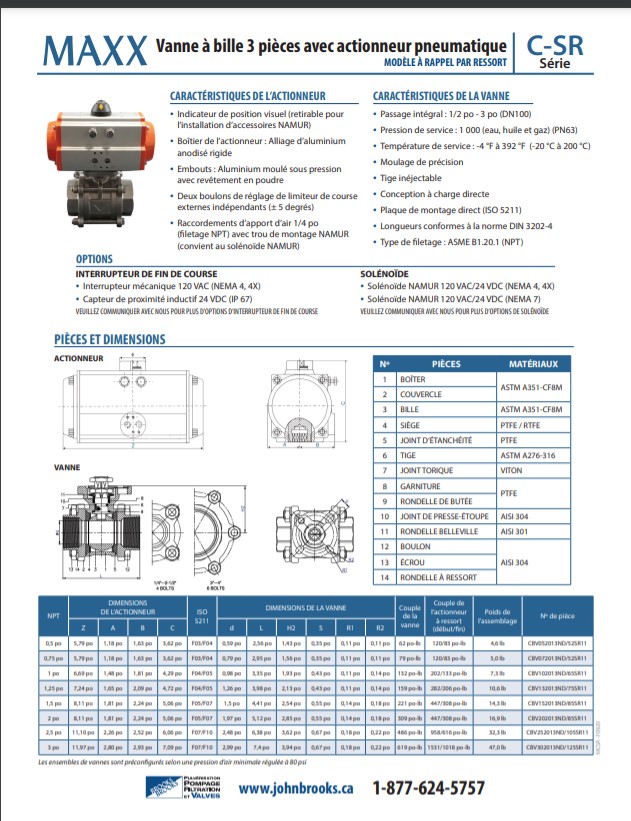

MAXX C-SR F0920-French

MAXX C-SR F0920-French

Download
