JetAir MultiJet Multi-Lane Tunnel Drying System

MultiJet Multi-Lane Tunnel Drying System for Superior Drying

The MultiJet™ Multi-Lane Tunnel Drying System is a comprehensive drying system for the consumer packaged goods market. They produce superior dryness prior to labeling, inspection, coding, sleeving, secondary packaging, and more while reducing line length requirements and energy consumption. The JetAir tunnel drying sytem is powered by JetAir’s High-Speed Centrifugal Blowers, which deliver clean, oil-free, filtered air, removing damaging moisture and debris. MultiJets™ are custom designed to handle the widest range of containers and pouches at high-speed. Standard and custom systems are available.

PERFORMANCE

  • Integrated Wash-Down Blower Chamber for Higher kW Efficiency, Reduced Footprint & Access
  • 3D™ Drying – Lids, Sides and Base w/o mechanical inversion
  • Optimized for Line Speed, Container Size & Shape and Environment
  • High Speed, Energy Efficient Direct Drive Blowers: 5-120HP [3.5-90kW]
  • Innovative, Concentrated Drying & Spray Isolation improve drying and reduce line lengths 25%

HIGH-SPEED POUCHES

  • Dynamic Hold-Down Opens Gusset, Secures Pouch and Eliminates Scratching
  • Compact Line Length.
  • 100% Water Removal
  • Speeds to 50M [165’]/minute
  • Vented No-Drip Drying Chamber ceiling eliminates rewetting
  • Single & Multi-Lane Solutions
  • Integrated Pre-Rinse Options

PASTEURIZER DISCHARGE

  • Single & Dual Deck Configurations with Right or Left Exits
  • Integrated Water Rinse, Drying and Glass Shard Removal
  • 340-850mm Width Solutions
  • Dry Floor, 100% Spray Collection and Water Recycling
  • OEM Controls Integration.
  • Vertical Adjustment Hand-Wheel and Gage for Air Knife & Water Rinse Component Adjustment

MultiJet™ Solutions are available in different widths, conveyor and hold-down configurations for pouch and container drying applications. Each system is designed to reduce consumption and line length requirements. And all feature robust control options to plug-n-play into virtually any modern production facility.

MultiJet™ Solutions are available in three highly adaptable configurations: the MultiJet™ InMass Tunnel, the MultiJet™ Pouch and the MultiJet™ Pasteurizer Discharge Tunnel. Each Solution handles a wide range of speeds, product sizes and can address many unique processing needs.

MultiJet™ InMass Tunnel Drying System for Cans, PET, Glass Containers Pans, Pales, Trays
MultiJet-Drawing

SPEEDS
Height < 15”[380], Width < 15”[380]
60’[18M] / Second to 165’[50M] / Second

DRYING
Top or Top & Sides or Base (Thru Belt)
3d Drying: Top & Sides & Base

LIQUID RINSING
Water, High-Temp. & Chemical



MultiJet™ Pouch – for Gusset Pouch, Pillow Pouch
MultiJet-Pouch-Drawing

SPEEDS
Max Height < 15”[380], Width < 15”[380]
Min. Height > 50ml
60’[18M] / Second to 165’[50M] / Second

DRYING
Closure & Side
Closure & Sides & Gusset

ION DE-STATIC AIR RINSING

LIQUID RINSING
Water, High-Temp. & Chemical

MultiJet™ Pasteurizer for Cans, PET, Glass Containers

MultiJet-Pasteurizer-Drawing

SPEEDS
Height < 15”[380], Width < 15”[380]
60’[18M] / Second to 165’[50M] / Second

DRYING
Top or Top & Sides

LIQUID RINSING
Water, High-Temp. & Chemical

GLASS SHARD COLLECTION
Sliver and Shard < 2”[50mm]

Click Here – For more JetAir Products

Resources

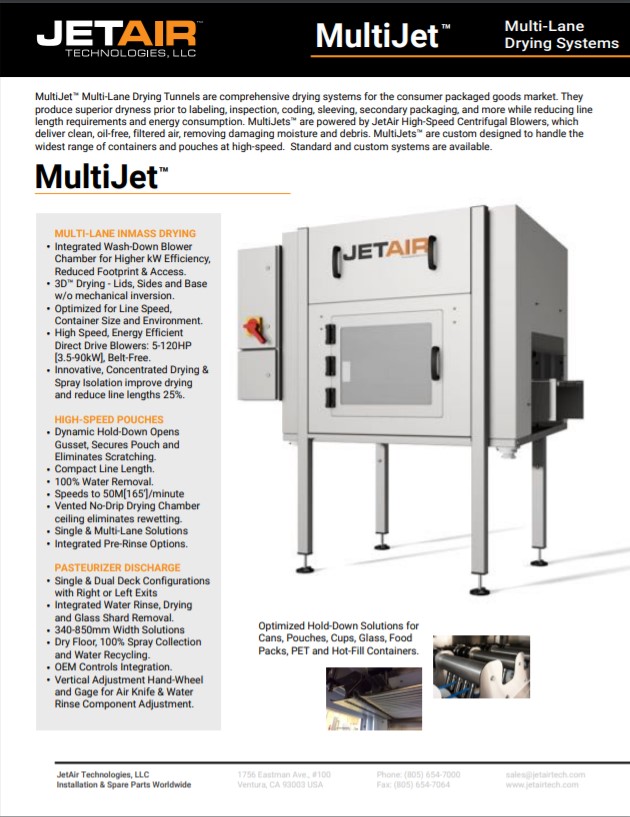

JetAir MultiJet DataSheet web
