Hydra-Cell T Series API 674 Pumps

The Hydra-Cell T Series API 674 Pumps are Seal-less Triplex diaphragm pumps that are now optionally available compliant with the requirements of API 674, 3rd Edition, December 2010. T-Series pumps, originally developed to handle severe pumping applications in the oil and gas industry, offer direct alternatives to other triplex plunger pumps traditionally used – with the critical advantage that the life-cycle costs of owning and operating a Hydra-Cell pump are typically much lower than those of an equivalent plunger pump.

Hydra-Cell T Series API 674 Pumps Specifications:

Hydra-Cell-Sealless-T100-Low-PressureHydra-Cell-Sealless-T100-Medium-PressureHydra-Cell-Sealless-T100-Medium-Pressure
T100 Pump Series
Low Pressure

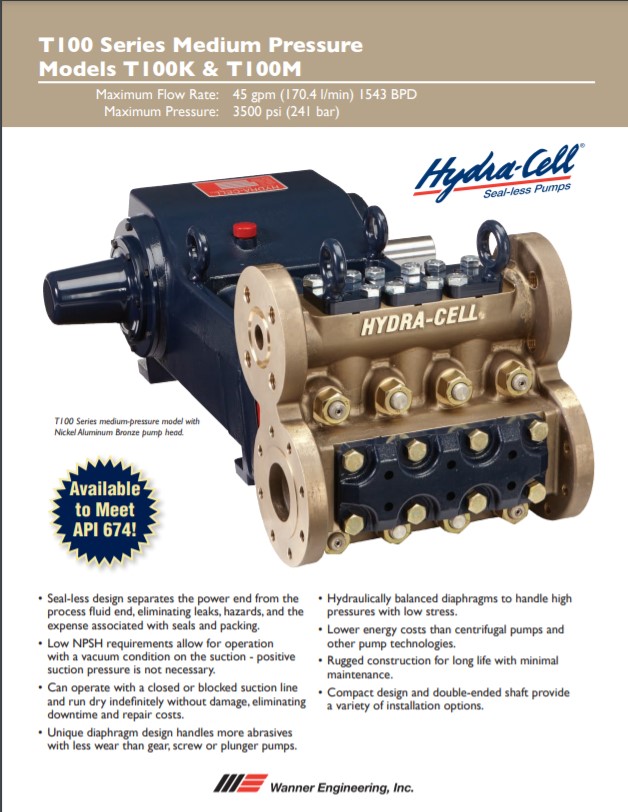

T100 Pump Series
Medium Pressure

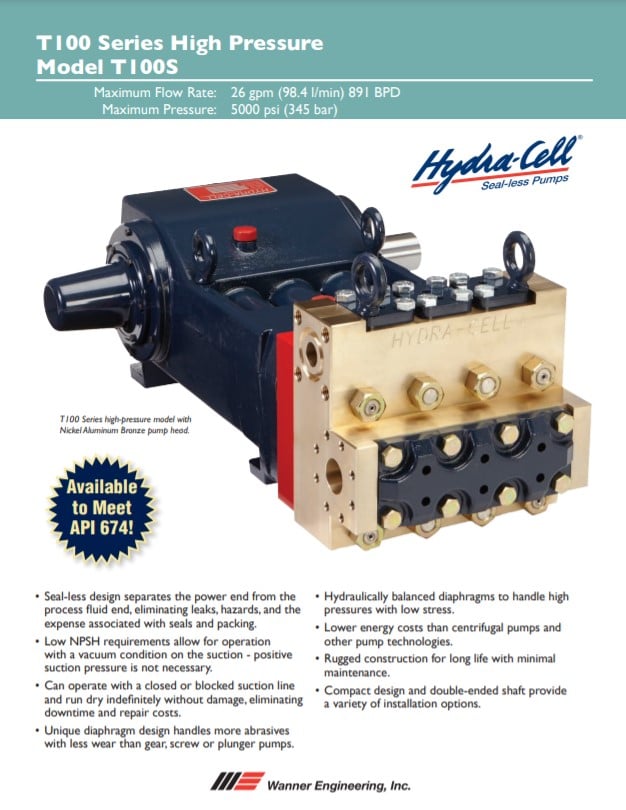

T100 Pump Series
HIgh Pressure
Max Flow:  96 gpm Metallic Pump Heads
Max Pressure:  2100 psi (145 bar)
Max Flow:  45 gpm Metallic Pump Heads
Max Pressure:  3500 psi (241 bar)
Max Flow:  26 gpm Metallic Pump HeadS
Max Pressure:  5000 psi (345 bar)


Hydra-Cell Sealless Pumps T100-Selection

The graph above displays the maximum flow capacity at a given pressure for each model series. The table below lists the maximum flow capacity and maximum pressure capability of each model series.

Please Note: Some models do not achieve maximum flow at maximum pressure. Refer to the individual model specifications in this section for precise flow and pressure capabilities by specific pump configuration.

Maximum Capacity
gpm (l/min)
Maximum Discharge Pressure
psi (bar)
Maximum Inlet Pressure
psi (bar)
Maximum Operating Temperature *
F (C)
T100E96.0 (366.1)1500 (103)500 (34)180 ̊    (82 ̊ )
T100F76.5 (289.6)1850 (128)500 (34)180 ̊    (82 ̊ )
T100H68.0 (257.8)2100 (145)500 (34)180 ̊    (82 ̊ )
T100K45.0 (170.4)3000 (207)500 (34)180 ̊    (82 ̊ )
T100M38.0 (143.8)3500 (241)500 (34)180 ̊    (82 ̊ )
T100S26.0 (98.4)5000 (345)500 (34)180 ̊    (82 ̊ )

* Consult factory for correct component selection for temperatures above 180 ̊ F (82 ̊ C) or below 40 ̊ F (4 ̊ C)


Hydra-Cell T Series API 674 Pumps

Join our Mailing List

Resources

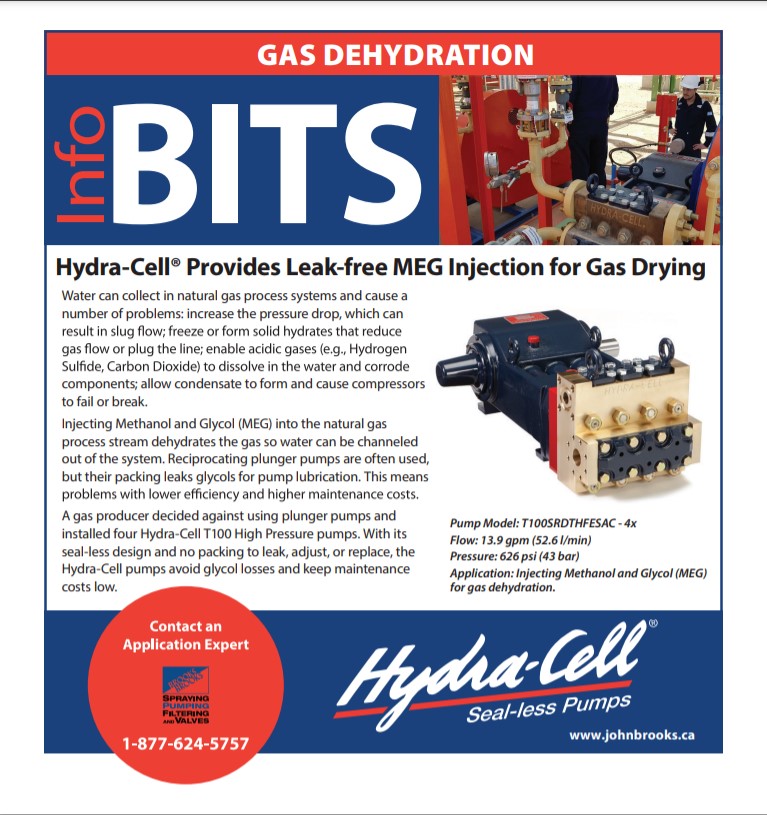

Hydra-Cell Gas Dehydration T100
