Hydra-Cell metering pumps meet and in most cases exceed API 675 performance standards. Combine simple, elegant engineering with rugged construction to offer greater versatility while lowering overall costs. Accurate Metering and Dosing with Virtually Pulse-less Flow.

P100-Brass_large-150x116 P200-Metallic_large-150x108 Hydra-Cell-P300-Brass_med
Max Flow: 27.0 gph

Metallic Pump Heads
Max Pressure:  1500 psi (103 bar)

Non-Metallic Pump Heads
Max Pressure:  350 psi (24 bar)

Max Flow:  81.0 gph

Metallic Pump Heads
Max Pressure:1000 psi (69 bar)

Non-Metallic Pump Heads
Max Pressure:  350 psi (24 bar)

Max Flow:  81.4 gph

Max Pressure:2500 psi (172 bar)
Metallic Pump Heads

Non-Metallic Pump Heads
Max Pressure:  350 psi (24 bar)

P400-Non-metallic_med-150x118 P500-Metallic_med-150x116 P600-ANSI-Flange_med-150x101
P400 Pump Series P500 Pump Series P600 Pump Series

Max Flow:  242.8 gph

Metallic Pump Heads
Max Pressure: 1000 psi (69 bar)

Non-Metallic Pump Heads
Max Pressure: 350 psi (24 bar)

Max Flow:  425.9 gph

Max Pressure:2500 psi (172 bar)
Metallic Pump Heads

Non-Metallic Pump Heads
Max Pressure:  350 psi (24 bar)

Max Flow:  890.3 gph

Metallic Pump Heads
Max Pressure:1000 psi (69 bar)

Non-Metallic Pump Heads
Max Pressure:  350 psi (24 bar)

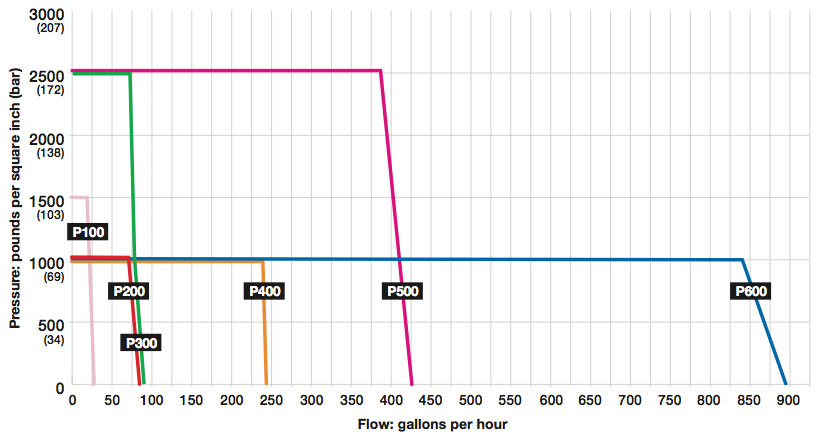

Hydra-Cell® Flow Capacities and Pressure Ratings

P Series Electronic Precision Metering Pumps

Hydra-Cell-Metering-Pumps-P-Series-Selection

HYDRA-CELL METERING PUMPS
P SERIES COMPARISON CHART

 Model* Max
Capacity gph
Maximum
Discharge Pressure
psi (bar)
Maximum
Operating Temperature
F (C)***
Maximum
Inlet Pressure
psi (bar)
Non-Metallic** Metallic Non-Metallic Metallic
P100 27.0 350 (24) 1500 (103) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P200 81.0 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P300 81.4 N/A 2500 (172) N/A 250 ̊ (121 ̊) 500 (34)
P400 242.8 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P500 425.9 N/A 2500 (172) N/A 250 ̊ (121 ̊) 500 (34)
P600 890.3 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)

* Ratings are for X-cam design.
** 350 psi (24 bar) maximum with PVDF liquid end; 250 psi (17 bar) maximum with Polypropylene liquid end.
*** Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).

Hydra-Cell® Metering Pumps Design Advantages

Compact, cost-effective pump systems for high-performance metering applications.

The technology used to produce metering pumps has barely changed in over a generation. As a result, conventional metering pumps have operational limitations 30-Day and greater cost consequences. Shelf-Life! Hydra-Cell is not a conventional metering pump. Hydra-Cell Metering Solutions pumps enable you to meet and, in most cases, exceed API 675 performance standards with virtually pulse-less, linear flow while providing many other operational benefits.

Taking advantage of the most current technologies, Hydra- Cell P Series pumps achieve superior levels of accuracy, repeatability and linearity, while delivering precise, constant flow. This revolution in metering employs the latest available means of electronic flow control to replace antiquated, inaccurate stroke adjusters.

To maintain accuracy in a hydraulically-actuated metering pump, the volume of oil on the non-process side of the diaphragm must remain constant. To maintain accuracy in a hydraulically-actuated metering pump, the volume of oil on the non-process side of the diaphragm must remain constant. Conventional metering pumps rely on vacuum sensing or mechanical activation to compensate for leakage past the plunger. They may not compensate on every pump stroke.

Hydra-Cell pumps incorporate a replenishment valve in every piston assembly. This ensures optimum actuating oil volume on every diaphragm stroke to provide superior accuracy that exceeds the performance demands of API 675.

Hydra-Cell pumps incorporate a replenishment valve in every piston assembly. This ensures optimum actuating oil volume on every diaphragm stroke to provide superior accuracy that exceeds the performance demands of API 675. In addition, the modern design features of the Hydra-Cell pump lower your acquisition costs when compared to conventional metering pumps, and its inherently simple yet elegant engineering keeps your maintenance and replacement costs down. Rugged construction and long- lasting durability will provide economy and value over the lifetime of your Hydra-Cell metering system.

Used in place of conventional metering pumps to provide Honorable Mention superior performance at a lower cost, Hydra-Cell is an extraordinary metering pump built to handle your precise metering and dosing applications.

Hydra-Cell Metering Pumps are NOT Conventional

Accurate, Reliable Electronic Flow Control

Unlike metering pumps that use manual stroke adjusters, Hydra-Cell P Series metering pumps use Variable Frequency Drive (VFD) electronic flow adjustment to maintain greater accuracy over the entire turndown range. This reduces the possibility of operator error, pumping inaccuracies, lost motion, and chance of leakage.

  • Solid-state electronics are unlikely to fail
  • Metering is linear over the entire range
  • Volume per stroke is constant and a known value
  • Easy calibration of the desired feed rate
  • Rate of change is virtually instantaneous (0 to maximum rpm in 0.3 seconds) with AC motor

Achieve Economy with Technology

Hydra-Cell metering pumps combine simple, elegant engineering with rugged construction to offer greater versatility while lowering overall costs.

  • Smaller footprint with the same capability as larger pumps lowers acquisition costs and saves valuable space in the facility
  • Each model covers an extensive range of pressures and flows – no need for different plunger and liquid end sizes to accommodate increases
  • Inherent simplicity of the Hydra-Cell design allows versatile application compared to complex metering pumps that may require expensive construction changes to meet specific needs
  • Lower parts and maintenance costs
  • Separate gearbox makes it easy to change applications while preventing cross-contamination of actuating oil
  • Multiplexing capability enables mixing ratios of multiple fluids in flexible, economical ways

Greater Choice of Materials Enhances Capability

Some metering pump manufacturers offer only PTFE diaphragms, which require more frequent and costly replacement due to stress and low processing temperatures.

Hydra-Cell metering pumps can be equipped with a variety of diaphragm materials (FKM, Buna-N, EPDM, Neoprene,Aflas, and PTFE).This enables Hydra-Cell metering pumps to operate over a wider range of processing applications.

In addition, several Hydra-Cell metering pump packages are available with special materials such as Hastelloy C and PVDF. Other metering pumps apply substantial price adders for exotic liquid end materials.

Accurate Metering and Dosing with Virtually Pulse-less Flow

Reduced Pulsations Improve Operation

Pulsing, surging flow from traditional metering pumps can produce greater strain on the system and more wear and tear on the pump. Hydra-Cell features a multiple-diaphragm design (except model P100) that practically eliminates pulsations.

  • Reduces pipe strain
  • Enhances operating safety
  • Minimizes maintenance
  • Reduces friction and acceleration losses in the suction line
  • Eliminates the need for pulsation dampeners
  • Provides accurate metering with linear, constant flow
  • Lowers system acquisition costs

Pulsation Graph Comparison

Compared to conventional metering pumps operating under the same conditions at the same flow and pressure, Hydra-Cell metering pumps provide smooth, almost pulse-less performance. This allows for the design of a safer, less expensive metering pump system and for use in more accurate applications, such as spraying which cannot tolerate pulsing flow.

Cutaway-P200-Back_med-300x181

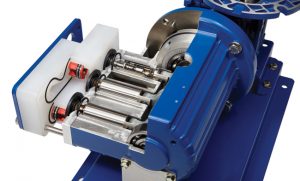

The multiple-diaphragm design of Hydra-Cell metering pumps provides virtually pulse-less, linear flow without the need for expensive pulsation dampeners.

ichem-logo-150x130

The IChemE Awards recognize innovation and excellence in making outstanding contributions to safety, the environment, and sustainable development in the chemical and bioprocess industries.

Resources

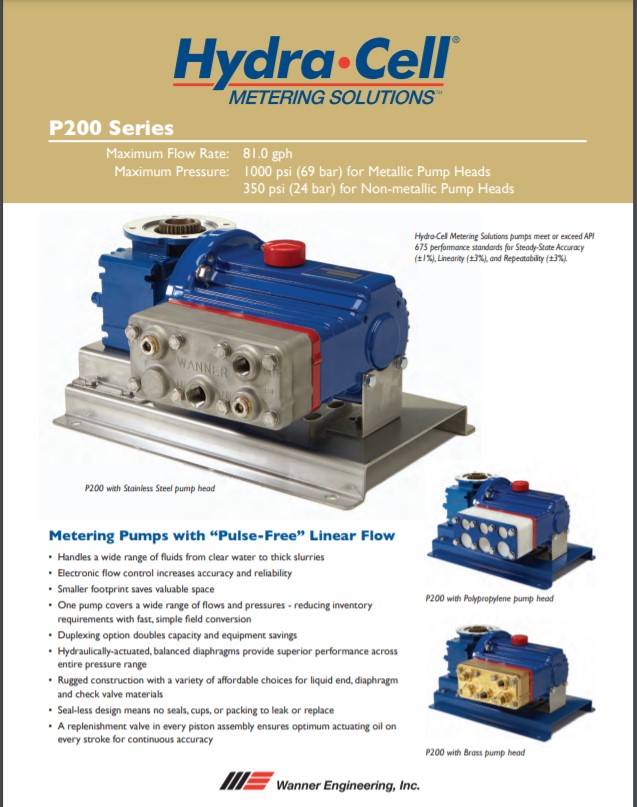

P200 Data Sheet

P200 Data Sheet

Download

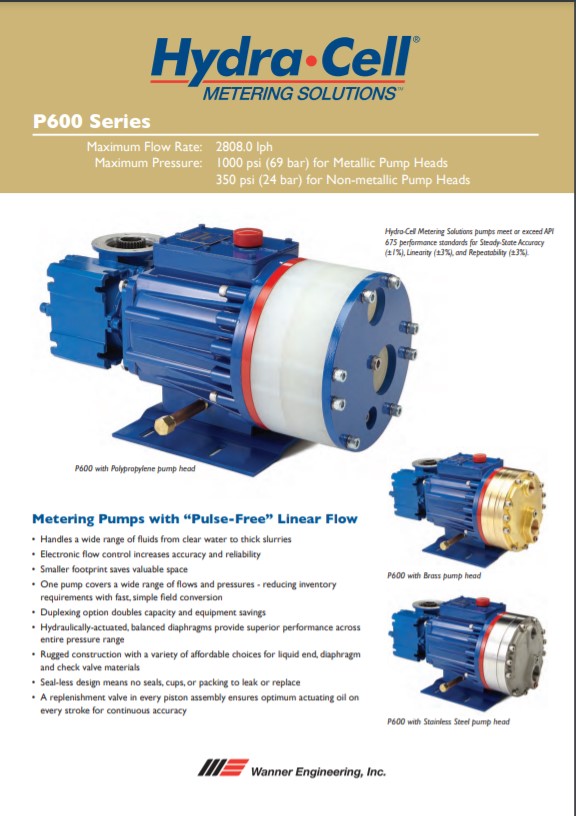

Hydra-Cell P600 Metering Pump Specifications

Hydra-Cell P600 Metering Pump Specifications

Download

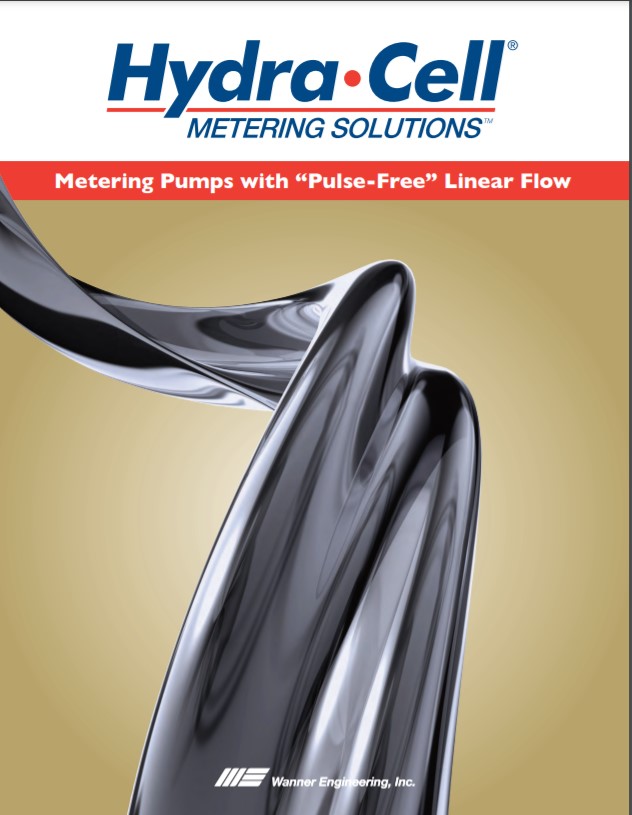

Hydra-Cell Metering Pumps Catalogue 1

Hydra-Cell Metering Pumps Catalogue 1

Download

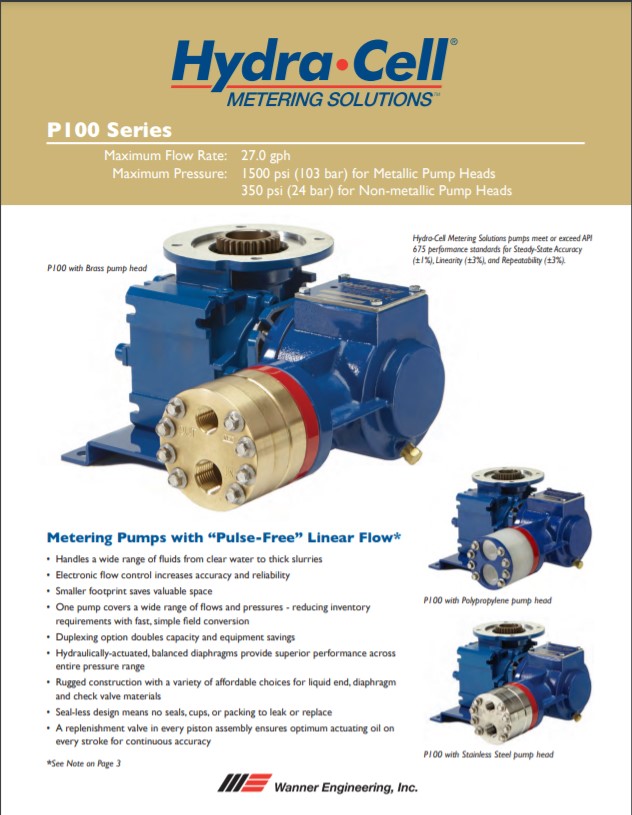

P100 Data Sheet

P100 Data Sheet

Download

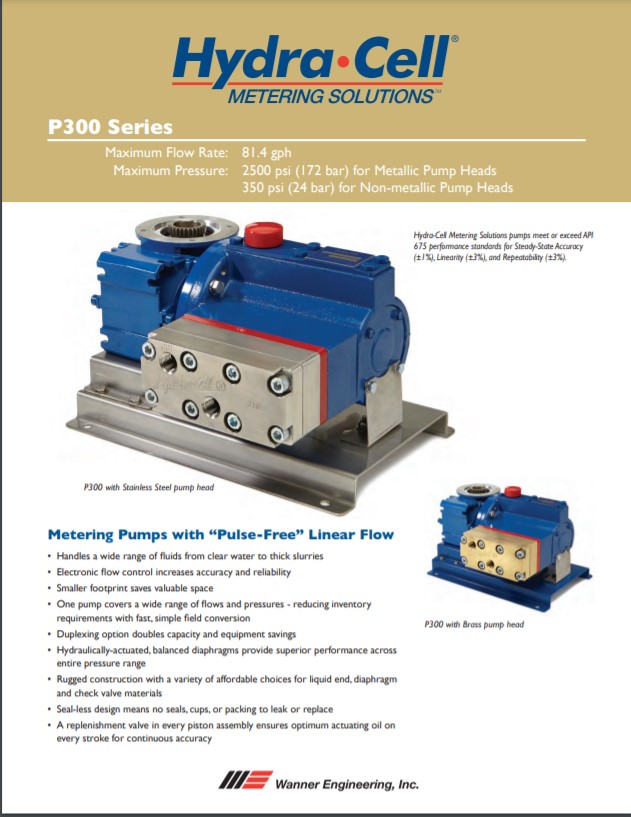

P300 Data Sheet

P300 Data Sheet

Download

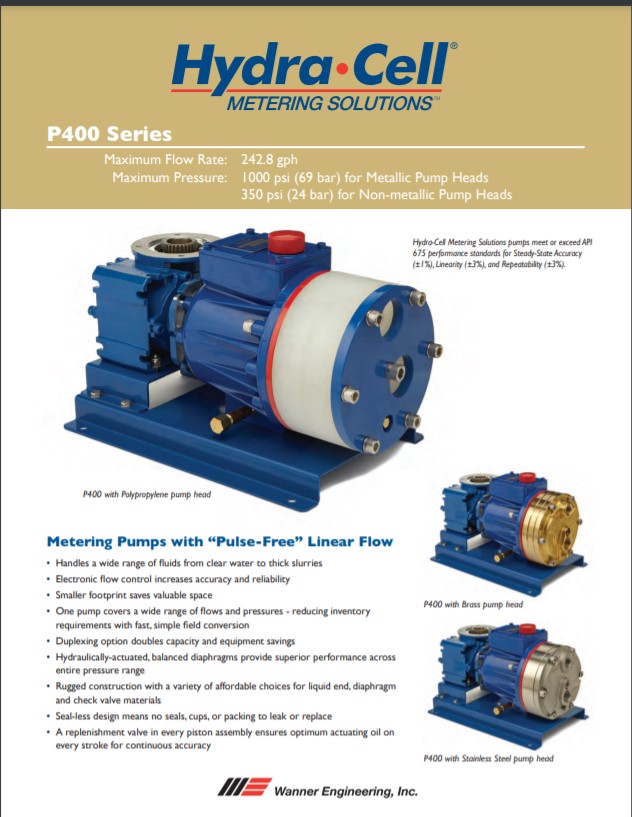

Hydra-Cell P400 Metering Pump Specifications

Hydra-Cell P400 Metering Pump Specifications

Download

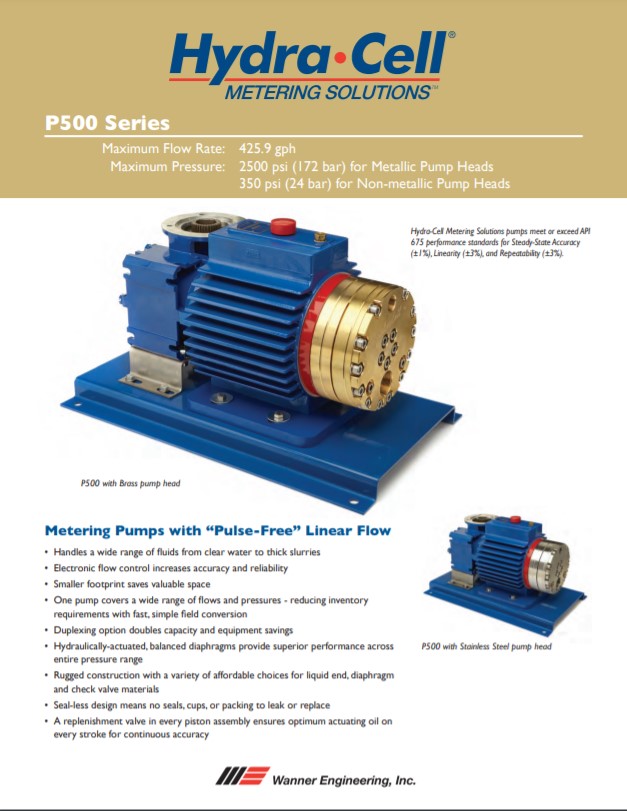

Hydra-Cell P500 Metering Pump Specifications
