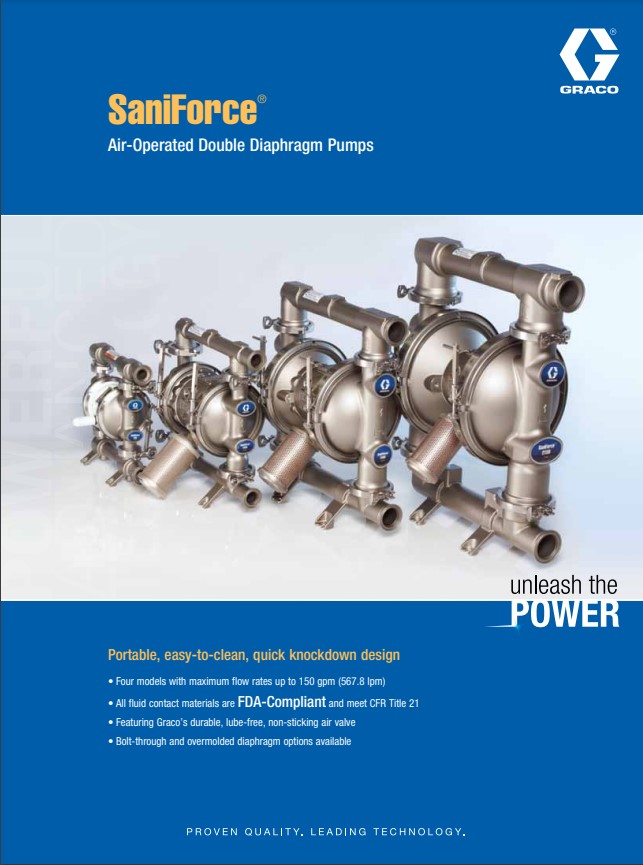

Graco SaniForce 2150 Double Diaphragm Pump

Graco SaniForce 2150 Double Diaphragm Pump

The Graco SaniForce 2150 Double Diaphragm Pump is a 2 inch air-operated double diaphragm with flow rates up to 150 gpm (568 lpm).

Graco’s SaniForce 2150 air-operated diaphragm pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

Features:

  • 2-1/2 in (63.5 mm) Tri-clamp connection
  • Flow rates up to 150 gpm (568 lpm)
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21

Patented, lube-free air valve

  • Three-way pilot valve for no-stick operation
  • Long-lasting 16 Series stainless steel rod design for long life and corrosion resistance
  • 1040, 1590 and 2150 SaniForce pumps use common center sections
  • 100% externally serviceable air valve
  •

PTFE/EPDM Overmolded Diaphragms

Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco’s PTFE/EPDM diaphragms so there’s no place to harbor bacteria

Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side

Longer diaphragm life in abrasive applications that still require PTFE

Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150

Applications Include

  • Low to medium viscosity applications.
  • Food products
  • Personal care
  • Juice and drink concentrates
  • Sauces
  • Cosmetics

Interchangeable With

  • Murzan
  • Wilden
  • Sandpiper
  • ARO

For more information contact us at: 1-877-624-5757

SANDPIPER and WARREN RUPP are trade marks of IDEX Corporation
