Graco SaniForce 1590 3A High Sanitation Diaphragm Pump

Graco SaniForce 1590 3A High Sanitation Diaphragm Pump

High Sanitation Diaphragm Pump

1-1/2 inch air-operated double diaphragm pump with flow rates up to 90 gpm (341 lpm). 3A certified for the milk and dairy industry.

Mounted on a floor stand and equipped with a leak detector, the 1590 3A food grade pump can be rotated to drain any excess sanitation chemicals used in the CIP (clean in place) process. Designed by Graco to meet the stringent sanitation requirements of the milk and dairy industry.


  • Pumps up to 90 gallons per minute (341 lpm)
  • Easy to clean with its quick knockdown, rotating design
  • Certified by 3A for dairy and milk applications
  • Features our lube free, non-sticking air valve

Designed to detect leaks!

  • Electronic leak detector is standard on 3A models
  • Designed to detect leaks caused when a diaphragm fails
  • Sounds a built-in audio alarm and signals external shut down of the pump to prevent damage
  • Uses an optical and conductivity sensor to ensure the utmost reliability
  • Powered by either 24v or 110/220v

EPDM Overmolded Diaphragms:

  • Approved for 3A applications
  • Easy cleaning with smooth, flat surfaces and no recessed areas
  • No exposed diaphragm plates to prevent contaminant collection

Applications Include

  • Low to medium viscosity applications
  • Food products
  • Juice and drink concentrates
  • Cosmetics
  • Salad dressings and dips
  • Wine transfer
  • Personal Care

Interchangeable With

  • Murzan
  • Wilden
  • ARO

For more information contact us at: 1-877-624-5757

Join our Mailing List

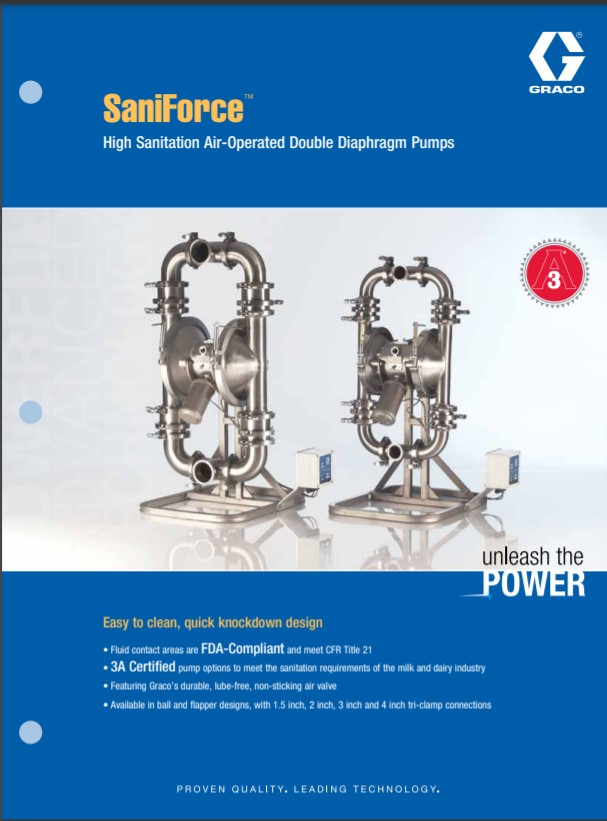

Graco SaniForce 1590 3A High Sanitation Diaphragm Pump
