Gorman-Rupp ReliaSource 8×12 Above Ground Lift Stations

An affordable alternative to modular enclosures, the Gorman-Rupp
ReliaSource 8×12 Above Ground Lift Station is robust enough to accommodate duplex and triplex pump configurations. The design also features interior walls to house more sophisticated controls than smaller models. As the original ReliaSource packaged pumping system,
Gorman-Rupp developed this fully customizable, NFPA 820-compliant lift station with input from the distributors who know your needs the best. As a result, it gives you the flexibility to meet your heavy solids-handling requirements, along with the convenience, quality and long-lasting performance that define the ReliaSource brand. Like all ReliaSource lift stations, the 8×12 model is a complete system, ready for immediate installation, and guaranteed to meet your sewage pumping needs for decades to come.

Gorman-Rupp ReliaSource 8×12 Above Ground Lift Stations Specifications:

Size: 3″ (75 mm)
4″ (100 mm)
6″ (150 mm)
8″ (200 mm)
Max Capacity: 2,600 GPM
(164 lps)
Max Head: 320′
(98 m)
Max Solids: 3″
(76 mm)
Max Temperature: 160 F (71 C)
Motor- Voltage: 200 V 3P
230 V 1P
230 V 3P
460 V 3P
575 V 3P
Motor- Cycles: 60 Hz
Horsepower: 2 HP – 200 HP


Gorman-Rupp ReliaSource 8×12 Above Ground Lift Stations Features:

Pumps:

  • Accommodates Gorman-Rupp Super T Series, Ultra V Series or VS Series self-priming centrifugal, heavy duty
    solids-handling pumps
  • Specifically designed for sewage and industrial waste water handling applications
  • A wide range of duplex and triplex pump configurations
  • Heavy-duty construction and easy-to-service design

Enclosure:

  • Manufactured with Nida-Fusion STO complexes, created by Nida-Core Corp., for flexural strength, excellent fatigue and delaminating resistance
  • Nida-Fusion STO complexes are composed of a sheet of closed-cell foam, covered with a reinforcing fiber layer on each side, all linked together by fiberglass bridging strands that form a triangular truss network
  • Aesthetically pleasing, forest green color blends in
    with the environment
  • Two side access panels and a removable roof ensure
    easy access for maintenance
  • Man door for station entry
  • Vandal-resistant design for added security

Controls:

  • Custom engineered, NEMA-rated automatic controls to operate pump function and warning systems
  • Choose from a variety of adjustable pressure controls, H-O-A selectors, overload reset buttons and circuit breakers
    for station accessories
  • Interior walls allow for more sophisticated controls than smaller package configurations
  • Clearly marked field connections for fast and efficient electrical hook-up
  • Available U.L. and C.S.A. listed

Warranty:

  • Industry-leading, 60-month warranty
  • Covers the entire packaged system – enclosure, pumps,
    valves and controls

Gorman-Rupp Lift Station Pump System Assembly Time Lapse:

Gorman-Rupp ReliaSource 8x12 Above Ground Lift Stations

Join our Mailing List

Resources

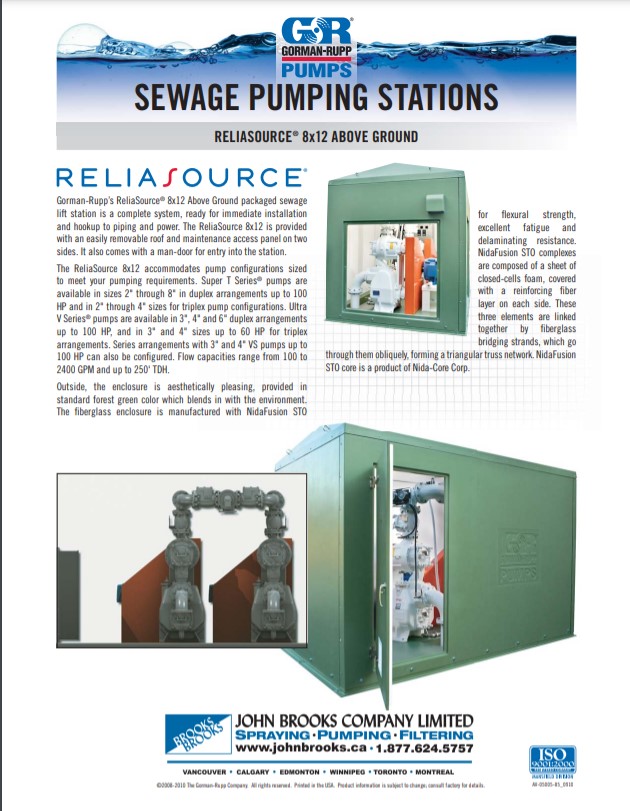

Gorman-Rupp ReliaSource 8x12 Above Ground Lift Stations
