Finish Thompson Mag Drive Drum Pumps - EF Series
The Finish Thompson EF Series offers optimal value in Sealless Pumps. These pumps offer a budget-friendly solution for light-duty transfers and serve as the perfect alternative to manual hand pumps.
Finish Thompson Drum Pump EF Series Features
- Polypropylene, pure polypropylene/PVDF, or 316 stainless steel tubes
- Dual speed adjustable motors
- Tubes interchangeable with motors
- Lightweight & economical
- Integral strainer
- Plastic models have built-in hose cord & clips
- An ideal replacement for hand pumps
- Integral strainer (EFP/EFV only)
- Built-in hose, cord clips (EFP/EFV only)
- Light acids and bases, plating solutions, sodium hypochlorite, cleaners, coolants
Applications of Finish Thompson Drum Pump EF Series
- Light acids and bases
- Solvents
- Sodium hypochlorite
- Cleaners
- Coolants
- DEF/AdBlue (diesel exhaust fluid)
Finish Thompson Drum Pump EF Series: EFP
| Electric Motor | Air Motor | 12V Motor | |
| Maximum Flow: | 17 gpm (64 lpm) | 15 gpm (57 lpm) | 14 gpm (53 lpm) |
| Maximum Head: | 20 ft (6.1 m) | 17 ft (5.2 m) | 13 ft (4 m) |
| Maximum Specific Gravity: | 1.6 | 1.6 | 1.6 |
| Maximum Viscosity: | 300 cP | 300 cP | 100 cP |
| Maximum Temperature: | 150º F (66º C) | |
| Minimum Temperature: | 0º F (-18º C) | |
Finish Thompson Drum Pump EF Series: EFV
| Electric Motor | Air Motor | 12V Motor | |
| Maximum Flow: | 17 gpm (64 lpm) | 15 gpm (57 lpm) | 14 gpm (53 lpm) |
| Maximum Head: | 20 ft (6.1 m) | 17 ft (5.2 m) | 13 ft (4 m) |
| Maximum Specific Gravity: | 1.6 | 1.6 | 1.6 |
| Maximum Viscosity: | 300 cP | 300 cP | 100 cP |
| Maximum Temperature: | 160º F (71º C) | |
| Minimum Temperature: | 0º F (-18º C) | |
Finish Thompson Drum Pump EF Series: EFS
| Electric Motor | Air Motor | 12V Motor | |
| Maximum Flow: | 17 gpm (64 lpm) | 15 gpm (57 lpm) | 14 gpm (53 lpm) |
| Maximum Head: | 20 ft (6.1 m) | 17 ft (5.2 m) | 13 ft (4 m) |
| Maximum Specific Gravity: | 1.6 | 1.6 | 1.6 |
| Maximum Viscosity: | 300 cP | 300 cP | 100 cP |
| Maximum Temperature: | 212º F (100º C) | |
| Minimum Temperature: | 0º F (-18º C) | |

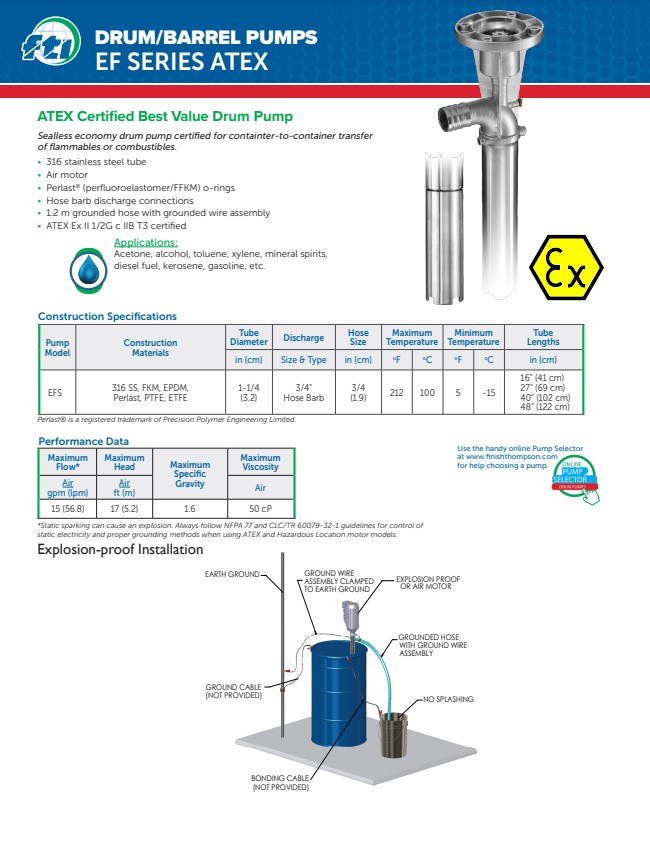

ATEX certified option available. Please contact factory for more information.

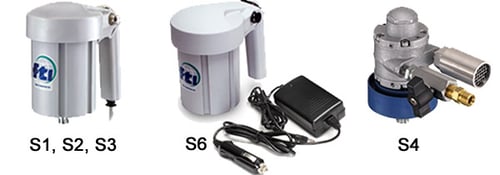

Finish Thompson Drum Pump EF Series: Motors
ODP (Open Drip Proof), Splashproof, IP24 Electric & Battery Motors
| Certification |
Input/Output |
RPM | Maximum Viscosity | ||
| QPS | 230/110 | 8,000/14,000 | 300 cP | ||
| CE | 230/110 | 8,000-14,000 | 300 cP | ||
| CE | 230/110 | 8,000/14,000 | 300 cP | ||
| CE | 150/100 | 8,000-14,000 | 100 cP |
Air Motors*
| Certification |
Input/Output |
RPM | Maximum Viscosity | ||
| CE | /400 | 300-11,000 | 300 cP |
*An air motor is a non-electrical device meaning possibility of explosion from igniting flammables is reduced.
†ATEX certified option available. Contact factory for more information
Sealless Magnetic Drive Pumps: Ideal for Mining Operations
Mining operations demand pumps of exceptional quality and reliability to facilitate extraction. Moreover, the hazardous byproducts often associated with mining necessitate careful handling. In pursuit of safe and efficient mining practices, the use of sealless magnetic drive pumps is paramount. Crafted specifically for rugged chemical applications, Finish Thompson's mag-drive pumps stand as the leading solution across a broad spectrum of mining tasks.
Have a Fluid Handling Problem? We can help you find a Pumping Solution.
John Brooks Company caters to diverse industries, offering suitable pump solutions for nearly all fluid handling needs - including yours! Our success hinges on fostering a collaborative partnership with you, where we help you find a tailored solution to enhance your systems, boost productivity, and minimize operational expenses
Consult with a John Brooks Company Pump expert today to help you determine the most suitable pump type for your application needs.
