| Product | Flow | Nozzle Type | Force | Extension Pipe Length | Stay Set Hose Length | Chip Shield | Air Inlet |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz/ 255 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Mini Super Air Nozzle | 9 oz/ 255 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz/ 255 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | PEEK (Plastic) Atto Super Air Nozzle | 2 oz/ 57 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM) | St. Steel Atto Super Air Nozzle | 2 oz/ 57 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz/ 142 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz/ 142 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz/ 230 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super Air Nozzle | 8.1 oz/ 230 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Zinc-Alum. 1" Flat Super Air Nozzle | 9.8 oz/ 278 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
13 SCFM (36 SLPM) | Alum. Adjustable Air Nozzle | 12 oz/ 340 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
13 SCFM (36 SLPM) | St. Steel Adjustable Air Nozzle | 12 oz/ 340 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
13 SCFM (36 SLPM) | St. Steel Micro Air Nozzle | 12 oz/ 340 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | St. Steel 1" HP Flat Super Air Nozzle | 16 oz/ 454 grams | N/A | N/A | N/A | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | Zinc-Alum. 1" HP Flat Super Air Nozzle | 16 oz/ 454 grams | N/A | N/A | N/A | 1/4 FNPT |
Specifications:
Model 1699 VariBlast Compact Safety Air GunNozzle: 1103 Mini Super Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 10 | 283 | 9 | 255 | 71 | |
|

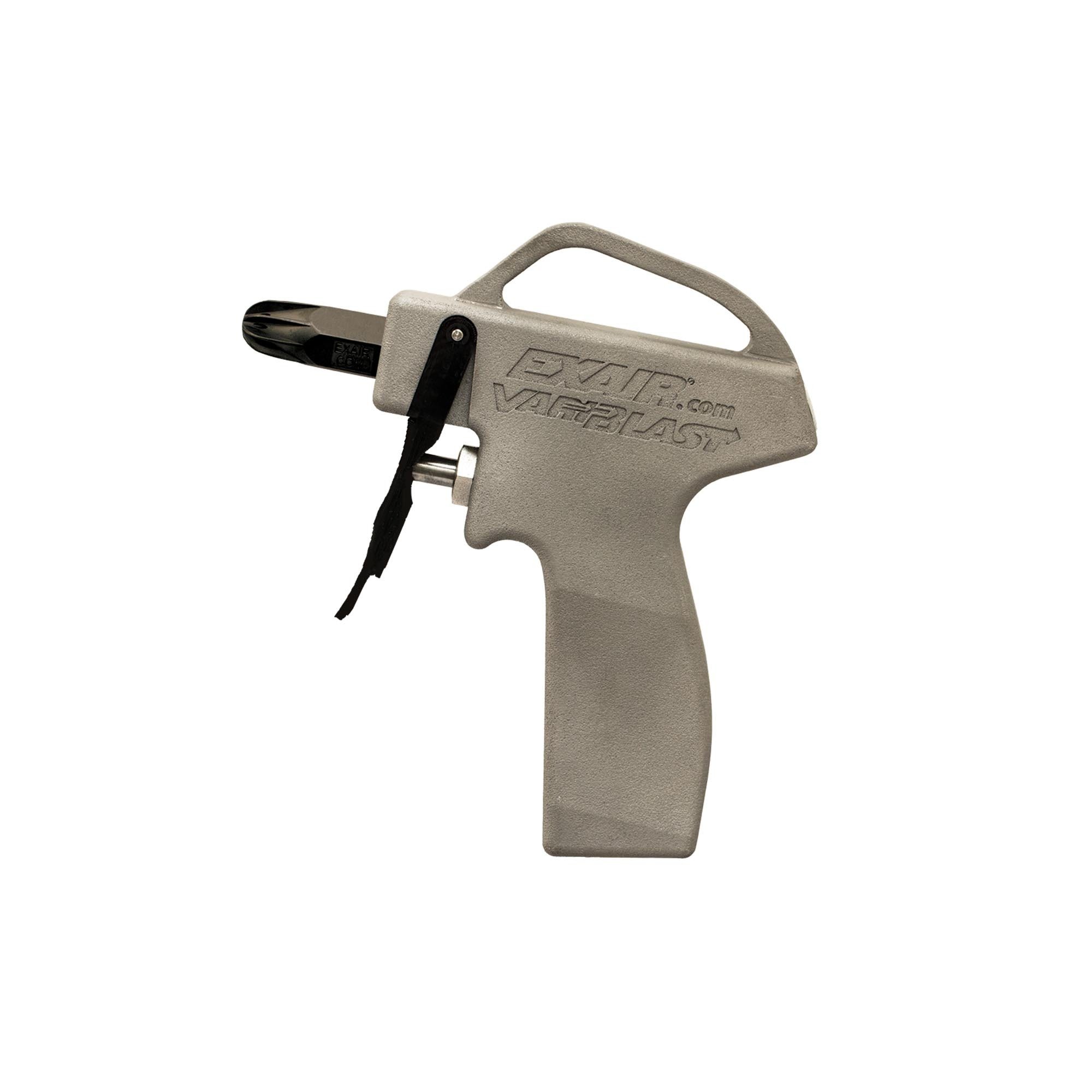

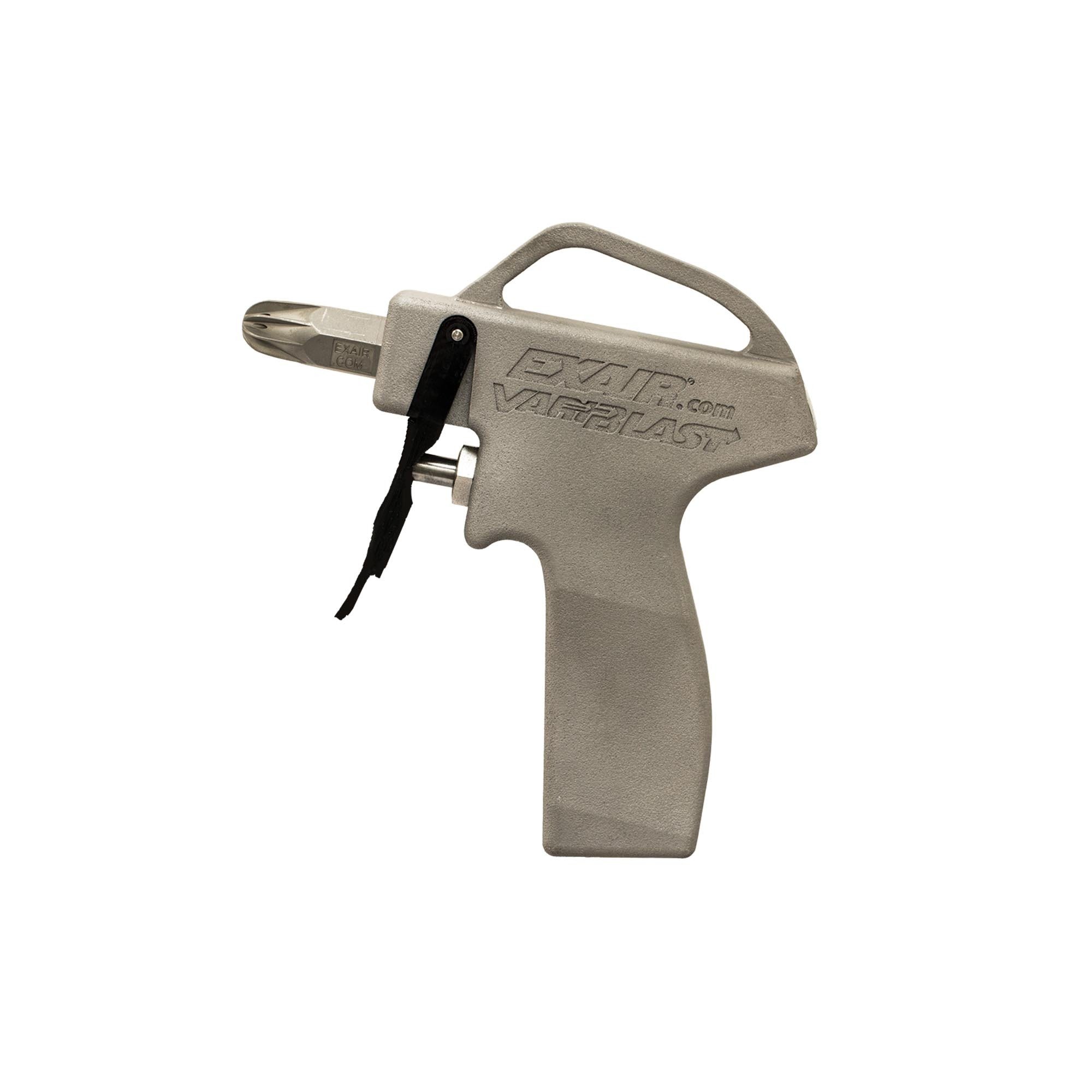

Also available: 1699SS with 1103 Stainless Steel Mini Super Air Nozzle 1699-PEEK with 1103-PEEK PEEK Plastic Mini Super Air Nozzle |
|||||
Model 1696SS VariBlast Compact Safety Air GunNozzle: 1108SS Stainless Steel Atto Super Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 2.5 | 71 | 2.0 | 57 | 58 | |
|

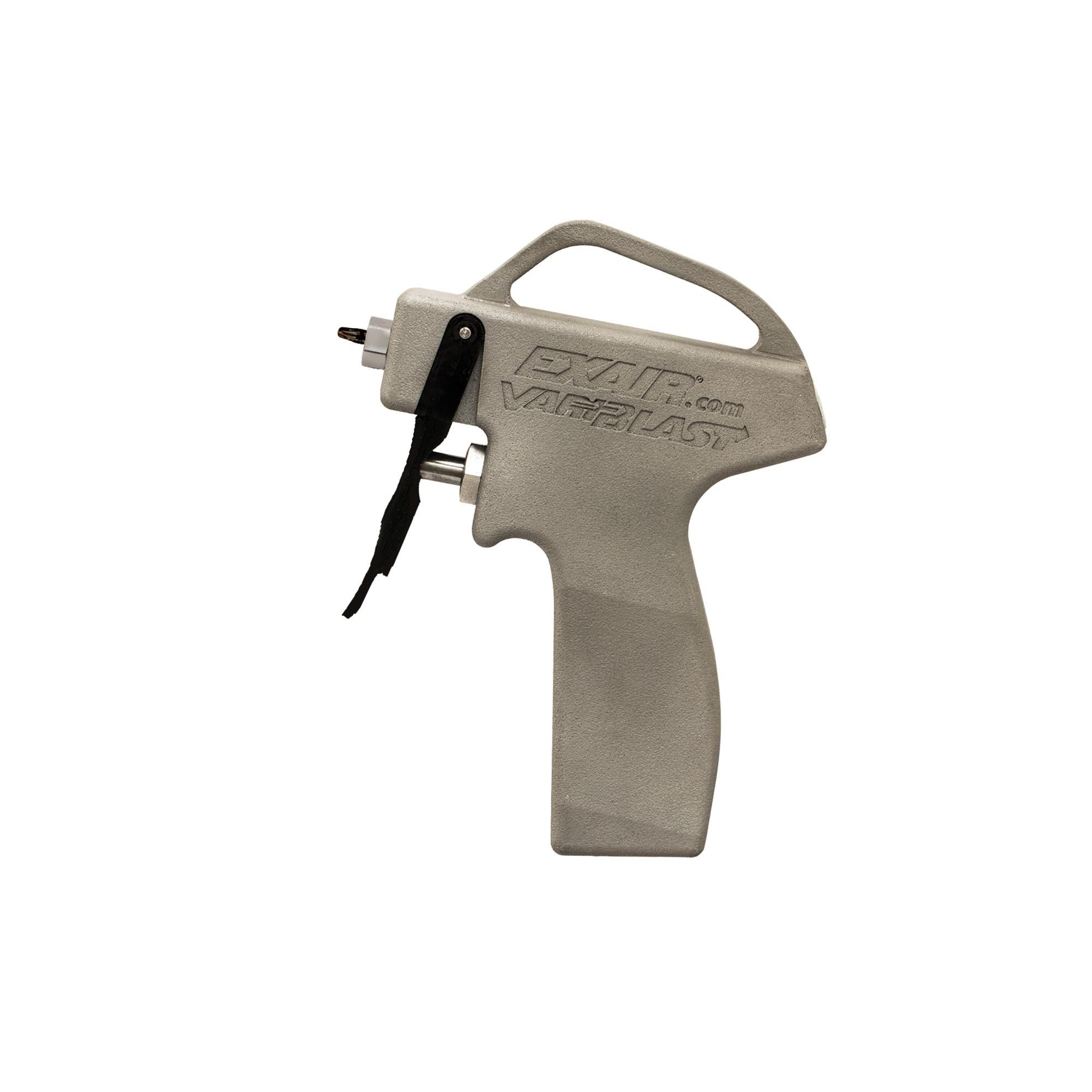

Also available: 1696-PEEK with 1108-PEEK PEEK Plastic Atto Super Air Nozzle |
|||||

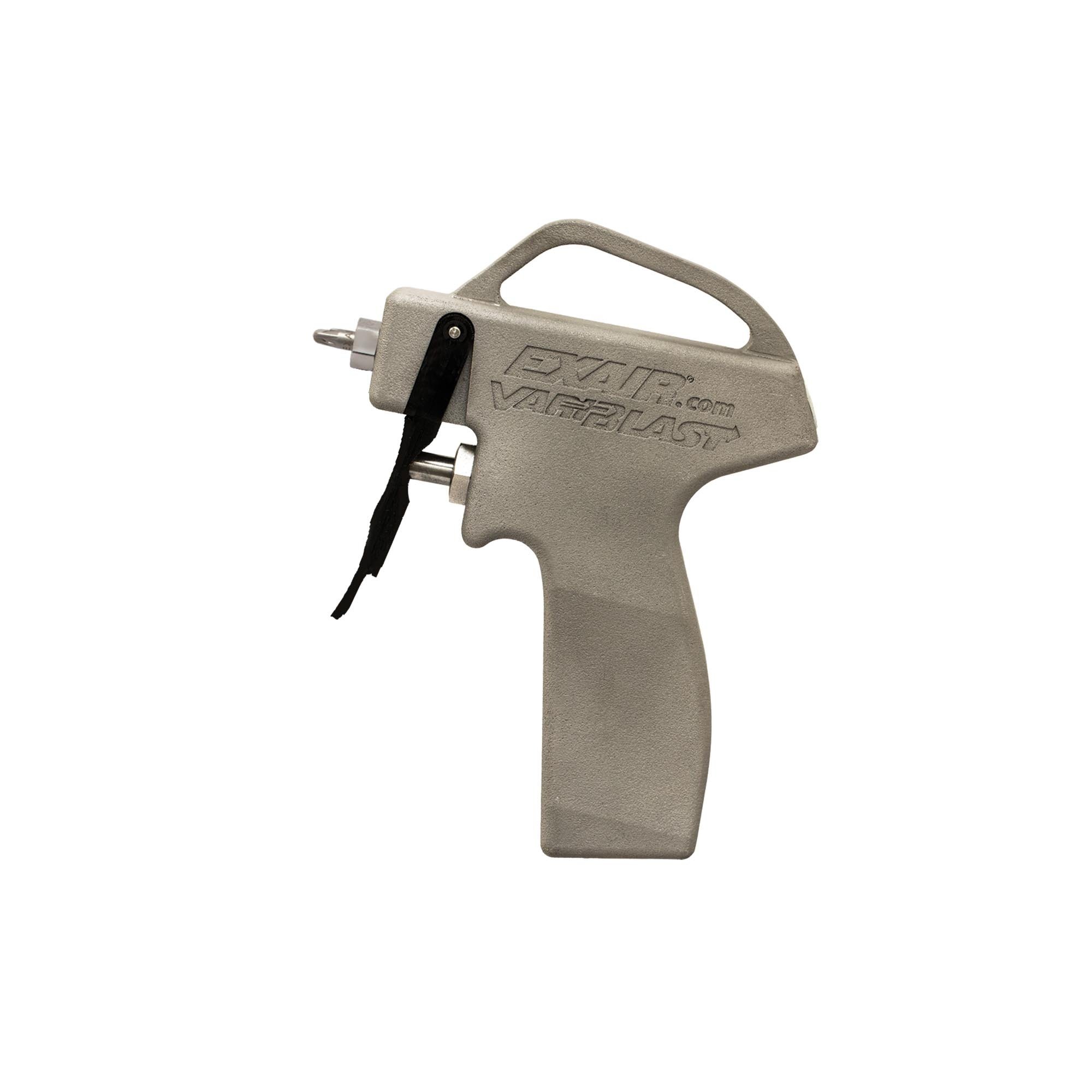

Model 1697SS VariBlast Compact Safety Air GunNozzle: 1109SS Stainless Steel Pico Super Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 4.9 | 139 | 5.0 | 142 | 68 | |
|
Also available: 1697-PEEK with 1109-PEEK PEEK Plastic Pico Super Air Nozzle |
|||||

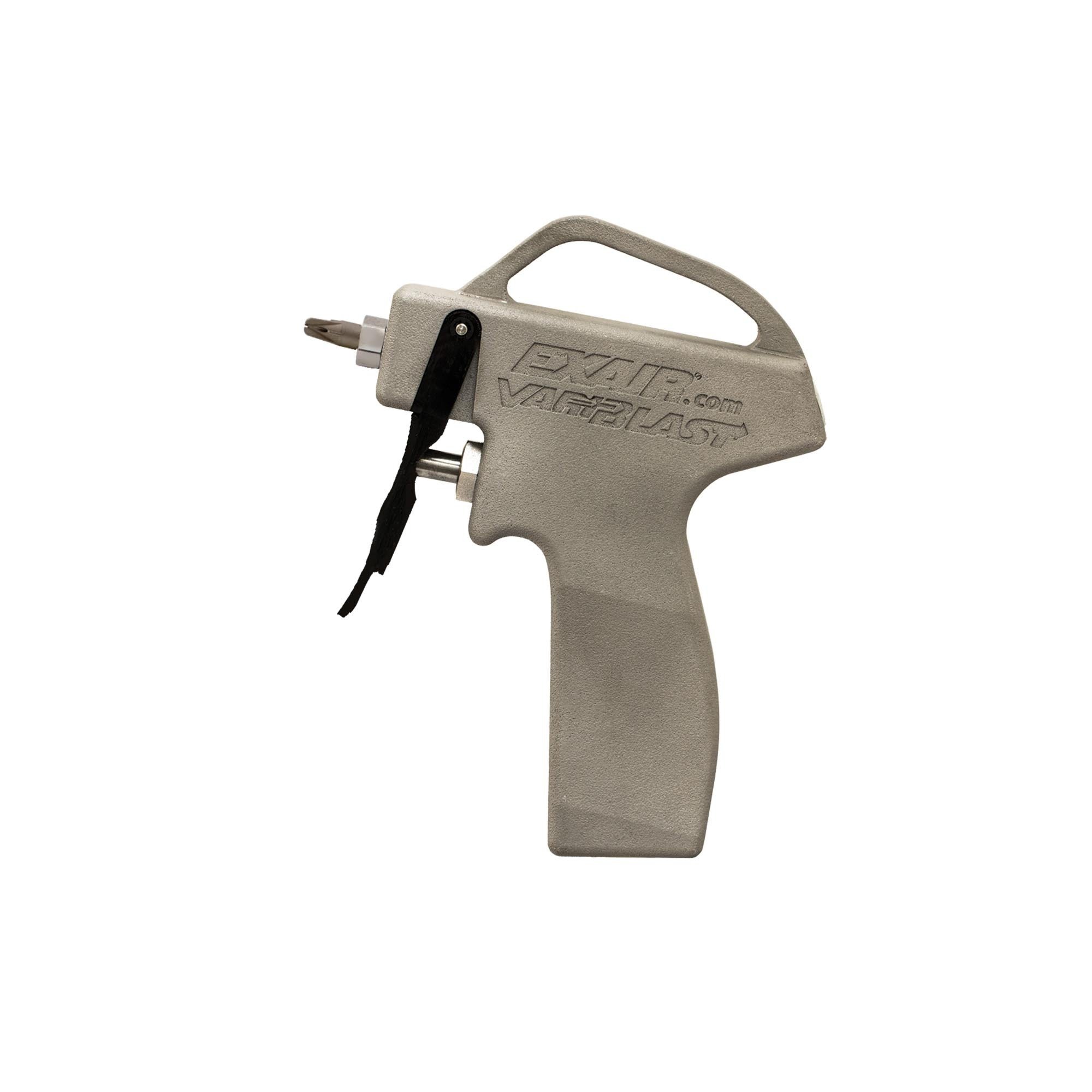

Model 1698SS VariBlast Compact Safety Air GunNozzle: 1110SS Stainless Steel Nano Super Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 8.3 | 235 | 8.1 | 230 | 75 | |
|
Also available: 1698-PEEK with 1110-PEEK PEEK Plastic Nano Super Air Nozzle |
|||||
Model 1629 VariBlast Compact Safety Air GunNozzle: 1126 Zinc Aluminum 1" Flat Super Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 10.5 | 297 | 9.8 | 278 | 75 | |
|
Also available: 1629SS with 1126SS Stainless Steel 1" Flat Super Air Nozzle .015" (0.38mm) shim installed |
|||||

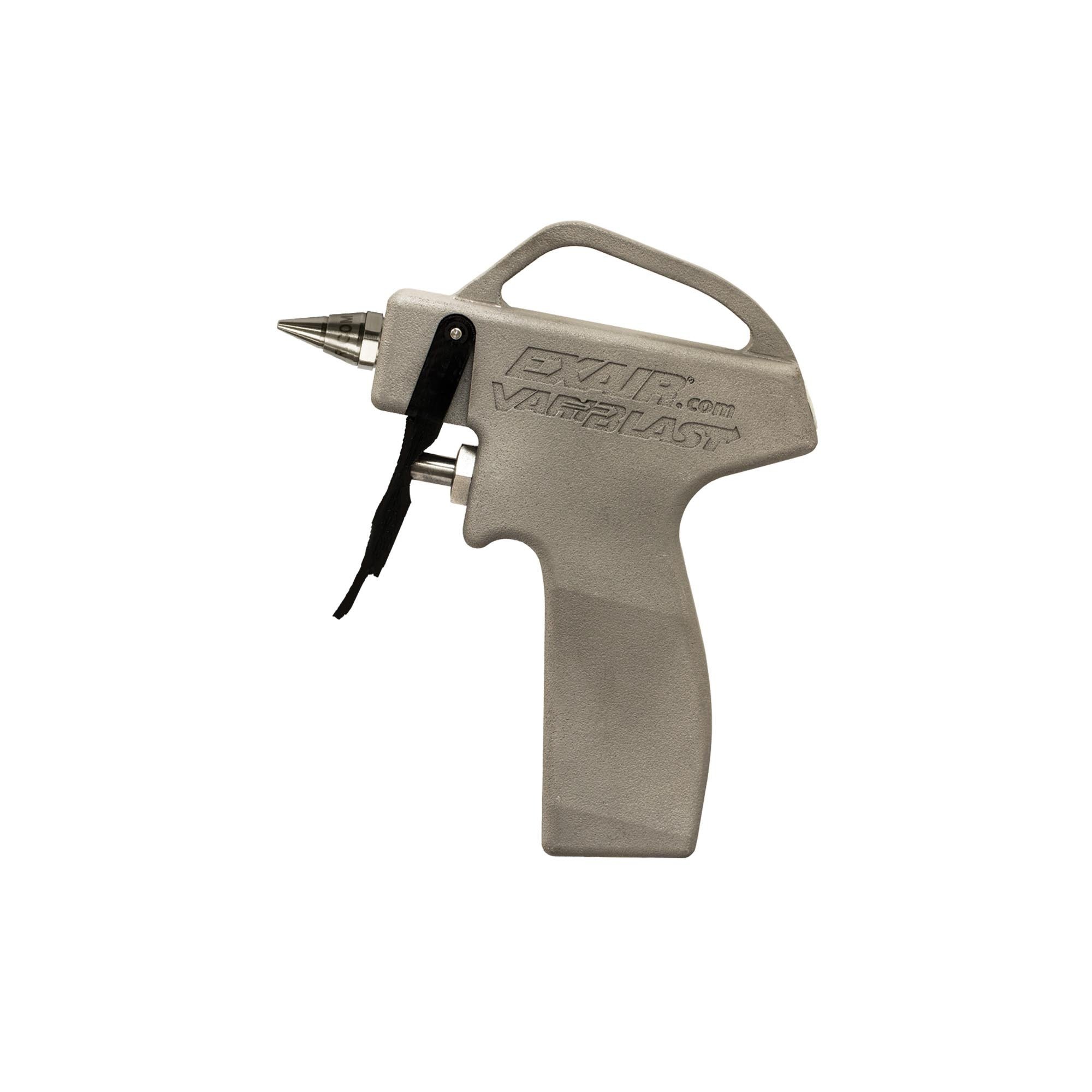

Model 1680SS VariBlast Compact Safety Air GunNozzle: 1010SS Stainless Steel Micro Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 13 | 368 | 12 | 340 | 80 | |
Model 1690 VariBlast Compact Safety Air GunNozzle: 1009 Zinc Aluminum Adjustable Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 13 | 368 | 12 | 340 | 79 | |
|

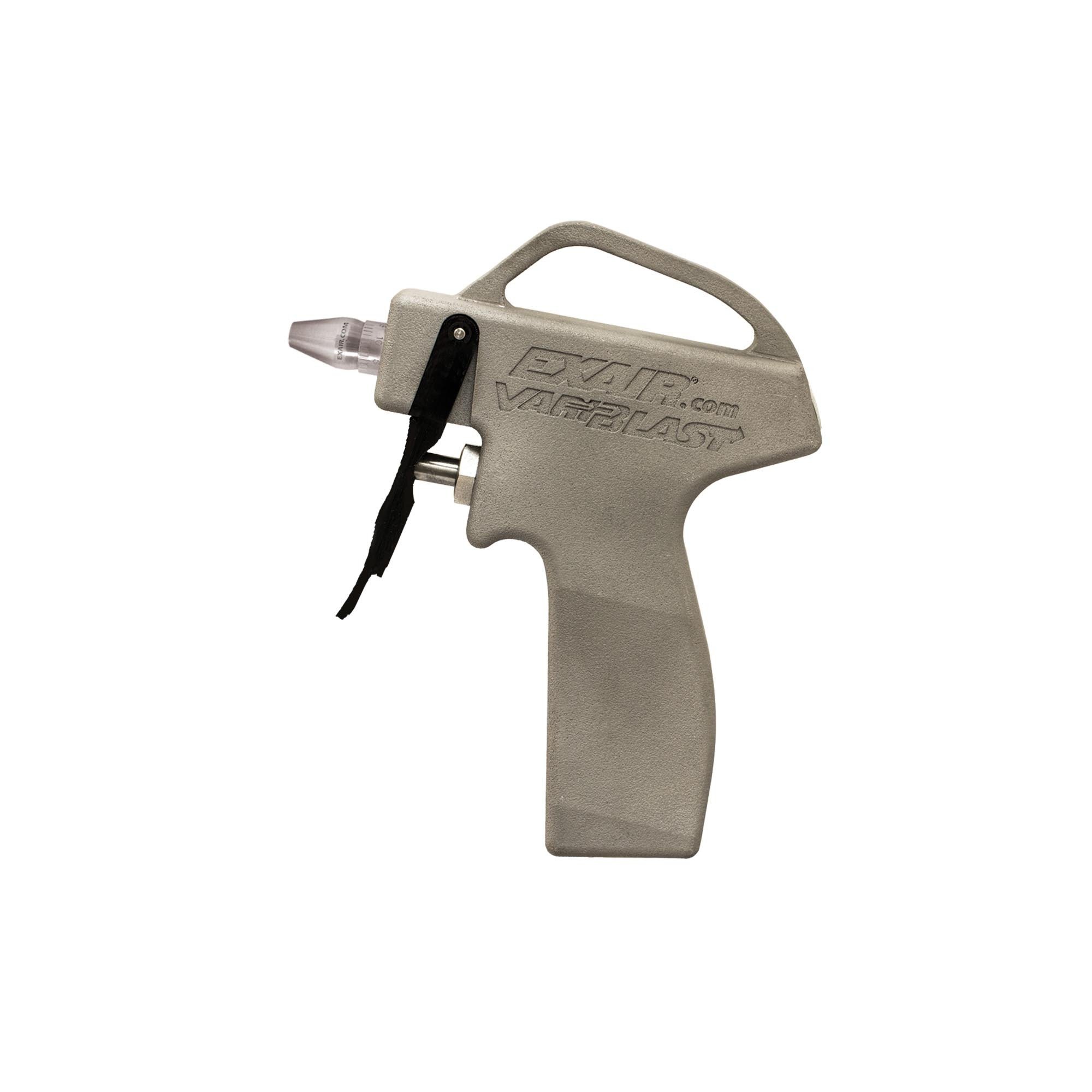

Also available: 1690SS with 1009SS Stainless Steel Adjustable Air Nozzle |
|||||

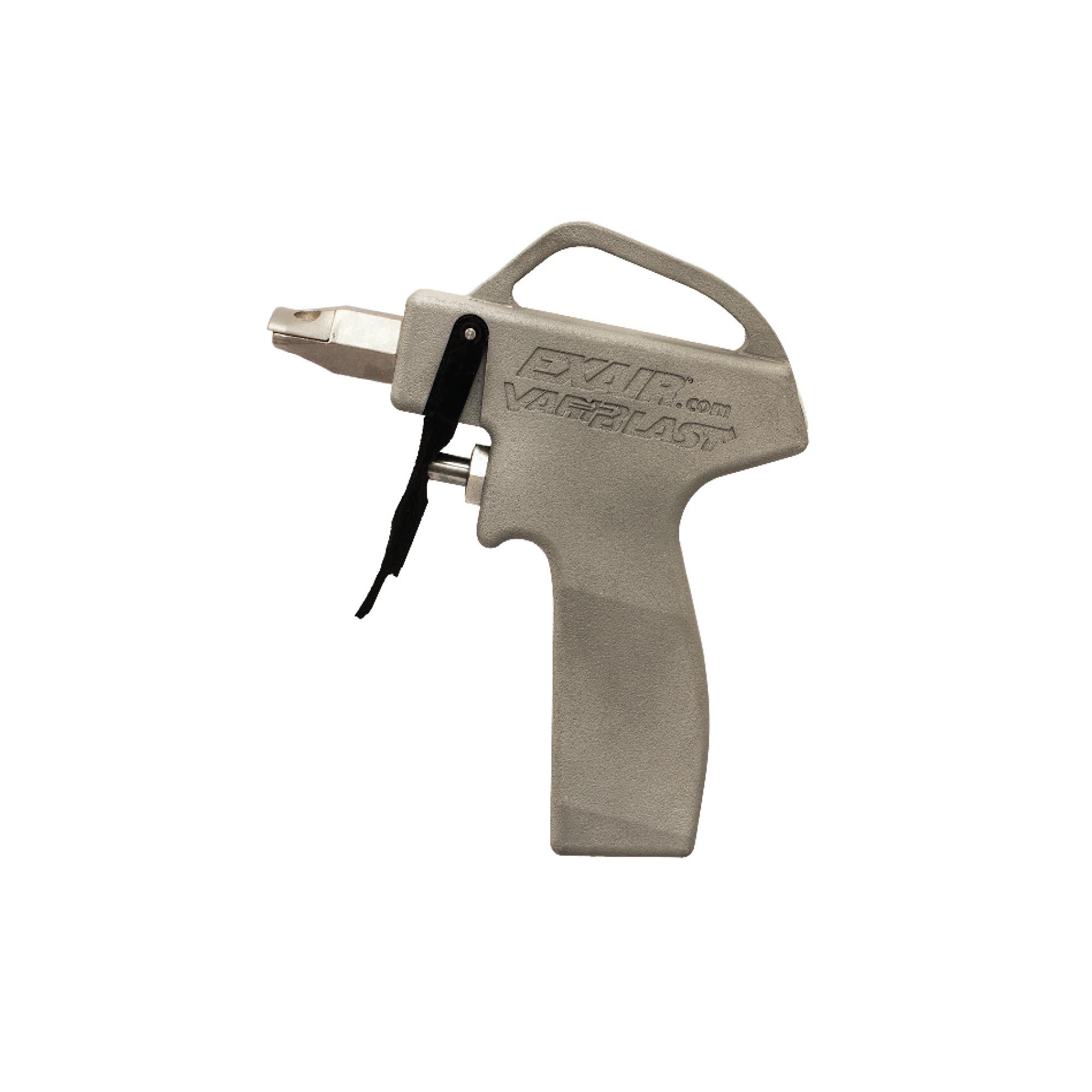

Model HP1629 VariBlast Compact Safety Air GunNozzle: HP1126 Zinc Aluminum 1" High Power Flat Super Air Nozzle |
|||||
Inlet: Dual 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 17.5 | 495 | 16 | 454 | 82 | |
|
Also available: HP1629SS with HP1126SS Stainless Steel 1" High Power Flat Super Air Nozzle |
|||||
Model 1604SS-6-CS VariBlast Compact Back Blow Safety Air GunNozzle: 1004SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension and Chip Shield |
||||
|
Inlet: Dual 1/4 FNPT
|
Air Consumption | Sound Level | Use With: | |
| SCFM | SLPM | dBA | Inside Diameter | |
| 4.5 | 127 | 75 | 1/4" - 1"(6.3-25.4mm) | |
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Part drying
Advantages:
- Lightweight
- Comfortable to operate during extended use
- Variable flow trigger
- Highly focused blast of air
- Small nozzle and extension can fit into tight spaces
- Reduced compressed air cost
- Improved blowoff performance
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
Materials:
VariBlast Compact Safety Air Gun Body:
- Durable cast aluminum with ergonomic grip.
Nozzle Options:
- Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
- Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).
- PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C).
Accessories:
Aluminum Extension Pipe - extends the reach of your VariBlast Compact Safety Air Gun. 1/8 NPT Extension Pipes are available in 6" (152mm) to 72" (1829mm) lengths.
Coiled Hose with Swivel - Heavy duty compressed air hose that's coiled to conveniently store it when not in use. Available in 12' (3.7m) lengths. Use Model 900750 Coiled Hose for VariBlast Compact Safety Air Guns.
Chip Shields - durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splashback from drying operations.
Safety Air Gun Standards and Certifications
EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC).All sound level measurements are taken at 3 feet away.
