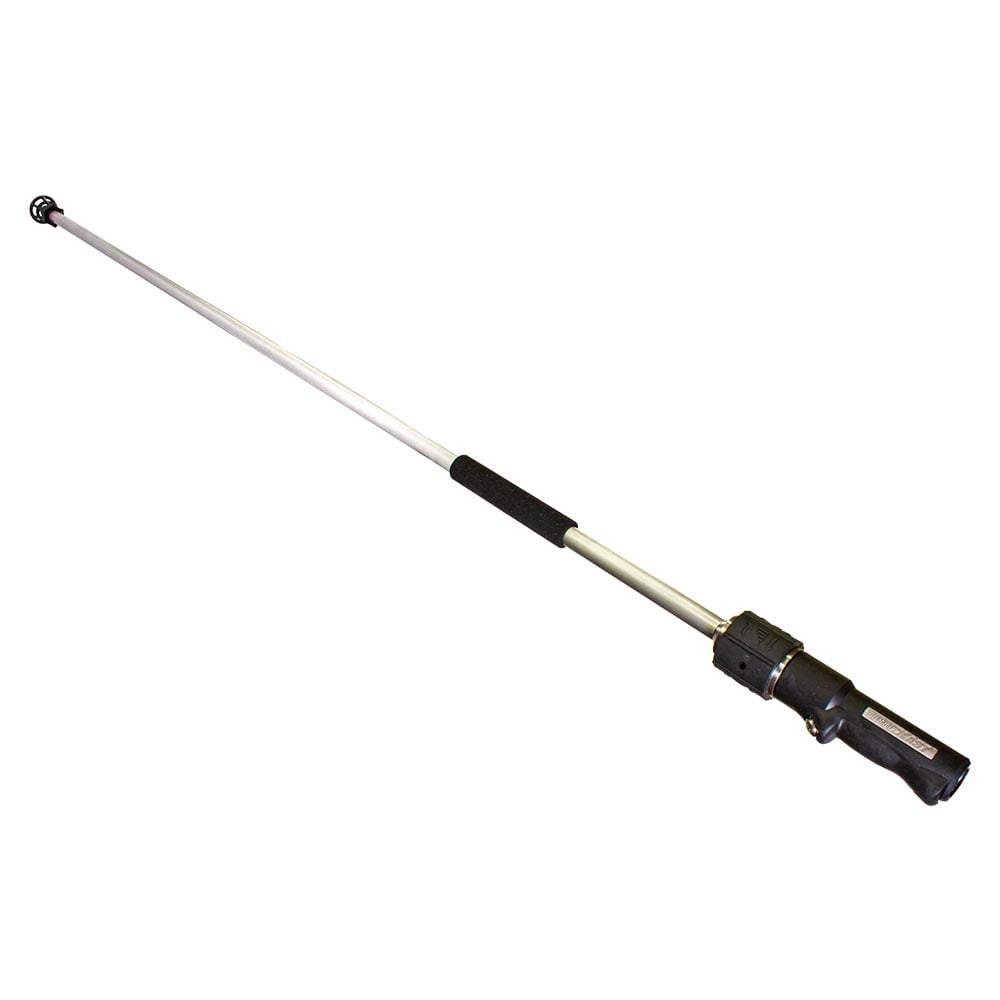

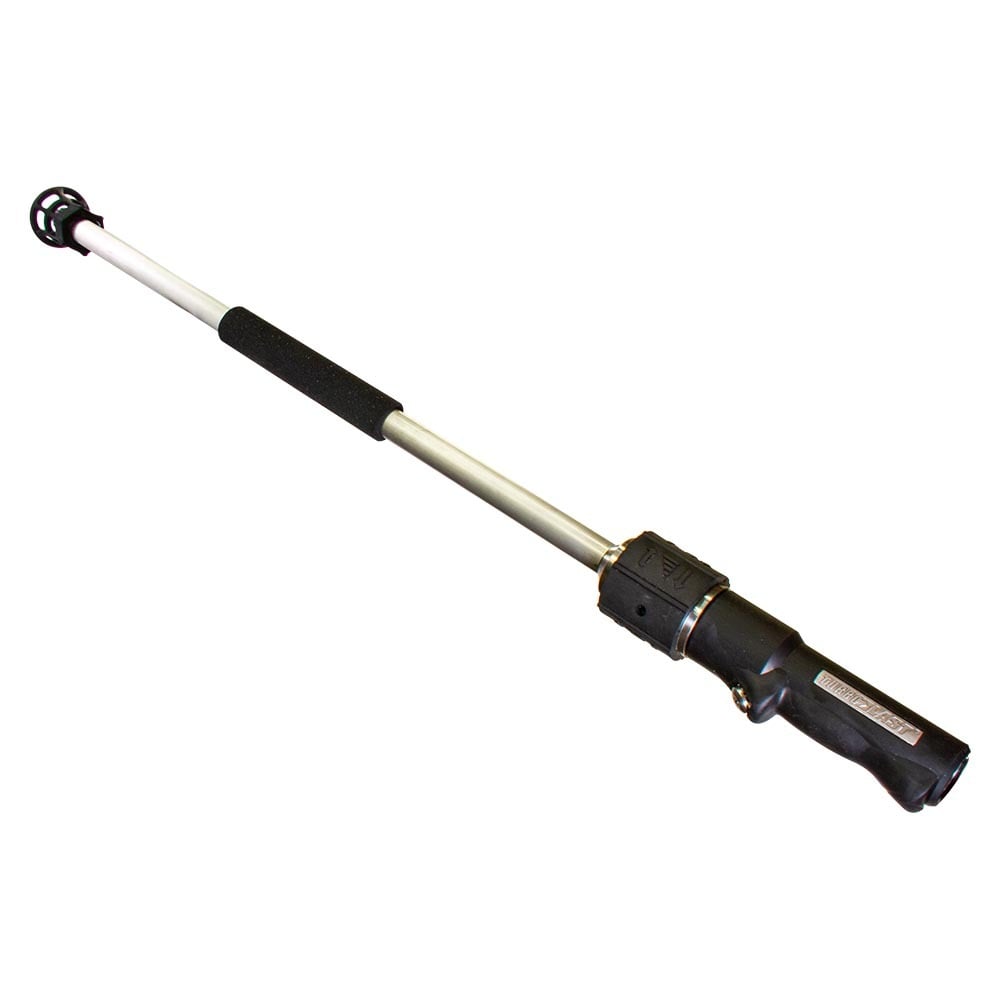

EXAIR TurboBlast® Safety Air Gun with Nozzle and Aluminum Extension Pipe - Includes Adjustable Flow Valve

EXAIR TurboBlast Safety Air Guns are extraordinary, ergonomic guns which produce very high airflow and force up to 23 pounds. A soft grip houses a one finger, button trigger which activates a powerful and adjustable airflow which can be dialed in for specific applications. These air guns include the option of a 3' or 6' Extension Pipe for longer reach. These versions include the gate valve to allow for on-the-fly airflow adjustment.

Product	Flow	Nozzle Type	Force	Extension Pipe Length	Stay Set Hose Length	Chip Shield	Air Inlet
	91 SCFM (2577 SLPM)	St. Steel 3/4 NPT Super Air Nozzle	4.5 LBS / 2.04 KG	36" (3ft/9m)	N/A	N/A	1 NPT
	91 SCFM (2577 SLPM)	St. Steel 3/4 NPT Super Air Nozzle	4.5 LBS / 2.04 KG	72" (6 ft/1.8m)	N/A	N/A	1 NPT
	91 SCFM (2577 SLPM)	Zinc-Alum. 3/4 NPT Super Air Nozzle	4.5 LBS / 2.04 KG	36" (3ft/9m)	N/A	N/A	1 NPT
	91 SCFM (2577 SLPM)	Zinc-Alum. 3/4 NPT Super Air Nozzle	4.5 LBS / 2.04 KG	72" (6 ft/1.8m)	N/A	N/A	1 NPT
	135 SCFM (3823 SLPM)	St. Steel 1 NPT Super Air Nozzle	6.6 lbs / 3.01 kg	36" (3ft/9m)	N/A	N/A	1 NPT
	135 SCFM (3823 SLPM)	St. Steel 1 NPT Super Air Nozzle	6.6 lbs / 3.01 kg	72" (6 ft/1.8m)	N/A	N/A	1 NPT
	135 SCFM (3823 SLPM)	Zinc-Alum. 1 NPT Super Air Nozzle	6.6 lbs / 3.01 kg	36" (3ft/9m)	N/A	N/A	1 NPT
	135 SCFM (3823 SLPM)	Zinc-Alum. 1 NPT Super Air Nozzle	6.6 lbs / 3.01 kg	72" (6 ft/1.8m)	N/A	N/A	1 NPT
	188 SCFM (5324 SLPM)	Zinc-Alum. 1-1/4 NPT Super Air Nozzle	9.4 lbs / 4.25 kg	36" (3ft/9m)	N/A	N/A	1 NPT
	188 SCFM (5324 SLPM)	Zinc-Alum. 1-1/4 NPT Super Air Nozzle	9.4 lbs / 4.25 kg	72" (6 ft/1.8m)	N/A	N/A	1 NPT
	300 SCFM (8495 SLPM)	Zinc-Alum. 1-1/4 NPT Super Air Nozzle	15 lbs / 6.8 kg	36" (3ft/9m)	N/A	N/A	1 NPT
	300 SCFM (8495 SLPM)	Zinc-Alum. 1-1/4 NPT Super Air Nozzle	15 lbs / 6.8 kg	72" (6 ft/1.8m)	N/A	N/A	1 NPT
	460 SCFM (8495 SLPM)	Zinc-Alum. 1-1/4 NPT Super Air Nozzle	23 lbs / 10.43 kg	36" (3ft/9m)	N/A	N/A	1 NPT
	460 SCFM (8495 SLPM)	Zinc-Alum. 1-1/4 NPT Super Air Nozzle	23 lbs / 10.43 kg	72" (6 ft/1.8m)	N/A	N/A	1 NPT

Specifications:

Model 1924SS (includes adj flow valve) and 1914SS (no flow valve) TurboBlast Safety Air Gun Nozzle: 1112SS Stainless Steel Super Air Nozzle
Inlet: 3/4 NPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Kg	dBA
	91	2,577	4.5	2.04	96
Also available: 1924 and 1914 with 1112 Zinc Aluminum Super Air Nozzle OSHA 3 hour total exposure per day without hearing protection

Model 1925SS (includes adj flow valve) and 1915SS (no flow valve) TurboBlast Safety Air Gun Nozzle: 1114SS Stainless Steel Super Air Nozzle
Inlet: 1 NPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Kg	dBA
	135	3,823	6.6	2.99	99
Also available: 1925 and 1915 with 1114 Zinc Aluminum Super Air Nozzle OSHA 2 hour total exposure per day without hearing protection

Model 1926 (includes adj flow valve) and 1916 (no flow valve) TurboBlast Safety Air Gun Nozzle: 1116 Zinc Aluminum Super Air Nozzle
Inlet: 1-1/4 NPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Kg	dBA
	188	5,324	9.4	4.26	102
Without hearing protection, only use 1 hour per day OSHA 29 CFR 1910.95(a)

Model 1927 (includes adj flow valve) and 1917 (no flow valve) TurboBlast Safety Air Gun Nozzle: 1118 Zinc Aluminum Super Air Nozzle
Inlet: 1-1/4 NPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Kg	dBA
	300	8,495	15	6.8	106
Without hearing protection, only use 1/2 hour per day OSHA 29 CFR 1910.95(a)

Model 1928 (includes adj flow valve) and 1918 (no flow valve) TurboBlast Safety Air Gun Nozzle: 1120 Zinc Aluminum Super Air Nozzle
Inlet: 1-1/4 NPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Kg	dBA
	460	13,026	23	10.43	109
Without hearing protection, only use 1/2 hour per day OSHA 29 CFR 1910.95(a)

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Choose a Safety Air Gun with Adjustable Flow Valve (Models 1924 thru 1928) to allow for on-the-fly airflow adjustment when less or more airflow is demanded from the application.

Dimensions:

Dimensions - TurboBlast Safety Air Gun (Includes Gate Valve)

Model 1924

Model 1925

Models 1926, 1927, 1928

Applications:

• Slag removal
• Flash removal
• Paper manufacturing cleanup
• Steel Mill cleanup
• Manufacturing cleanup of stubborn debris/waste
• Part cooling
• Part drying, liquid removal

Advantages:

• Easy adjustment valve to control airflow blowing force (available on specific models)
• Light touch activation trigger
• "Dead Man's" grip turns off airflow if handle is dropped
• Highly ergonomic handle is insulated to protect from heat or cold
• Integrated air nozzle guard
• Improves safety and meets OSHA noise exposure and pressure standards

Materials:

TurboBlast Safety Air Gun Body

• Rugged cast aluminum with over-molded soft, yet rugged elastomer grip, UV and chemical resistant.

Nozzle Options

• Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
• Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).

Accessories:

TurboBlast Replacement Air Nozzle Guard Kit - replacement air nozzle guard kits for all TurboBlast Safety Air Guns are available.

Safety Air Gun Standards and Certifications

EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC).All sound level measurements are taken at 3 feet away.
