| Product | Flow | Nozzle Type | Force | Extension Pipe Length | Stay Set Hose Length | Air Inlet | |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 7 Cluster | 5.7 lbs / 2.59 kg | N/A | N/A | N/A | 1/2 NPT |
 |
57 SCFM (1614 SLPM) | St. Steel 1 NPT Back Blow Air Nozzle | N/A | N/A | N/A | N/A | 1 NPT |
 |
91 SCFM (2577 SLPM) | St. Steel 3/4 NPT Super Air Nozzle | 4.5 lbs / 2.04 kg | N/A | N/A | N/A | 3/4 NPT |
 |
91 SCFM (2577 SLPM) | Zinc-Alum. 3/4 NPT Super Air Nozzle | 4.5 lbs / 2.04 kg | N/A | N/A | N/A | 3/4 NPT |
 |
98 SCFM (2773 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | N/A | N/A | N/A | 3/8 NPT |
 |
135 SCFM (3823 SLPM) | St. Steel 1 NPT Super Air Nozzle | 6.6 lbs / 3.01 kg | N/A | N/A | N/A | 1 NPT |
 |
135 SCFM (3823 SLPM) | Zinc-Alum. 1 NPT Super Air Nozzle | 6.6 lbs / 3.01 kg | N/A | N/A | N/A | 1 NPT |
 |
168 SCFM (4754 SLPM) | Zinc-Alum. Super Air Nozzle 12 Cluster | 9.8 lbs / 4.45 kg | N/A | N/A | N/A | 1 NPT |
 |
188 SCFM (5324 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 9.4 lbs / 4.25 kg | N/A | N/A | N/A | 1-1/4 NPT |
 |
300 SCFM (8495 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 15 lbs / 6.8 kg | N/A | N/A | N/A | 1-1/4 NPT |
 |
460 SCFM (13026 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 23 lbs / 10.43 | N/A | N/A | N/A | 1-1/4 NPT |
Specifications:

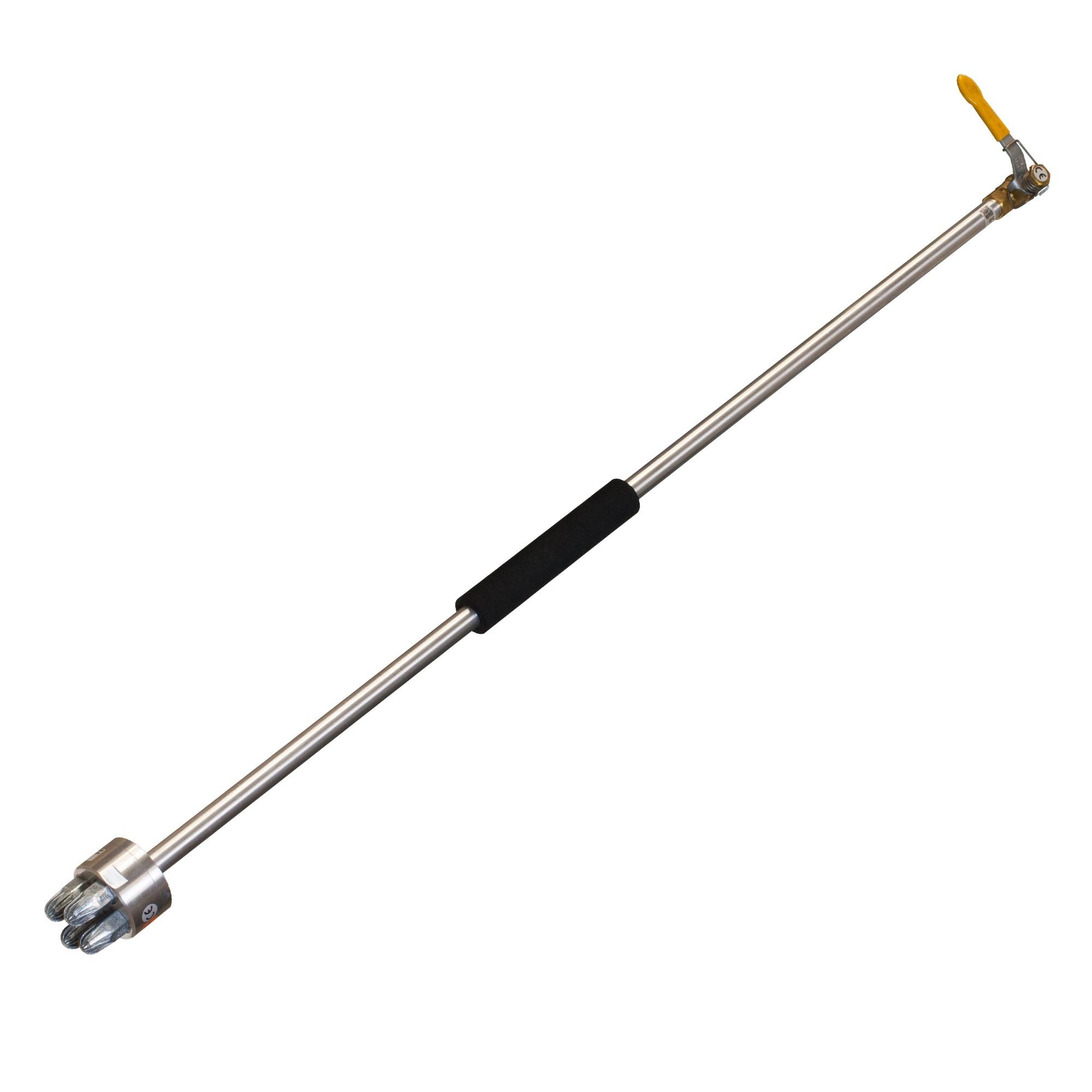

Model 1213-4 Super Blast Safety Air GunNozzle: 1111-4 Zinc Aluminum Super Air Nozzle Cluster |
|||||
Inlet: 3/8 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 56 | 1,585 | 3.2 | 1.45 | 82 | |

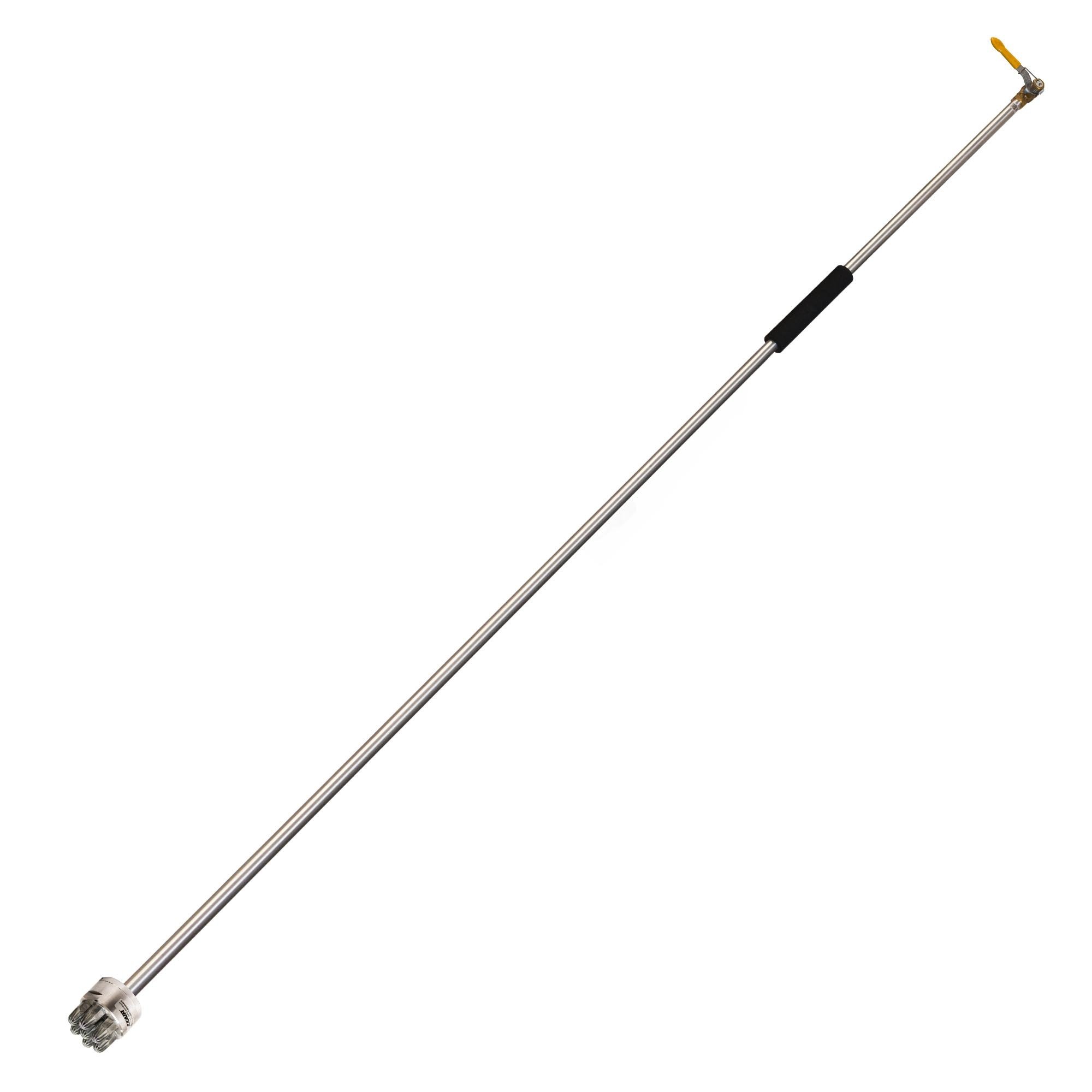

Model 1213-7 Super Blast Safety Air GunNozzle: 1111-7 Zinc Aluminum Super Air Nozzle Cluster |
|||||
Inlet: 1/2 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 98 | 2,773 | 5.7 | 2.59 | 85 | |

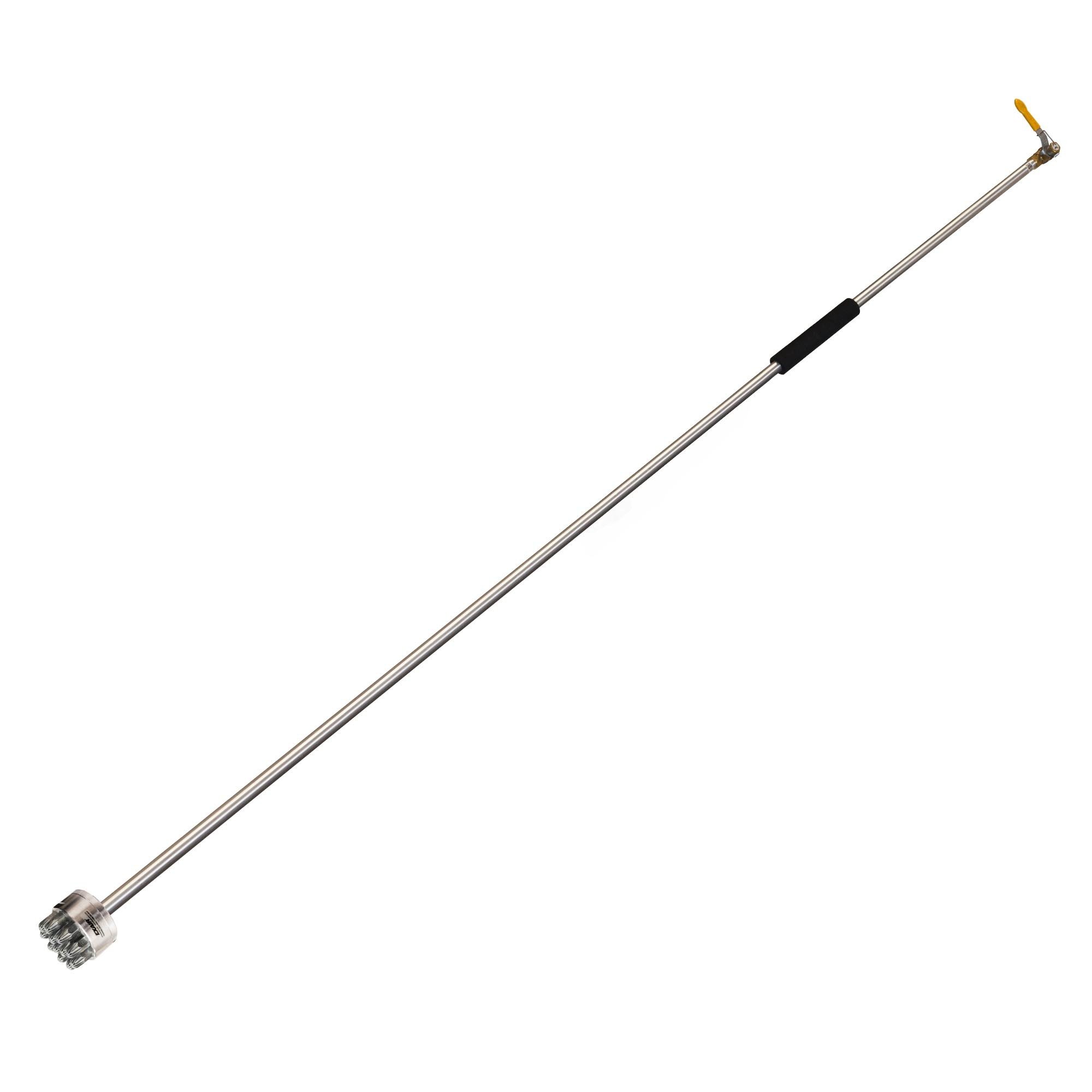

Model 1213-12 Super Blast Safety Air GunNozzle: 1111-12 Zinc Aluminum Super Air Nozzle Cluster |
|||||
Inlet: 1 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 168 | 4,754 | 9.8 | 4.45 | 89 | |

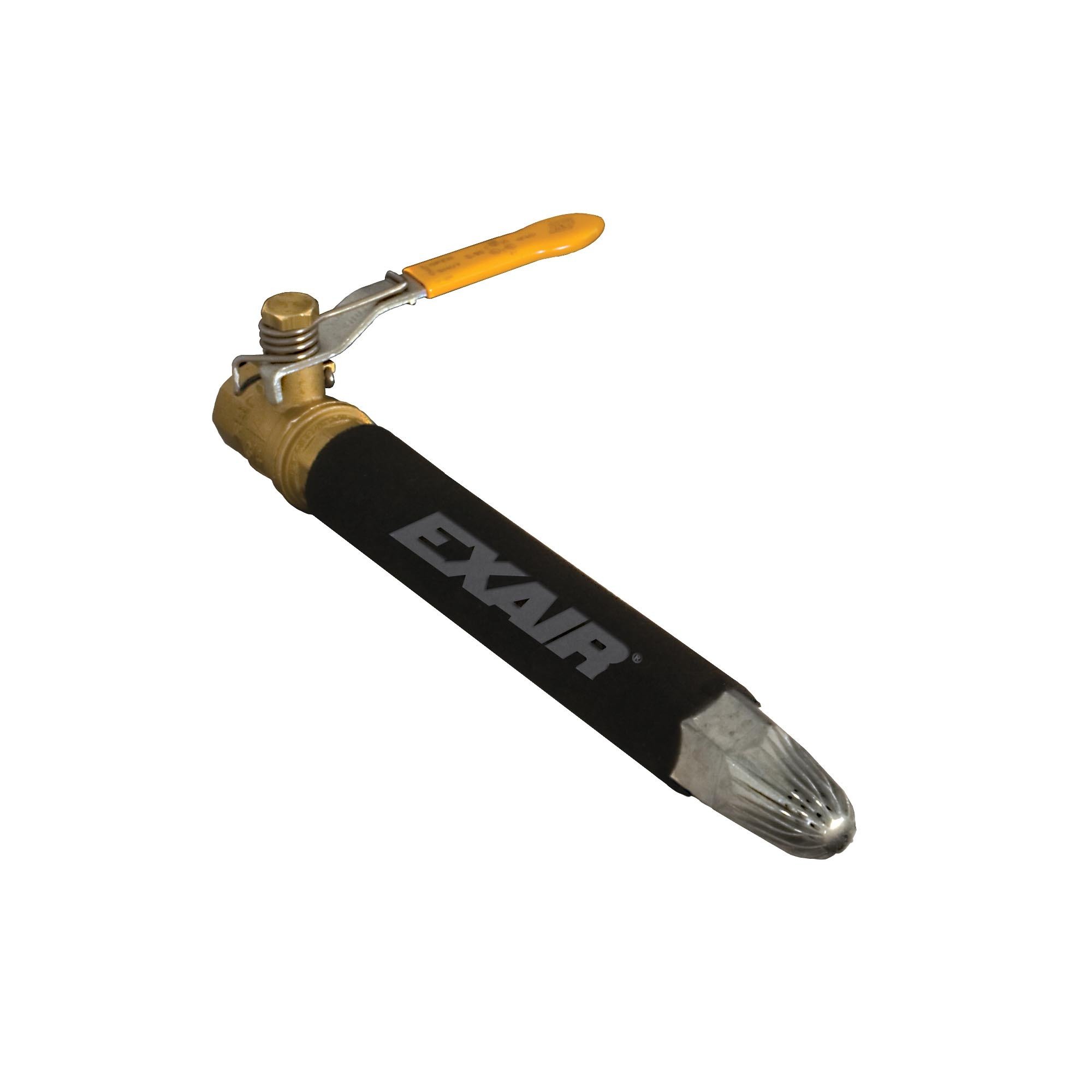

Model 1214SS Super Blast Safety Air GunNozzle: 1112SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 3/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 91 | 2,577 | 4.5 | 2.04 | 96 | |
|
Also available: 1214 with 1112 Zinc Aluminum Super Air Nozzle |
|||||

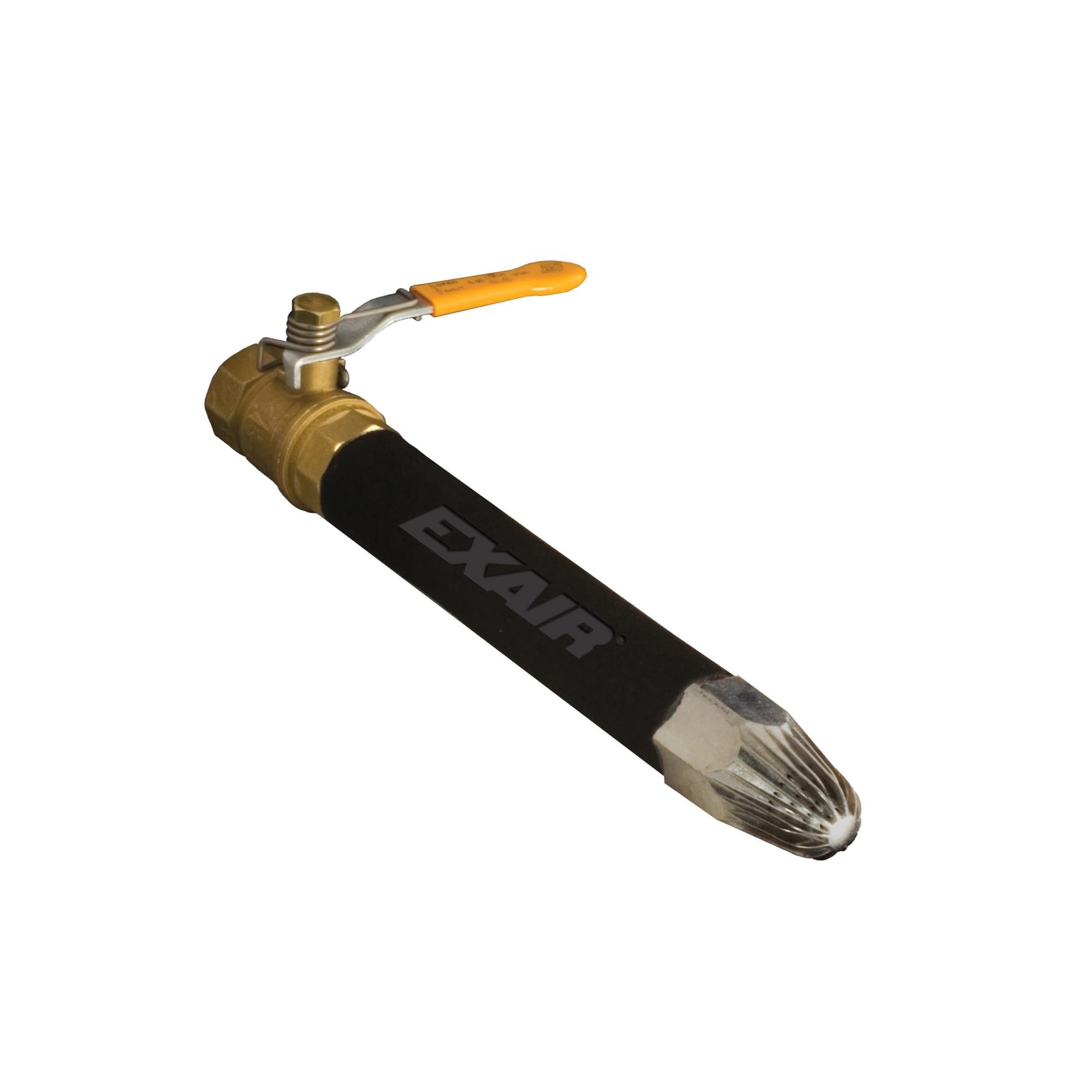

Model 1215SS Super Blast Safety Air GunNozzle: 1114SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 1 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 135 | 3,823 | 6.6 | 2.99 | 99 | |
|
Also available: 1215 with 1114 Zinc Aluminum Super Air Nozzle |
|||||

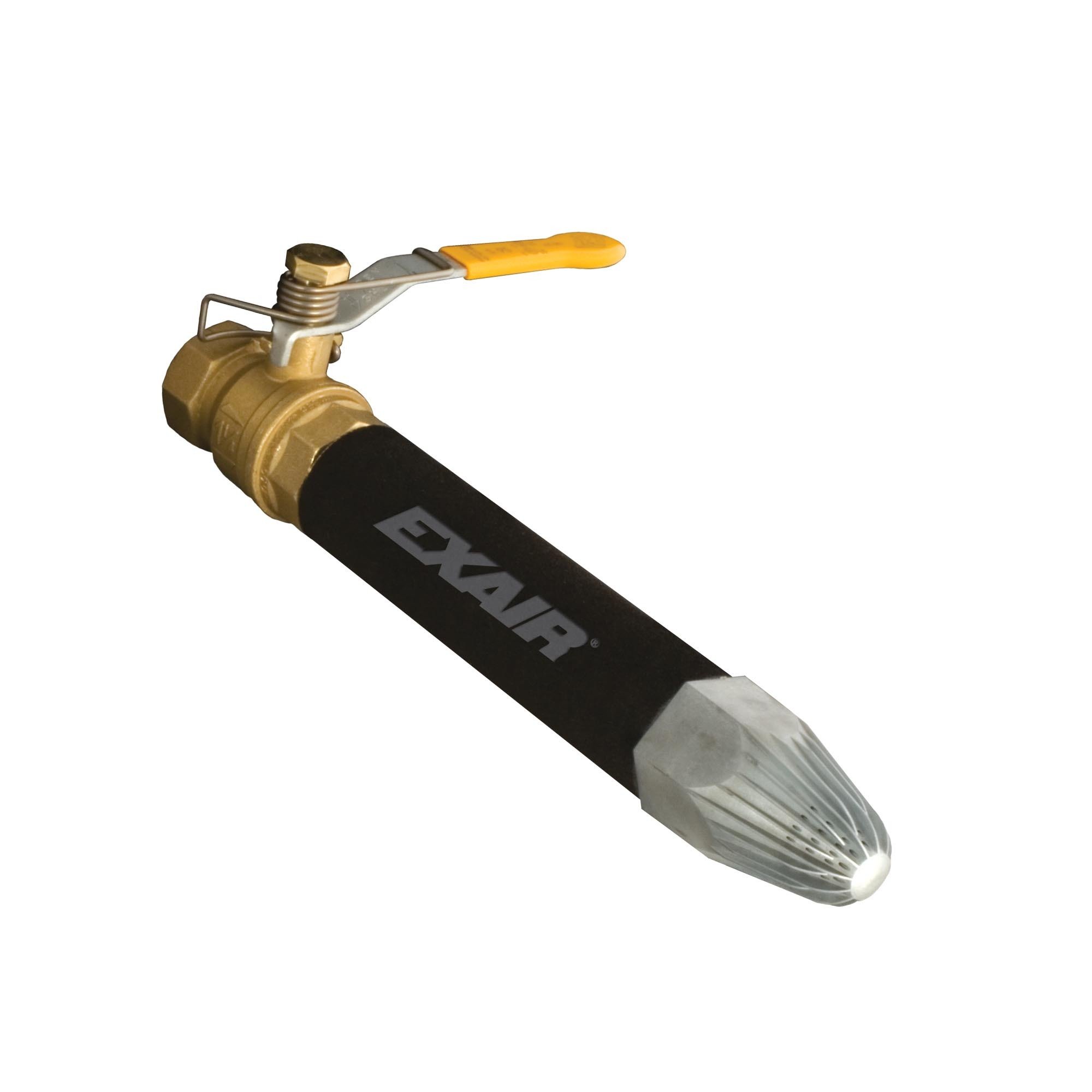

Model 1216 Super Blast Safety Air GunNozzle: 1116 Zinc Aluminum Super Air Nozzle |
|||||
Inlet: 1-1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 188 | 5,324 | 9.4 | 4.26 | 102† | |
|
†Without hearing protection, only use 1 hour per day OSHA 29 CFR 1910.95(a) |
|||||

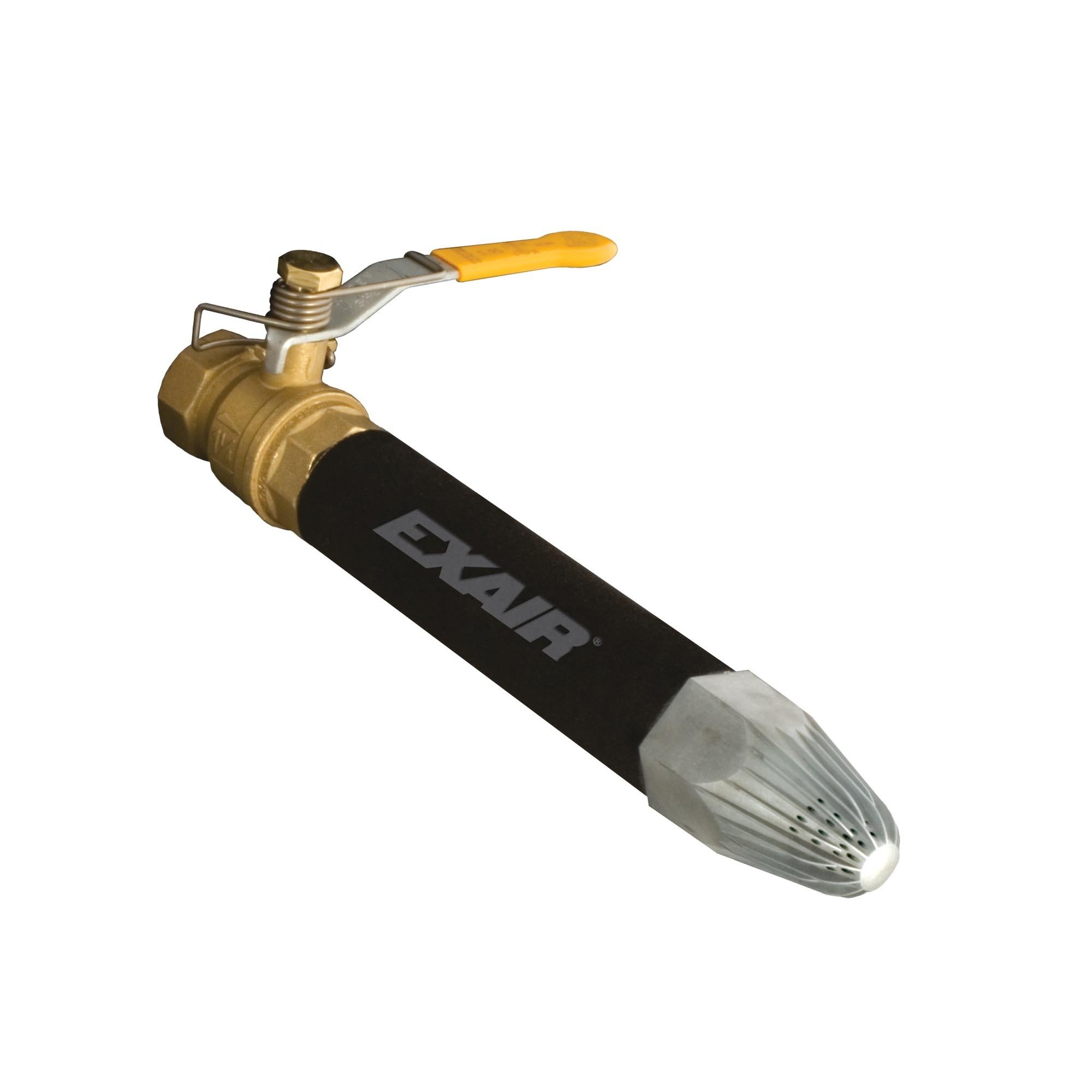

Model 1217 Super Blast Safety Air GunNozzle: 1118 Zinc Aluminum Super Air Nozzle |
|||||
Inlet: 1-1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 300 | 8,495 | 15 | 6.8 | 106† | |
|
†Without hearing protection, only use 1/2 hour per day OSHA 29 CFR 1910.95(a) |
|||||
Model 1218 Super Blast Safety Air GunNozzle: 1120 Zinc Aluminum Super Air Nozzle |
|||||
Inlet: 1-1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 460 | 13,026 | 23 | 10.43 | 109† | |
|
†Without hearing protection, only use 1/2 hour per day OSHA 29 CFR 1910.95(a) |
|||||

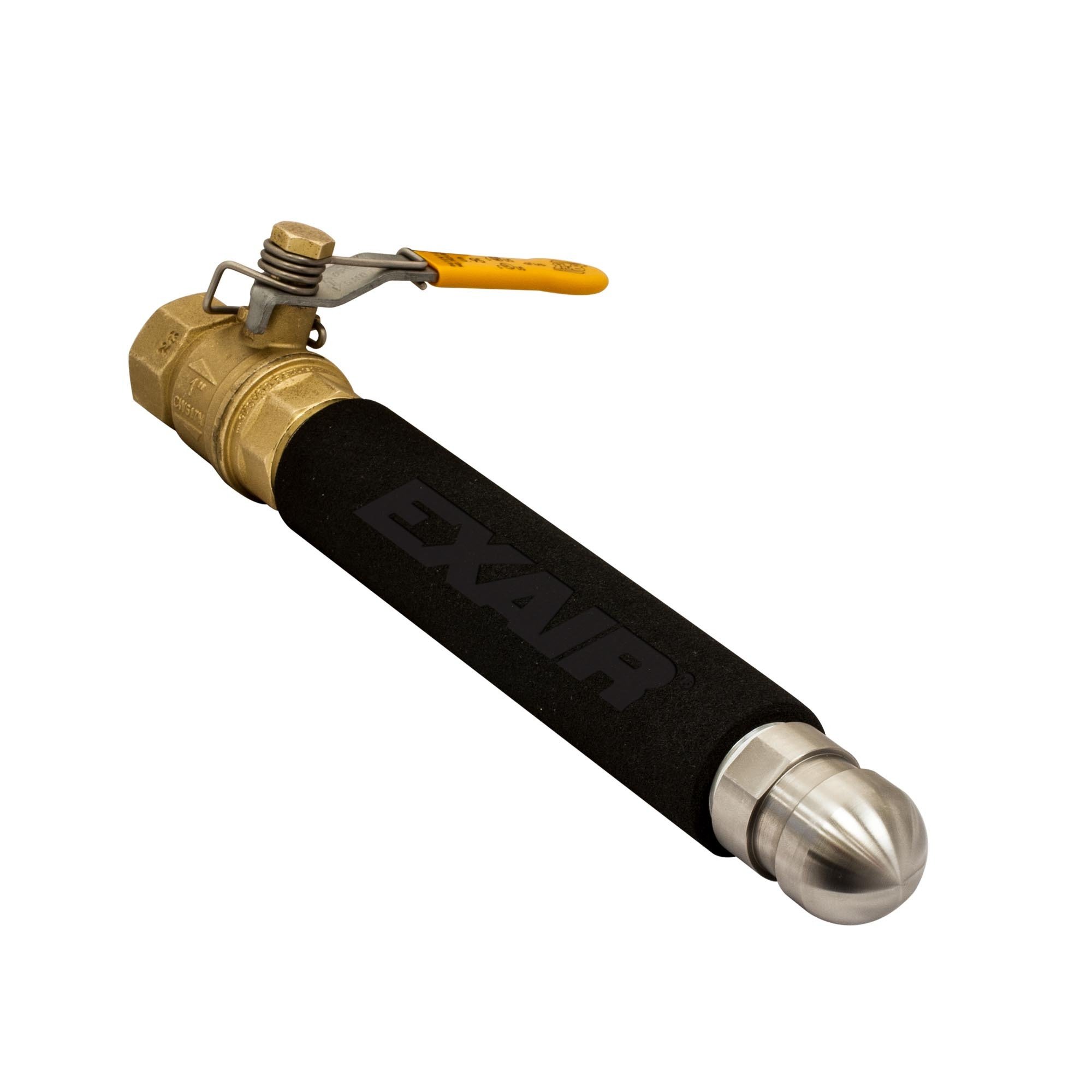

Model 1219SS Super Blast Back Blow Safety Air GunNozzle: 1008SS Stainless Steel Back Blow Air Nozzle |
||||
|
Inlet: 1-1/4 FNPT
|
Air Consumption | Sound Level | Use with: | |
| SCFM | SLPM | dBA | Inside Diameter | |
| 57 | 1,614 | 89 | 2" - 16" (51 - 406mm) | |
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Part drying
Advantages:
- Lightweight
- Comfortable to operate during extended use
- Powerful blast of air
- Reduced compressed air cost
- Improved blowoff performance
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
Materials:
Super Blast Safety Air Gun Body:
- Durable cast aluminum with foam rubber grip.
Nozzle Options:
- Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
- Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).
Safety Air Gun Standards and Certifications
EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC).All sound level measurements are taken at 3 feet away.
