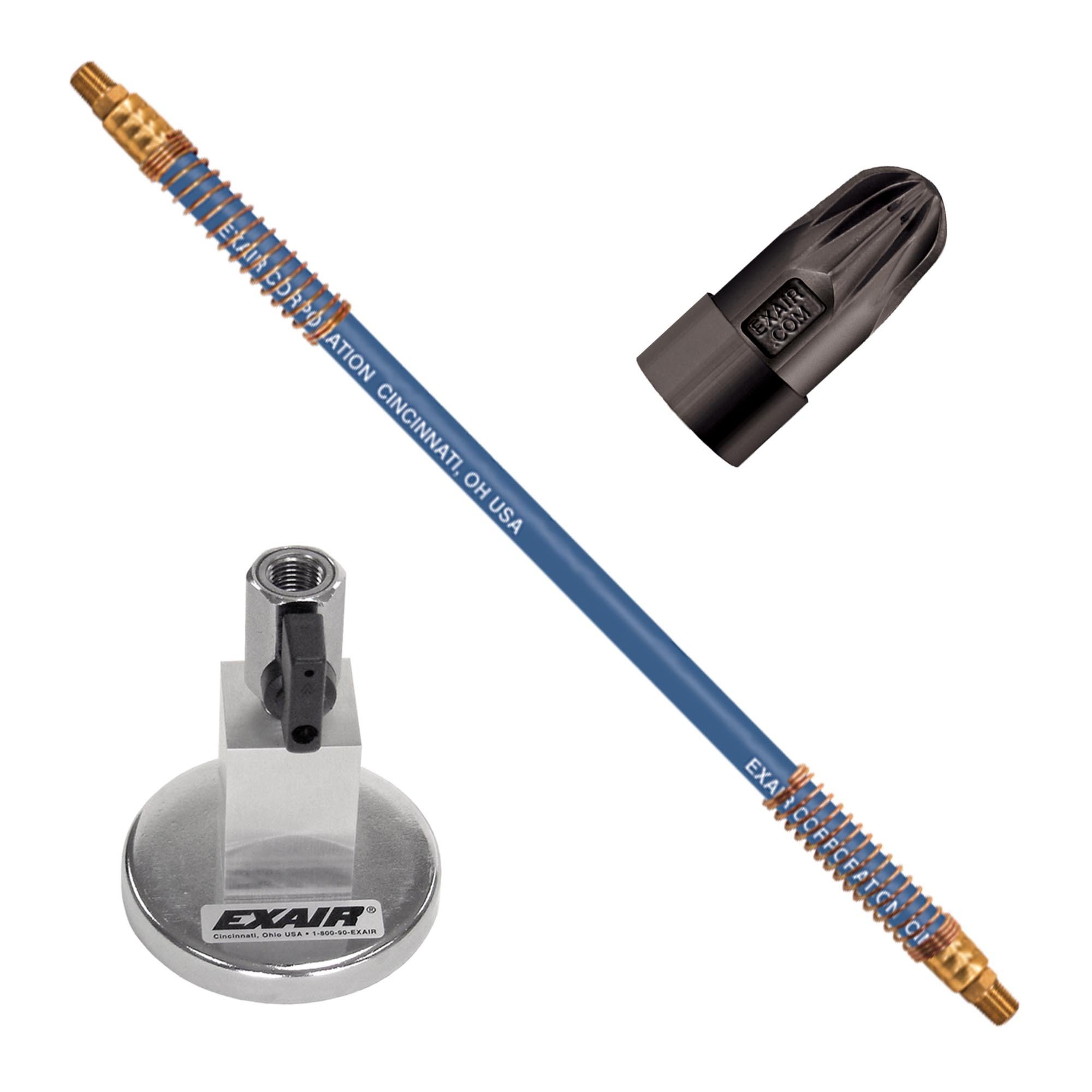

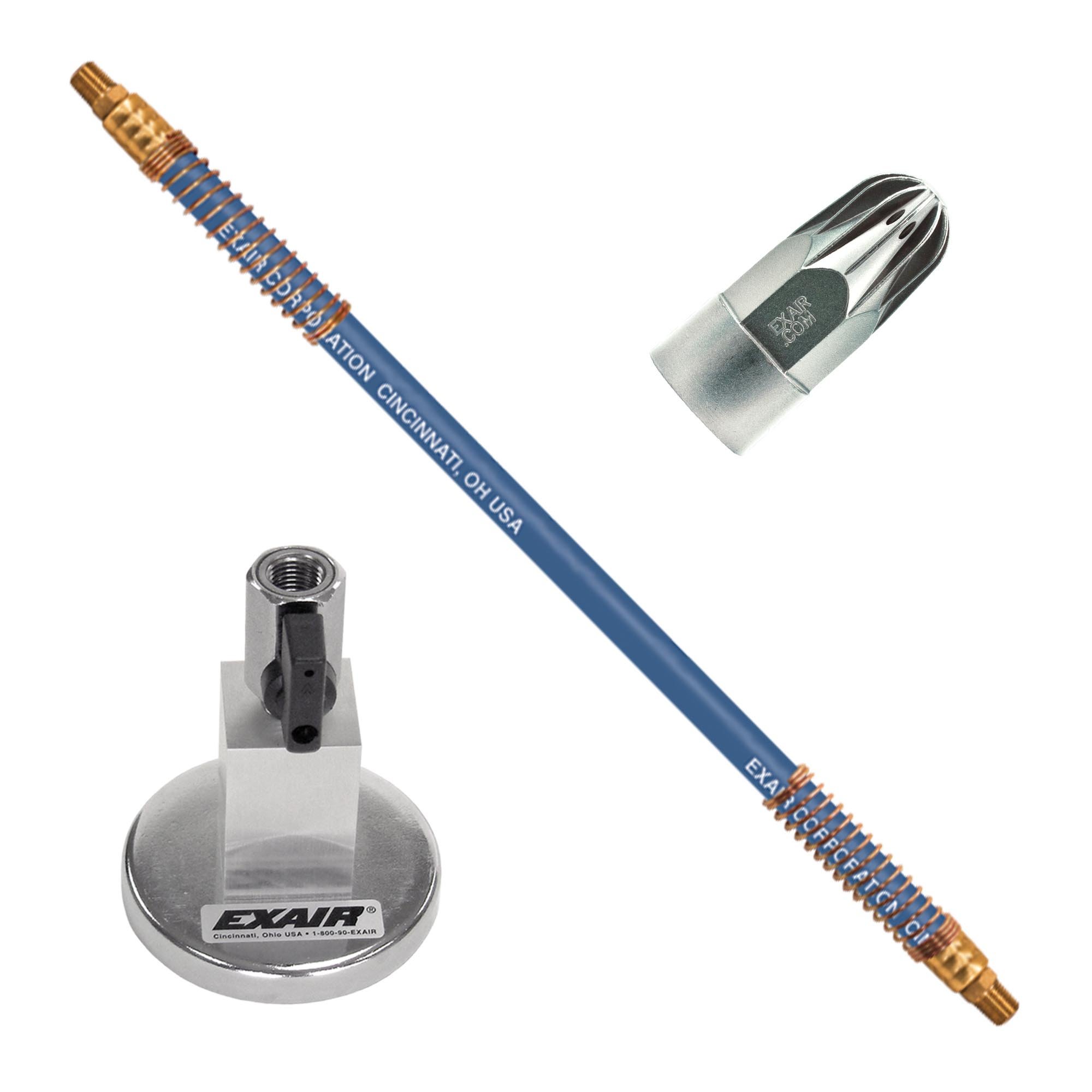

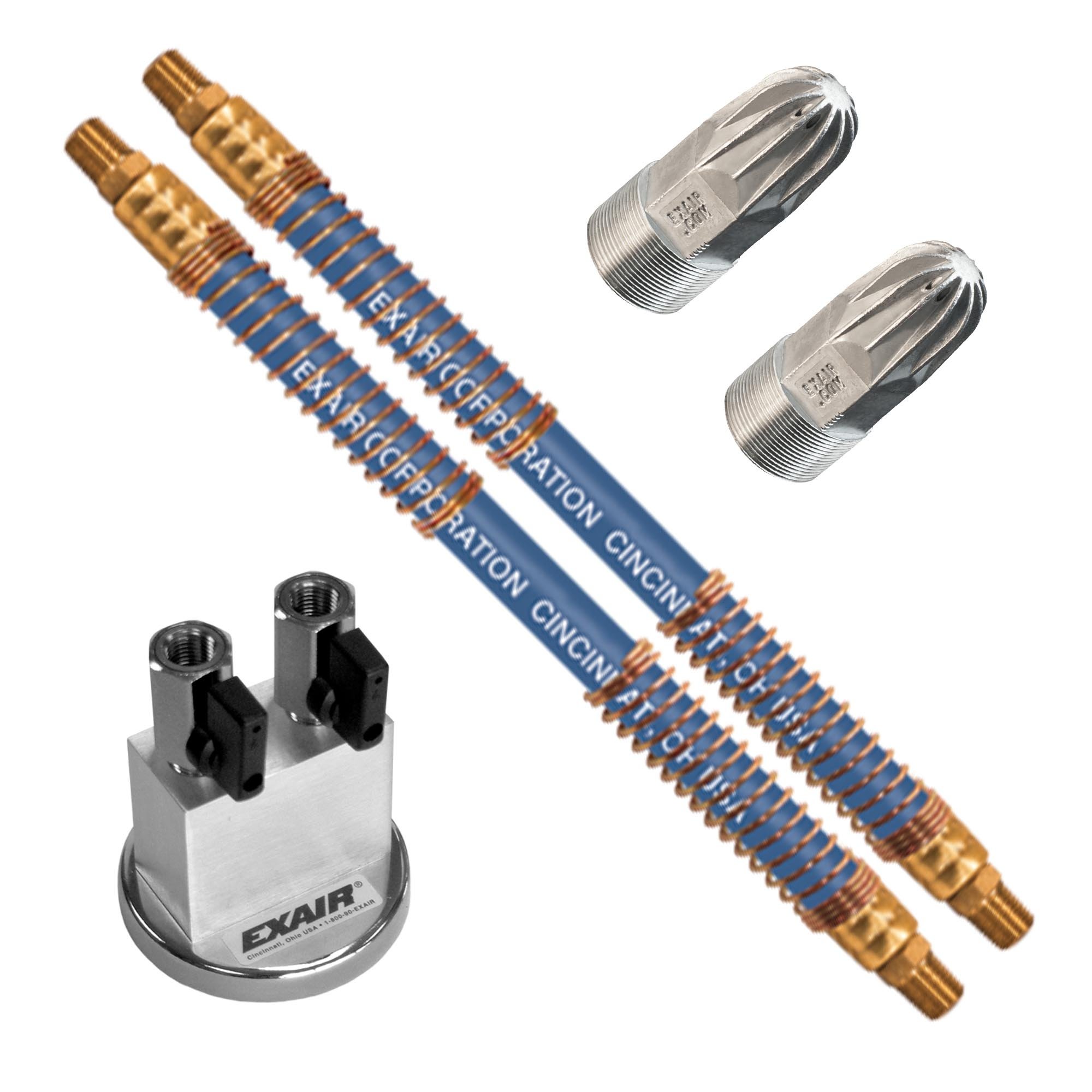

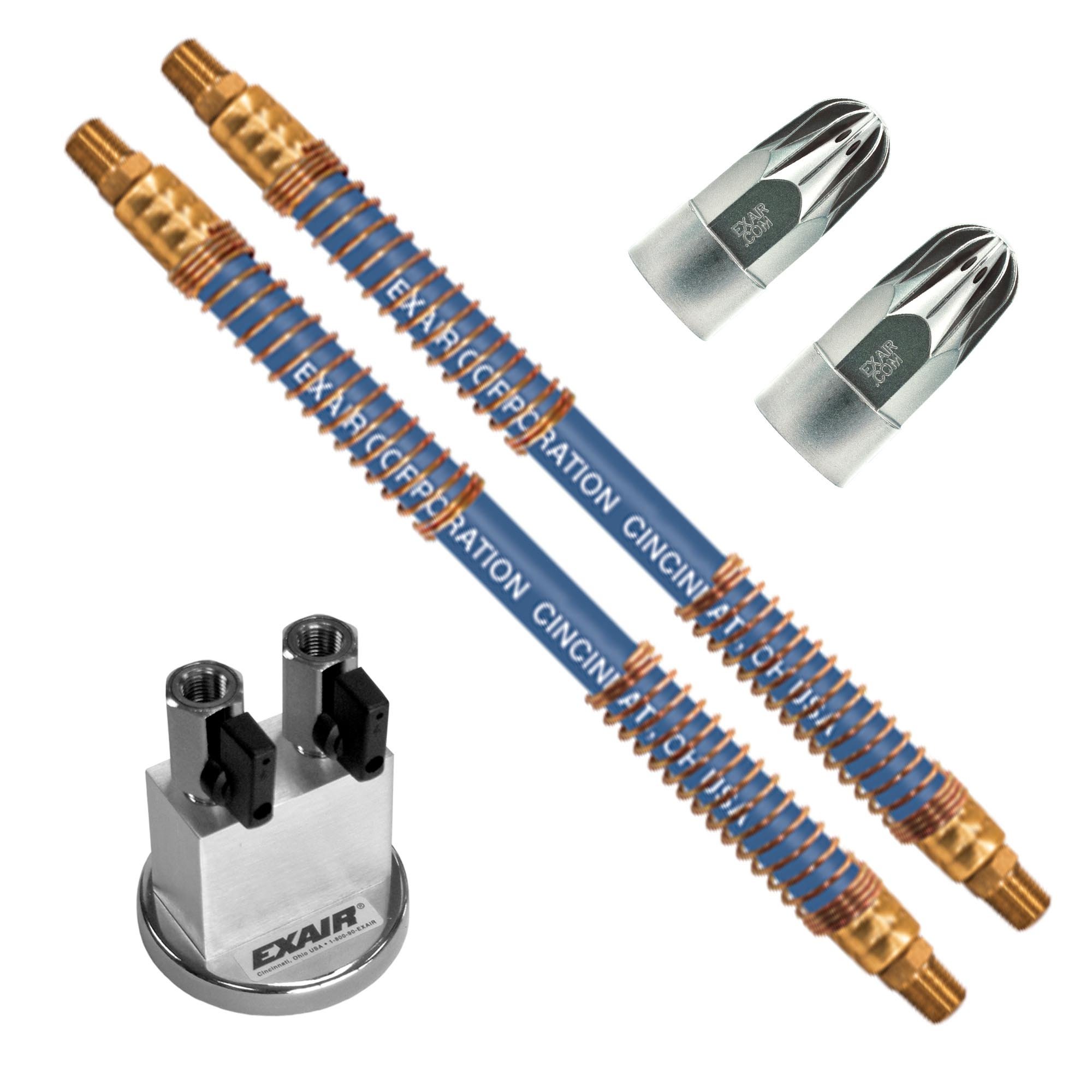

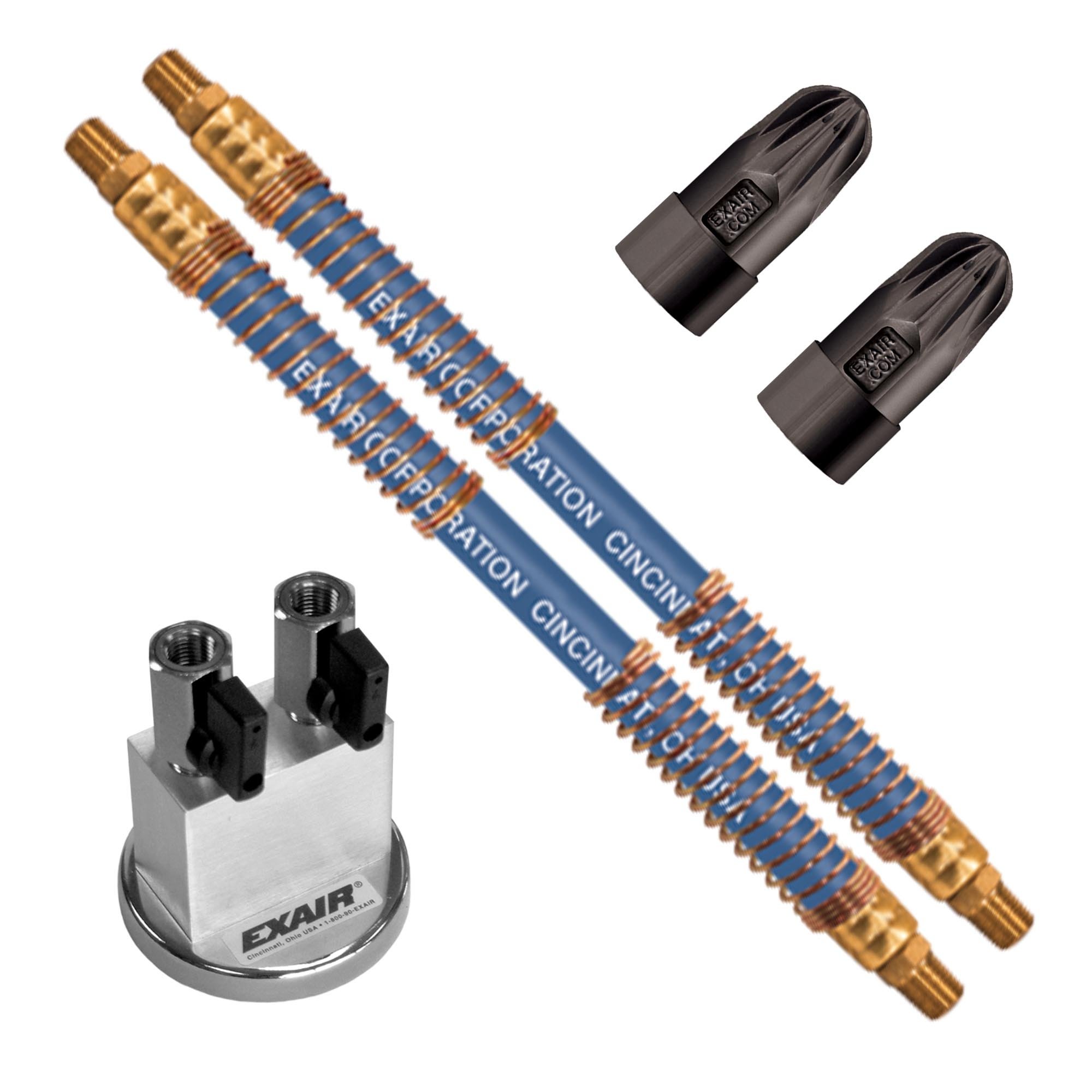

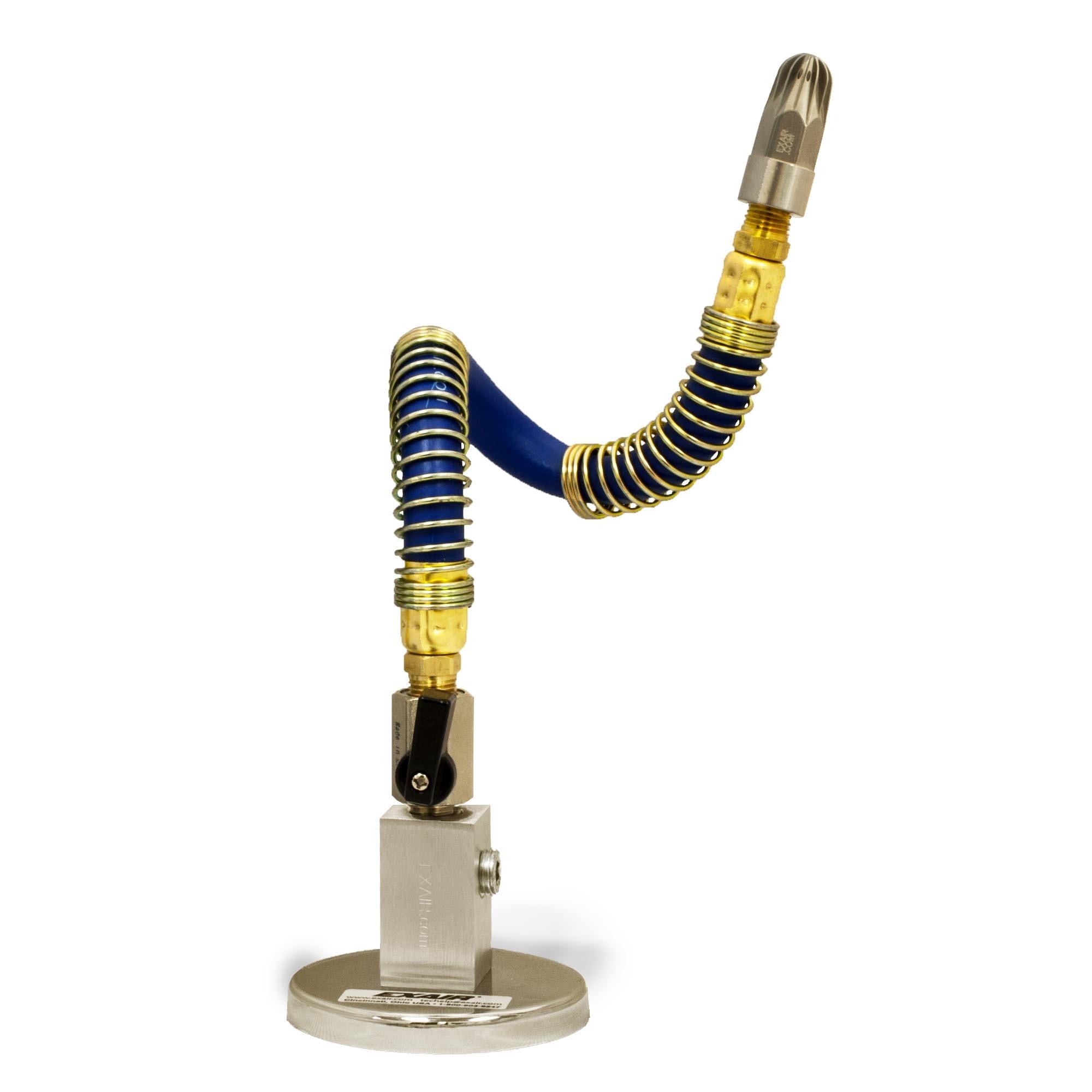

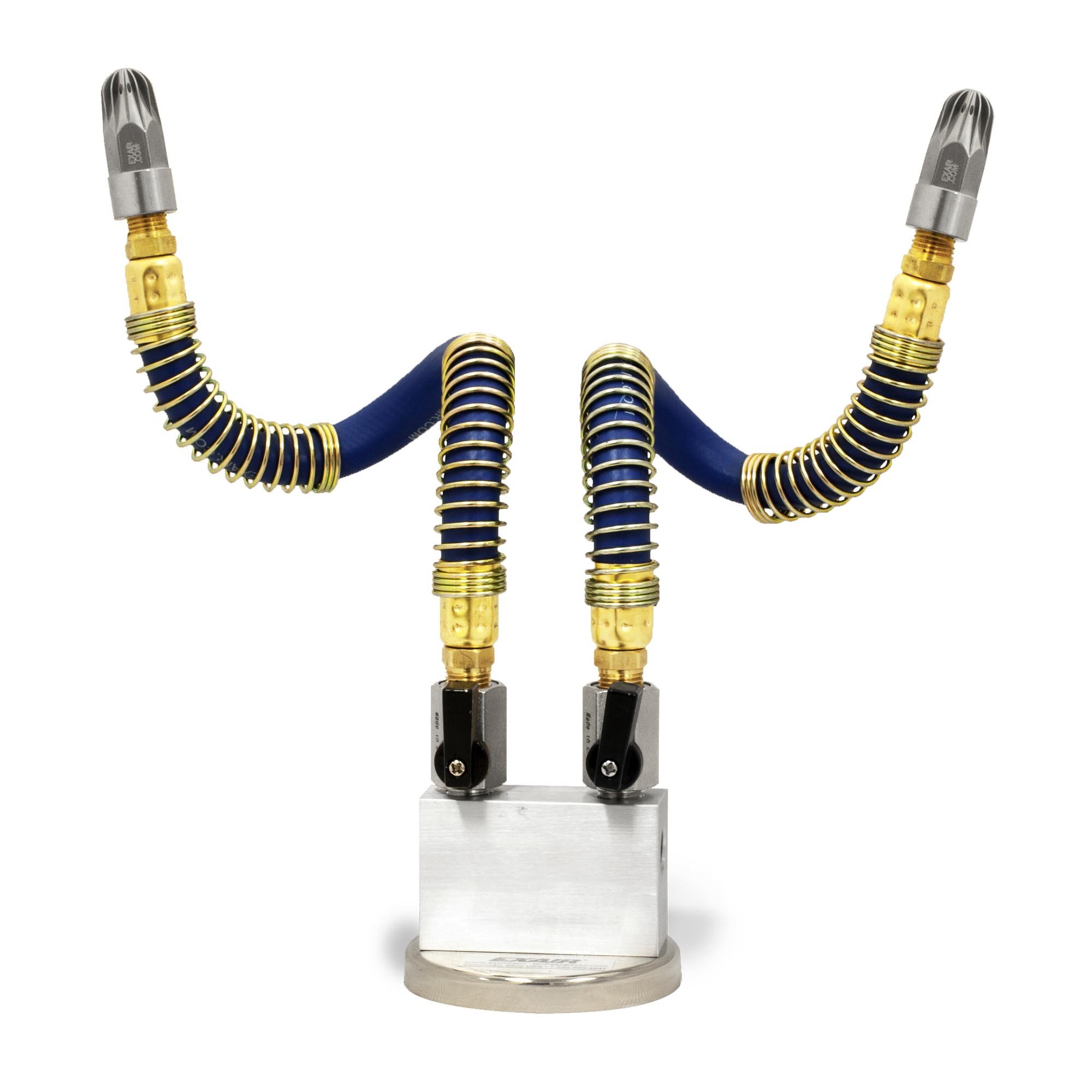

EXAIR™'s award winning Super Air Nozzles deliver high performance suitable for a wide range of blowoff, drying and cooling applications. The aerodynamic design of this engineered Super Air Nozzle directs the air to a single point of convergence, can cut the noise level in half. The Super Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required and a One or Two Outlet Magnetic Base for firm attachment to metallic machinery.
| Product | Material | Flow | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 6" (152mm) | 1 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 6" (152mm) | 2 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 6" (152mm) | 1 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 6" (152mm) | 2 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 6" (152mm) | 1 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 6" (152mm) | 2 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 12" (305mm) | 1 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 12" (305mm) | 2 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 12" (305mm) | 1 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 12" (305mm) | 2 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 12" (305mm) | 1 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 12" (305mm) | 2 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 18" (457mm) | 1 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 18" (457mm) | 2 |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 18" (457mm) | 1 |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 18" (457mm) | 2 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 18" (457mm) | 1 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 18" (457mm) | 2 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 24" (610mm) | 1 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 24" (610mm) | 2 |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 24" (610mm) | 1 |
 |
Type 303 Stainless Steel | 13 SCFM | 1/4 MNPT | 24" (610mm) | 2 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 24" (610mm) | 1 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 24" (610mm) | 2 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 30" (762mm) | 1 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 30" (762mm) | 2 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 30" (762mm) | 1 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 30" (762mm) | 2 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 30" (762mm) | 1 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 30" (762mm) | 2 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 36" (914mm) | 1 |
 |
PEEK-Plastic | 14 SCFM | 1/4 MNPT | 36" (914mm) | 2 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 36" (914mm) | 1 |
 |
Type 303 Stainless Steel | 14 SCFM | 1/4 MNPT | 36" (914mm) | 2 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 36" (914mm) | 1 |
 |
Zinc-Aluminum | 14 SCFM | 1/4 MNPT | 36" (914mm) | 2 |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Materials:
- Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
- Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).
- PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).
Accessories:
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel
Super Air Nozzle Performance |
||||
| Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 14 | 396 | 13 | 369 | 74 |
|
*Force measured at 12" (305mm) from target Sound level measured at 3' (914mm) All measurements taken at 80 PSIG (5.5 BAR) |
||||
How EXAIR Air Nozzles Work
EXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
Super Air Nozzle Dimensions & Airflow Pattern |
|||||
|
Super Air Nozzle Standards and Certifications
EXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
