Name: EXAIR Super Air Amplifier™ Deluxe Kit
Brand: Exair
SKU: 192469252260

Contact an Expert

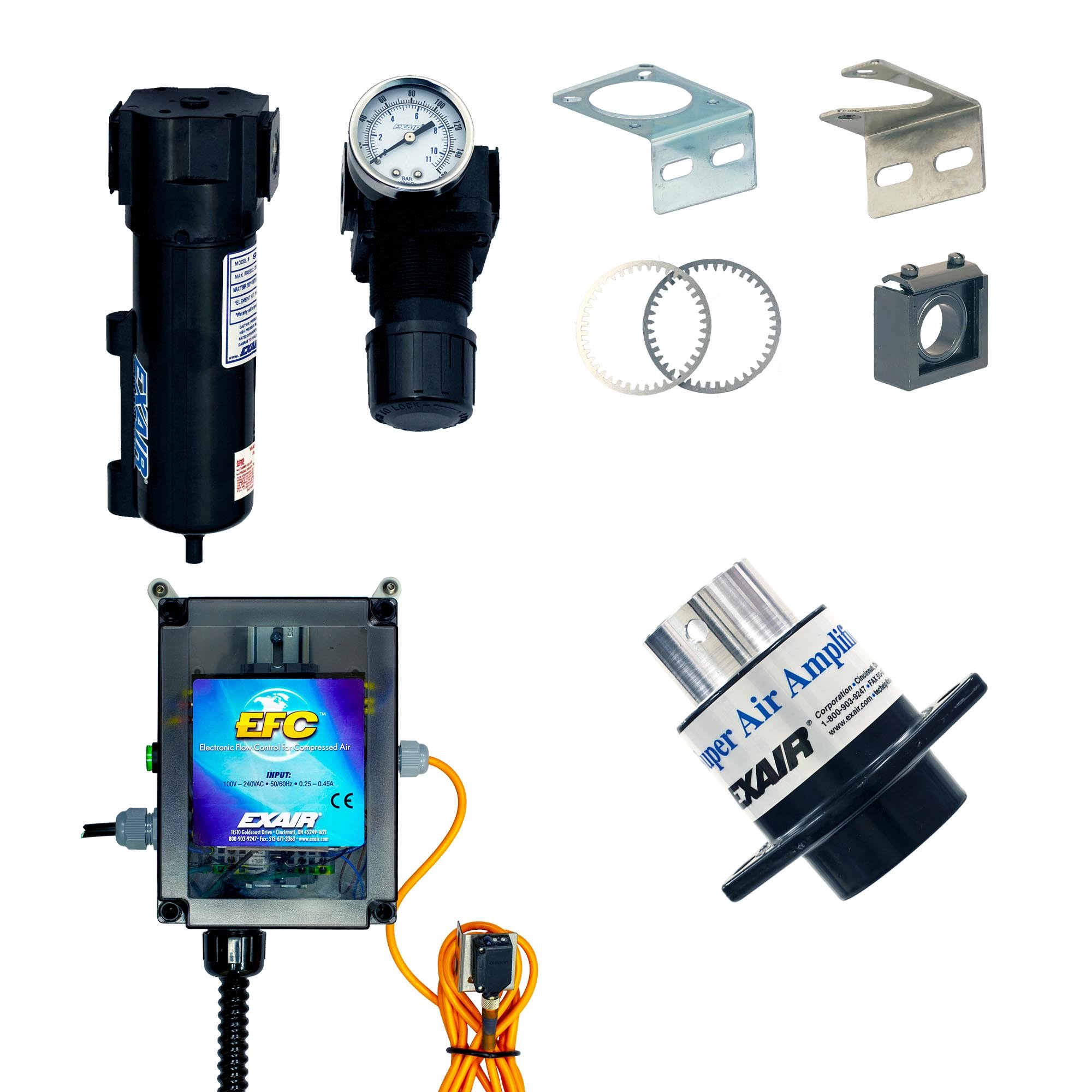

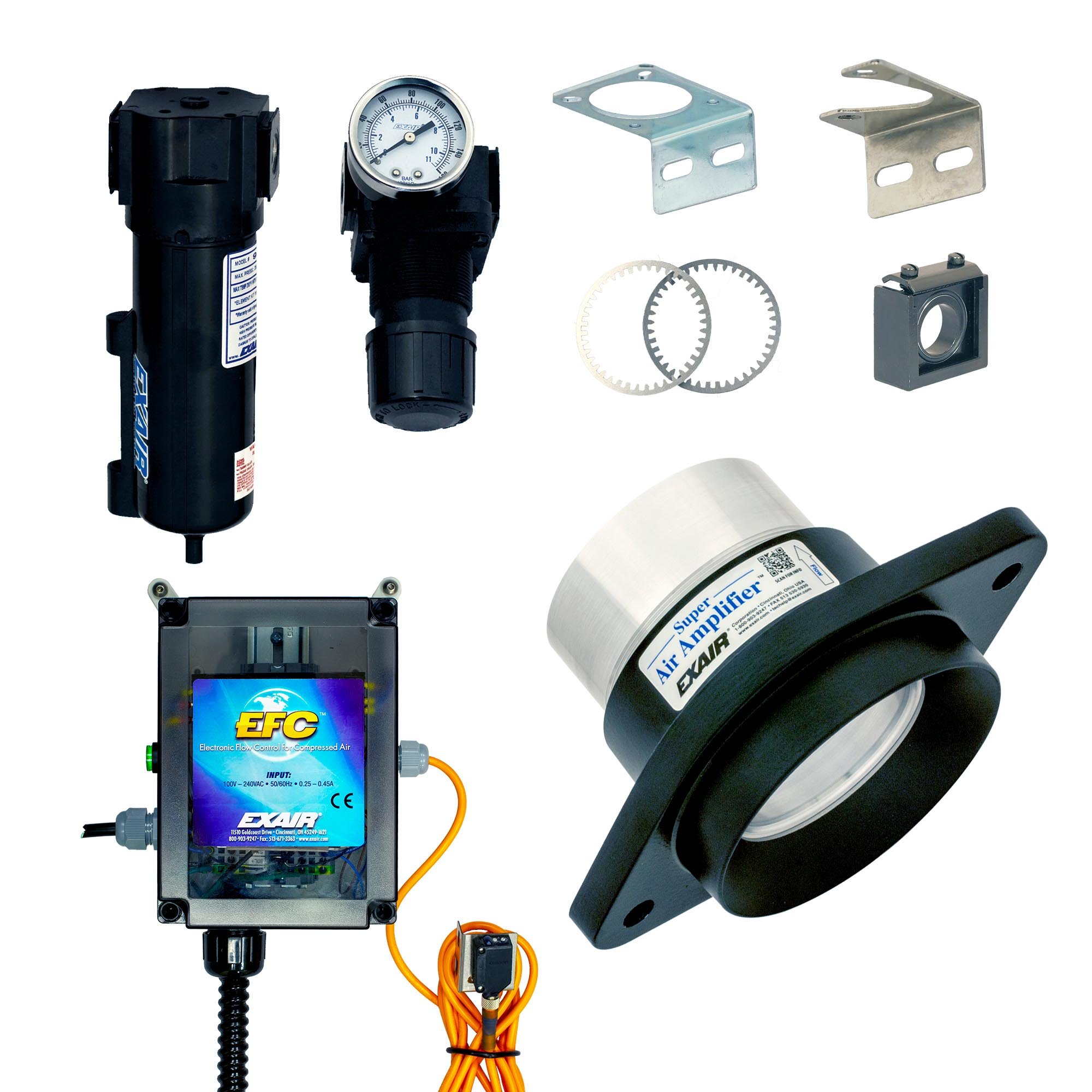

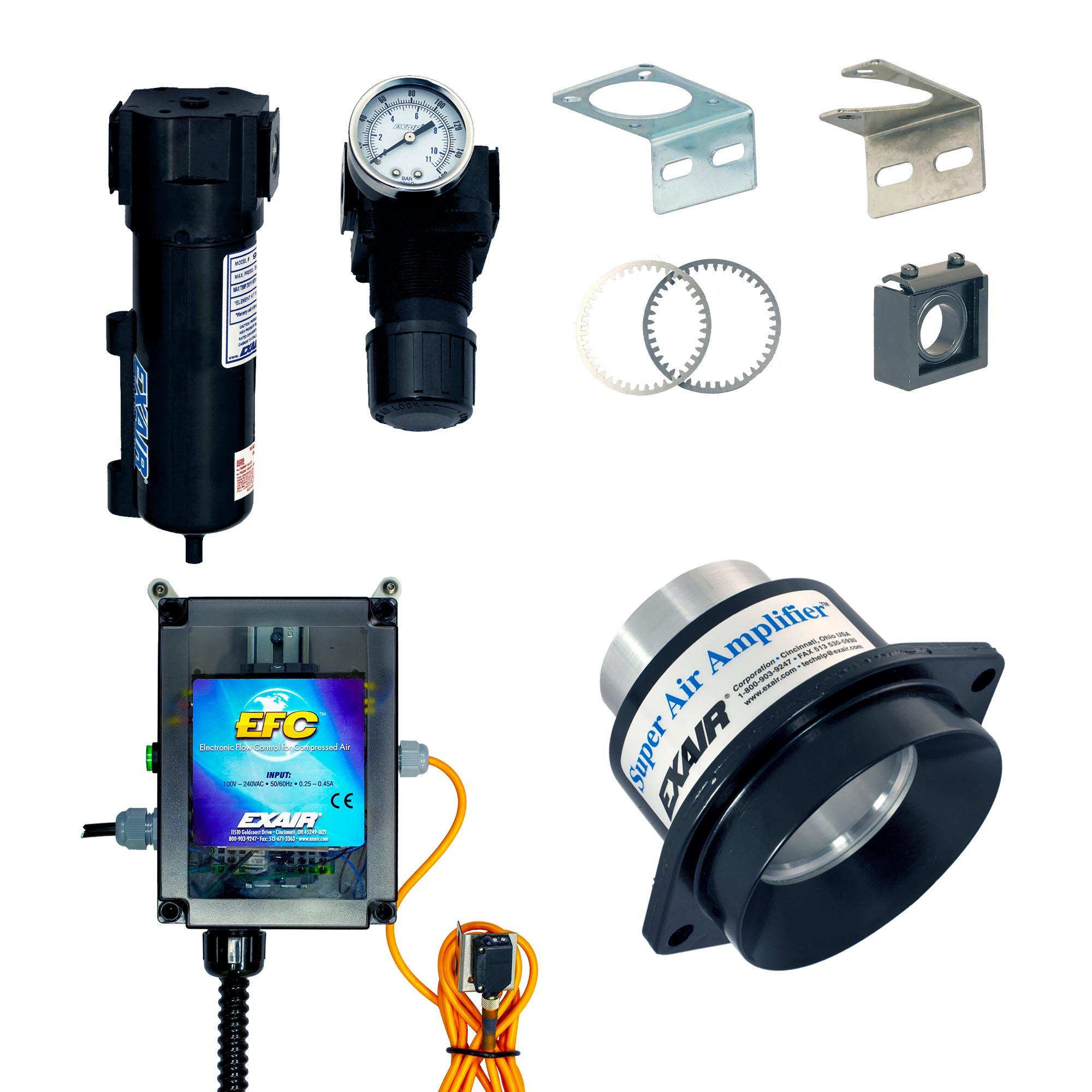

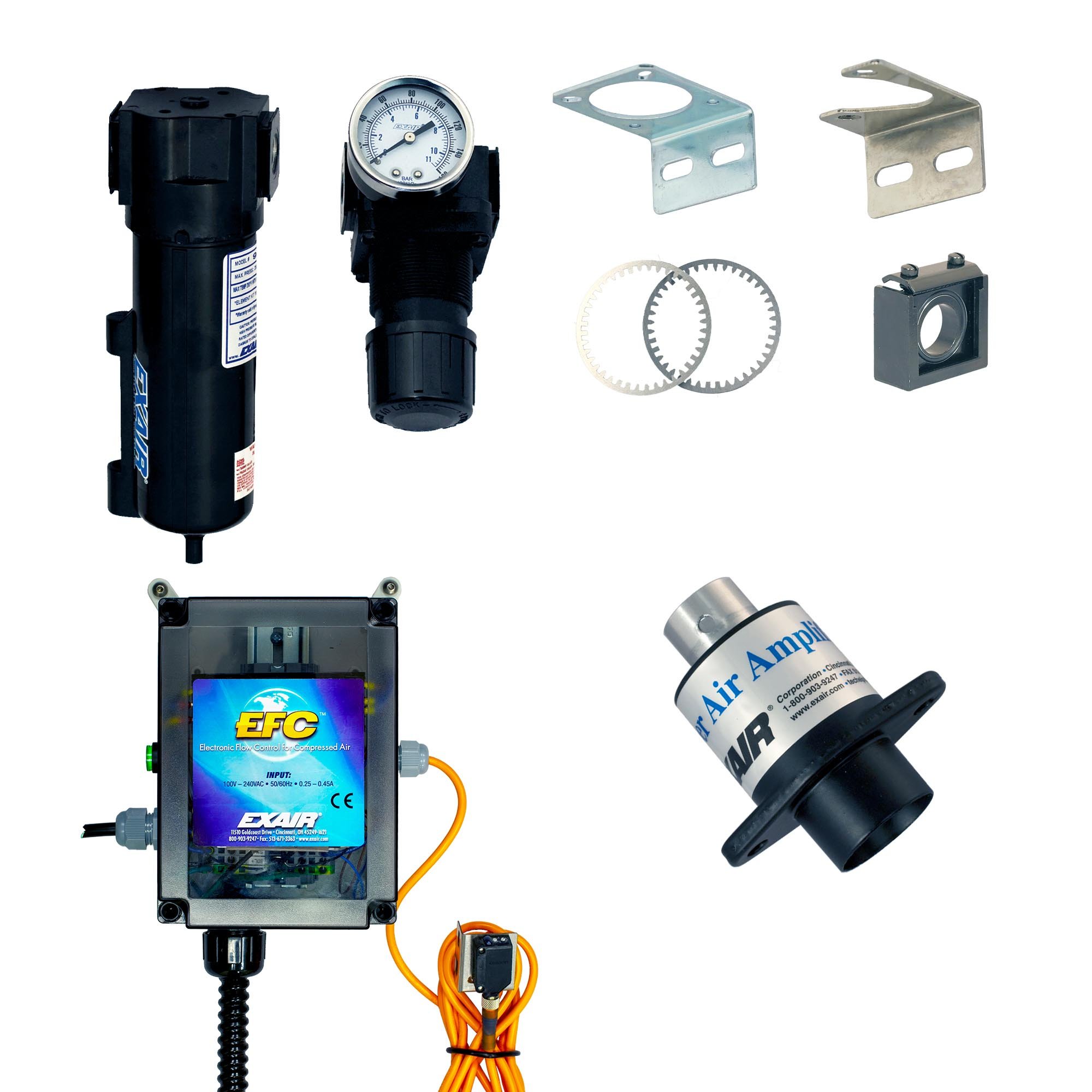

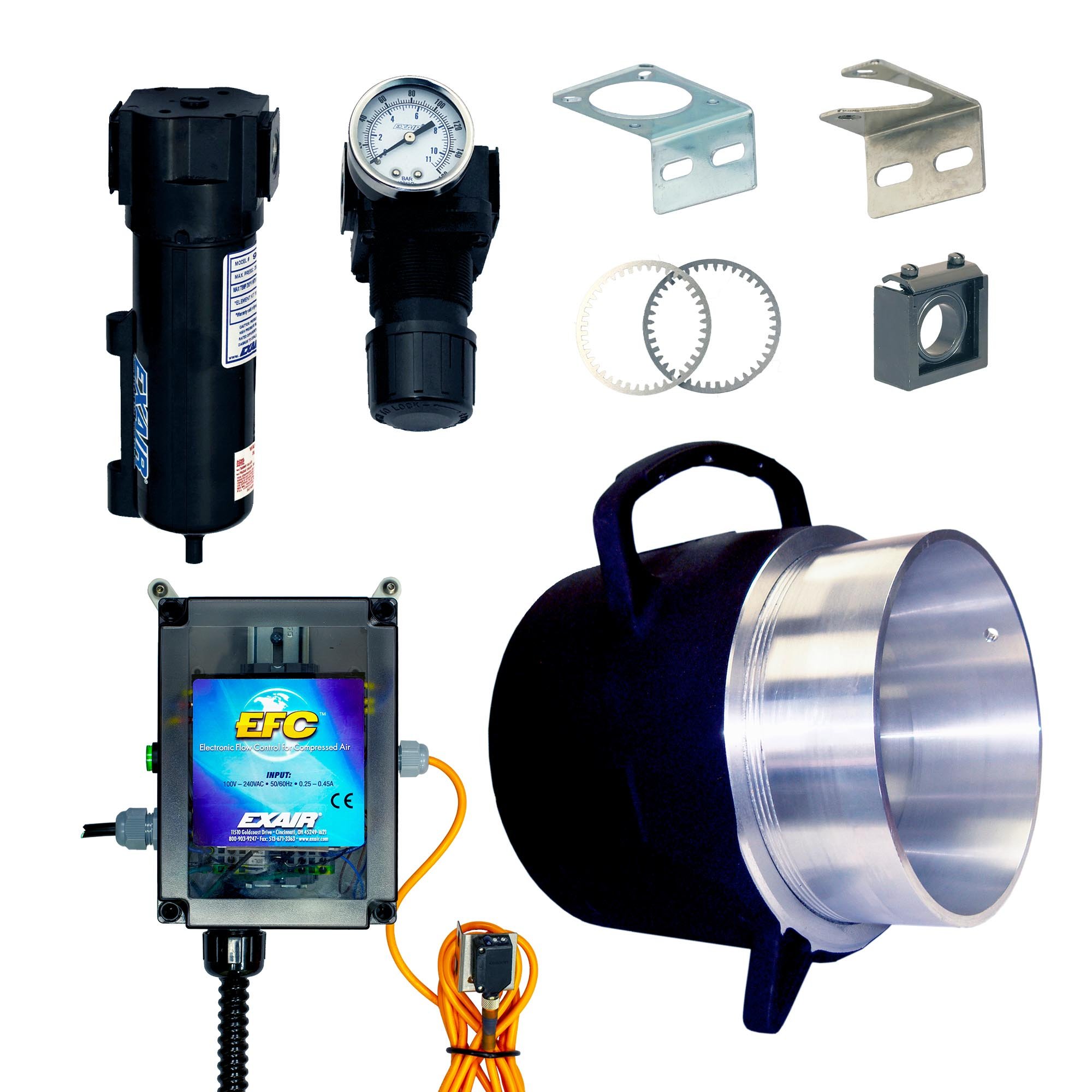

EXAIR Super Air Amplifier Deluxe Kits include a Super Air Amplifier™, EFC™ (Electronic Flow Control), shim set, filter separator and pressure regulator (with coupler). Utilizing the Coanda effect, a basic principle of fluid dynamics, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes and light materials. Using a small amount of compressed air as their power source, Super Air Amplifiers pull in large volumes of surrounding air to produce high volume, high velocity outlet flows through a fixed air gap. Quiet, efficient Air Amplifiers will create output flows up to 25 times their consumption rate. Both the vacuum and discharge ends of the Air Amplifier can be ducted, making them ideal for drawing fresh air from another location, or moving smoke and fumes away. Also effective as a blower to cool, clean and dry parts or processes and in workstation dust collection applications.

Product	Outlet Diameter	Material	EFC Electronic Flow Control	Includes Shim Set, Filter Separator, Pressure Regulator	Air Inlet
	3/4" (19mm)	Aluminum	Included	Included	1/8 FNPT
	1-1/4" (32mm)	Aluminum	Included	Included	1/4 FNPT
	2" (51mm)	Aluminum	Included	Included	3/8 FNPT
	4" (102mm)	Aluminum	Included	Included	1/2 FNPT
	8" (203mm)	Aluminum	Included	Included	3/4 FNPT

Specifications:

Super Air Amplifier Performance
80 PSIG (5.5 BAR)	Air Consumption		Amplification	Air Volume at Outlet		Air Volume at 6" (152mm)		Sound Level
Model #	SCFM	SLPM	RATIO	SCFM	SLPM	SCFM	SLPM	dBA
120020	6.1	173	12	73	2,066	219	6,198	69
120021	8.1	229	18	146	4,132	436	12,339	72
120022	15.5	439	22	341	9,650	1,023	28,951	72
120024	29.2	826	25	730	20,659	2,190	61,977	73
120028	120	3,396	25	3,000	84,900	9,000	254,700	88
Model 120028 tested with .009" (0.23mm) shim. All other models tested with .003" (0.08mm) shim.

Applications:

Vent welding smoke
Cool hot parts
Dry wet parts
Clean machined parts
Distribute heat in ovens/molds
Ventilate confined areas
Dust collection
Exhaust tank fumes

Advantages:

Compared to Fans:

Rated for environments up to 700°F (374°C)
Compact, lightweight, portable
No electricity
No moving parts - no maintenance
Ends are easily ducted
Instant on/off
Variable force and flow
No RF interference

Compared to Venturies and Ejectors:

More air with lower compressed air consumption
Higher flow amplification
No internal obstructions
Meets OSHA pressure and noise requirements
Quiet

How Air Amplifiers Work:

How the Air Amplifier Works

Compressed air flows through the air inlet (1) into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity. This primary airstream adheres to the Coanda profile (4), which directs it toward the outlet. A low pressure area is created at the center (5), inducing a high volume flow of surrounding air into the primary airstream. The combined flow of primary and surrounding air exhausts from the Air Amplifier in a high volume, high velocity flow.

Air Amplifier Standards and Certifications:

EXAIR Air Amplifiers comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
