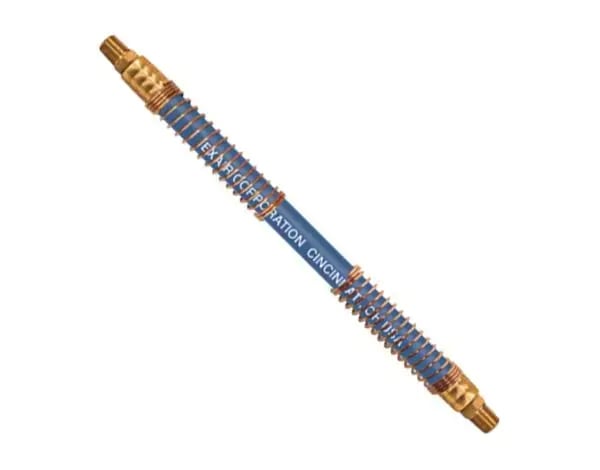

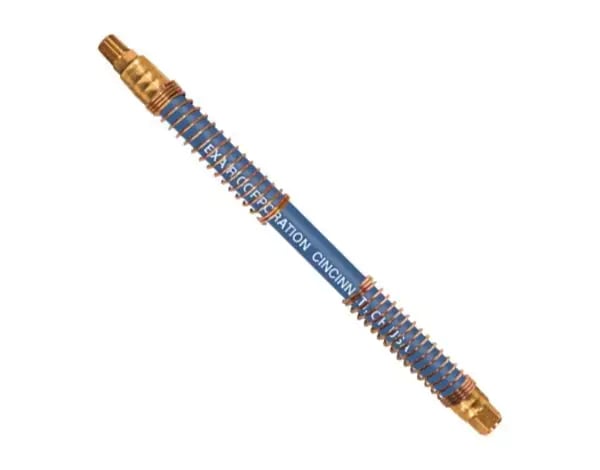

For applications where frequent repositioning of the standard force Air Nozzles or Jet is required, Flexible Stay Set Hoses™ are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. The Stay Set Hose has "memory" and will not creep or bend.
| Product | Length In Inches | Stay Set Hose Threading |
 |
6" (152mm) | 1/4 MNPT X 1/4 MNPT |
 |
6" (152mm) | 1/4 MNPT X 1/8 FNPT |
 |
12" (305mm) | 1/4 MNPT X 1/4 MNPT |
 |
12" (305mm) | 1/4 MNPT X 1/8 FNPT |
 |
18" (457mm) | 1/4 MNPT X 1/4 MNPT |
 |
18" (457mm) | 1/4 MNPT X 1/8 FNPT |
 |
24" (610mm) | 1/4 MNPT X 1/4 MNPT |
 |
24" (610mm) | 1/4 MNPT X 1/8 FNPT |
 |
30" (762mm) | 1/4 MNPT X 1/4 MNPT |
 |
30" (762mm) | 1/4 MNPT X 1/8 FNPT |
|
|
36" (914mm) | 1/4 MNPT X 1/4 MNPT |
 |
36" (914mm) | 1/4 MNPT X 1/8 FNPT |
Models:
Model for 1/8 MNPT nozzles |
|
| Model # | Description |
| 9256 | 6" (152mm) long, 1/4 MNPT x 1/8 FNPT |
| 9262 | 12" (305mm) long, 1/4 MNPT x 1/8 FNPT |
| 9268 | 18" (457mm) long, 1/4 MNPT x 1/8 FNPT |
| 9274 | 24" (610mm) long, 1/4 MNPT x 1/8 FNPT |
| 9280 | 30" (762mm) long, 1/4 MNPT x 1/8 FNPT |
| 9286 | 36" (914mm) long, 1/4 MNPT x 1/8 FNPT |
Models for 1/4 FNPT nozzles |
|
| Model # | Description |
| 9206 | 6" (152mm) long, 1/4 MNPT x 1/4 MNPT |
| 9212 | 12" (305mm) long, 1/4 MNPT x 1/4 MNPT |
| 9218 | 18" (457mm) long, 1/4 MNPT x 1/4 MNPT |
| 9224 | 24" (610mm) long, 1/4 MNPT x 1/4 MNPT |
| 9230 | 30" (762mm) long, 1/4 MNPT x 1/4 MNPT |
| 9236 | 36" (914mm) long, 1/4 MNPT x 1/4 MNPT |
EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10,43 kg) where additional reach and force are required.
- Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)
- Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)
- Brass - general purpose applications. Max temp 400°F (204°C)
- Zinc - aluminum alloy- general purpose applications. Max temp 250°F (121°C)
- PEEK - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C)
