| Product | Flow | Nozzle Type | Force | Air Inlet |
 |
10 SCFM (283 SLPM) | PEEK (Plastic) Mini Super Air Nozzle | 9 oz / 255 grams | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | St. Steel Mini Super Air Nozzle | 9 oz / 255 grams | 1/4 FNPT |
 |
10 SCFM (283 SLPM) | Zinc-Alum. Mini Super Air Nozzle | 9 oz / 255 grams | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM | PEEK (Plastic) Atto Super Air Nozzle | 2 oz / 57 grams | 1/4 FNPT |
 |
2.5 SCFM (71 SLPM | St. Steel Atto Super Air Nozzle | 2 oz / 57 grams | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | PEEK (Plastic) Pico Super Air Nozzle | 5 oz / 142 grams | 1/4 FNPT |
 |
4.9 SCFM (139 SLPM) | St. Steel Pico Super Air Nozzle | 5 oz / 142 grams | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | PEEK (Plastic) Nano Super Air Nozzle | 8.1 oz / 230 grams | 1/4 FNPT |
 |
8.3 SCFM (235 SLPM) | St. Steel Nano Super Air Nozzle | 8.1 oz / 230 grams | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | Brass Safety Air Nozzle, 1/4 NPT | 9.8 oz / 278 grams | 1/4 FNPT |
 |
10.5 SCFM (297 SLPM) | St. Steel 1" Flat Super Air Nozzle | 9.8 oz / 278 grams | 1/4 FNPT |
 |
13SCFM (368 SLPM) | Alum. Adjustable Air Nozzle | 9.8 oz / 278 grams | 1/4 FNPT |
 |
13SCFM (368 SLPM) | St. Steel Adjustable Air Nozzle | 9.8 oz / 278 grams | 1/4 FNPT |
 |
13SCFM (368 SLPM) | St. Steel Micro Air Nozzle | 9.8 oz / 278 grams | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | St. Steel 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1.4 NPT Super Air Nozzle | 13 oz / 368 grams | 1/4 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 1/4 FNPT |
 |

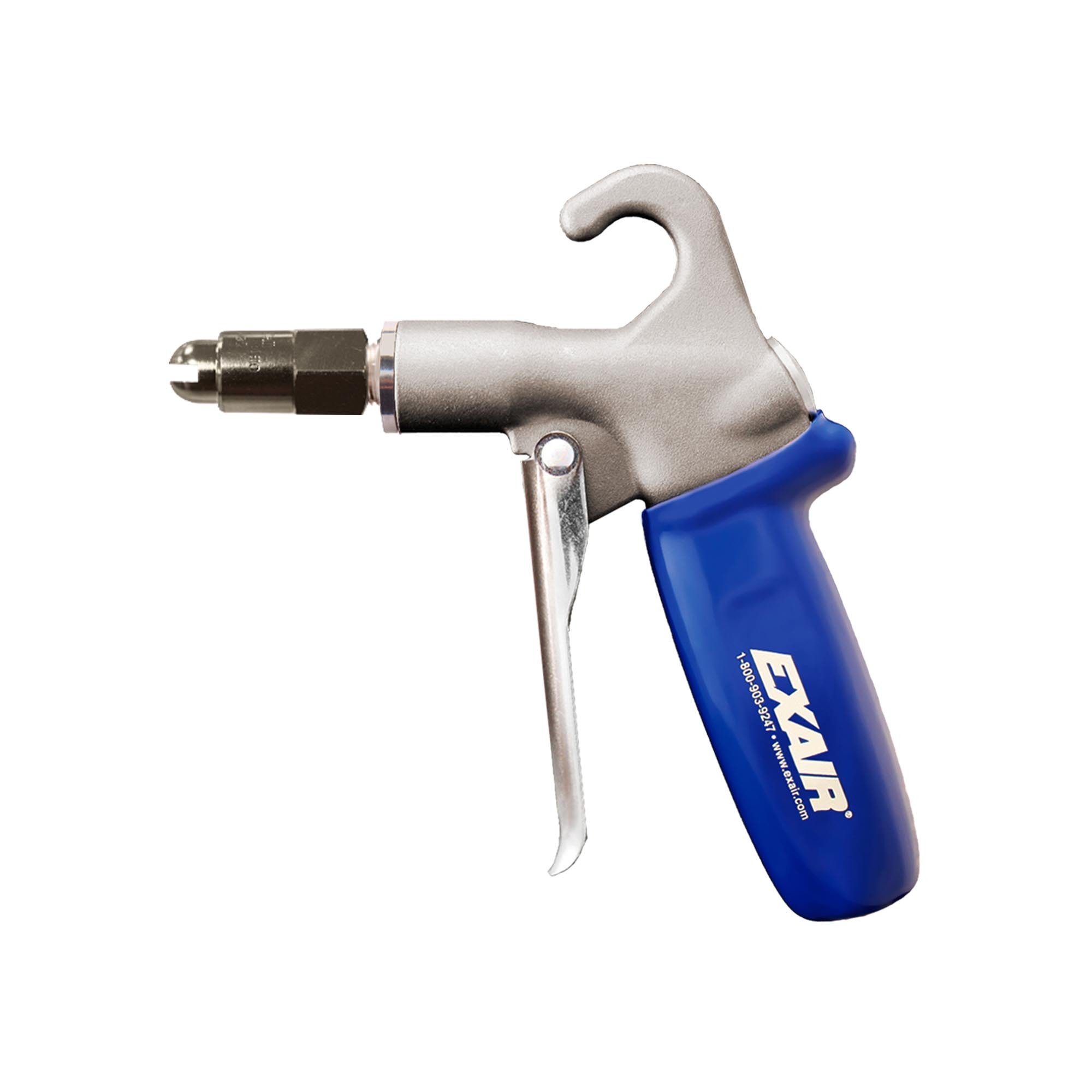

17 SCFM (481 SLPM) | Brass Safety Air Nozzle, 1/4 NPT | 16 oz / 454 grams | 1/4 FNPT |
 |
17 SCFM (481 SLPM) | St. Steel Safety Air Nozzle | 16 oz / 454 grams | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | St. Steel 1" HP Flat Super Air Nozzle | 16 oz / 454 grams | 1/4 FNPT |
 |
17.5 SCFM (495 SLPM) | Zinc-Alum. 1" HP Flat Super Air Nozzle | 16 oz / 454 grams | 1/4 FNPT |
 |
18 SCFM (509 SLPM) | Brass 3/8 NPT Safety Air Nozzle | 18 oz / 510 grams | 1/4 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 1/4 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 1/4 FNPT |
 |
32 SCFM (906 SLPM) | Brass High Power Safety Air Nozzle | 1.8 lbs / 816 grams | 1/4 FNPT |
 |
32 SCFM (906 SLPM) | St. Steel High Power Safety Air Nozzle | 1.8 lbs / 816 grams | 1/4 FNPT |
 |
35 SCFM (911 SLPM) | PEEK (Plastic) 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 1/4 FNPT |
 |
35 SCFM (911 SLPM) |
St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 1/4 FNPT |
 |
35 SCFM (911 SLPM) |
Zinc-Alum. 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 1/4 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1134 grams | 1/4 FNPT |
 |
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1134 grams | 1/4 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 1/4 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 1/4 FNPT |
 |
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 1/4 FNPT |
Extension Pipe Length, Stay Set Hose Length and Chip Shield not applicable with EXAIR Soft Grip Safety Air Gun with Nozzle.
Specifications:

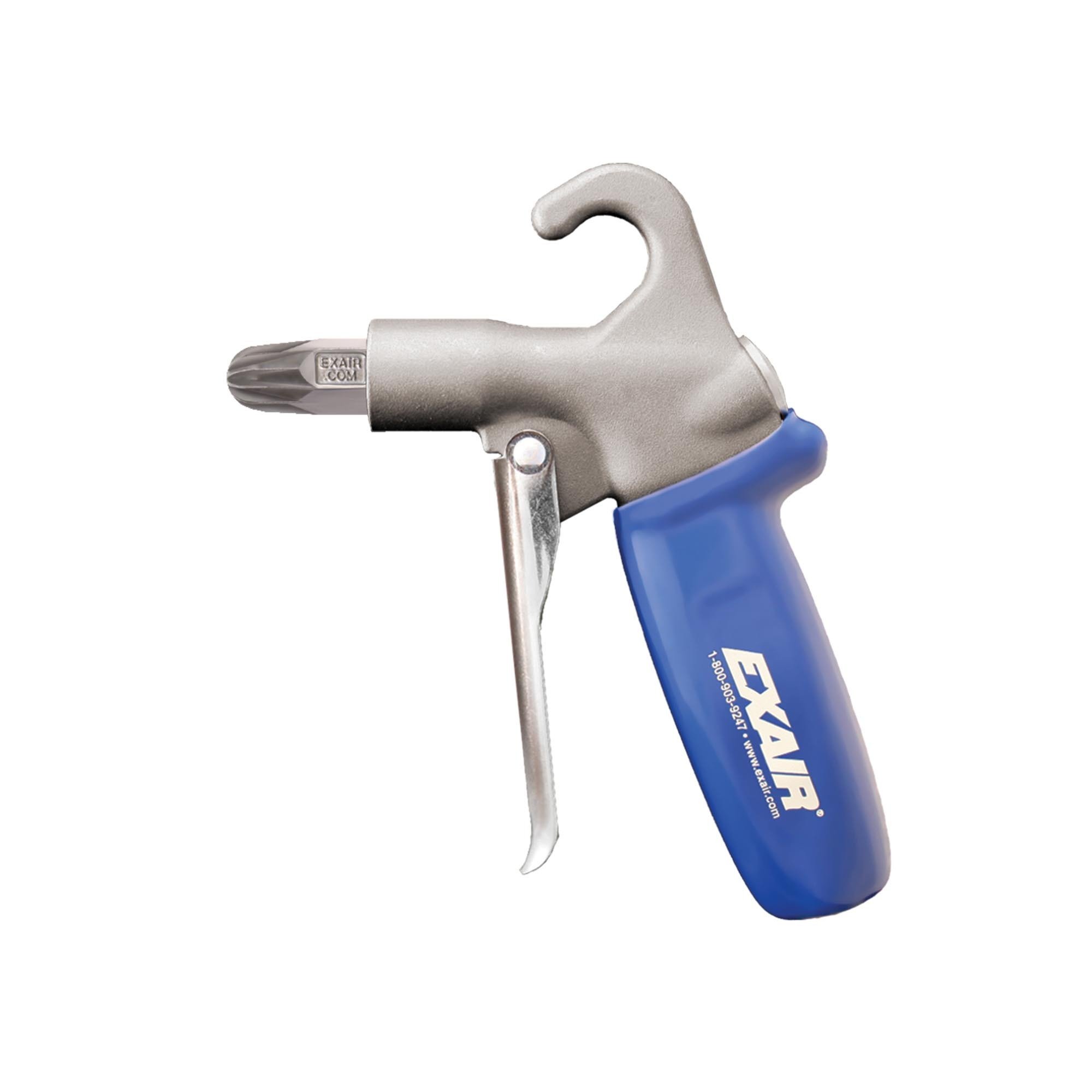

Model 1210SS Soft Grip Safety Air GunNozzle: 1100SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 14 | 396 | 13 | 369 | 74 | |
|

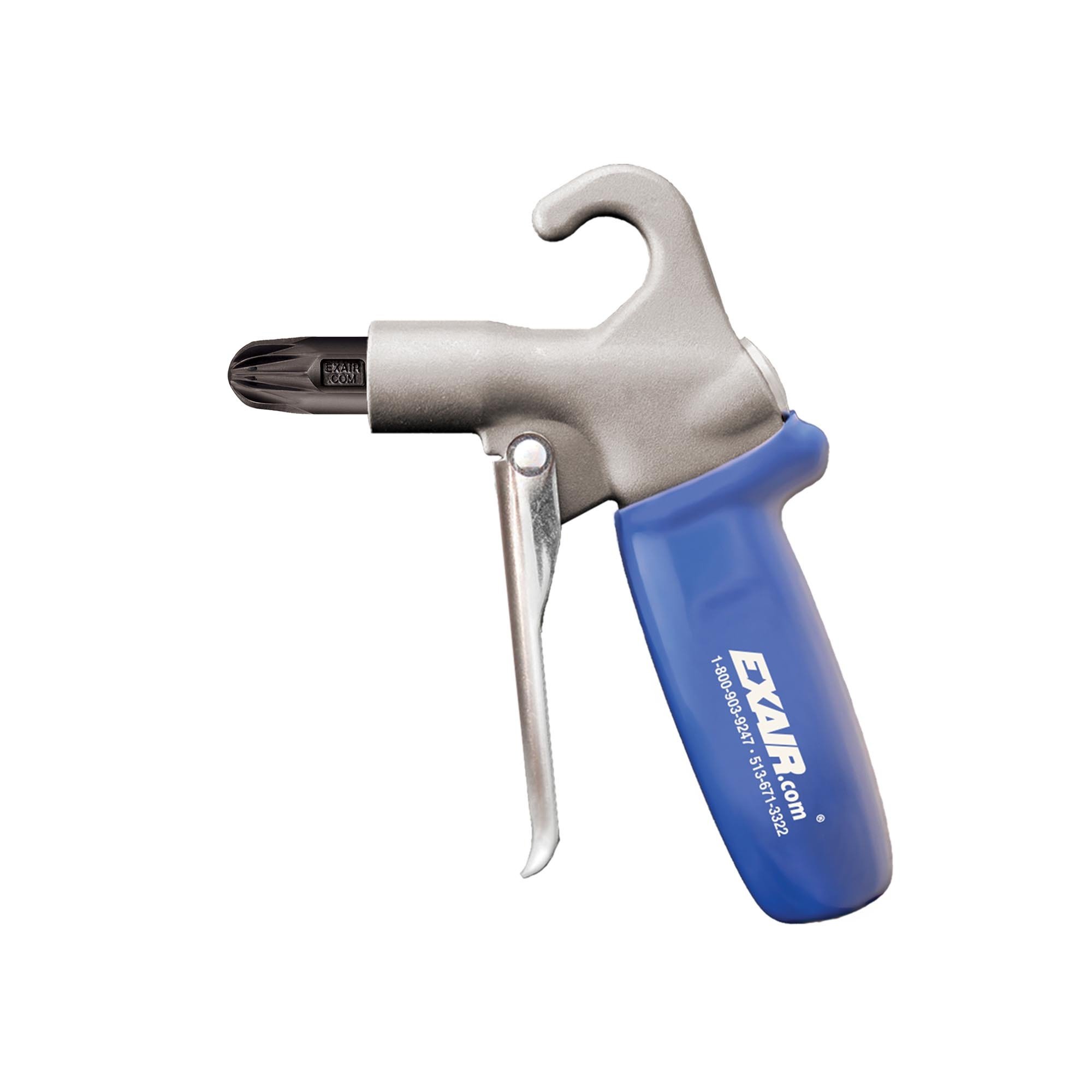

Also available: 1210 with 1100 Zinc Aluminum Super Air Nozzle 1210-PEEK with 1100-PEEK PEEK plastic Super Air Nozzle |
|||||

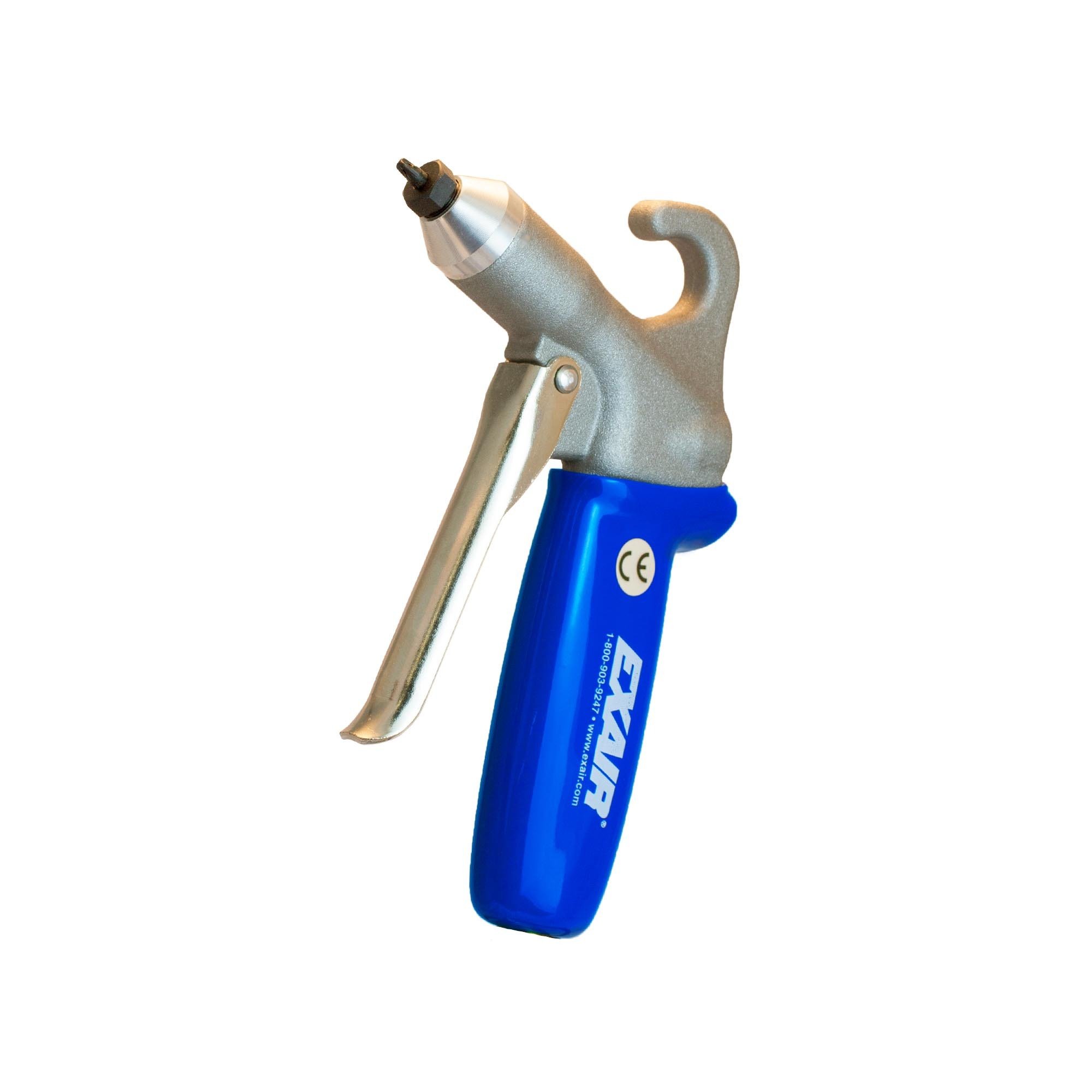

Model 1296SS Soft Grip Safety Air GunNozzle: 1108SS Stainless Steel Atto Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 2.5 | 71 | 2.0 | 56.7 | 58 | |
|
Also available: 1296-PEEK with 1108-PEEK PEEK plastic Atto Super Air Nozzle |
|||||

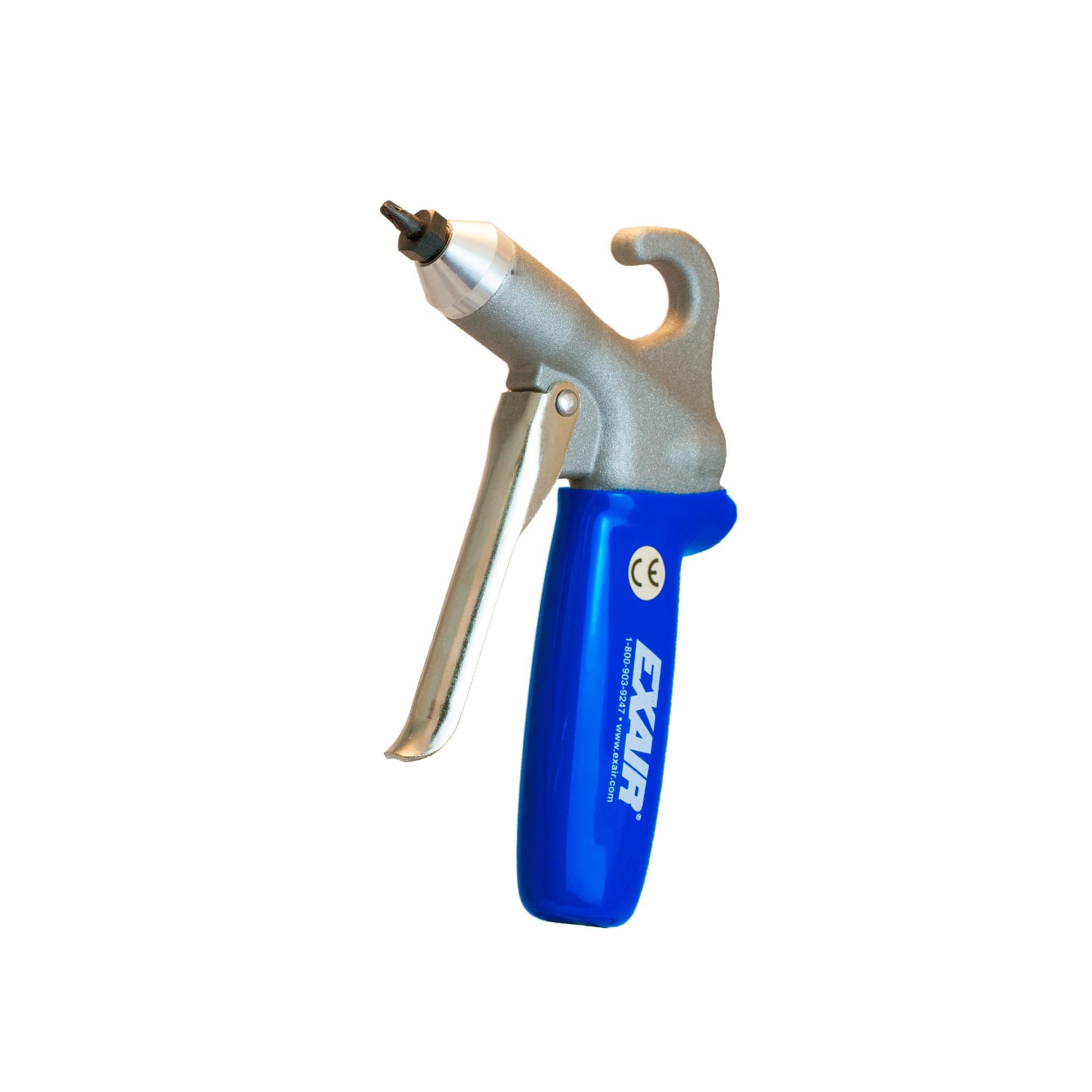

Model 1297SS Soft Grip Safety Air GunNozzle: 1109SS Stainless Steel Pico Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 4.9 | 139 | 5.0 | 142 | 68 | |
|
Also available: 1297-PEEK with 1109-PEEK PEEK plastic Pico Super Air Nozzle |
|||||

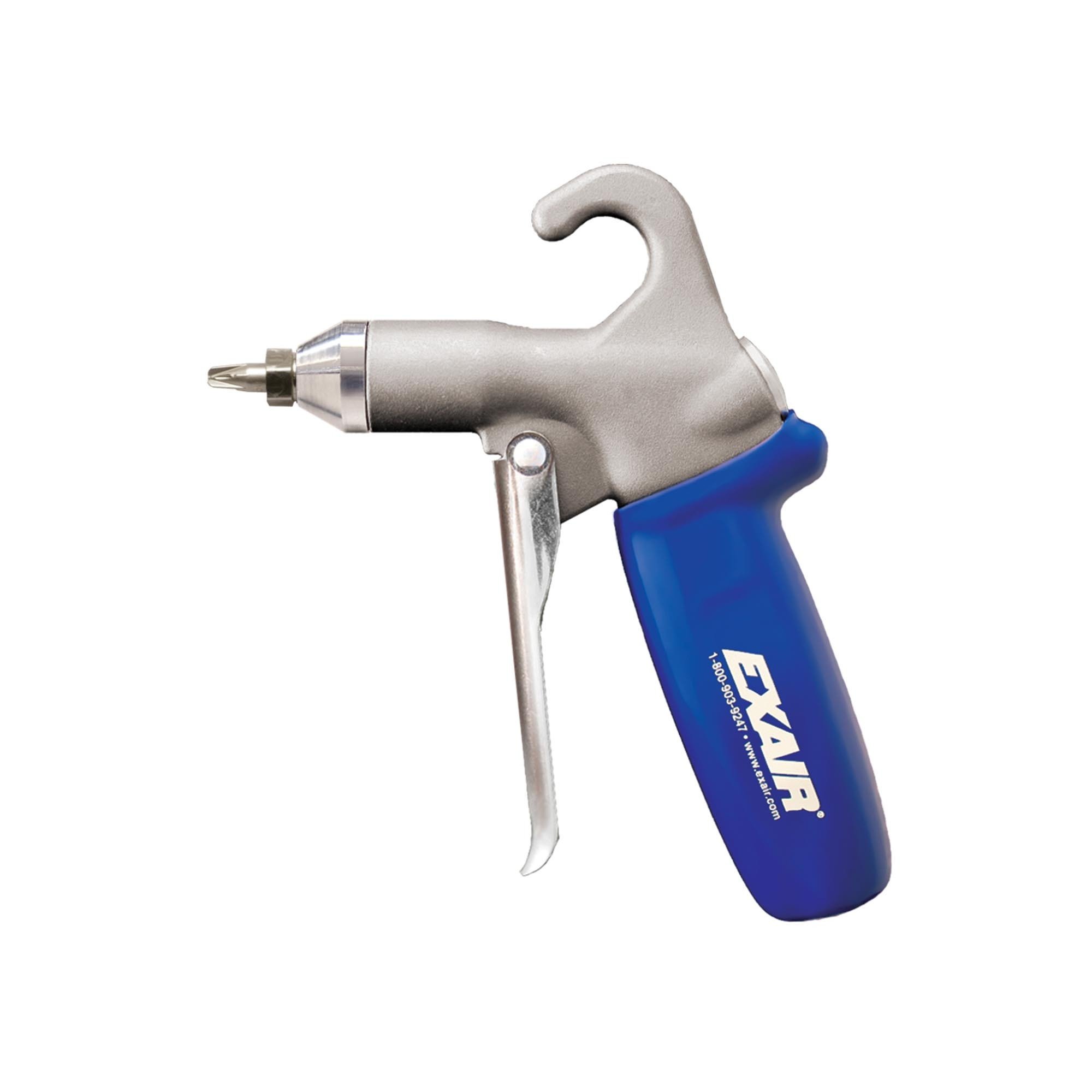

Model 1298SS Soft Grip Safety Air GunNozzle: 1110SS Stainless Steel Nano Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 8.3 | 235 | 8.1 | 230 | 75 | |
|

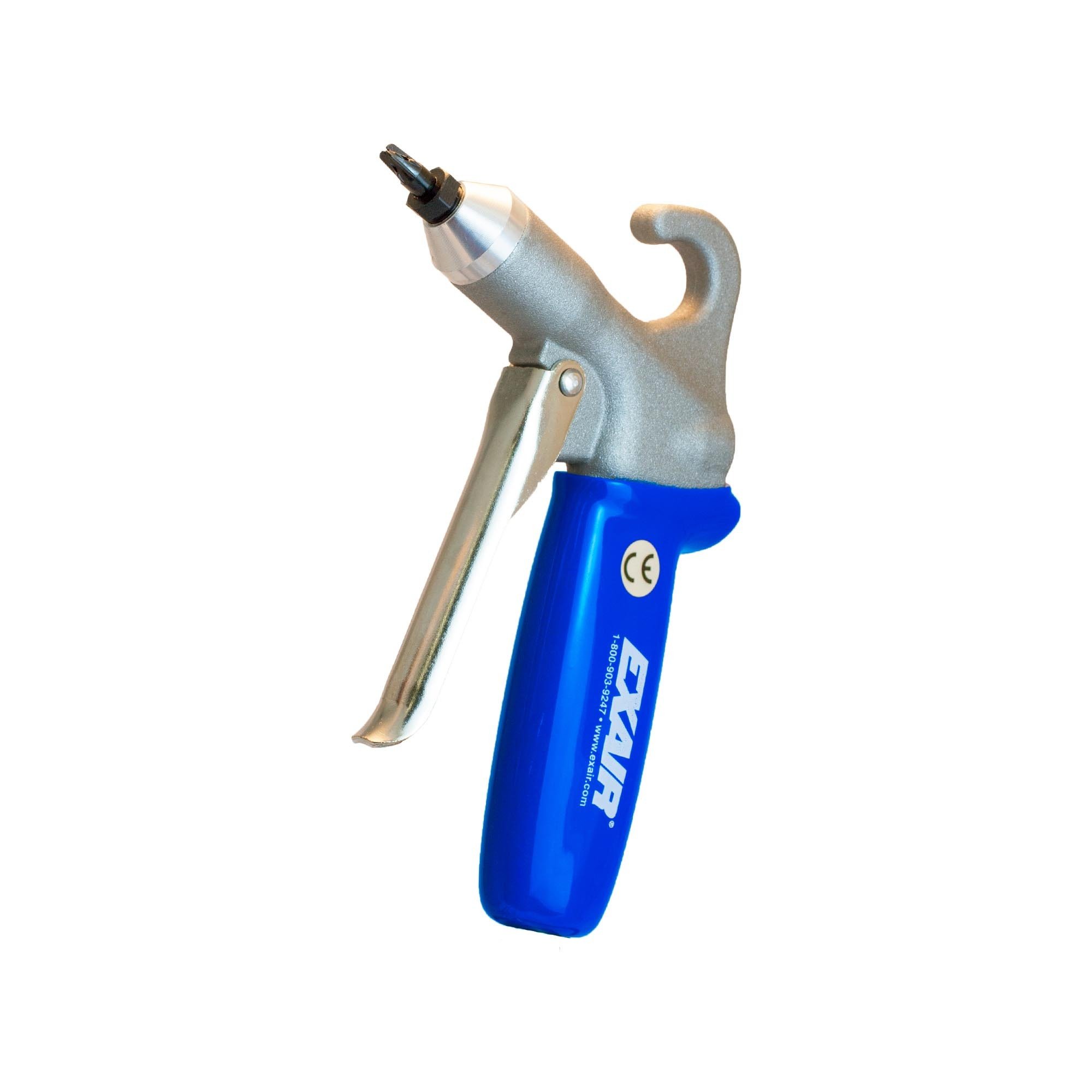

Also available: 1298-PEEK with 1110-PEEK PEEK plastic Nano Super Air Nozzle |
|||||

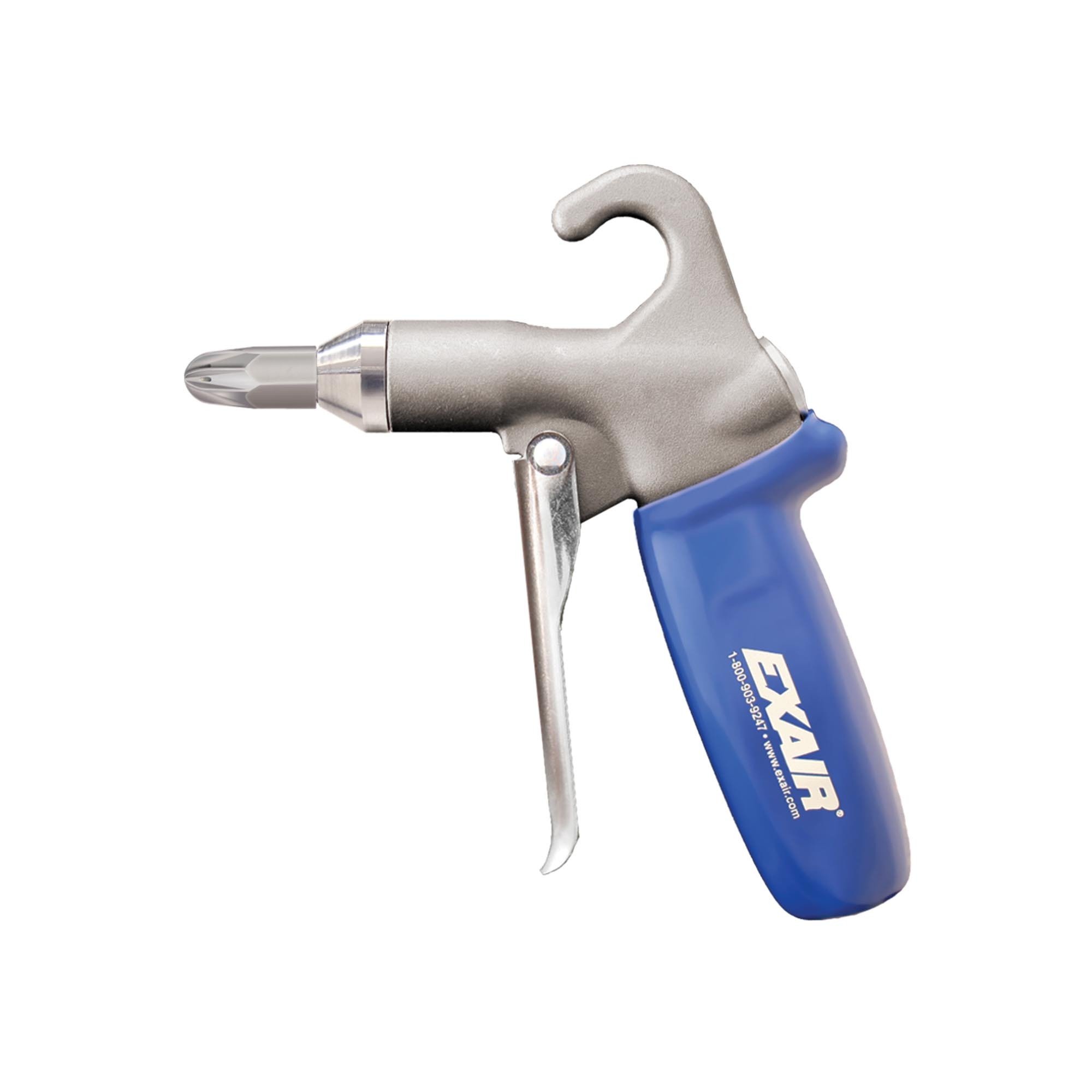

Model 1299SS Soft Grip Safety Air GunNozzle: 1103SS Stainless Steel Mini Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 10 | 283 | 9.0 | 255 | 71 | |
|
Also available: 1299 with 1103 Zinc Aluminum Mini Super Air Nozzle 1299-PEEK with 1103-PEEK PEEK plastic Pico Super Air Nozzle |
|||||

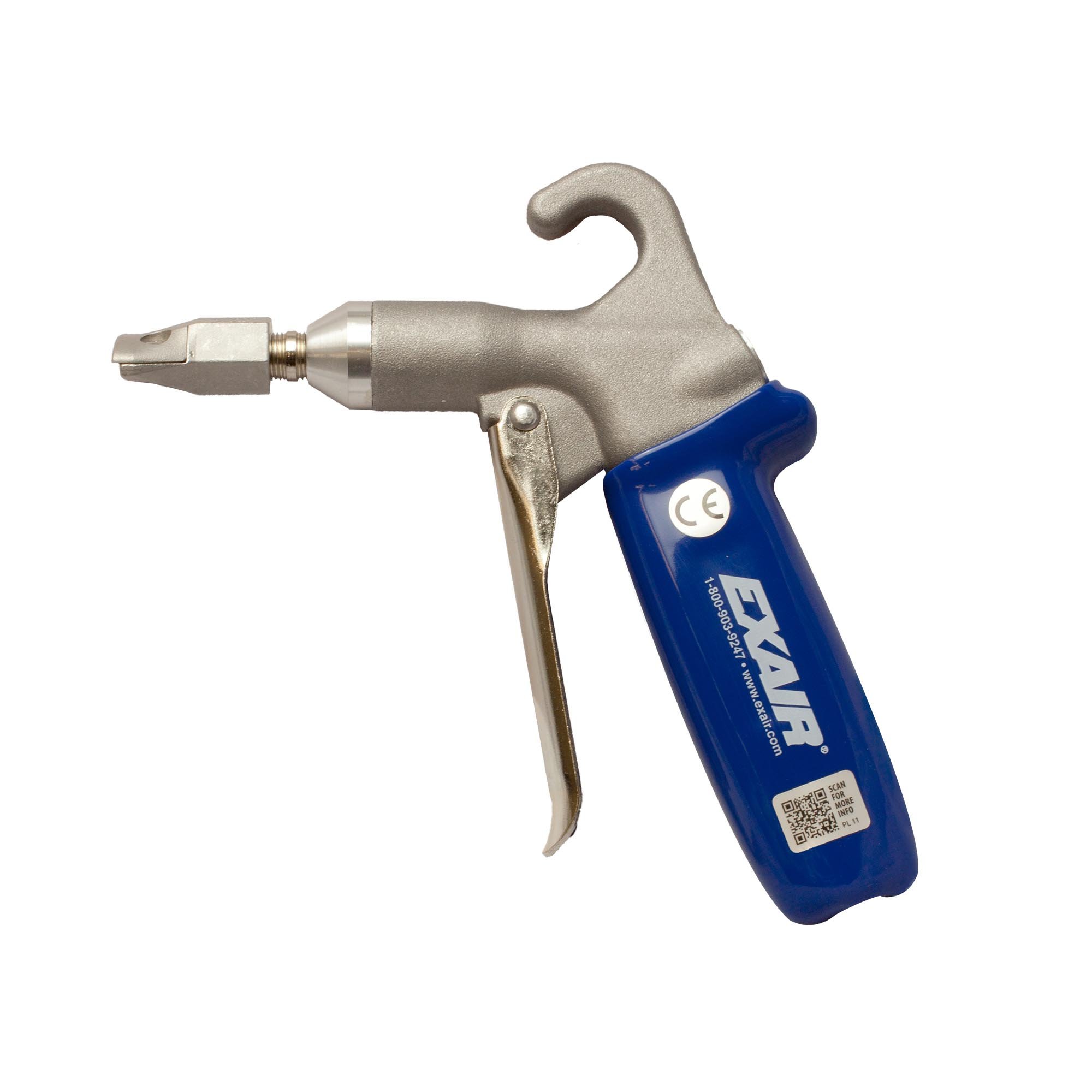

Model 1229SS Soft Grip Safety Air GunNozzle: 1126SS Stainless Steel 1" Flat Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 10.5 | 297 | 9.8 | 278 | 75 | |
|
Also available: 1229 with 1126 Zinc Aluminum 1" Flat Super Air Nozzle |
|||||

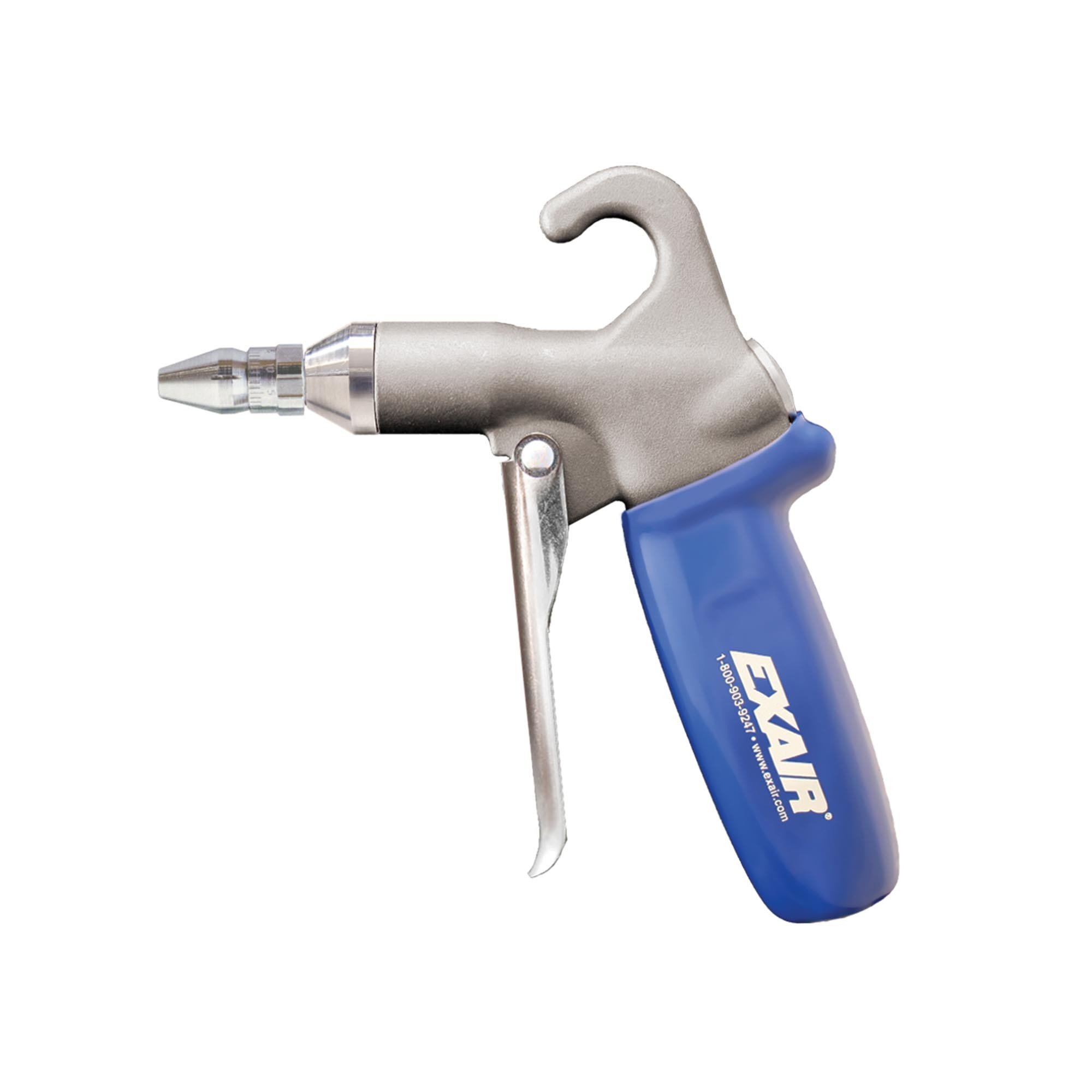

Model 1290SS Soft Grip Safety Air GunNozzle: 1009SS Stainless Steel Adjustable Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 13 | 368 | 12 | 340 | 79 | |
|
Also available: 1290 with 1009 Zinc Aluminum Adjustable Air Nozzle |
|||||
Model 1280SS Soft Grip Safety Air GunNozzle: 1010SS Stainless Steel Micro Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 13 | 368 | 12 | 340 | 80 | |
Model HP1229SS Soft Grip Safety Air GunNozzle: 1126SS Stainless Steel 1" High Power Flat Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 17.5 | 495 | 16 | 454 | 82 | |
|
Also available: HP1229 with HP1126 Zinc Aluminum 1" High Power Super Air Nozzle |
|||||
Model 1230SS Soft Grip Safety Air GunNozzle: 1122SS Stainless Steel 2" Flat Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 22 | 622 | 22 | 624 | 77 | |
|
Also available: 1230 with 1122 Zinc Aluminum 2" Flat Super Air Nozzle |
|||||

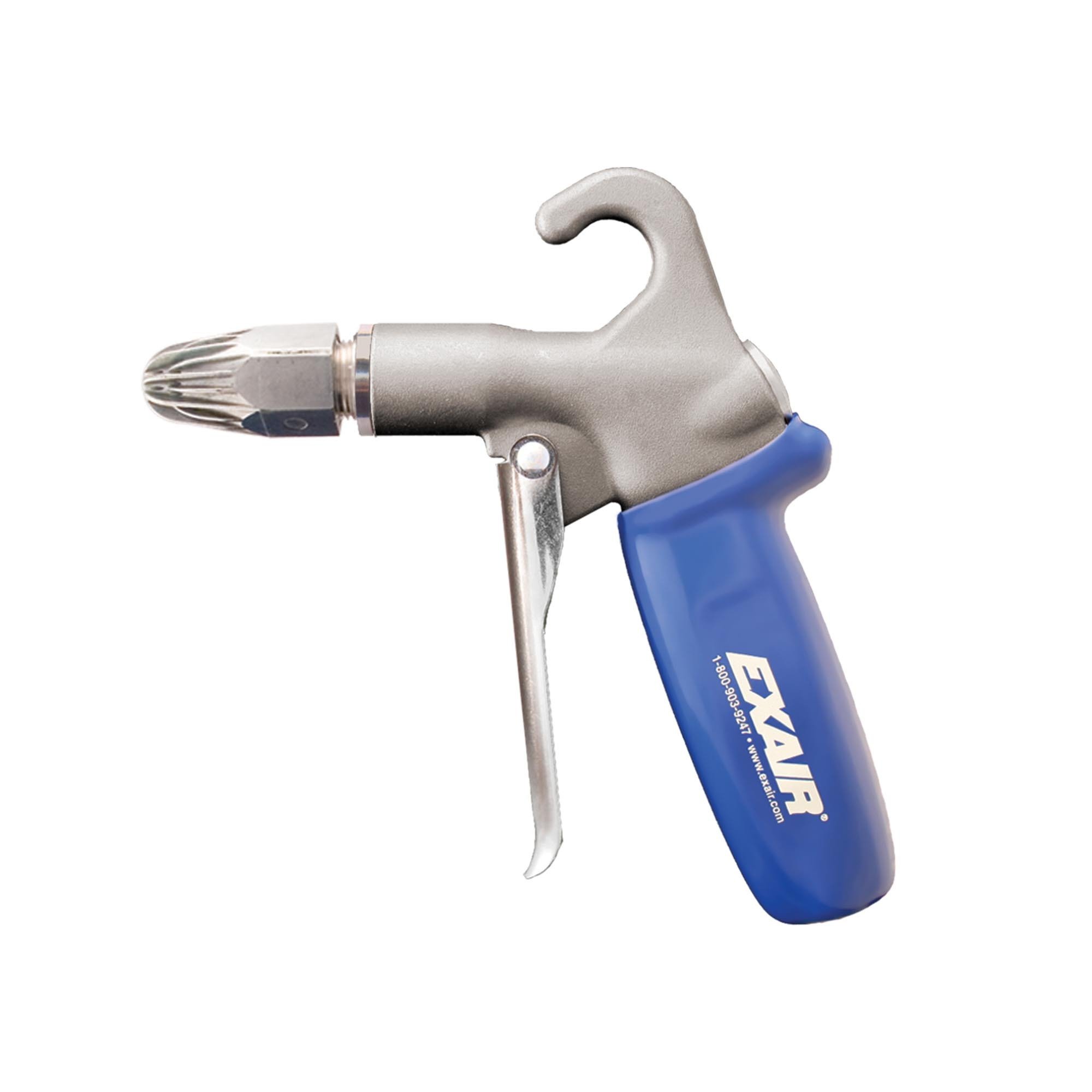

Model 1250SS Soft Grip Safety Air GunNozzle: 1104SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 35 | 991 | 1.9 | 862 | 82 | |
|
Also available: 1250 with 1104 Zinc Aluminum Super Air Nozzle 1250-PEEK with 1104-PEEK PEEK plastic Super Air Nozzle |
|||||

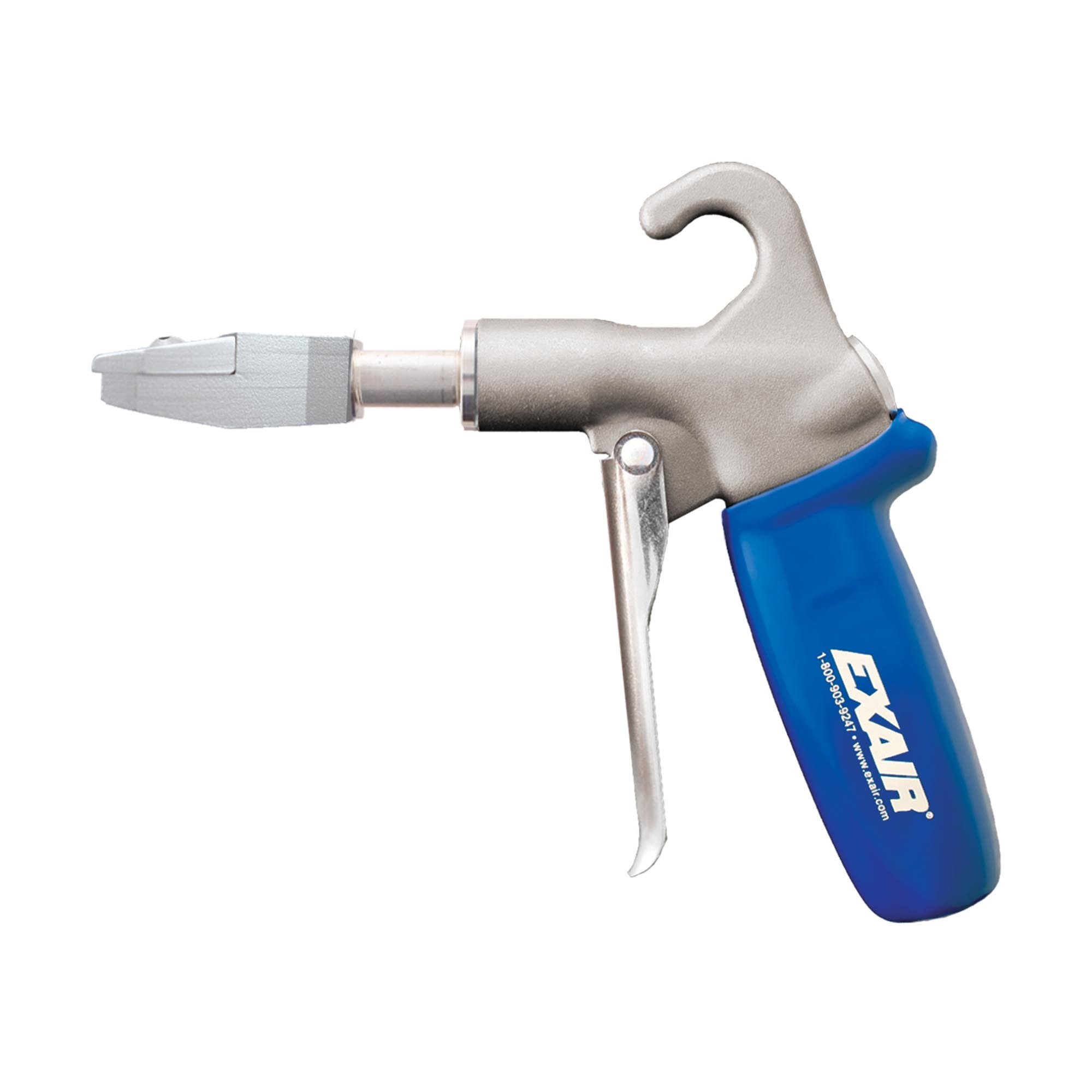

Model HP1230SS Soft Grip Safety Air GunNozzle: HP1125SS Stainless Steel 2" High Power Flat Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 37 | 1,039 | 2.2 | 998 | 83 | |
|
Also available: HP1230 with HP1125 Zinc Aluminum 2" High Power Flat Super Air Nozzle |
|||||

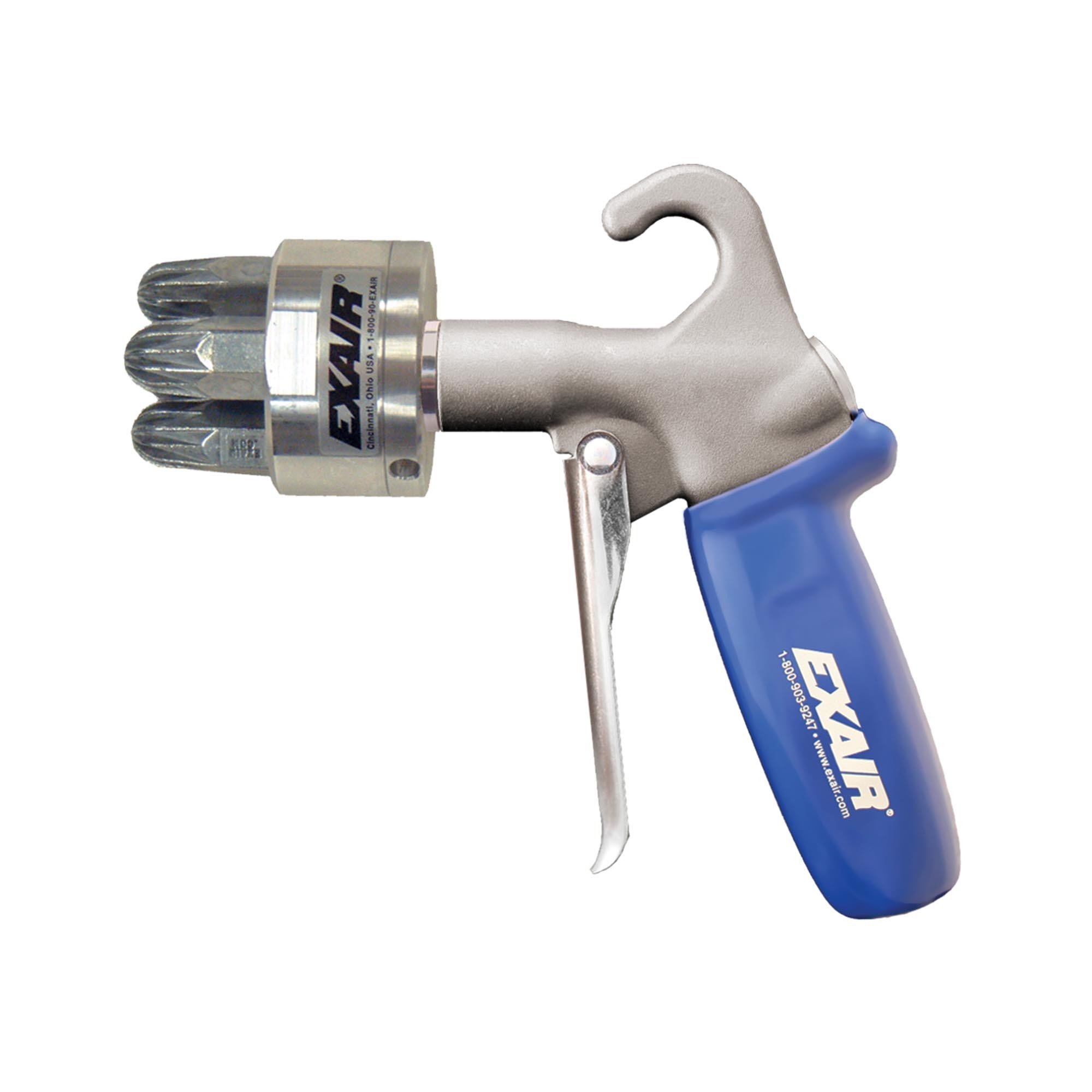

Model 1240 Soft Grip Safety Air GunNozzle: 1111-4 Zinc Aluminum Air Nozzle Cluster |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 56 | 1,585 | 3.2 | 1,451 | 82 | |

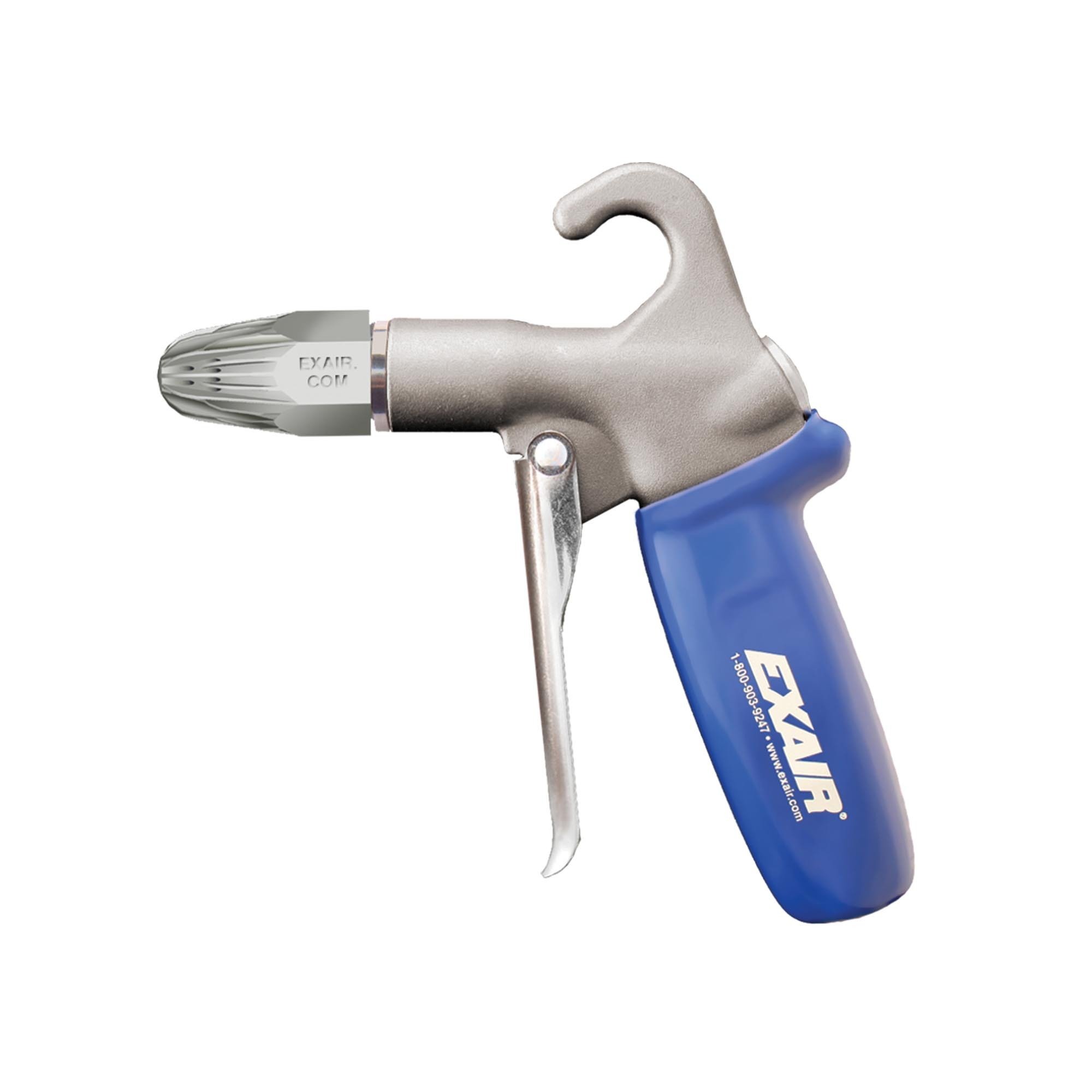

Model 1260SS Soft Grip Safety Air GunNozzle: 1106SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Grams | dBA | |
| 60 | 1,699 | 3.3 | 1,497 | 87 | |
|
Also available: 1260 with 1106 Zinc Aluminum Super Air Nozzle |
|||||
Model 1204SS-6-CS Soft Grip Back Blow Safety Air GunNozzle: 1004SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension, and Chip Shield |
||||
|
Inlet: 1/4 FNPT
|
Air Consumption | Sound Level | Use With: | |
| SCFM | SLPM | dBA | Inside Diameter | |
| 4.5 | 127 | 75 |
1/4" - 1" (6.3-25.4mm) |
|
Model 1206SS-6-CS Soft Grip Back Blow Safety Air GunNozzle: 1006SS Stainless Steel Back Blow Air Nozzle, 6" Aluminum Extension, and Chip Shield |
||||
|
Inlet: 1/4 FNPT
|
Air Consumption | Sound Level | Use With: | |
| SCFM | SLPM | dBA | Inside Diameter | |
| 4.5 | 127 | 75 |
1/4" - 1" (6.3-25.4mm) |
|
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Part drying
Advantages:
- Lightweight
- Comfortable to operate during extended use
- Highly focused blast of air
- Small nozzle and extension can fit into tight spaces
- Reduced compressed air cost
- Improved blowoff performance
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
Materials:
Soft Grip Safety Air Gun Body:
- Durable cast aluminum with soft plastic grip.
Nozzle Options:
- Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
- Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).
- PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C).
Accessories:
Aluminum Extension Pipe - extends the reach of your Soft Grip Safety Air Gun. 1/8 NPT Extension Pipes are available in 6" (152mm) to 72" (1829mm) lengths.
Coiled Hose with Swivel - Heavy duty compressed air hose that's coiled to conveniently store it when not in use. Available in 12' (3.7m) lengths.
Chip Shields - durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splash back from drying operations.
Safety Air Gun Standards and Certifications:
EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC).All sound level measurements are taken at 3 feet away.
