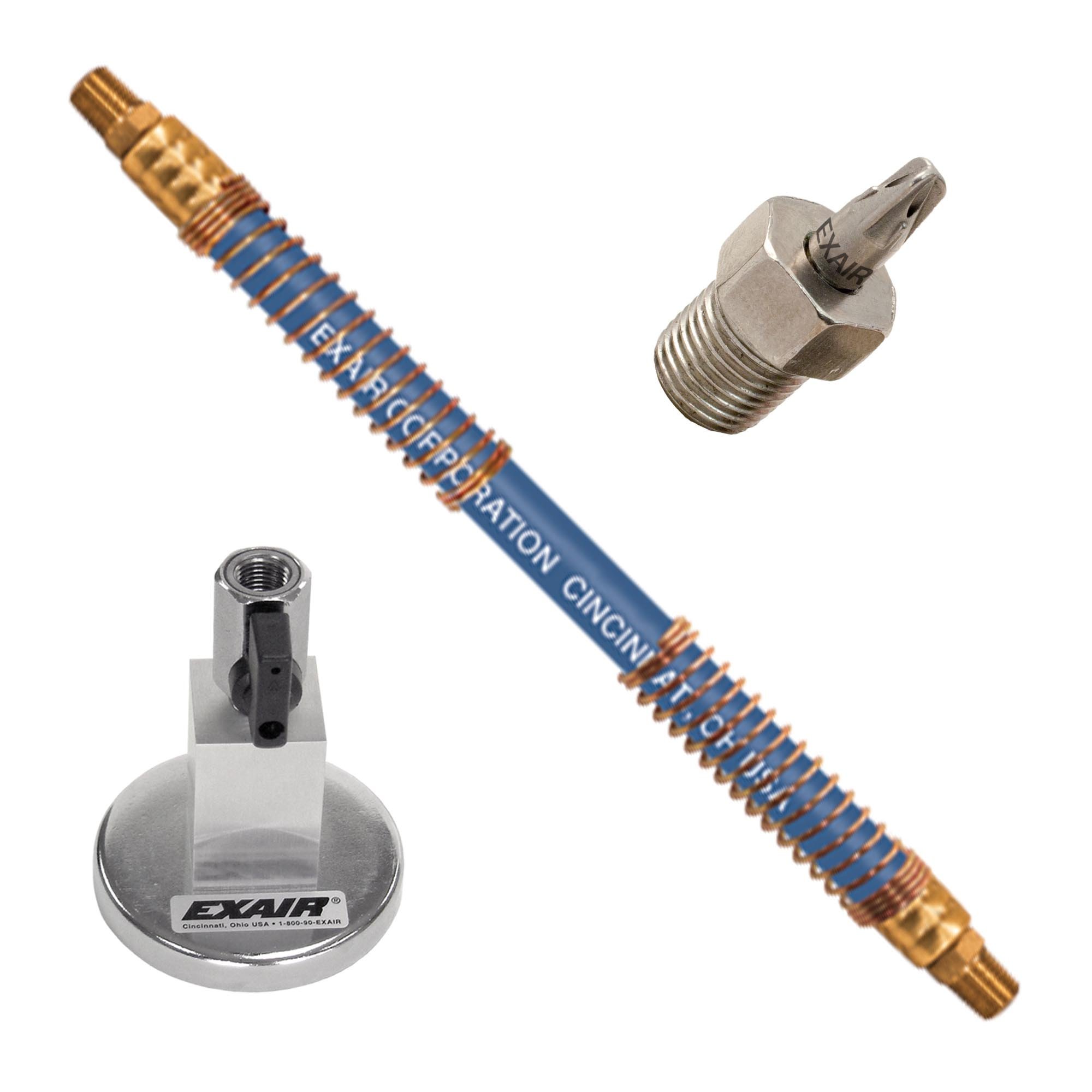

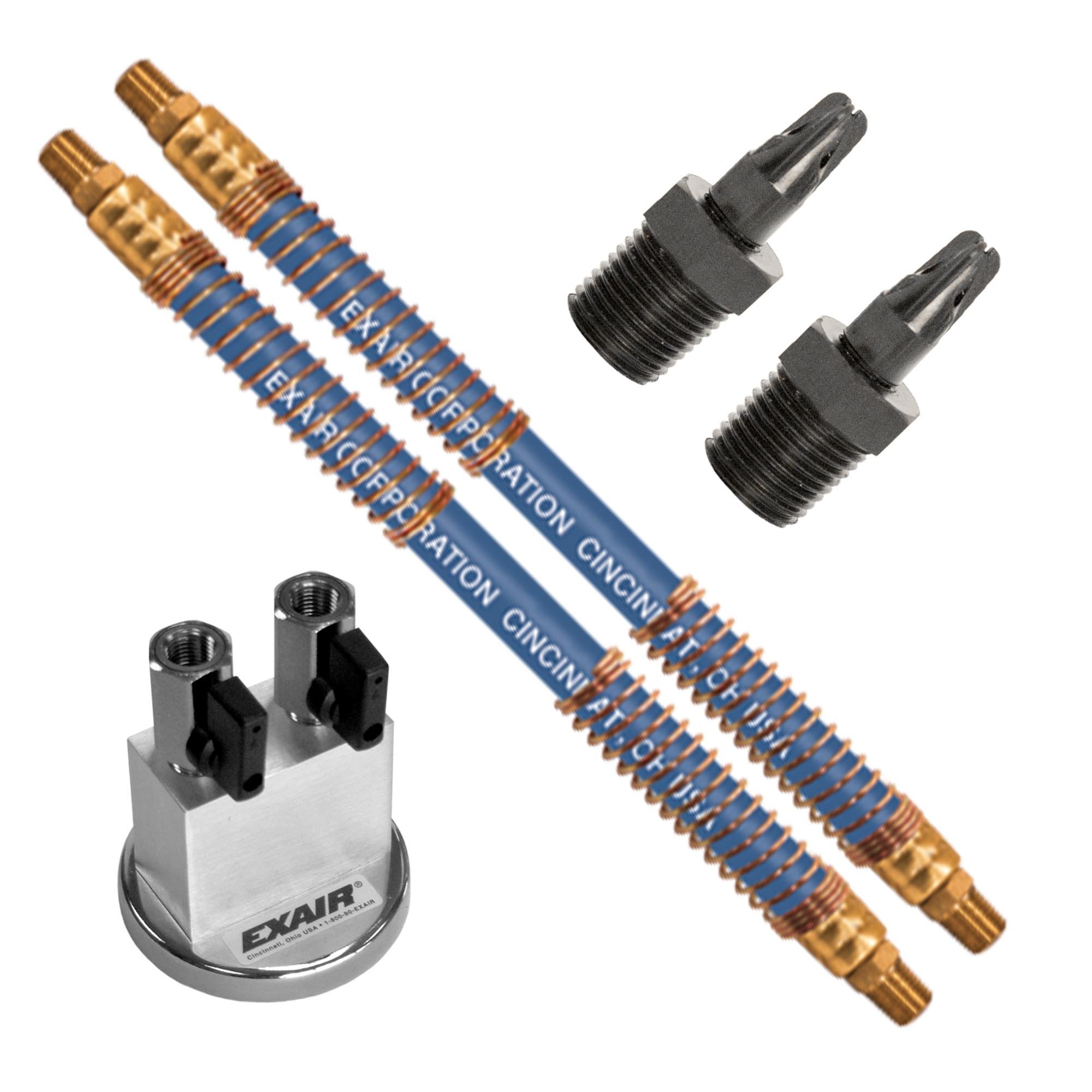

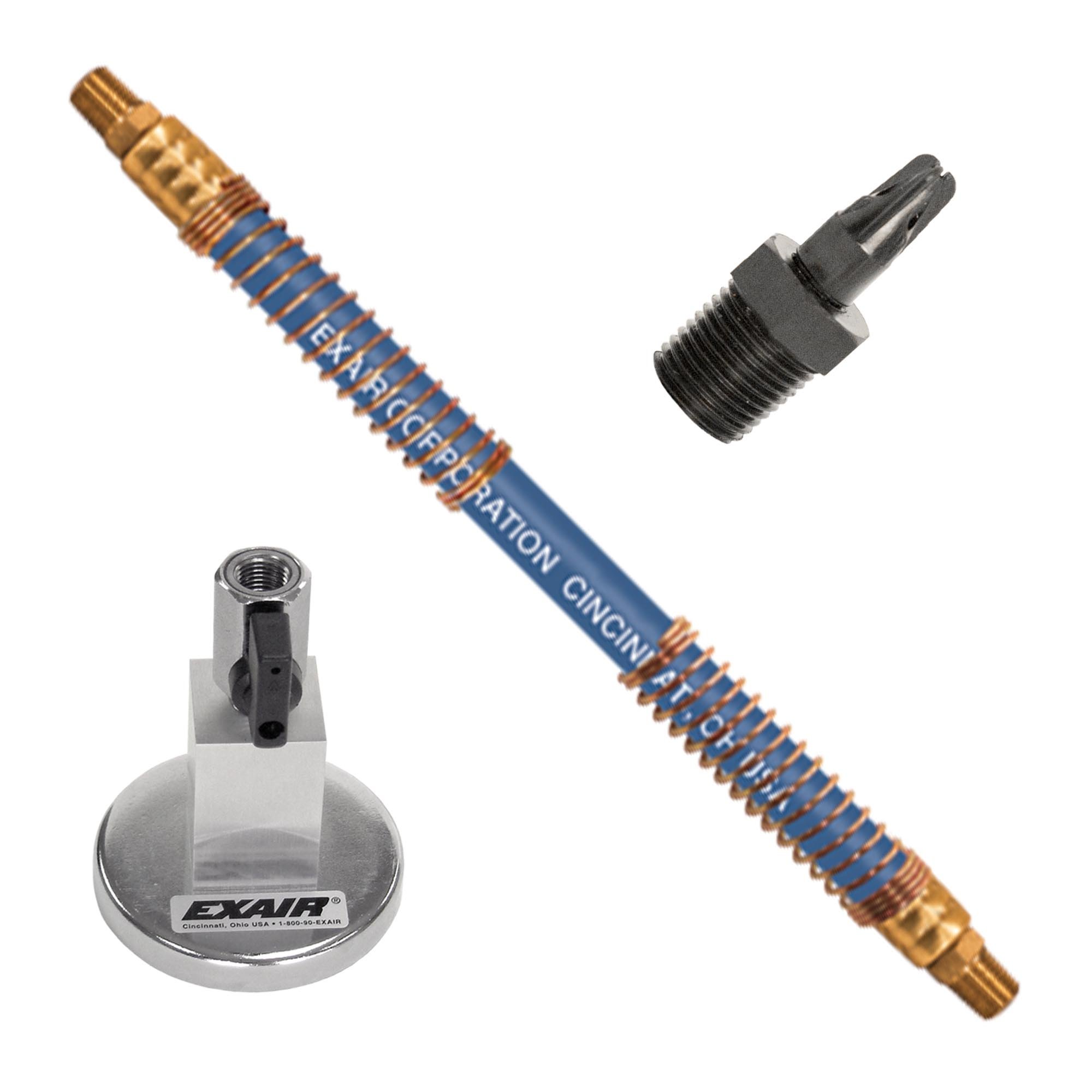

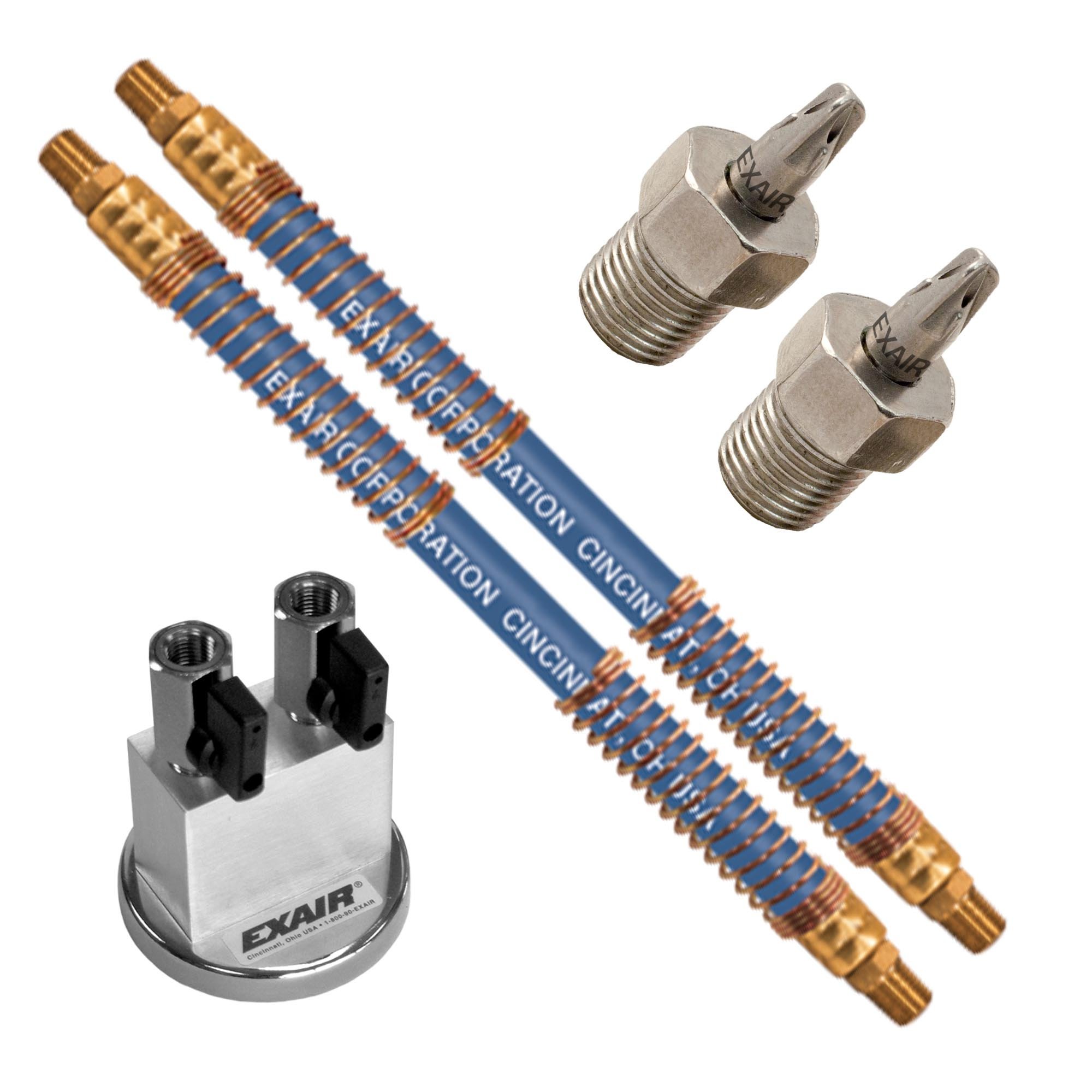

EXAIR Pico Super Air Nozzle™ with Stay Set Hose and Magnetic Base

EXAIR's Pico Super Air Nozzle delivers a precise blowoff with a highly focused, forceful blast of airflow. The narrowly focused air pattern measures 1.3 Inch in diameter at 6 Inch away from the surface. The noise level is only 68 dBA. Thread size is M5x0.5 and it is available in 316 stainless steel or PEEK thermoplastic. The Stay Set Hose provides precise positioning or repositioning necessary for different applications. A strong magnetic base provides a secure mount on ferrous metal frames or brackets.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets
exair-Pico Super Air Nozzle-1109peek-npt-9356 PEEK Plastic 4.9 SCFM 1/4 MNPT 6" (152mm) 1
exair-Pico Super Air Nozzle-1109peek-npt-9456 PEEK Plastic 4.9 SCFM 1/4 MNPT 6" (152mm) 2
exair-Pico Super Air Nozzle-1109ss-npt-9356 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 6" (152mm) 1
exair-Pico Super Air Nozzle-1109ss-npt-9456 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 6" (152mm) 2
exair-Pico Super Air Nozzle-1109peek-npt-9362 PEEK Plastic 4.9 SCFM 1/4 MNPT 12" (305mm) 1
exair-Pico Super Air Nozzle-1109peek-npt-9462 PEEK Plastic 4.9 SCFM 1/4 MNPT 12" (305mm) 2
exair-Pico Super Air Nozzle-1109ss-npt-9362 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 12" (305mm) 1
exair-Pico Super Air Nozzle-1109ss-npt-9462 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 12" (305mm) 2
exair-Pico Super Air Nozzle-1109peek-npt-9368 PEEK Plastic 4.9 SCFM 1/4 MNPT 18" (457mm) 1
exair-Pico Super Air Nozzle-1109peek-npt-9468 PEEK Plastic 4.9 SCFM 1/4 MNPT 18" (457mm) 2
exair-Pico Super Air Nozzle-1109ss-npt-9368 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 18" (457mm) 1
exair-Pico Super Air Nozzle-1109ss-npt-9468 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 18" (457mm) 2
exair-Pico Super Air Nozzle-1109peek-npt-9374 PEEK Plastic 4.9 SCFM 1/4 MNPT  24" (610mm) 1
exair-Pico Super Air Nozzle-1109peek-npt-9474 PEEK Plastic 4.9 SCFM 1/4 MNPT  24" (610mm) 2
exair-Pico Super Air Nozzle-1109ss-npt-9374 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 24" (610mm) 1
exair-Pico Super Air Nozzle-1109ss-npt-9474 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 24" (610mm) 2
exair-Pico Super Air Nozzle-1109peek-npt-9380 PEEK Plastic 4.9 SCFM 1/4 MNPT 30" (762mm) 1
exair-Pico Super Air Nozzle-1109peek-npt-9480 PEEK Plastic 4.9 SCFM 1/4 MNPT 30" (762mm) 2
exair-Pico Super Air Nozzle-1109ss-npt-9380 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 30" (762mm) 1
exair-Pico Super Air Nozzle-1109ss-npt-9480 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 30" (762mm) 2
exair-Pico Super Air Nozzle-1109peek-npt-9386 PEEK Plastic 4.9 SCFM 1/4 MNPT 36" (914mm) 1
exair-Pico Super Air Nozzle-1109peek-npt-9486 PEEK Plastic 4.9 SCFM 1/4 MNPT 36" (914mm) 2
exair-Pico Super Air Nozzle-1109ss-npt-9386 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 36" (914mm) 1
exair-Pico Super Air Nozzle-1109ss-npt-9486 Type 316 Stainless Steel 4.9 SCFM 1/4 MNPT 36" (914mm) 2

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Improved blowoff performance
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Improved production

Materials:

  • Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)
  • PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).

Accessories:

swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.



Pico Super Air Nozzle Performance

Air Consumption Force Sound Level
SCFM SLPM Ozs Grams dBA
4.9 139 5.0 142 68

How EXAIR Air Nozzles Work

anworksaEXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

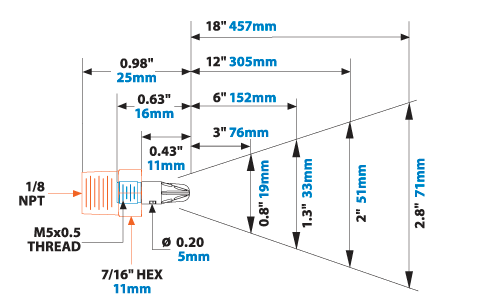

Pico Super Air Nozzle Dimensions and Airflow

exair-picco-super-air-nozzles-dim1109ss



Super Air Nozzle Standards and Certifications




OSHA Safe!CE CompliantEXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
