| Product | BTU/Hr | Solenoid Valve (standard) or ETC (upgrade) | Voltage | Material | Type | Vortex Capacity | Filter | ||
 |
1000 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 15 SCFM (425 SLPM) | 1/4 FNPT | N/A |
 |
1000 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 15 SCFM (425 SLPM) | 1/4 FNPT | N/A |
 |
1700 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 25 SCFM (708 SLPM) | 1/4 FNPT | N/A |
 |
1700 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 25 SCFM (708 SLPM) | 1/4 FNPT | N/A |
 |
2000 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 30 SCFM (850 SLPM) | 1/4 FNPT | N/A |
 |
2000 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 30 SCFM (850 SLPM) | 1/4 FNPT | N/A |
 |
2800 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 40 SCFM (1133 SLPM) | 1/4 FNPT | N/A |
 |
2800 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 40 SCFM (1133 SLPM) | 1/4 FNPT | N/A |
 |
3400 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 50 SCFM (1416 SLPM) | 1/4 FNPT | N/A |
 |
3400 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 50 SCFM (1416 SLPM) | 1/4 FNPT | N/A |
 |
4000 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 60 SCFM (1699 SLPM) | 1/4 FNPT | N/A |
 |
4000 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 60 SCFM (1699 SLPM) | 1/4 FNPT | N/A |
 |
4800 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 70 SCFM (1982 SLPM) | 1/4 FNPT | N/A |
|
4800 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 70 SCFM (1982 SLPM) | 1/4 FNPT | N/A |
 |
5600 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 80 SCFM (2265 SLPM) | 1/4 FNPT | N/A |
 |
5600 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | High Temperature | 80 SCFM (2265 SLPM) | 1/4 FNPT | N/A |
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
NEMA 4 Cabinet Cooler Advantages:
- Low cost
- Compact
- Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
- Quiet
- Install in minutes
- Maintain NEMA 4 integrity (IP66)
- Stabilize enclosure temperature and humidity
- No CFC's
- No moving parts - maintenance free
- Mount in standard electrical knockout
- Stop nuisance tripping
- Stop heat damage
- Eliminate fans and filters
- Eliminate lost production
- Stop circuit drift
- Stop dirt contamination
- Provide washdown protection
Models:

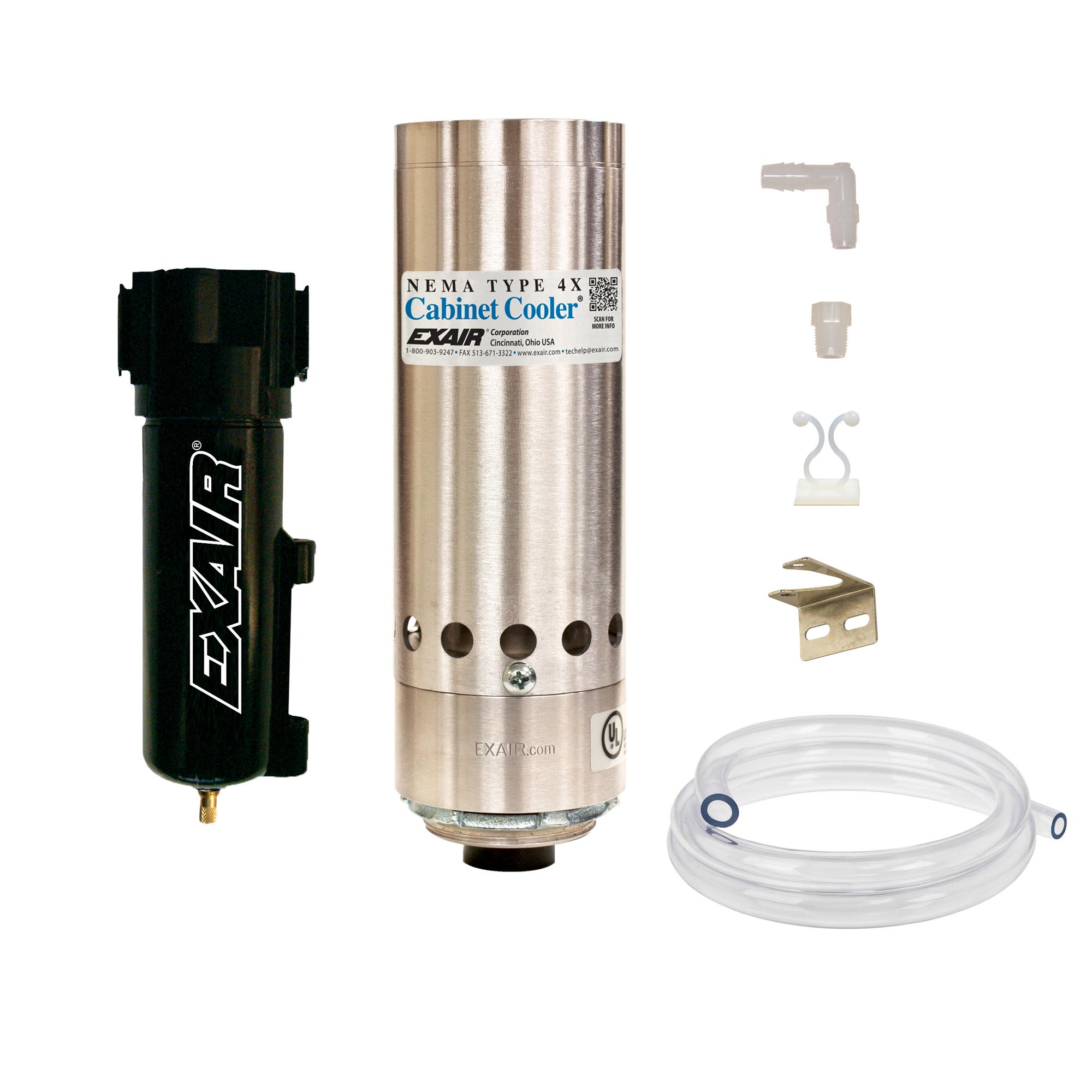

NEMA 4X (IP66) High Temperature Cabinet Cooler Systems - Type 303 Stainless Steel, Continuous Operation |
|
| Model | Btu/hr. (Watts) |
| HT4715SS | 1,000 (293) |
| HT4725SS | 1,700 (498) |
| HT4730SS | 2,000 (586) |
| HT4740SS | 2,800 (821) |
| HT4750SS | 3,400 (997) |
| HT4760SS | 4,000 (1,171) |
| HT4770SS | 4,800 (1,406) |
| HT4780SS | 5,600 (1,641) |
NEMA 4X (IP66) High Temperature Cabinet Cooler Systems - Type 316 Stainless Steel, Continuous Operation |
|
| Model | Btu/hr. (Watts) |
| HT4715SS-316 | 1,000 (293) |
| HT4725SS-316 | 1,700 (498) |
| HT4730SS-316 | 2,000 (586) |
| HT4740SS-316 | 2,800 (821) |
| HT4750SS-316 | 3,400 (997) |
| HT4760SS-316 | 4,000 (1,171) |
| HT4770SS-316 | 4,800 (1,406) |
| HT4780SS-316 | 5,600 (1,641) |
Accessories:
Side Mount Kits
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Specifications:
NEMA 4X (IP66) High Temperature Type 303/316 Stainless Steel Continuous Operation - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| HT4715SS, HT4715SS-316 | 1,000 | 293 | 73 | |
| HT4725SS, HT4725SS-316 | 1,700 | 498 | 80 | |
| HT4730SS, HT4730SS-316 | 2,000 | 586 | 80 | |
| HT4740SS, HT4740SS-316 | 2,800 | 821 | 82 | |
| HT4750SS, HT4750SS-316 | 3,400 | 997 | 84 | |
| HT4760SS, HT4760SS-316 | 4,000 | 1,171 | 84 | |
| HT4770SS, HT4770SS-316 | 4,800 | 1,406 | 84 | |
| HT4780SS, HT4780SS-316 | 5,600 | 1,641 | 85 | |
| Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
Cabinet Cooler Standards and Certifications
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
