EXAIR NEMA 4X St. St. Cabinet Cooler® Systems, Cont Oper (No Filter)

EXAIR NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4X enclosure. NEMA 4X (IP66) Cabinet Coolers are constructed of stainless steel for food service and corrosive environments. They are available in many cooling capacities for large and small control panels. NEMA 4X continuous Cabinet Cooler Systems are recommended when constant cooling and constant positive purge are desirable. Systems for continuous operation include a Cabinet Cooler and cold air distribution. NEMA 4X (IP66) Cabinet Coolers are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant. They are a low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout.

Product BTU/Hr Solenoid Valve (standard) or ETC (upgrade)  Voltage  Material  Type  High Temp or NHP Vortex Capacity Air Inlet Filter
exair-4704ss 275 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4704ss-316 275 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT Not Included
exair-4708ss 550 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4708ss-316 550 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT Not Included
exair-4715ss 1000 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 15 SCFM (425 FNPT) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4715ss-316 1000 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 15 SCFM (425 FNPT) 1/4 FNPT Not Included
exair-4725ss 1700 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4725ss-316 1700 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT Not Included
exair-4730ss 2000 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4730ss-316 2000 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT Not Included
exair-4740ss 2800 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 40 SCFM (1133 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4740ss-316 2800 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 40 SCFM (1133 SLPM) 1/4 FNPT Not Included
exair-4750ss 3400 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 50 SCFM (1416 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4750ss-316 3400 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 50 SCFM (1416 SLPM) 1/4 FNPT Not Included
exair-4760ss 4000 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 60 SCFM (1699 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4760ss-316 4000 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 60 SCFM (1699 SLPM) 1/4 FNPT Not Included
exair-4770ss 4800 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 70 SCFM (1982 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4770ss-316 4800 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 70 SCFM (1982 SLPM) 1/4 FNPT Not Included
exair-4780ss 5600 N/A N/A Type 303 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 80 SCFM (2265 SLPM) 1/4 FNPT Not Included
exair-nema-4X-st.-st.-cabinet-cooler-systems-cont-oper-4780ss-316 5600 N/A N/A Type 316 Stainless Steel NEMA 4X Continuous Operation Cabinet Cooler N/A 80 SCFM (2265 SLPM) 1/4 FNPT Not Included

Applications:

  • Programmable controllers
  • Line control cabinets
  • Motor control centers
  • Relay panels
  • NC/CNC systems
  • Modular control centers
  • CCTV cameras
  • Computer cabinets
  • Cool laser housings
  • Electronic scales

NEMA 4X Cabinet Cooler Advantages:

  • Low cost
  • Corrosion resistant in harsh environments
  • Compact
  • Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
  • Quiet
  • Install in minutes
  • Maintain NEMA 4X integrity (IP66)
  • Stabilize enclosure temperature and humidity
  • No CFC's
  • No moving parts - maintenance free
  • Mount in standard electrical knockout
  • Stop nuisance tripping
  • Stop heat damage
  • Eliminate fans and filters
  • Eliminate lost production
  • Stop circuit drift
  • Stop dirt contamination
  • Provide washdown protection

Models:

NEMA 4X (IP66) Cabinet Cooler Systems - Type 303 Stainless Steel, Continuous Operation

Model Btu/hr. (Watts)
4704SS 275 (80)
4708SS 550 (162)
4715SS 1,000 (293)
4725SS 1,700 (498)
4730SS 2,000 (586)
4740SS 2,800 (821)
4750SS 3,400 (997)
4760SS 4,000 (1,171)
4770SS 4,800 (1,406)
4780SS 5,600 (1,641)

NEMA 4X (IP66) Cabinet Cooler Systems - Type 316 Stainless Steel, Continuous Operation

Model Btu/hr. (Watts)
4704SS-316 275 (80)
4708SS-316 550 (162)
4715SS-316 1,000 (293)
4725SS-316 1,700 (498)
4730SS-316 2,000 (586)
4740SS-316 2,800 (821)
4750SS-316 3,400 (997)
4760SS-316 4,000 (1,171)
4770SS-316 4,800 (1,406)
4780SS-316 5,600 (1,641)

Accessories:

Side Mount Kits

Side Mount Kits for Cabinet Coolers

EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.

Specifications:

NEMA 4X (IP66) Type 303/316 Stainless Steel Continuous Operation - Performance

Model Capacity Sound Level dBA
Btu/hr. Watts
4704SS, 4704SS-316 275 80 59*
4708SS, 4708SS-316 550 162 67*
4715SS, 4715SS-316 1,000 293 73
4725SS, 4725SS-316 1,700 498 80
4730SS, 4730SS-316 2,000 586 80
4740SS, 4740SS-316 2,800 821 82
4750SS, 4750SS-316 3,400 997 84
4760SS, 4760SS-316 4,000 1,171 84
4770SS, 4770SS-316 4,800 1,406 84
4780SS, 4780SS-316 5,600 1,641 85


Dimensions - NEMA 4X Cabinet Cooler

Small NEMA 4X Cabinet Cooler Dimensions

Models

4704SS, 4708SS
4704SS-316, 4708SS-316

NEMA 4X Cabinet Cooler Dimensions

Models

4715SS, 4725SS, 4730SS, 4740SS
4715SS-316, 4725SS-316, 4730SS-316, 4740SS-316

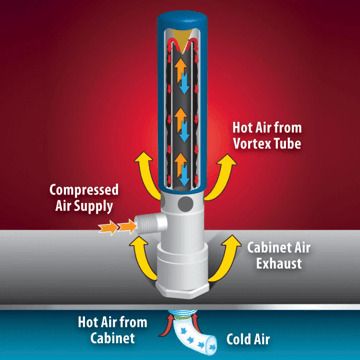

How Cabinet Coolers Work:

exair-cabinet-coolers-how-it-works

Compressed air enters the vortex tube powered Cabinet Cooler and is converted into two streams, one hot and one cold. Hot air from the vortex tube is muffled and exhausted through the vortex tube exhaust. The cold air is discharged into the control cabinet through the cold air distribution kit. The displaced hot air in the cabinet rises and exhausts to atmosphere through the cabinet air exhaust at a slight positive pressure. Thus, the control cabinet is both cooled and purged with cool, clean air. Outside air is never allowed to enter the control panel.

Cabinet Cooler Standards and Certifications:




OSHA Safe!EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.



Conflict Mineral FreeLook for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.

Resources

EXAIR Catalog

EXAIR Catalog

Download
EXAIR Cabinet Cooler - Small NEMA 4/4X Install Sheet

EXAIR Cabinet Cooler - Small NEMA 4/4X Install Sheet

Download
EXAIR Cabinet Cooler Sizing Guide

EXAIR Cabinet Cooler Sizing Guide

Download
EXAIR White Paper: Cabinet Coolers End Costly Shutdowns

EXAIR White Paper: Cabinet Coolers End Costly Shutdowns
