A low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout. NEMA 4X (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4X enclosure. NEMA 4X (IP66) Cabinet Coolers are constructed of stainless steel for food service and corrosive environments. They are available in many cooling capacities for large and small control panels. NEMA 4X continuous operation Cabinet Cooler® Systems are recommended when constant cooling and constant positive purge are desirable. Systems for continuous operation include a Cabinet Cooler, cold air distribution kit and filter. NEMA 4X (IP66) Cabinet Coolers are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant.
| Product | BTU/Hr | Solenoid Valve (standard) or ETC (upgrade) | Voltage | Material | Type | High Temp or NHP | Vortex Capacity | Air Inlet | Filter |
 |
275 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 4 SCFM (113 SLPM) | 1/8 FNPT | N/A |
 |
275 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 4 SCFM (113 SLPM) | 1/8 FNPT | N/A |
 |
550 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 8 SCFM (227 SLPM) | 1/8 FNPT | N/A |
 |
550 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 8 SCFM (227 SLPM) | 1/8 FNPT | N/A |
 |
1000 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 15 SCFM (425 FNPT) | 1/4 FNPT | N/A |
 |
1000 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 15 SCFM (425 FNPT) | 1/4 FNPT | N/A |
 |
1700 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 25 SCFM (708 SLPM) | 1/4 FNPT | N/A |
 |
1700 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 25 SCFM (708 SLPM) | 1/4 FNPT | N/A |
 |
2000 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 30 SCFM (850 SLPM) | 1/4 FNPT | N/A |
 |
2000 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 30 SCFM (850 SLPM) | 1/4 FNPT | N/A |
 |
2800 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 40 SCFM (1133 SLPM) | 1/4 FNPT | N/A |
 |
2800 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 40 SCFM (1133 SLPM) | 1/4 FNPT | N/A |
 |
3400 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 50 SCFM (1416 SLPM) | 1/4 FNPT | N/A |
 |
3400 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 50 SCFM (1416 SLPM) | 1/4 FNPT | N/A |
 |
4000 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 60 SCFM (1699 SLPM) | 1/4 FNPT | N/A |
 |
4000 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 60 SCFM (1699 SLPM) | 1/4 FNPT | N/A |
 |
4800 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 70 SCFM (1982 SLPM) | 1/4 FNPT | N/A |
 |
4800 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 70 SCFM (1982 SLPM) | 1/4 FNPT | N/A |
 |
5600 | N/A | N/A | Type 303 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 80 SCFM (2265 SLPM) | 1/4 FNPT | N/A |
 |
5600 | N/A | N/A | Type 316 Stainless Steel | NEMA 4X Continuous Operation Cabinet Cooler | N/A | 80 SCFM (2265 SLPM) | 1/4 FNPT | N/A |
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
NEMA 4X Cabinet Cooler Advantages:
- Low cost
- Corrosion resistant in harsh environments
- Compact
- Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
- Quiet
- Install in minutes
- Maintain NEMA 4X integrity (IP66)
- Stabilize enclosure temperature and humidity
- No CFC's
- No moving parts - maintenance free
- Mount in standard electrical knockout
- Stop nuisance tripping
- Stop heat damage
- Eliminate fans and filters
- Eliminate lost production
- Stop circuit drift
- Stop dirt contamination
- Provide washdown protection
Models:
NEMA 4X (IP66) Cabinet Cooler Systems - Type 303 Stainless Steel, Continuous Operation |
|
| Model | Btu/hr. (Watts) |
| 4704SS | 275 (80) |

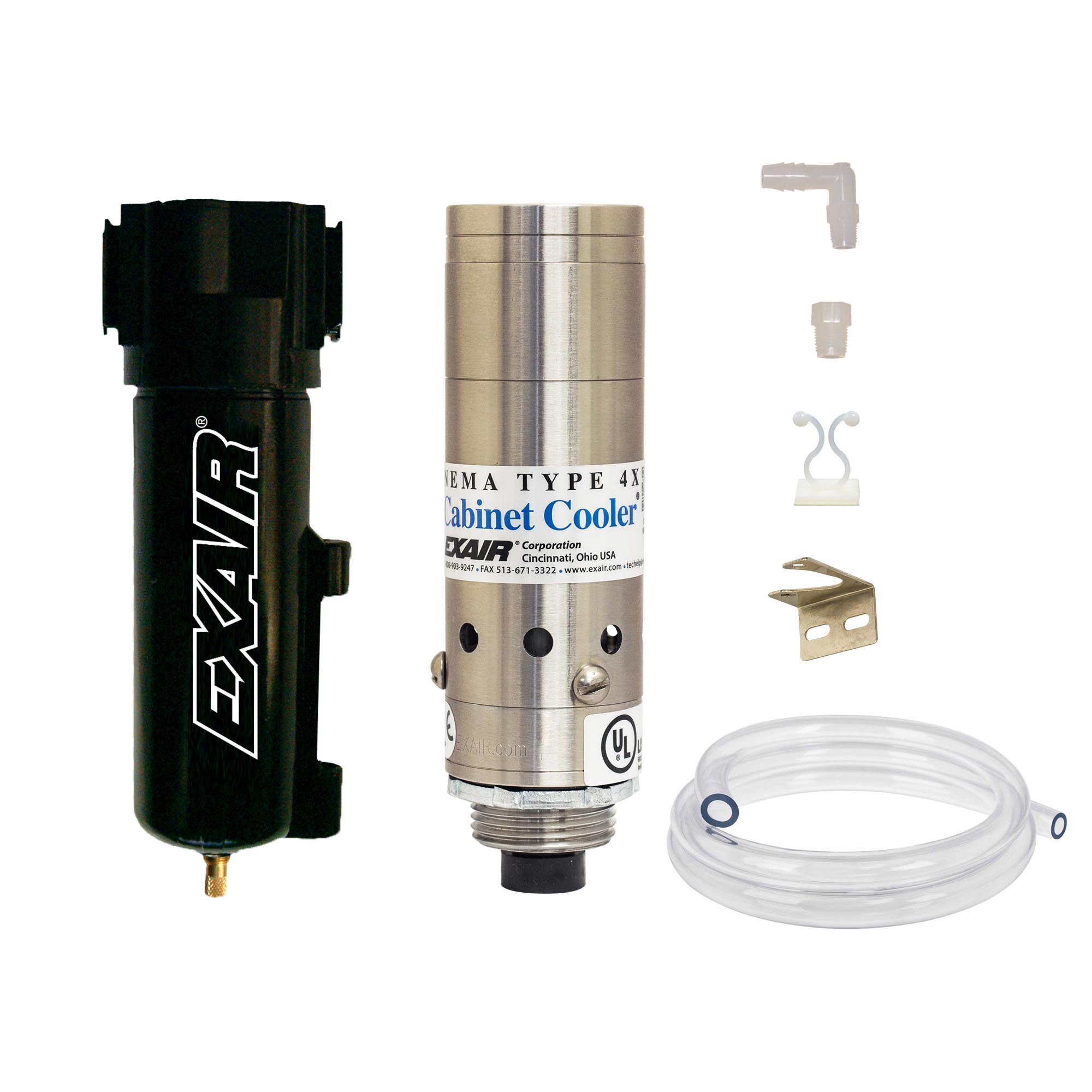

| 4708SS | 550 (162) |
| 4715SS | 1,000 (293) |
| 4725SS | 1,700 (498) |

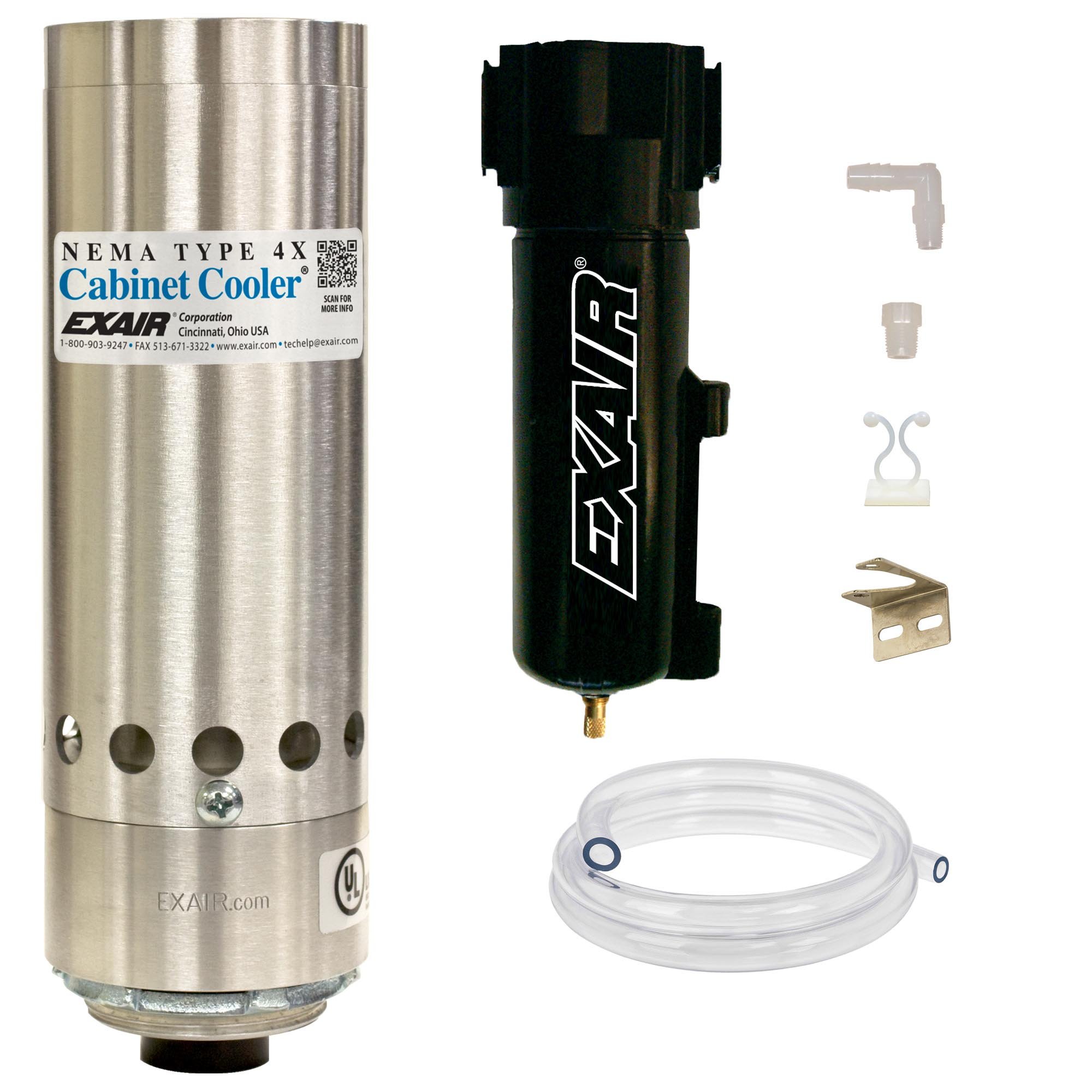

| 4730SS | 2,000 (586) |
| 4740SS | 2,800 (821) |
| 4750SS | 3,400 (997) |
| 4760SS | 4,000 (1,171) |
| 4770SS | 4,800 (1,406) |

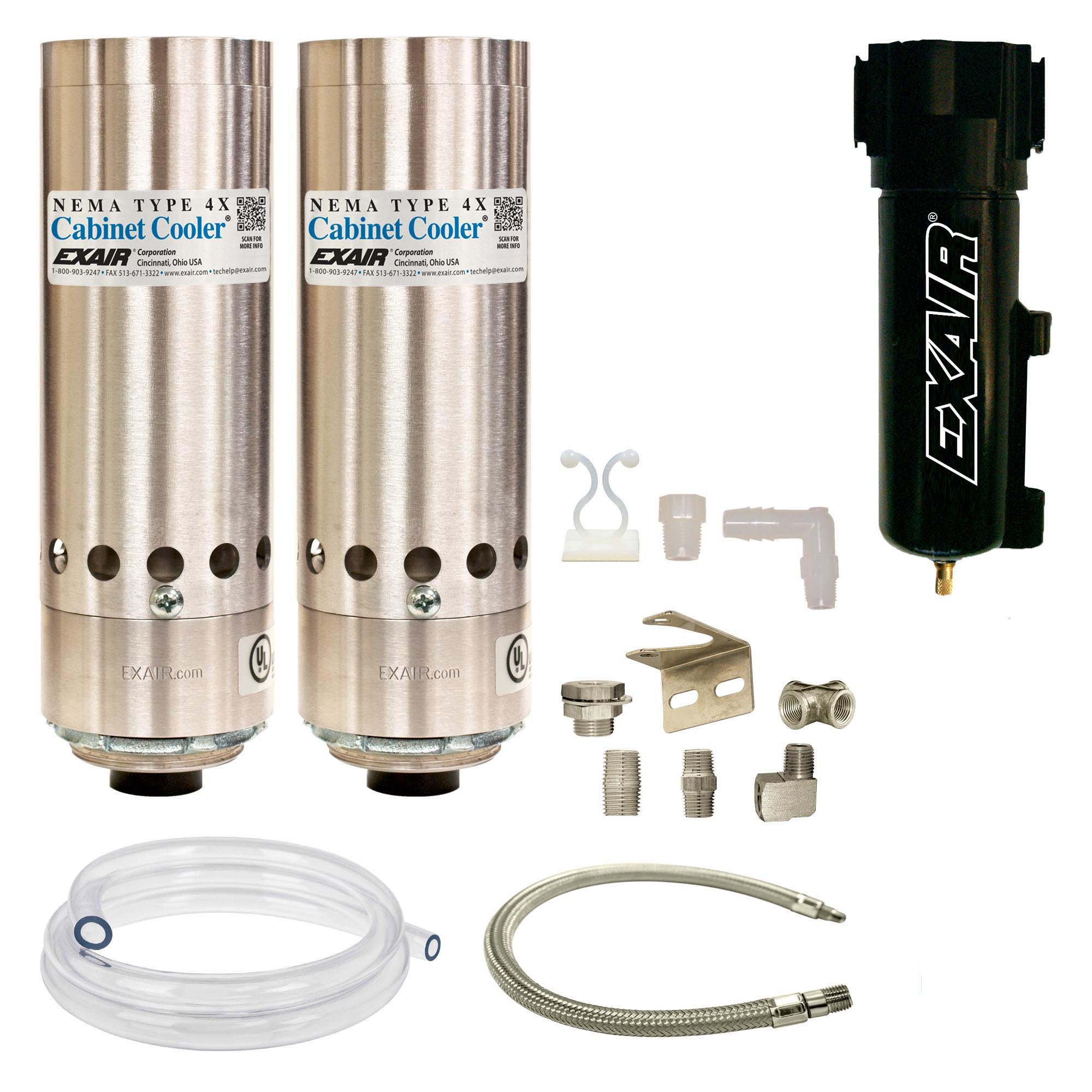

| 4780SS | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Systems - Type 316 Stainless Steel, Continuous Operation |
|
| Model | Btu/hr. (Watts) |
| 4704SS-316 | 275 (80) |
| 4708SS-316 | 550 (162) |
| 4715SS-316 | 1,000 (293) |
| 4725SS-316 | 1,700 (498) |
| 4730SS-316 | 2,000 (586) |
| 4740SS-316 | 2,800 (821) |
| 4750SS-316 | 3,400 (997) |
| 4760SS-316 | 4,000 (1,171) |
| 4770SS-316 | 4,800 (1,406) |
| 4780SS-316 | 5,600 (1,641) |
Accessories:
Side Mount Kits
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Specifications:
NEMA 4X (IP66) Type 303/316 Stainless Steel Continuous Operation - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| 4704SS, 4704SS-316 | 275 | 80 | 59* | |
| 4708SS, 4708SS-316 | 550 | 162 | 67* | |
| 4715SS, 4715SS-316 | 1,000 | 293 | 73 | |
| 4725SS, 4725SS-316 | 1,700 | 498 | 80 | |
| 4730SS, 4730SS-316 | 2,000 | 586 | 80 | |
| 4740SS, 4740SS-316 | 2,800 | 821 | 82 | |
| 4750SS, 4750SS-316 | 3,400 | 997 | 84 | |
| 4760SS, 4760SS-316 | 4,000 | 1,171 | 84 | |
| 4770SS, 4770SS-316 | 4,800 | 1,406 | 84 | |
| 4780SS, 4780SS-316 | 5,600 | 1,641 | 85 | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
Cabinet Cooler Standards and Certifications:
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
