EXAIR NEMA 4 Cabinet Cooler® Systems w Therm (No Filter)

NEMA 4 (IP66) thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. NEMA 4 thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. The standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). NEMA 4 (IP66) Cabinet Coolers are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant. NEMA 4 (IP66) Cabinet Coolers (dust-tight, oil-tight, splash resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the cooler and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure. They are a low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout.

Product BTU/Hr Solenoid Valve (Standard) Or ETC (Upgrade Voltage Material Type High Temp Or NHP Vortex Capacity Air Inlet Filter
exair-4804-etc120 275 Electronic Temperature Control 120V Aluminum NEMA 4 Thermostat Control Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT N/A
exair-4804-etc240 275 Electronic Temperature Control 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT N/A
exair-4804 275 Solenoid Valve 120 V Aluminum NEMA 4 Thermostat Control Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT N/A
exair-4804-240 275 Solenoid Valve 240V Aluminum NEMA 4 Thermostat Control Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT N/A
exair-4804-24vdc 275 Solenoid Valve 240VDC Aluminum NEMA 4 Thermostat Control Cabinet Cooler N/A 4 SCFM (113 SLPM) 1/8 FNPT N/A
exair-4808-etc120 550 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT N/A
exair-4808-etc240 550 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT N/A
exair-4808 550 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT N/A
exair-4808-240 550 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT N/A
exair-4808-24vdc 550 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 8 SCFM (227 SLPM) 1/8 FNPT N/A
exair-4815-etc120 1,000 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-4815-etc240 1,000 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-4815 1,000 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-4815-240 1,000 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-4815-24vdc 1,000 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 15 SCFM (425 SLPM) 1/4 FNPT N/A
exair-4825-etc120 1,700 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-4825-etc240 1,700 Electronic Temperature Control 240V  Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-4825 1,700 Solenoid Valve 120V  Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-4825-240 1,700 Solenoid Valve 240V  Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-4825-24vdc 1,700 Solenoid Valve 240VDC  Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 25 SCFM (708 SLPM) 1/4 FNPT N/A
exair-4830-etc120 2,000 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-4830-etc240 2,000 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-4830 2,000 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-4830-240 2,000 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-4830-24vdc 2,000 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 30 SCFM (850 SLPM) 1/4 FNPT N/A
exair-4840-etc120 2,800 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-4840-etc240 2,800 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-4840 2,800 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-4840-240 2,800 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-4840-24vdc 2,800 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 40 SCFM (1,133 SLPM) 1/4 FNPT N/A
exair-4850-etc120 3,400 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-4850-etc240 3,400 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-4850 3,400 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-4850-240 3,400 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-4850-24vdc 3,400 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 50 SCFM (1,416 SLPM) 1/4 FNPT N/A
exair-4860-etc120 4,000 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-4860-etc240 4,000 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-4860 4,000 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-4860-240 4,000 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-4860-24vdc 4,000 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 60 SCFM (1,699 SLPM) 1/4 FNPT N/A
exair-4870-etc120 4,800 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler  N/A 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-4870-etc240 4,800 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler  N/A 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-4870 4,800 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler  N/A 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-4870-240 4,800 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler  N/A 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-4870-24vdc 4,800 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler  N/A 70 SCFM (1,982 SLPM) 1/4 FNPT N/A
exair-4880-etc120 5,600 Electronic Temperature Control 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler  N/A 80 SCFM (2,265 SLPM) 1/4 FNPT N/A
exair-4880-etc240 5,600 Electronic Temperature Control 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 80 SCFM (2,265 SLPM) 1/4 FNPT N/A
exair-4880 5,600 Solenoid Valve 120V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 80 SCFM (2,265 SLPM) 1/4 FNPT N/A
exair-4880-240 5,600 Solenoid Valve 240V Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 80 SCFM (2,265 SLPM) 1/4 FNPT N/A
exair-4880-24vdc 5,600 Solenoid Valve 240VDC Aluminum NEMA 4 Continuous Operation Cabinet Cooler N/A 80 SCFM (2,265 SLPM) 1/4 FNPT N/A



Applications:

  • Programmable controllers
  • Line control cabinets
  • Motor control centers
  • Relay panels
  • NC/CNC systems
  • Modular control centers
  • CCTV cameras
  • Computer cabinets
  • Cool laser housings
  • Electronic scales

NEMA 4 Cabinet Cooler Advantages:

  • Low cost
  • Compact
  • Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
  • Quiet
  • Install in minutes
  • Maintain NEMA 4 integrity (IP66)
  • Stabilize enclosure temperature and humidity
  • No CFC's
  • No moving parts - maintenance free
  • Mount in standard electrical knockout
  • Stop nuisance tripping
  • Stop heat damage
  • Eliminate fans and filters
  • Eliminate lost production
  • Stop circuit drift
  • Stop dirt contamination
  • Provide washdown protection

Models:

NEMA 4 (IP66) Cabinet Cooler Systems, Thermostat Control

Model Btu/hr. (Watts)
4804 275 (80)
4808 550 (162)
4815 1,000 (293)
4825 1,700 (498)
4830 2,000 (586)
4840 2,800 (821)
4850 3,400 (997)
4860 4,000 (1,171)
4870 4,800 (1,406)
4880 5,600 (1,641)

NEMA 4 (IP66) Cabinet Cooler Systems, Thermostat Control (240V)

Model Btu/hr. (Watts)
4804-240 275 (80)
4808-240 550 (162)
4815-240 1,000 (293)
4825-240 1,700 (498)
4830-240 2,000 (586)
4840-240 2,800 (821)
4850-240 3,400 (997)
4860-240 4,000 (1,171)
4870-240 4,800 (1,406)
4880-240 5,600 (1,641)

NEMA 4 (IP66) Cabinet Cooler Systems, Thermostat Control (24VDC)

Model Btu/hr. (Watts)
4804-24VDC 275 (80)
4808-24VDC 550 (162)
4815-24VDC 1,000 (293)
4825-24VDC 1,700 (498)
4830-24VDC 2,000 (586)
4840-24VDC 2,800 (821)
4850-24VDC 3,400 (997)
4860-24VDC 4,000 (1,171)
4870-24VDC 4,800 (1,406)
4880-24VDC 5,600 (1,641)

NEMA 4 (IP66) Cabinet Cooler Systems, ETC Thermostat Control (120V)

Model Btu/hr. (Watts)
4804-ETC120 275 (80)
4808-ETC120 550 (162)
4815-ETC120 1,000 (293)
4825-ETC120 1,700 (498)
4830-ETC120 2,000 (586)
4840-ETC120 2,800 (821)
4850-ETC120 3,400 (997)
4860-ETC120 4,000 (1,171)
4870-ETC120 4,800 (1,406)
4880-ETC120 5,600 (1,641)

NEMA 4 (IP66) Cabinet Cooler Systems, ETC Thermostat Control (240V)

Model Btu/hr. (Watts)
4804-ETC240 275 (80)
4808-ETC240 550 (162)
4815-ETC240 1,000 (293)
4825-ETC240 1,700 (498)
4830-ETC240 2,000 (586)
4840-ETC240 2,800 (821)
4850-ETC240 3,400 (997)
4860-ETC240 4,000 (1,171)
4870-ETC240 4,800 (1,406)
4880-ETC240 5,600 (1,641)

Performance:

NEMA 4 (IP66) Cabinet Cooler with Thermostat

Model Capacity Sound Level dBA
Btu/hr. Watts
4804, 4804-240, 4804-24VDC, 4804-ETC120, 4804-ETC240 275 80 59*
4808, 4808-240, 4808-24VDC, 4808-ETC120, 4808-ETC240 550 162 67*
4815, 4815-240, 4815-24VDC, 4815-ETC120, 4815-ETC240 1,000 293 73
4825, 4825-240, 4825-24VDC, 4825-ETC120, 4825-ETC240 1,700 498 80
4830, 4830-240, 4830-24VDC, 4830-ETC120, 4830-ETC240 2,000 586 80
4840, 4840-240, 4840-24VDC, 4840-ETC120, 4840-ETC240 2,800 821 82
4850, 4850-240, 4850-24VDC, 4850-ETC120, 4850-ETC240 3,400 997 84
4860, 4860-240, 4860-24VDC, 4860-ETC120, 4860-ETC240 4,000 1,171 84
4870, 4870-240, 4870-24VDC, 4870-ETC120, 4870-ETC240 4,800 1,406 84
4880, 4880-240, 4880-24VDC, 4880-ETC120, 4880-ETC240 5,600 1,641 85
*With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure.

Dimensions:

NEMA 4 Cabinet Coolers

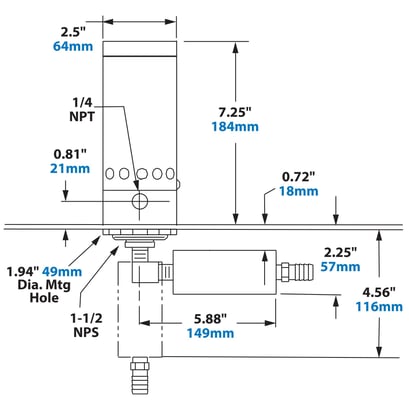

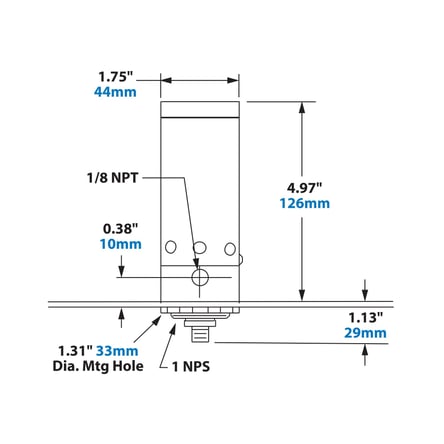

exair-dim4sm exair-dim4lg

Models

4804, 4808

Models

4815, 4825, 4830, 4840

Accessories:

exair-sidemountfamEXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.

How It Works:

exair-cabinet-coolers-how-it-works

Compressed air enters the vortex tube powered Cabinet Cooler and is converted into two streams, one hot and one cold. Hot air from the vortex tube is muffled and exhausted through the vortex tube exhaust. The cold air is discharged into the control cabinet through the cold air distribution kit. The displaced hot air in the cabinet rises and exhausts to atmosphere through the cabinet air exhaust at a slight positive pressure. Thus, the control cabinet is both cooled and purged with cool, clean air. Outside air is never allowed to enter the control panel.

Cabinet Cooler Standards and Certifications

OSHA Safe!

EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
