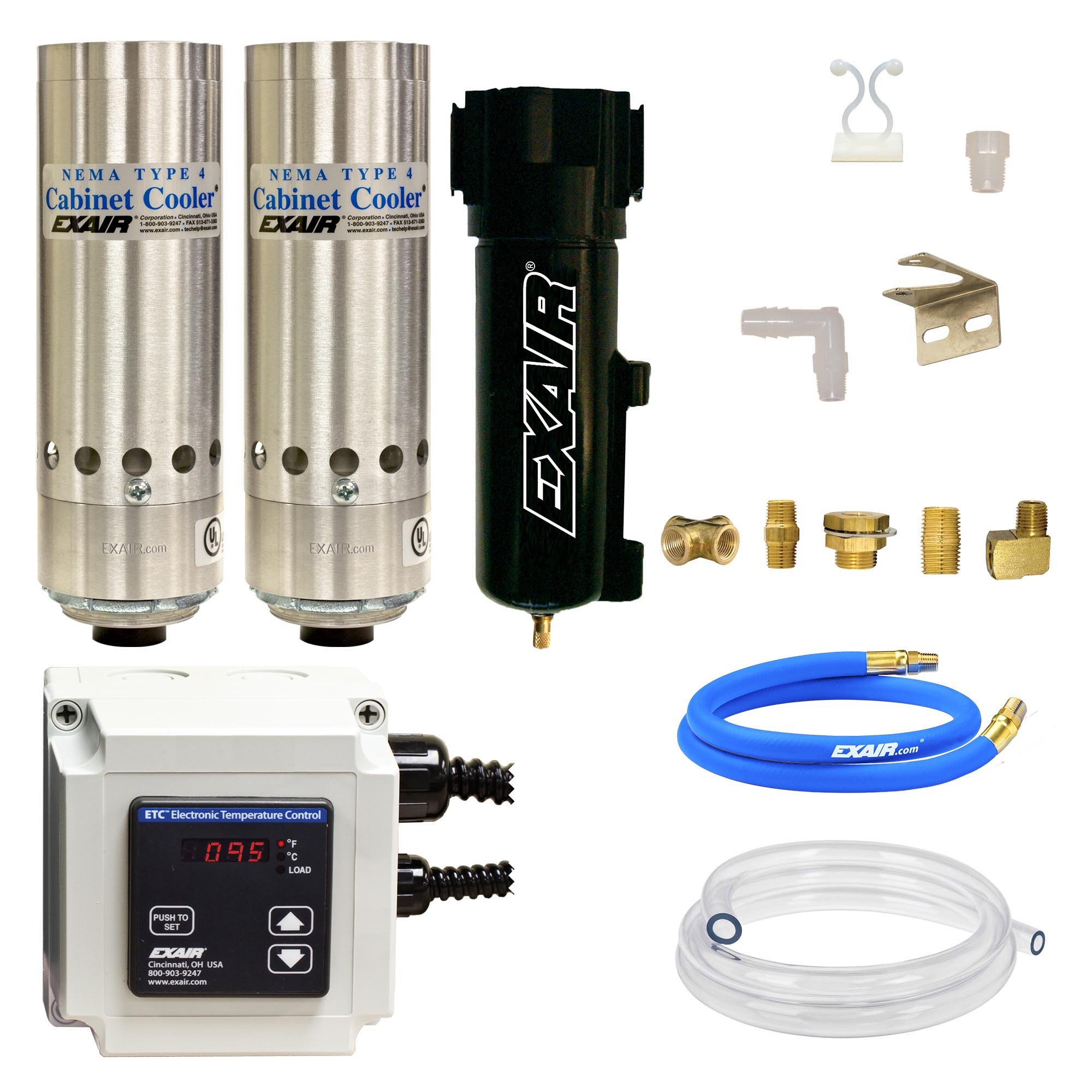

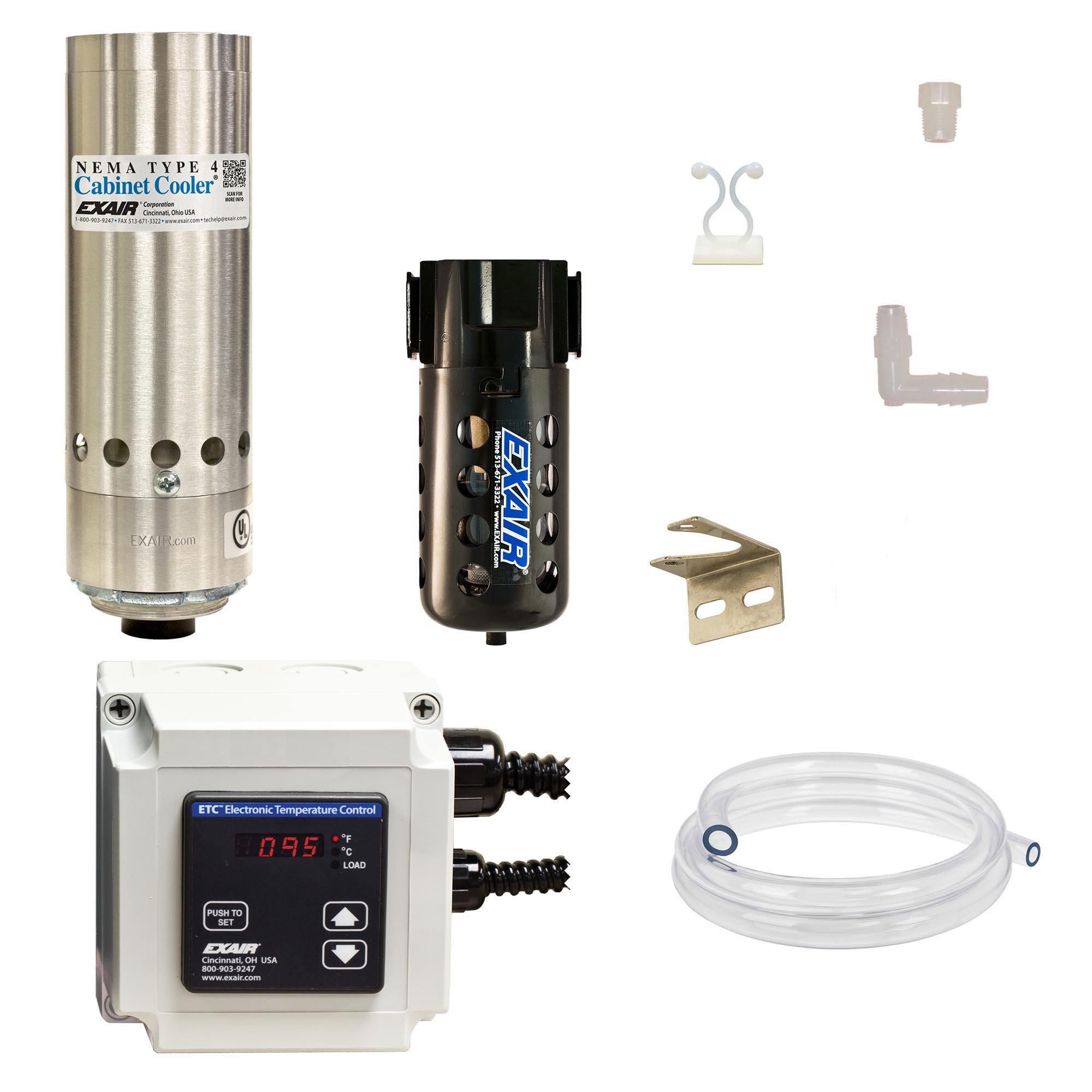

EXAIR NEMA 4 Cabinet Cooler® Systems w Therm

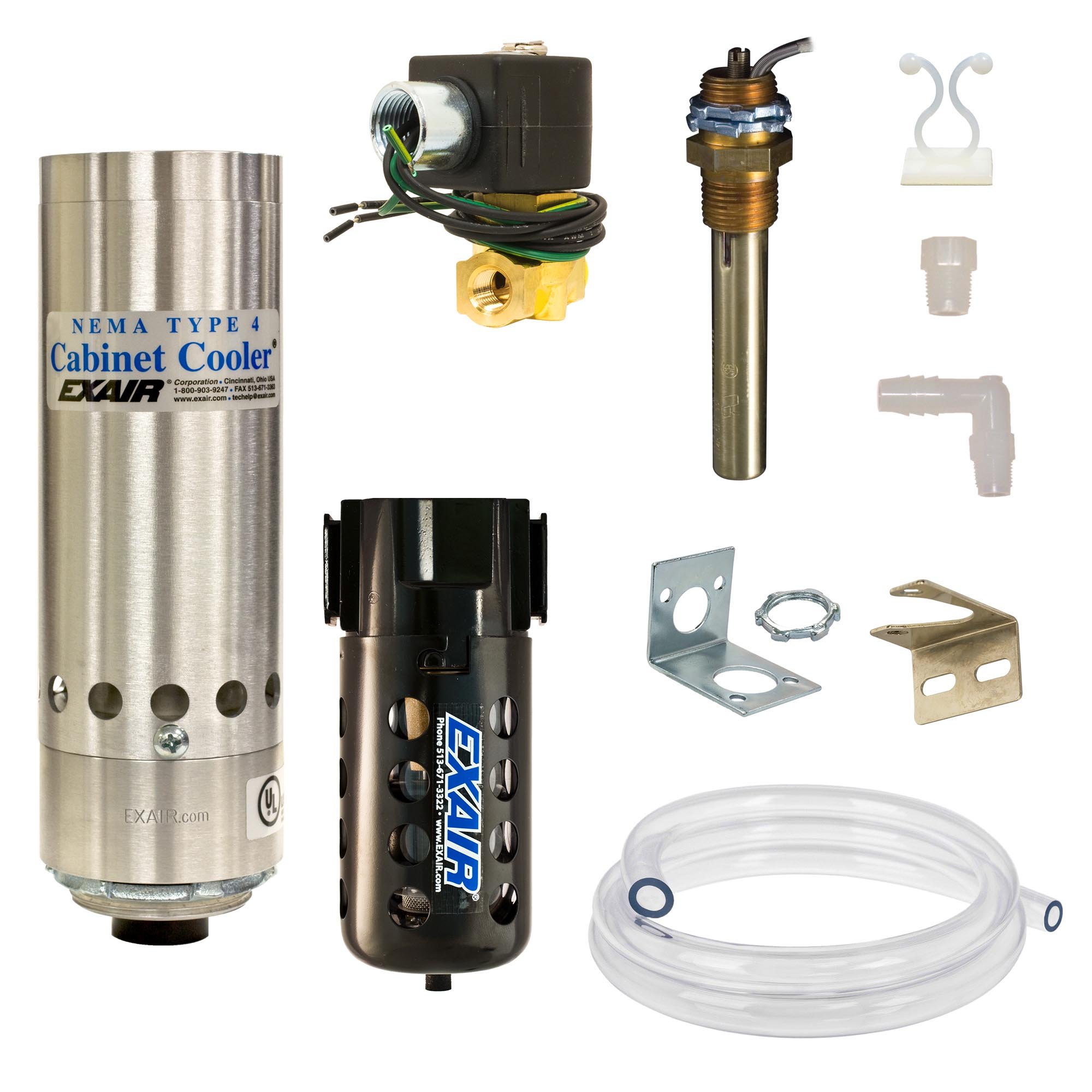

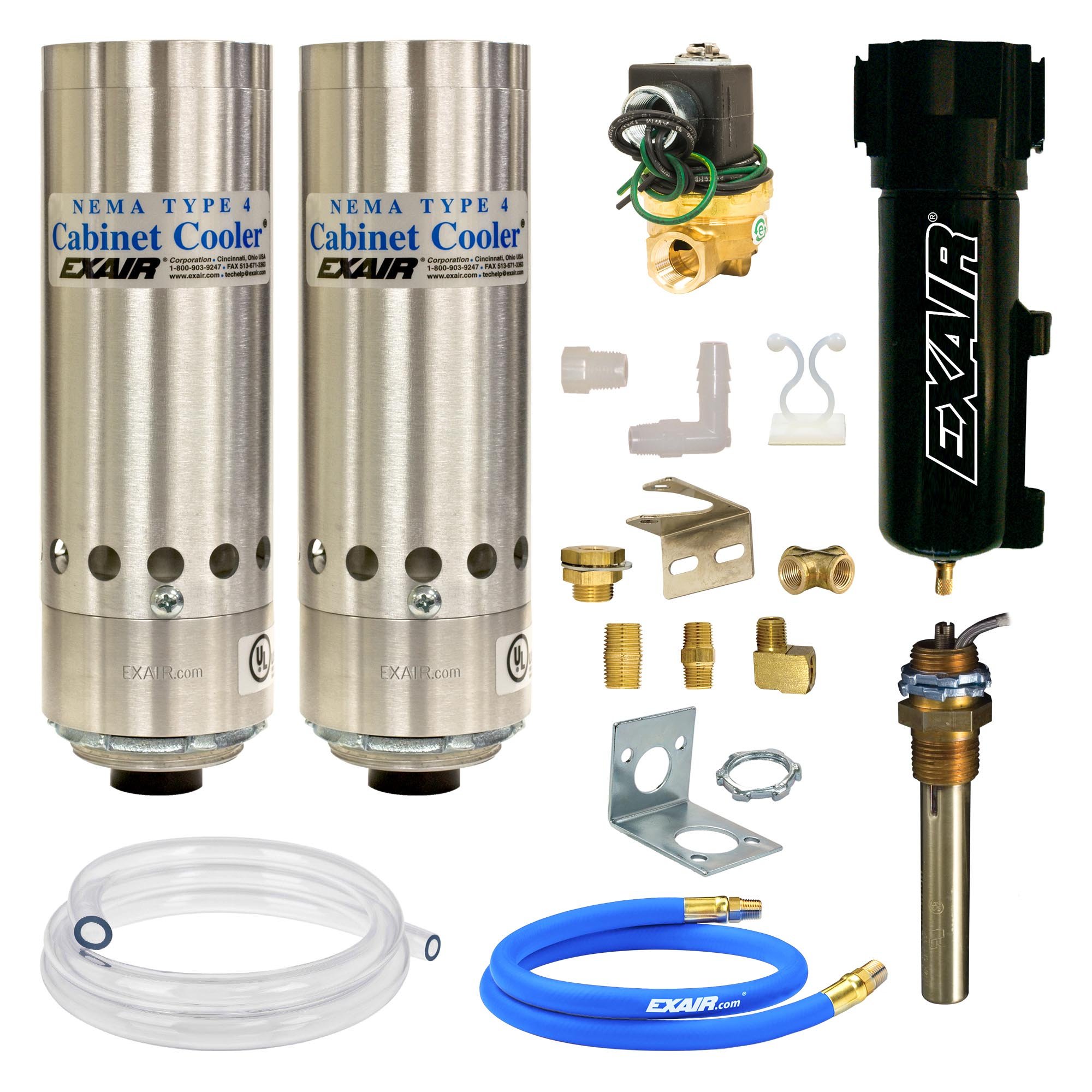

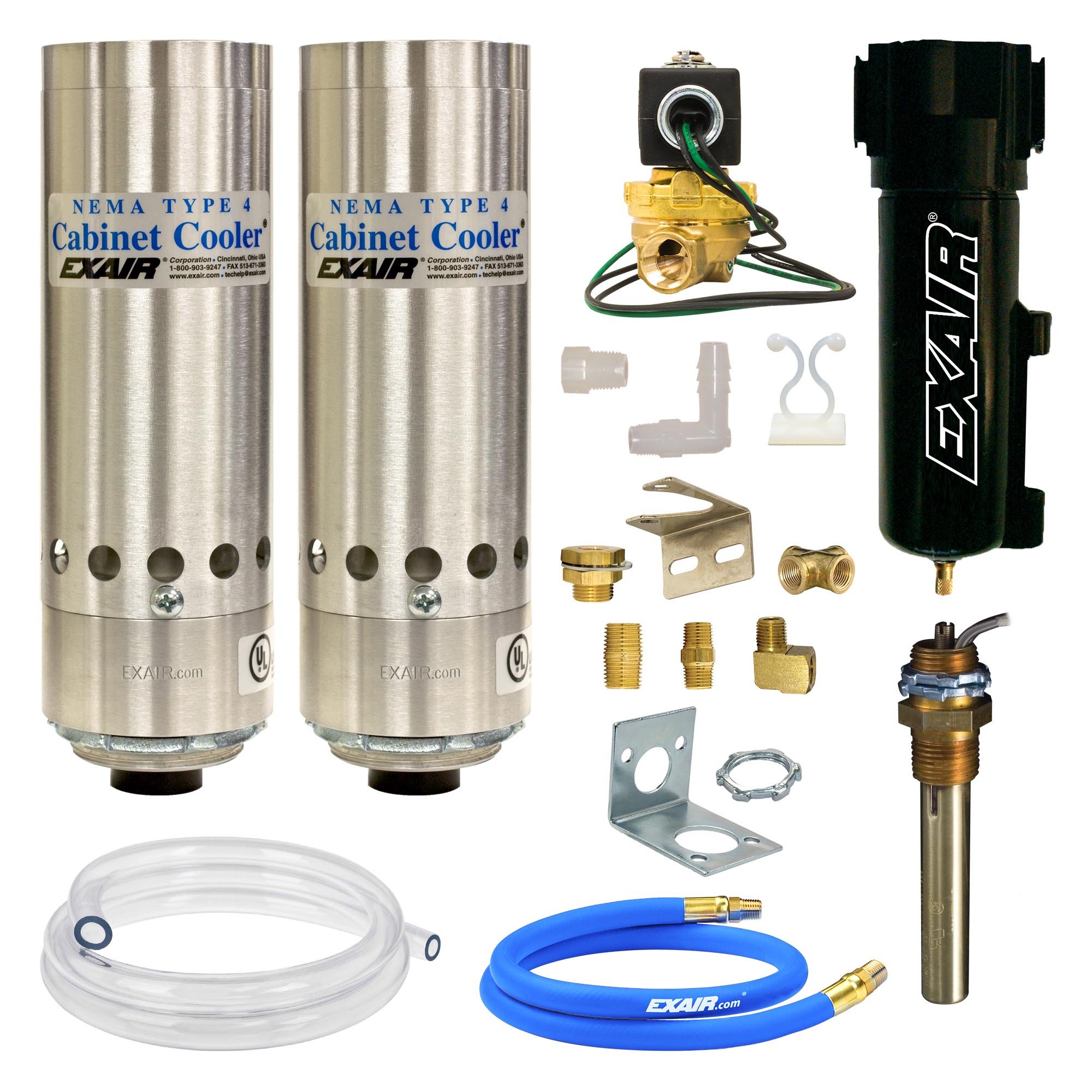

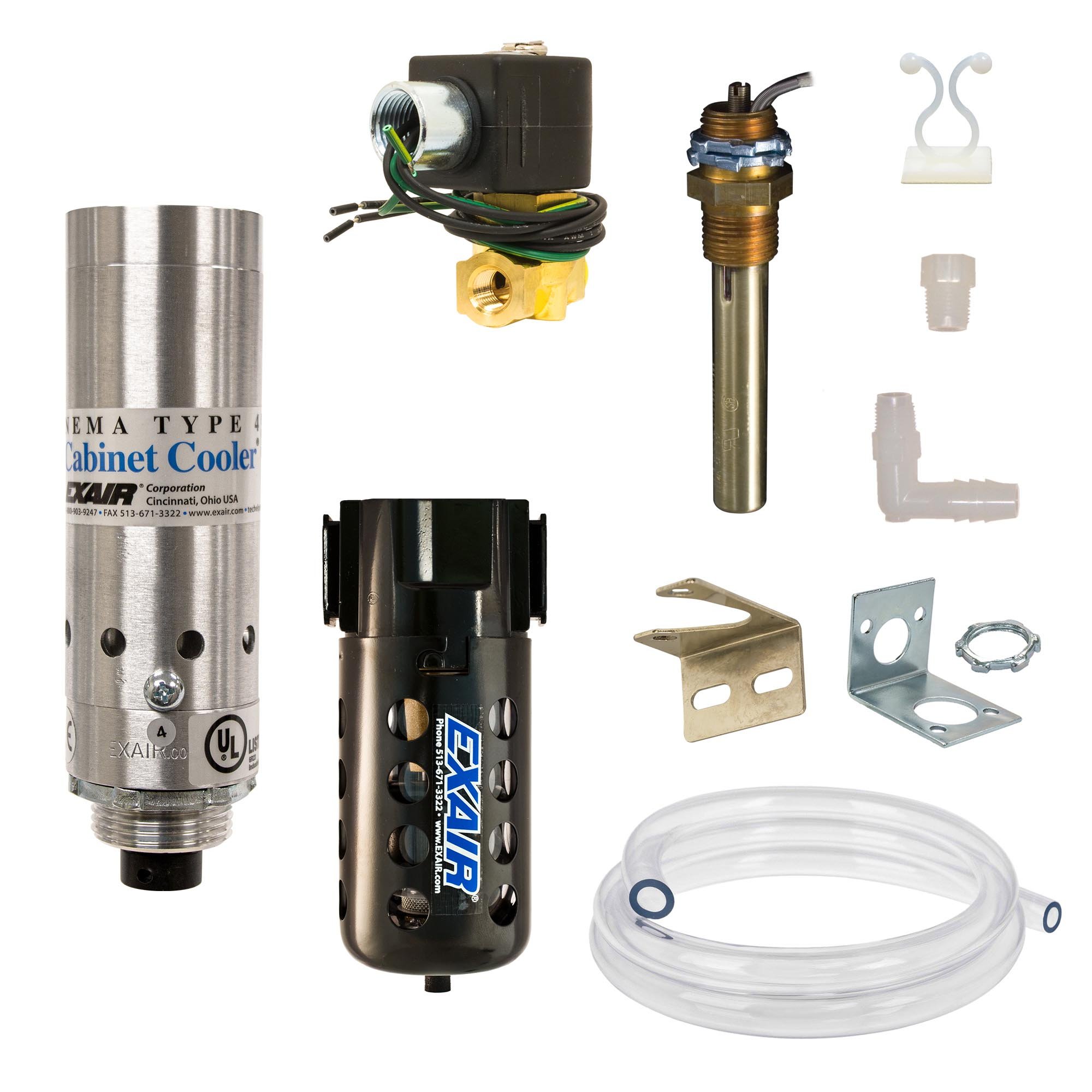

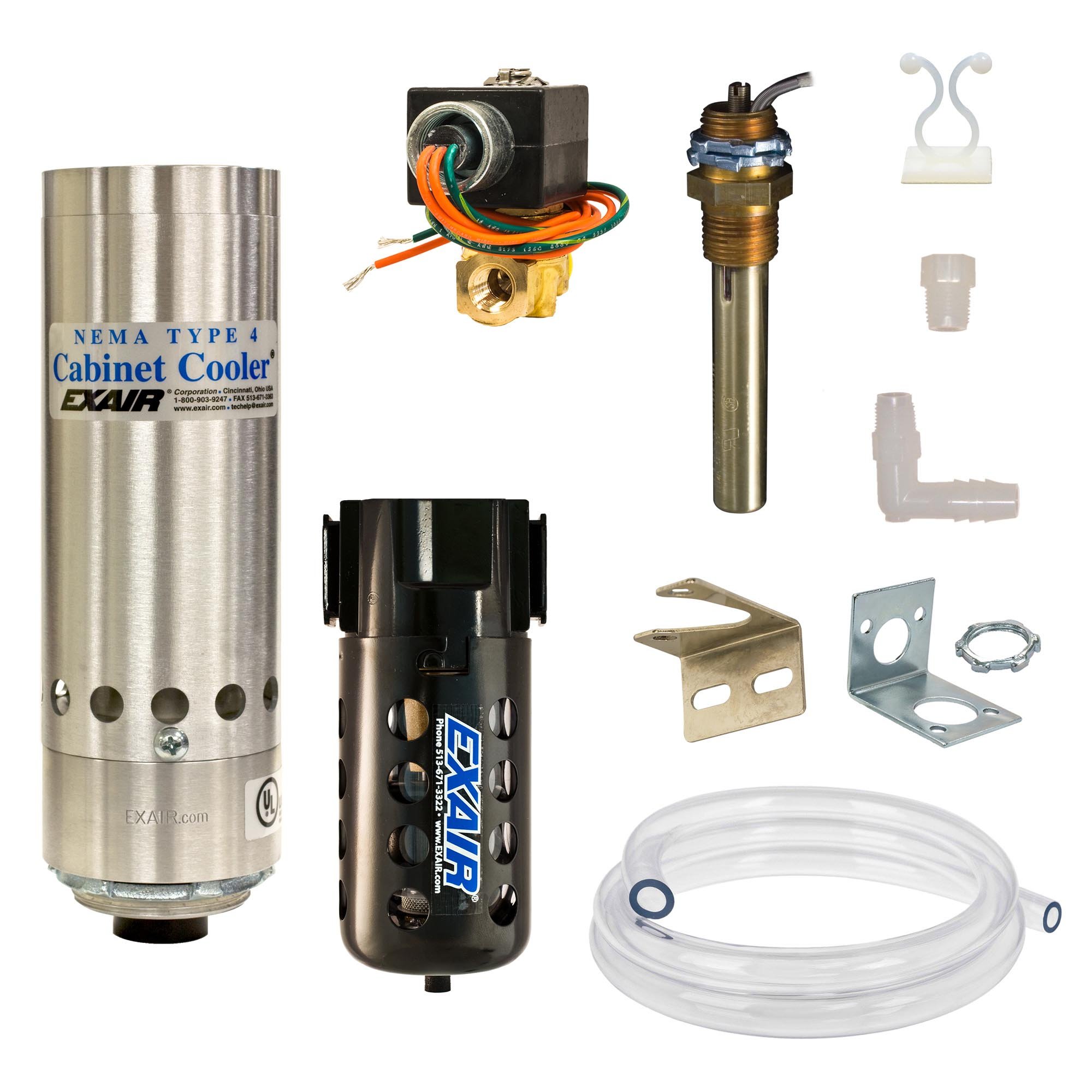

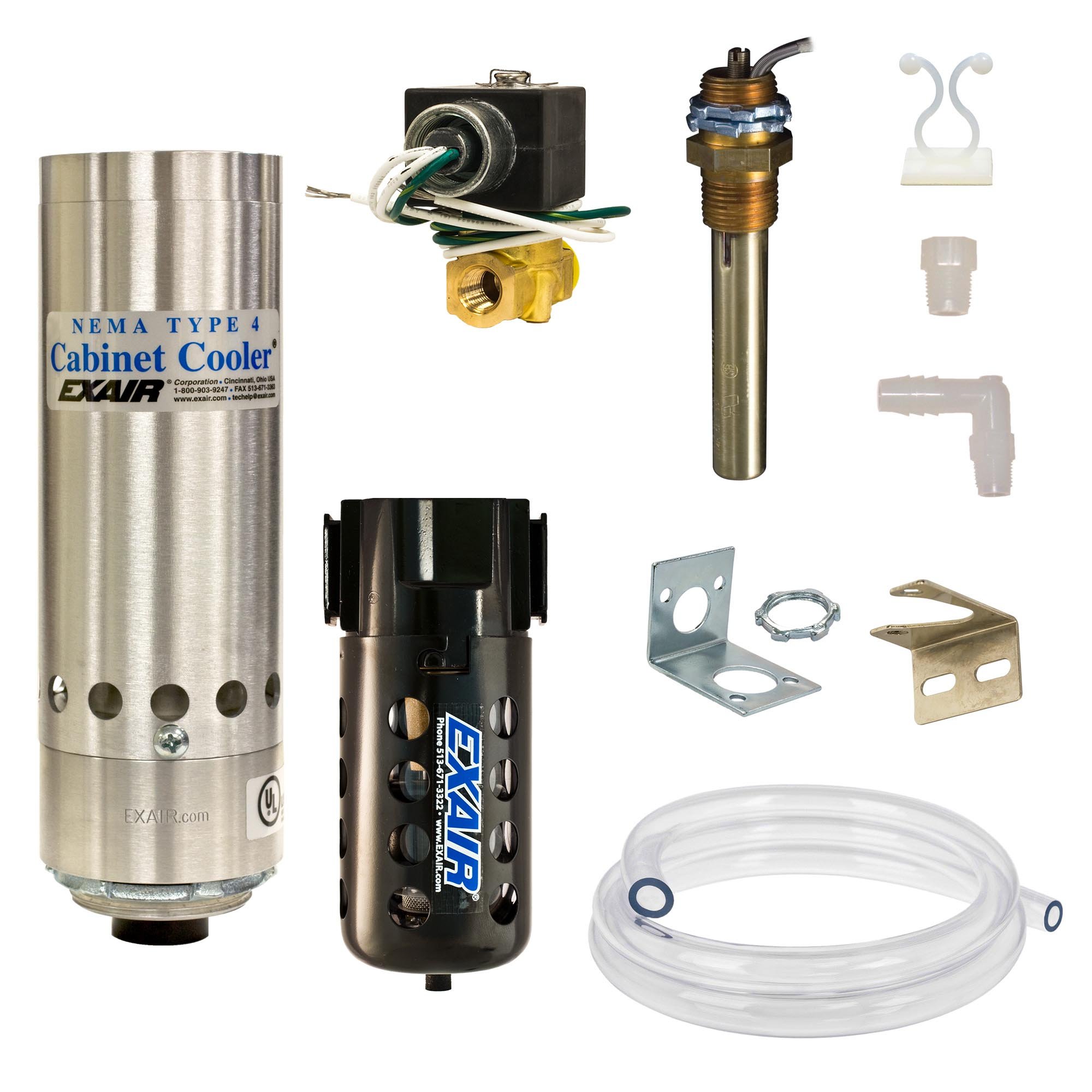

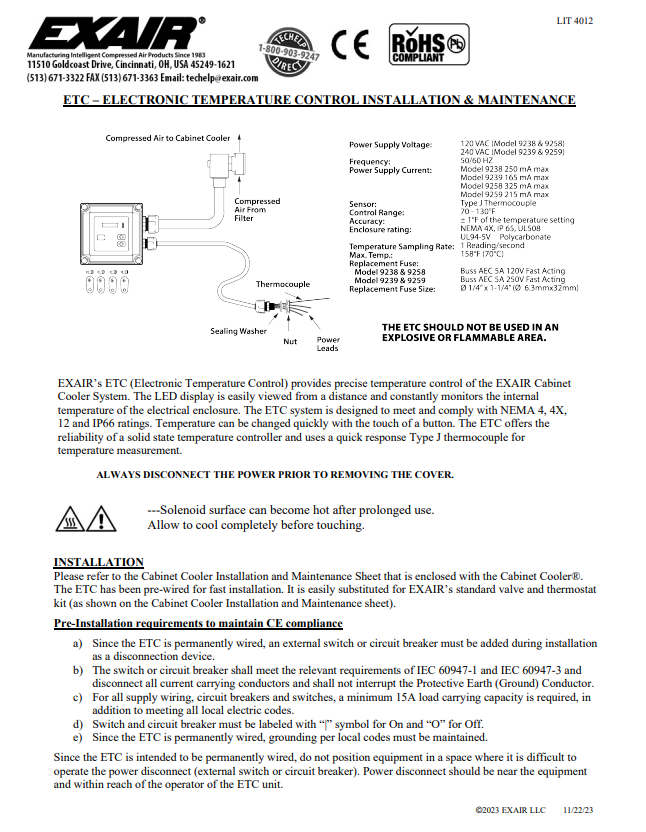

EXAIR NEMA 4 (IP66) thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). NEMA 4 (IP66) Cabinet Cooler® Systems (dust-tight, oil-tight, splash resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the cooler and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the NEMA integrity of the electronic enclosure. NEMA 4 (IP66) Cabinet Coolers are available in many cooling capacities for large and small control panels. Unlike an expensive, freon-based air conditioner, EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. They can be installed in minutes through a standard electrical knockout. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All Cabinet Coolers are UL Listed and CE compliant.

Product	BTU/Hr	Solenoid Valve (Standard) Or ETC (Updgrade	Voltage	Material	Type	High Temp Or NHP	Vortex Capacity	Air Inlet	Filter
	275	Electronic Temperature Control	120V	Aluminum	NEMA 4 Thermostat Control Cabinet Cooler	N/A	4 SCFM (113 SLPM)	1/8 FNPT	N/A
	275	Electronic Temperature Control	240V	Aluminum	NEMA 4 Thermostat Control Cabinet Cooler	N/A	4 SCFM (113 SLPM)	1/8 FNPT	N/A
	275	Solenoid Valve	120 V	Aluminum	NEMA 4 Thermostat Control Cabinet Cooler	N/A	4 SCFM (113 SLPM)	1/8 FNPT	N/A
	275	Solenoid Valve	240V	Aluminum	NEMA 4 Thermostat Control Cabinet Cooler	N/A	4 SCFM (113 SLPM)	1/8 FNPT	N/A
	275	Solenoid Valve	240VDC	Aluminum	NEMA 4 Thermostat Control Cabinet Cooler	N/A	4 SCFM (113 SLPM)	1/8 FNPT	N/A
	550	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	8 SCFM (227 SLPM)	1/8 FNPT	N/A
	550	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	8 SCFM (227 SLPM)	1/8 FNPT	N/A
	550	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	8 SCFM (227 SLPM)	1/8 FNPT	N/A
	550	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	8 SCFM (227 SLPM)	1/8 FNPT	N/A
	550	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	8 SCFM (227 SLPM)	1/8 FNPT	N/A
	1,000	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	15 SCFM (425 SLPM)	1/4 FNPT	N/A
	1,000	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	15 SCFM (425 SLPM)	1/4 FNPT	N/A
	1,000	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	15 SCFM (425 SLPM)	1/4 FNPT	N/A
	1,000	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	15 SCFM (425 SLPM)	1/4 FNPT	N/A
	1,000	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	15 SCFM (425 SLPM)	1/4 FNPT	N/A
	1,700	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	25 SCFM (708 SLPM)	1/4 FNPT	N/A
	1,700	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	25 SCFM (708 SLPM)	1/4 FNPT	N/A
	1,700	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	25 SCFM (708 SLPM)	1/4 FNPT	N/A
	1,700	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	25 SCFM (708 SLPM)	1/4 FNPT	N/A
	1,700	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	25 SCFM (708 SLPM)	1/4 FNPT	N/A
	2,000	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	30 SCFM (850 SLPM)	1/4 FNPT	N/A
	2,000	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	30 SCFM (850 SLPM)	1/4 FNPT	N/A
	2,000	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	30 SCFM (850 SLPM)	1/4 FNPT	N/A
	2,000	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	30 SCFM (850 SLPM)	1/4 FNPT	N/A
	2,000	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	30 SCFM (850 SLPM)	1/4 FNPT	N/A
	2,800	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	40 SCFM (1,133 SLPM)	1/4 FNPT	N/A
	2,800	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	40 SCFM (1,133 SLPM)	1/4 FNPT	N/A
	2,800	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	40 SCFM (1,133 SLPM)	1/4 FNPT	N/A
	2,800	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	40 SCFM (1,133 SLPM)	1/4 FNPT	N/A
	2,800	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	40 SCFM (1,133 SLPM)	1/4 FNPT	N/A
	3,400	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	50 SCFM (1,416 SLPM)	1/4 FNPT	N/A
	3,400	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	50 SCFM (1,416 SLPM)	1/4 FNPT	N/A
	3,400	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	50 SCFM (1,416 SLPM)	1/4 FNPT	N/A
	3,400	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	50 SCFM (1,416 SLPM)	1/4 FNPT	N/A
	3,400	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	50 SCFM (1,416 SLPM)	1/4 FNPT	N/A
	4,000	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	60 SCFM (1,699 SLPM)	1/4 FNPT	N/A
	4,000	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	60 SCFM (1,699 SLPM)	1/4 FNPT	N/A
	4,000	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	60 SCFM (1,699 SLPM)	1/4 FNPT	N/A
	4,000	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	60 SCFM (1,699 SLPM)	1/4 FNPT	N/A
	4,000	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	60 SCFM (1,699 SLPM)	1/4 FNPT	N/A
	4,800	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	70 SCFM (1,982 SLPM)	1/4 FNPT	N/A
	4,800	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	70 SCFM (1,982 SLPM)	1/4 FNPT	N/A
	4,800	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	70 SCFM (1,982 SLPM)	1/4 FNPT	N/A
	4,800	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	70 SCFM (1,982 SLPM)	1/4 FNPT	N/A
	4,800	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	70 SCFM (1,982 SLPM)	1/4 FNPT	N/A
	5,600	Electronic Temperature Control	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	80 SCFM (2,265 SLPM)	1/4 FNPT	N/A
	5,600	Electronic Temperature Control	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	80 SCFM (2,265 SLPM)	1/4 FNPT	N/A
	5,600	Solenoid Valve	120V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	80 SCFM (2,265 SLPM)	1/4 FNPT	N/A
	5,600	Solenoid Valve	240V	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	80 SCFM (2,265 SLPM)	1/4 FNPT	N/A
	5,600	Solenoid Valve	240VDC	Aluminum	NEMA 4 Continuous Operation Cabinet Cooler	N/A	80 SCFM (2,265 SLPM)	1/4 FNPT	N/A

Specifications:

Dimensions:

Models: 4804, 4808	Models: 4815, 4830, 4840

Applications:

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales

NEMA 4 Cabinet Cooler Advantages:

• Low cost
• Compact
• Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
• Quiet
• Install in minutes
• Maintain NEMA 4 integrity (IP66)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Stop dirt contamination
• Provide washdown protection

Models:

Accessories:

EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.

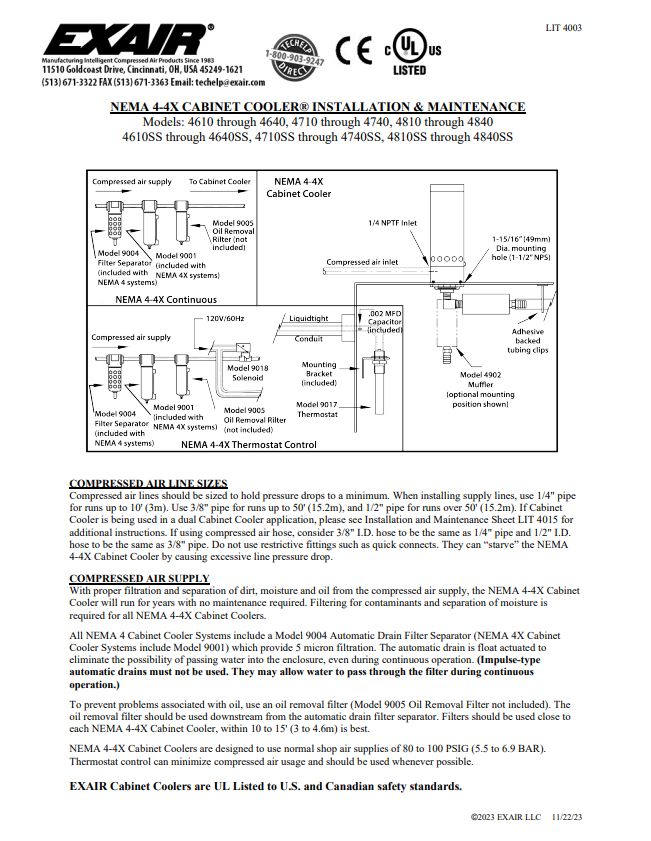

How It Works:

Compressed air enters the vortex tube powered Cabinet Cooler and is converted into two streams, one hot and one cold. Hot air from the vortex tube is muffled and exhausted through the vortex tube exhaust. The cold air is discharged into the control cabinet through the cold air distribution kit. The displaced hot air in the cabinet rises and exhausts to atmosphere through the cabinet air exhaust at a slight positive pressure. Thus, the control cabinet is both cooled and purged with cool, clean air. Outside air is never allowed to enter the control panel.
