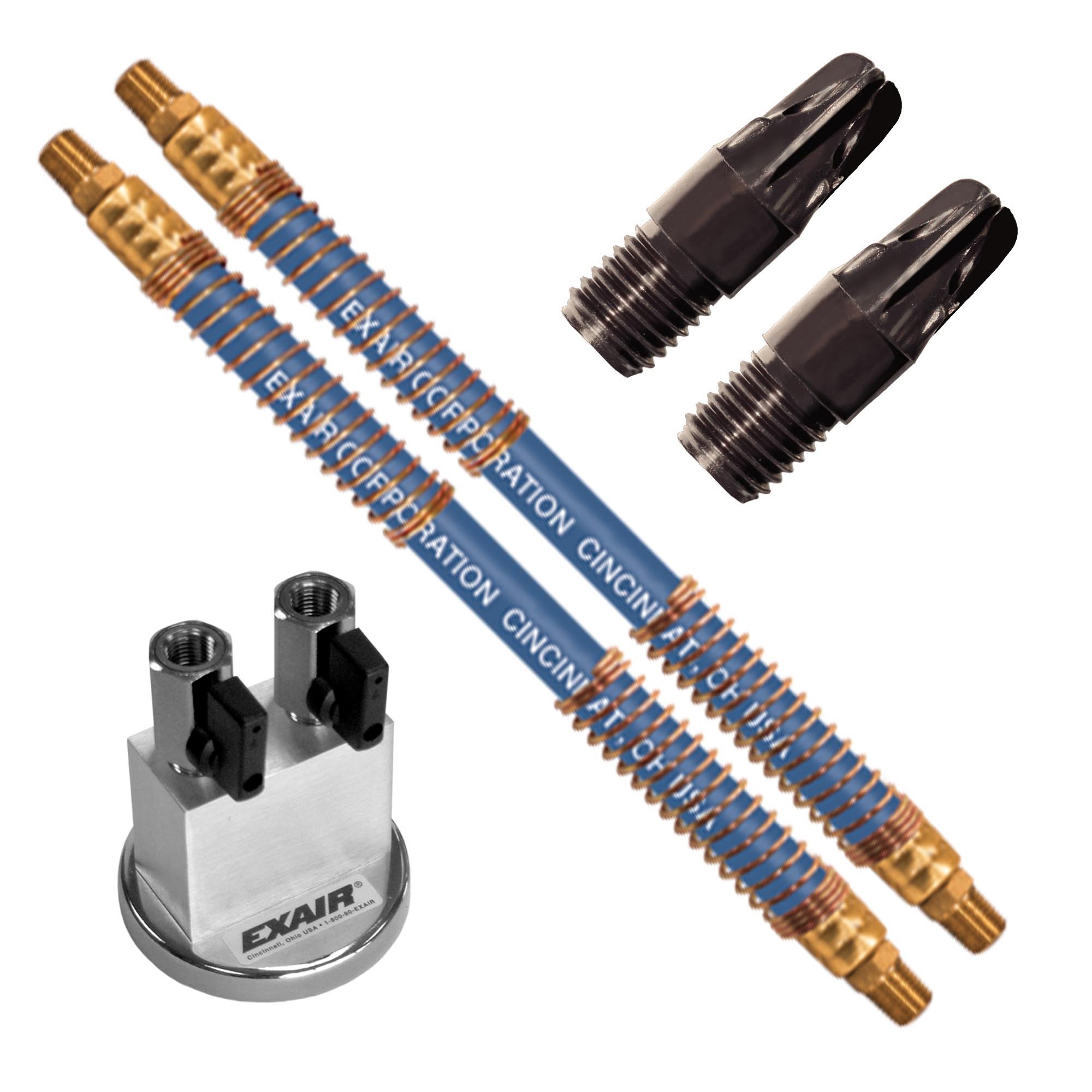

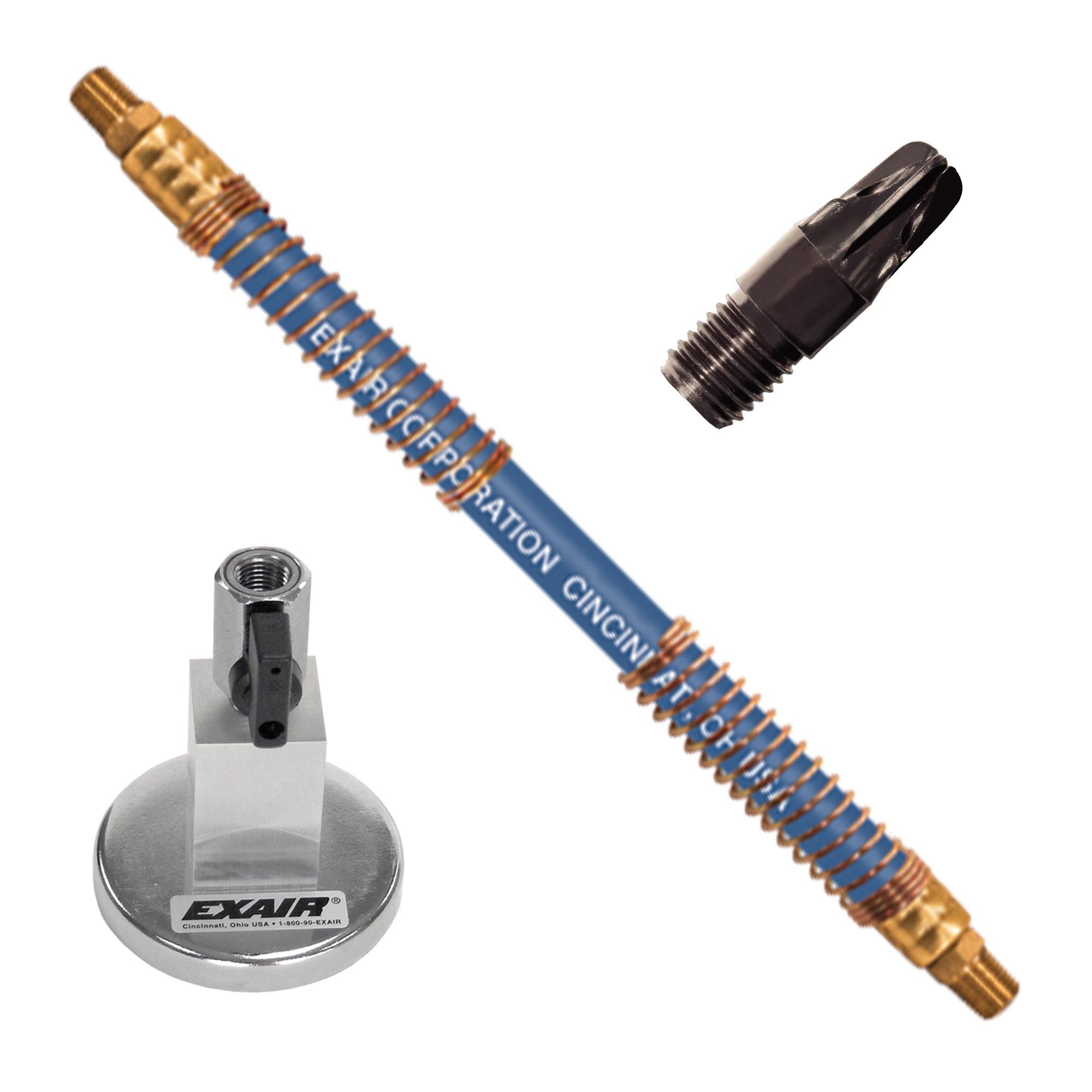

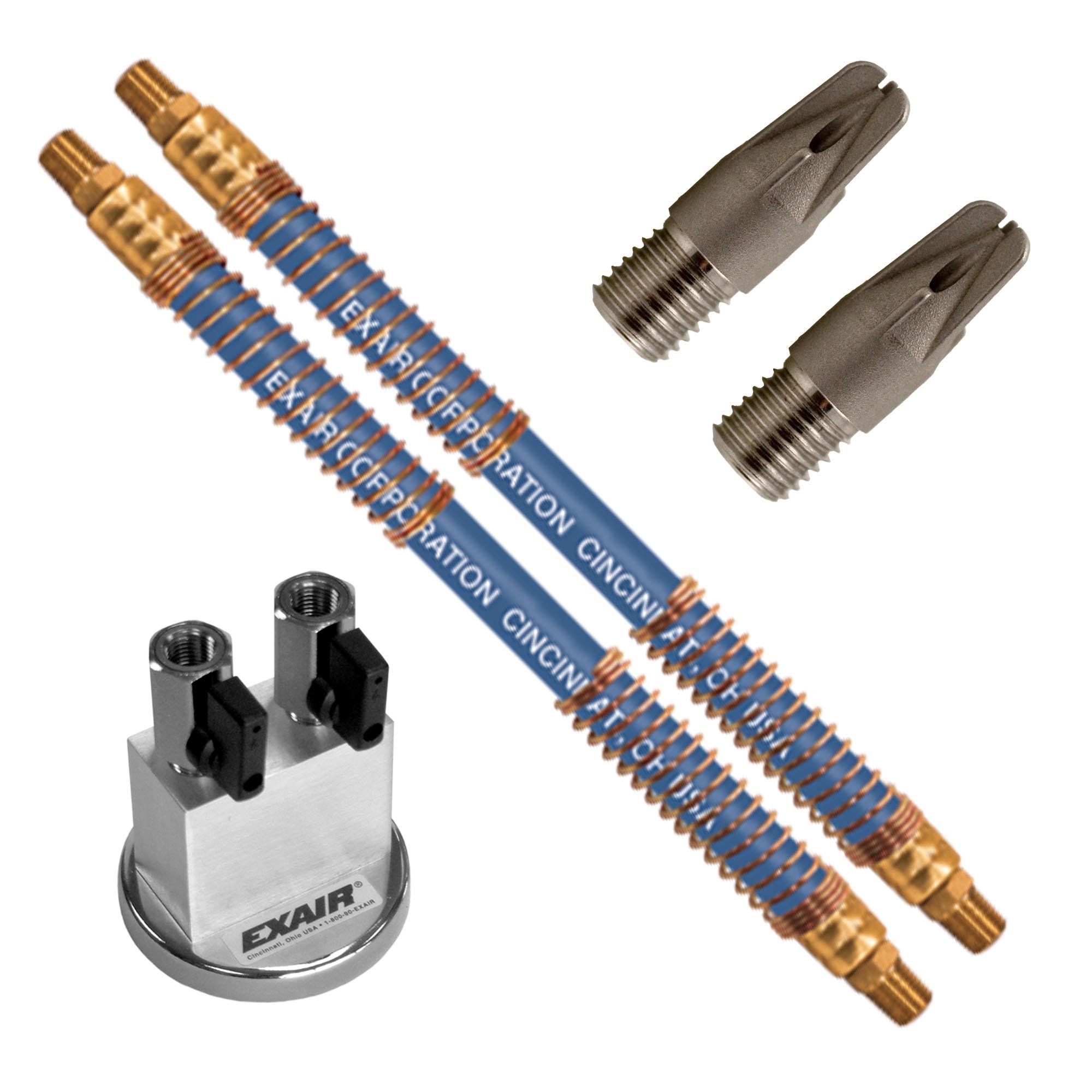

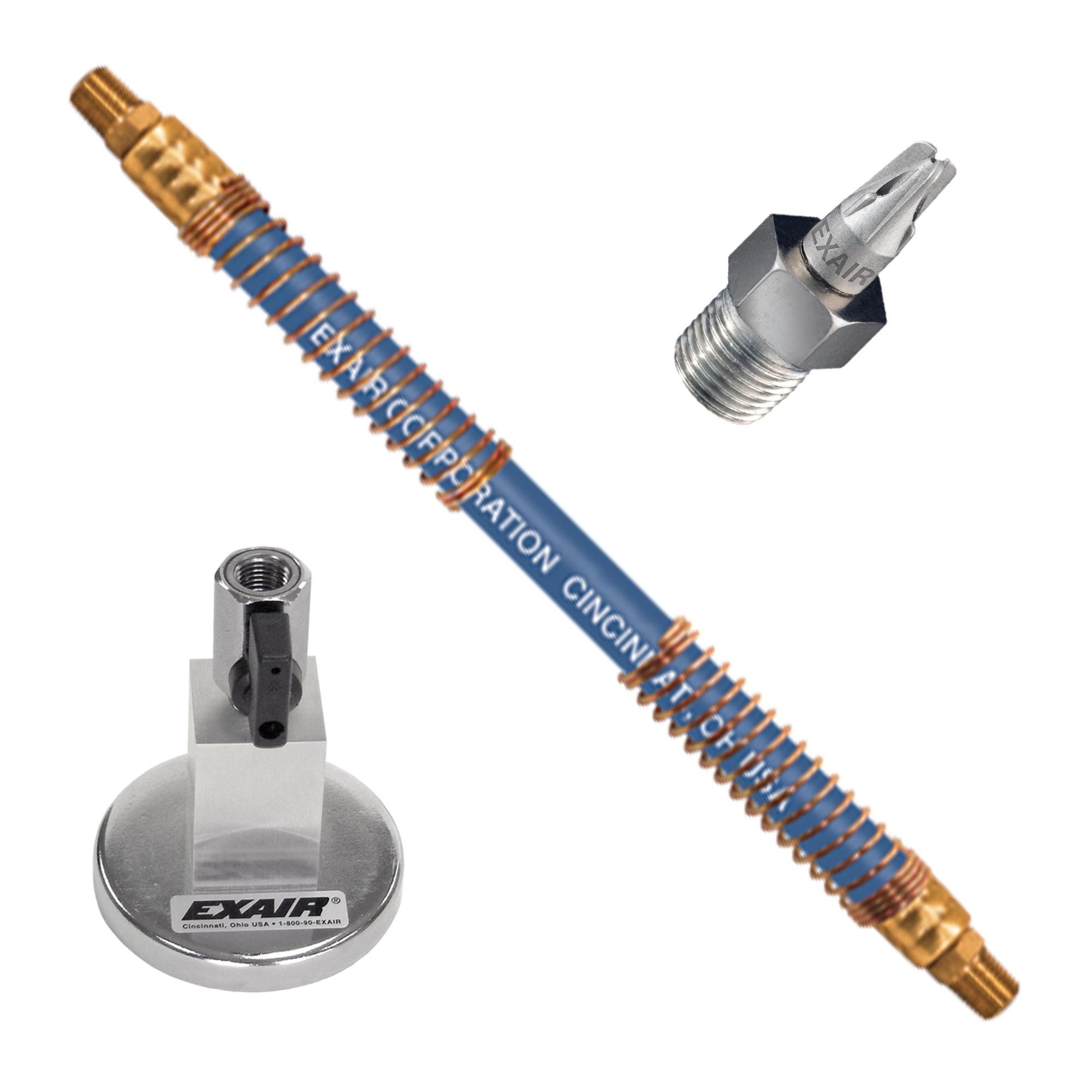

EXAIR's Nano Super Air Nozzle delivers a highly focused, forceful blast of airflow. The air pattern for this small nozzle measures 1.5 Inch in diameter at 6 Inch away from the surface. The noise level is a low 75 dBA. Overall length measures only 0.78 Inch. Thread size is M6x0.75 and it is available in 316 stainless steel or PEEK thermoplastic. The Stay Set Hose provides precise positioning or repositioning necessary for different applications. A strong magnetic base provides a secure mount on ferrous metal frames or brackets.
| Product | Material | Flow | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 6" (152mm) | 1 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 6" (152mm) | 2 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 6" (152mm) | 1 |
|
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 6" (152mm) | 2 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 12" (305mm) | 1 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 12" (305mm) | 2 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 12" (305mm) | 1 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 12" (305mm) | 2 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 18" (457mm) | 1 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 18" (457mm) | 2 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 18" (457mm) | 1 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 18" (457mm) | 2 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 24" (610mm) | 1 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 24" (610mm) | 2 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 24" (610mm) | 1 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 24" (610mm) | 2 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 30" (762mm) | 1 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 30" (762mm) | 2 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 30" (762mm) | 1 |
 |
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 30" (762mm) | 2 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 36" (914mm) | 1 |
 |
PEEK Plastic | 8.9 SCFM | 1/4 MNPT | 36" (914mm) | 2 |
|
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 36" (914mm) | 1 |
|
Type 316 Stainless Steel | 8.9 SCFM | 1/4 MNPT | 36" (914mm) | 2 |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Materials:
- Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).
- PEEK Plastic - replaces metals in harsh environments. Offers chemical resistance and is non-marring. Max temp 320°F (160°C).
Accessories:
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel
Nano Super Air Nozzle Performance |
||||
| Air Consumption | Force | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 8.3 | 235 | 8.1 | 230 | 75 |
Nano Super Air Nozzle Dimensions and Airflow |
 |
Super Air Nozzle Standards and Certifications
EXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
