Applications:
- Winding
- Rewinding
- Slitting
- Neutralizing ducted air
- Labeling
- Form and fill
- Neutralizing static for print quality
Advantages:
- Low cost
- Rapid static decay
- Shockless
- Non-radioactive
- Compact
Ionizing Point Models |
||
Ionizing Points are available in two different model types:
|
||
|
|
Ionizing Point |

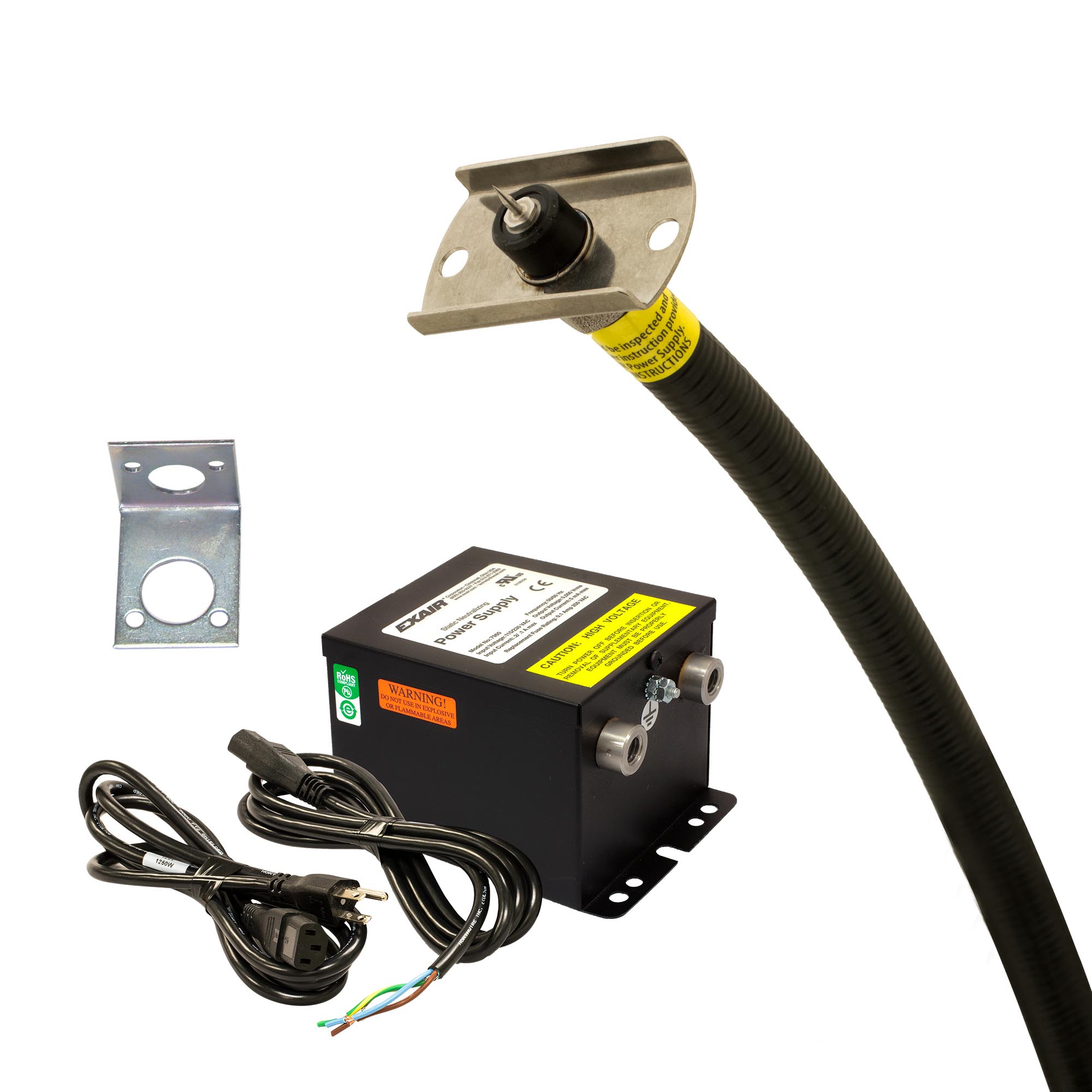

Ionizing Point System |
| Model | 8199 | 8299 |
Accessories:
Power Supply - The Model 7960 selectable voltage Power Supply allows you to choose the input voltages of 115 VAC or 230 VAC. The modular cable with electromagnetic shielding protects sensitive electronics against electromagnetic interference while easing connections and routing. An integrated fuse on the primary protects against voltage spikes. Power Supplies are UL Component Recognized to U.S. and Canadian Standards, and are CE and RoHS compliant.
Ionizing Point Performance |
|||
| Distance From Charged Surface | |||
| 0.50" (13mm) |
1" (25mm) |
2" (51mm) |
|
|
Dissipates 5kV (seconds) |
0.12 | 0.18 | 0.24 |
Ionizing Point Specifications |
|
| Power Supply | EXAIR Model 7960 or 7961 Power Supply (5kV) is required for Ionizing Point operation. Power supplies are equipped with a modular 6' (1.83m) power cord, lighted power switch, integrated fuse on the primary and (2) or (4) high voltage outlets. |
| Electrical | For use with 5 kVrms, 5 milliamperes (max) power supply |
| Electrical Hazard |
Shockless (less than 40 microamperes short circuited). Do not use near flammable materials or gases. |
| Materials of Construction | |
| Metal parts | Stainless Steel |
| Plastic parts | UL rated 94 HB |
| Emitter | Stainless Steel |
| Maximum ambient temperature | 165°F (74°C) |
Ionizing Point Dimensions |
||||
 |
Static Eliminator Standards and Certifications
EXAIR's Gen4 Super Ion Air Knife complies with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
The Intellistat Ion Air Gun and Intellistat Ion Air Nozzle are UL Listed, and are CE and RoHS compliant.
Gen4 Ionizing Bars and Gen4 Power Supplies are UL Component Recognized to U.S. and Canadian safety standards, and are CE, EMC and RoHS compliant.
