EXAIR's Air Jets are engineered to provide a powerful, directed airstream. The focused blast of air is ideal for part ejection, chip removal and part drying. Force and flow can be adjusted with available shims.
| Product | Material | Air Jet Type | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
Brass | High Velocity Air Jet | 1/8 MNPT | Not Applicable | Not Applicable |
 |
Type 303 Stainless Steel | High Velocity Air Jet | 1/8 MNPT | Not Applicable | Not Applicable |
Applications:
- Part cleaning
- Chip removal
- Part drying
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Air assist
Advantages:
- Reduced compressed air costs
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
High Velocity Air Jet Materials:
- Brass - general purpose applications. Maximum temperature 400°F (204°C).
- Type 303 Stainless Steel - high temperatures, corrosive environments. Maximum temperature 800°F (426°C).
High Velocity Air Jet Accessories:
Shim Set - Shims can be used to change the gap on the Model 6013 High Velocity Air Jet. Changing shims will alter air consumption, force, flow and vacuum capability. The Model 6313 Air Jet Shim Set for the High Velocity Air Jet includes a .006" (0.15mm) and a .009" (0.23mm) thick shim. A .015" (0.38mm) shim comes installed with the Model 6013 Air Jet.
Stay Set Hose - For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses™ are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has “memory”, it will not creep or bend. It always keeps the aim until physically moved to the next position.
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.
Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
High Velocity Air Jet Performance |
||||
| Air Consumption | Force | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 22 | 622 | 20 | 567 | 82 |
|
*Force measured at 12" (305mm) from target with a .015" (0.38mm) shim installed Sound level measured at 3' (914mm) All measurements taken at 80 PSIG (5.5 BAR) |
||||

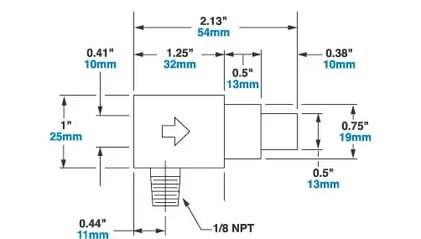

Dimensions - High Velocity Air Jet |
Models6013, 6013SS |

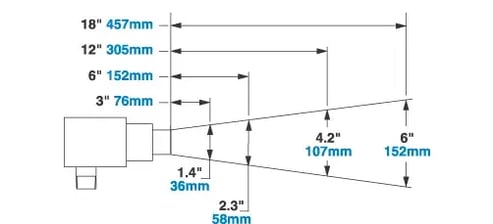

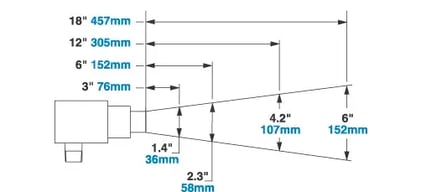

Airflow Pattern - High Velocity Air Jet |
Models6013, 6013SS |
How EXAIR Air Jets Work:
High Velocity Air Jet Dimensions and Airflow Pattern |
 |
Air Jet Standards and Certifications:
EXAIR Air Jets comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
