EXAIR Heavy Duty Safety Air Gun with Nozzle and Chip Shield

Choose a Chip Shield installed on EXAIR's Heavy Duty Safety Air Gun to prevent chip blowback toward the operator. This is a powerful air gun that delivers high force for use in rugged, industrial environments. The 3/8 NPT compressed air inlet increases the compressed air flow available to the Super Air Nozzle, resulting in higher force and flow than other air guns. The durable cast curved trigger makes it comfortable for hours of use without fatigue. These guns with EXAIR engineered nozzles minimize compressed air use, maintain OSHA pressure standard 1910.242(b) and reduce noise exposure by remaining under OSHA standard 29 CFR 1910.95(a) decibel limits.

Product	Flow	Nozzle Type	Force	Extension Pipe Length	Stay Set Hose Length	Chip Shield	Air Inlet
	14 SCFM (396 SLPM)	St. Steel 1/4 NPT Super Air Nozzle	13 oz / 368 grams	N/A	N/A	N/A	3/8 FNPT
	14 SCFM (396 SLPM)	Zinc-Alum. 1/4 NPT Super Air Nozzle	13 oz / 368 grams	N/A	N/A	N/A	3/8 FNPT
	14 SCFM (396 SLPM)	PEEK (Plastic) 1/4 NPT Super Air Nozzle	13 oz / 368 grams	N/A	N/A	N/A	3/8 FNPT
	22 SCFM (622 SLPM)	St. Steel 2" Flat Super Air Nozzle	22 oz / 624 grams	N/A	N/A	N/A	3/8 FNPT
	22 SCFM (622 SLPM)	Zinc-Alum. 2" Flat Super Air Nozzle	22 oz / 624 grams	N/A	N/A	N/A	3/8 FNPT
	35 SCFM (991 SLPM)	PEEK Plastic 3/8 NPT Super Air Nozzle	1.9 lbs / 850 grams	N/A	N/A	N/A	3/8 FNPT
	35 SCFM (991 SLPM)	St. Steel 3/8 NPT Super Air Nozzle	1.9 lbs / 850 grams	N/A	N/A	N/A	3/8 FNPT
	35 SCFM (991 SLPM)	Zinc-Alum. 3/8 Super Air Nozzle	1.9 lbs / 850 grams	N/A	N/A	N/A	3/8 FNPT
	37 SCFM (1039 SLPM)	St. Steel 2" HP Flat Super Air Nozzle	2.2 lbs / 1,134 grams	N/A	N/A	N/A	3/8 FNPT
	37 SCFM (1039 SLPM)	Zinc-Alum. 2" HP Flat Super Air Nozzle	2.2 lbs / 1,134 grams	N/A	N/A	N/A	3/8 FNPT
	56 SCFM (1585 SLPM)	Zinc-Alum. Super Air Nozzle 4 Cluster	3.2 lbs / 1.45 kg	N/A	N/A	N/A	3/8 FNPT
	60 SCFM (1699 SLPM)	St. Steel 1/2 NPT Super Air Nozzle	3.3 lbs / 1.50 kg	N/A	N/A	Included	3/8 FNPT
	60 SCFM (1699 SLPM)	Zinc-Alum. 1/2 NPT Super Air Nozzle	3.3 lbs / 1.50 kg	N/A	N/A	Included	3/8 FNPT
	60 SCFM (1699 SLPM)	PEEK Plastic 1/2 NPT Super Air Nozzle	3.3 lbs / 1.50 kg	N/A	N/A	Included	3/8 FNPT

Specifications:

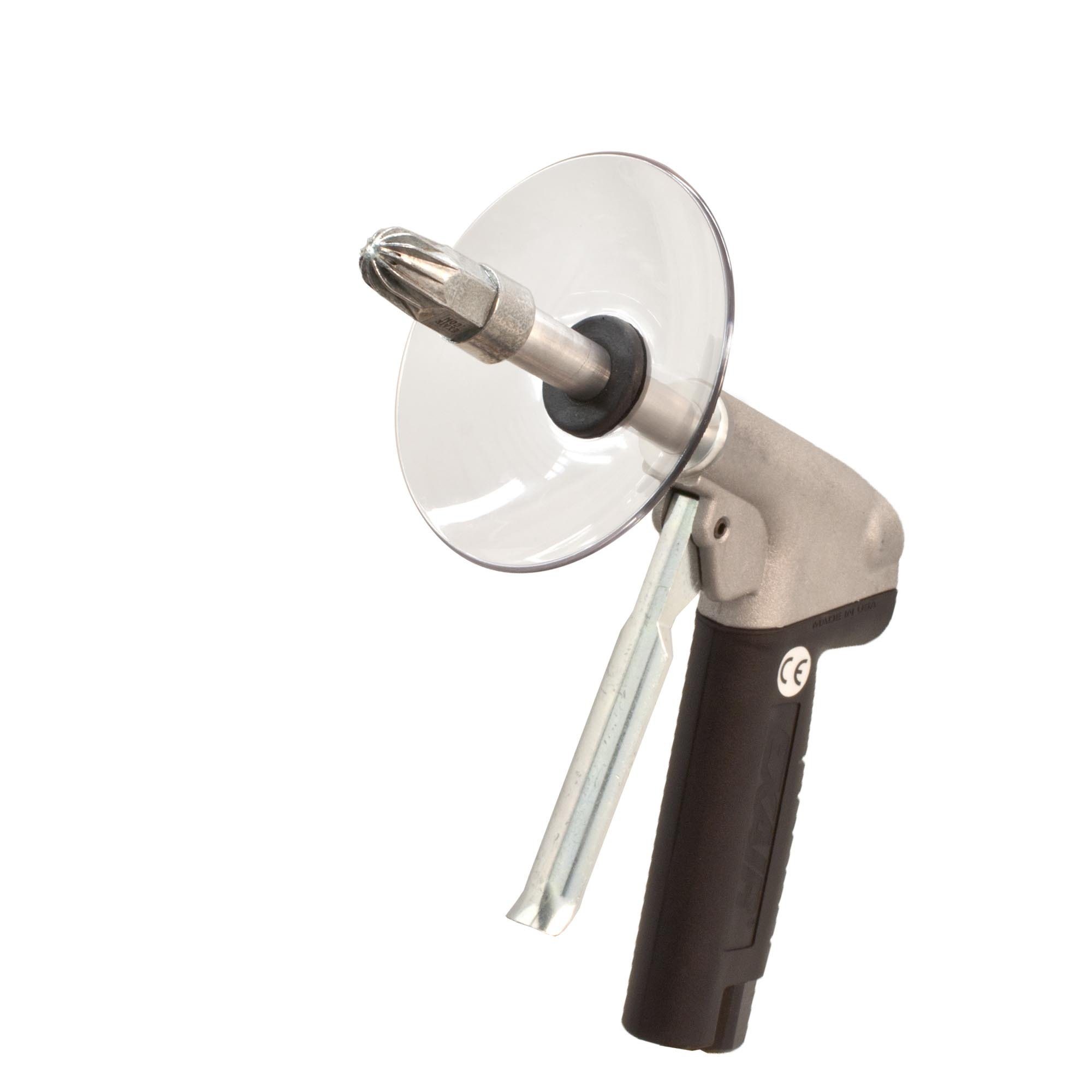

Model 1310SS-CS Heavy Duty Safety Air Gun with Chip Shield Nozzle: 1100SS Stainless Steel Super Air Nozzle
Inlet: 3/8 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	14	396	13	369	74

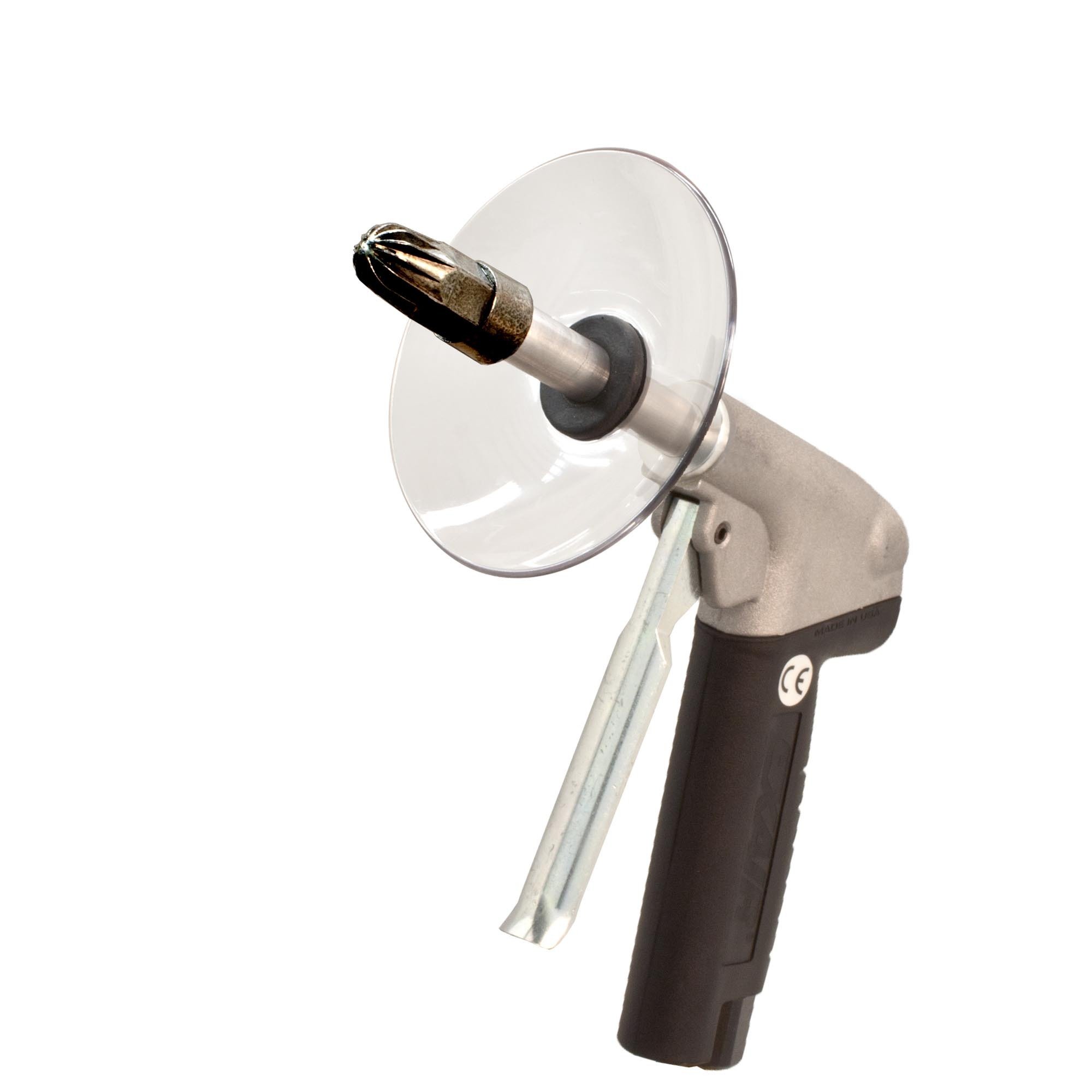

	Also available: 1310-CS with 1100 Zinc Aluminum Super Air Nozzle and Chip Shield 1310-PEEK-CS with 1100-PEEK PEEK plastic Super Air Nozzle and Chip Shield

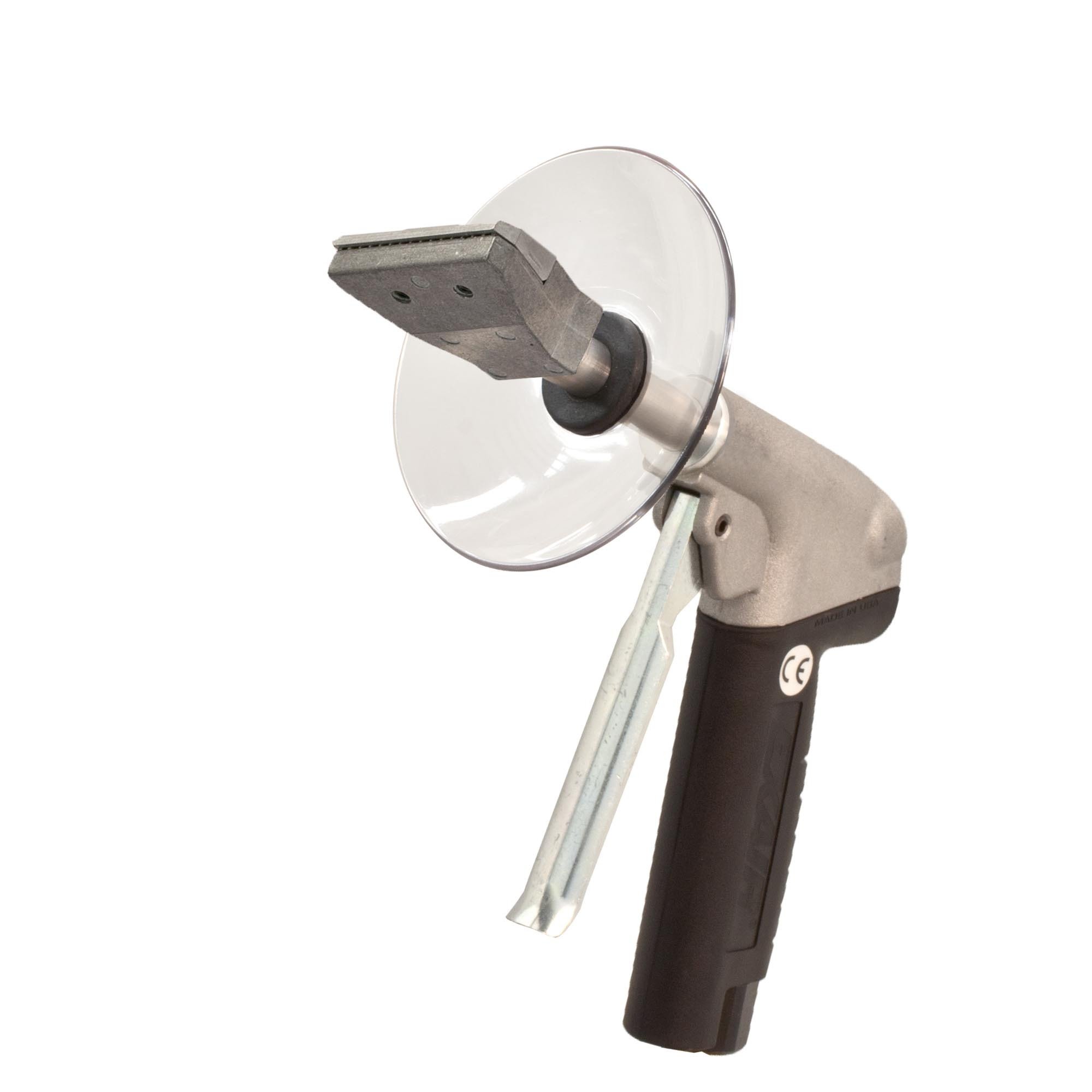

Model 1330SS-CS Heavy Duty Safety Air Gun with Chip Shield Nozzle: 1122SS Stainless Steel 2" Flat Super Air Nozzle
Inlet: 3/8 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Ozs	Grams	dBA
	22	622	22	624	77
	Also available: 1330-CS with 1122 Zinc Aluminum 2" Flat Super Air Nozzle and Chip Shield

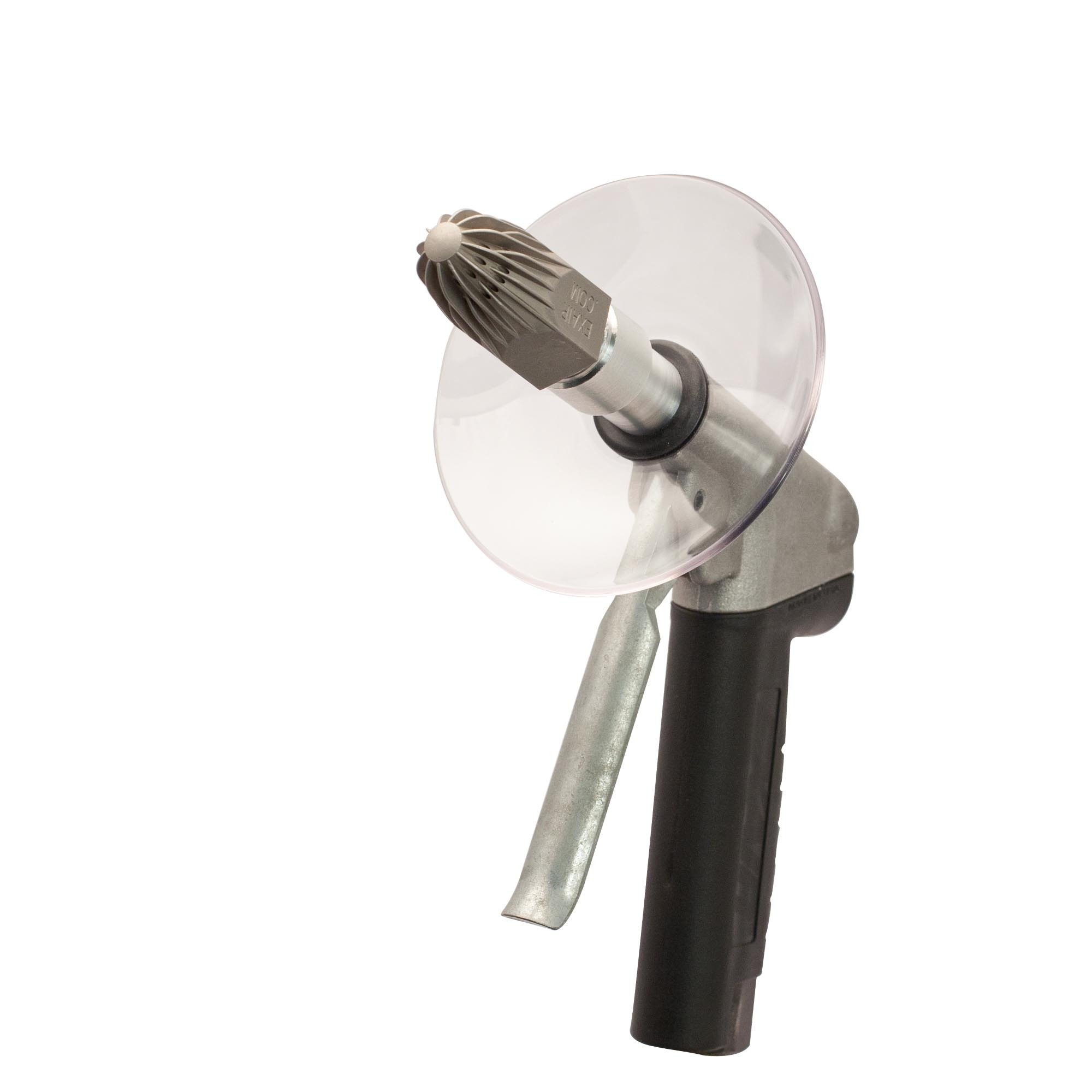

Model 1350SS-CS Heavy Duty Safety Air Gun with Chip Shield Nozzle: 1104SS Stainless Steel Super Air Nozzle
Inlet: 3/8 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	35	991	1.9	862	82
	Also available: 1350-CS with 1104 Zinc Aluminum Super Air Nozzle and Chip Shield 1350-PEEK-CS with 1104-PEEK PEEK plastic Super Air Nozzle and Chip Shield

Model HP1330SS-CS Heavy Duty Safety Air Gun with Chip Shield Nozzle: HP1122SS Stainless Steel 2" High Power Flat Super Air Nozzle
Inlet: 3/8 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	37	1,039	2.2	998	83
	Also available: HP1330-CS with HP1122 Zinc Aluminum 2" High Power Super Air Nozzle and Chip Shield

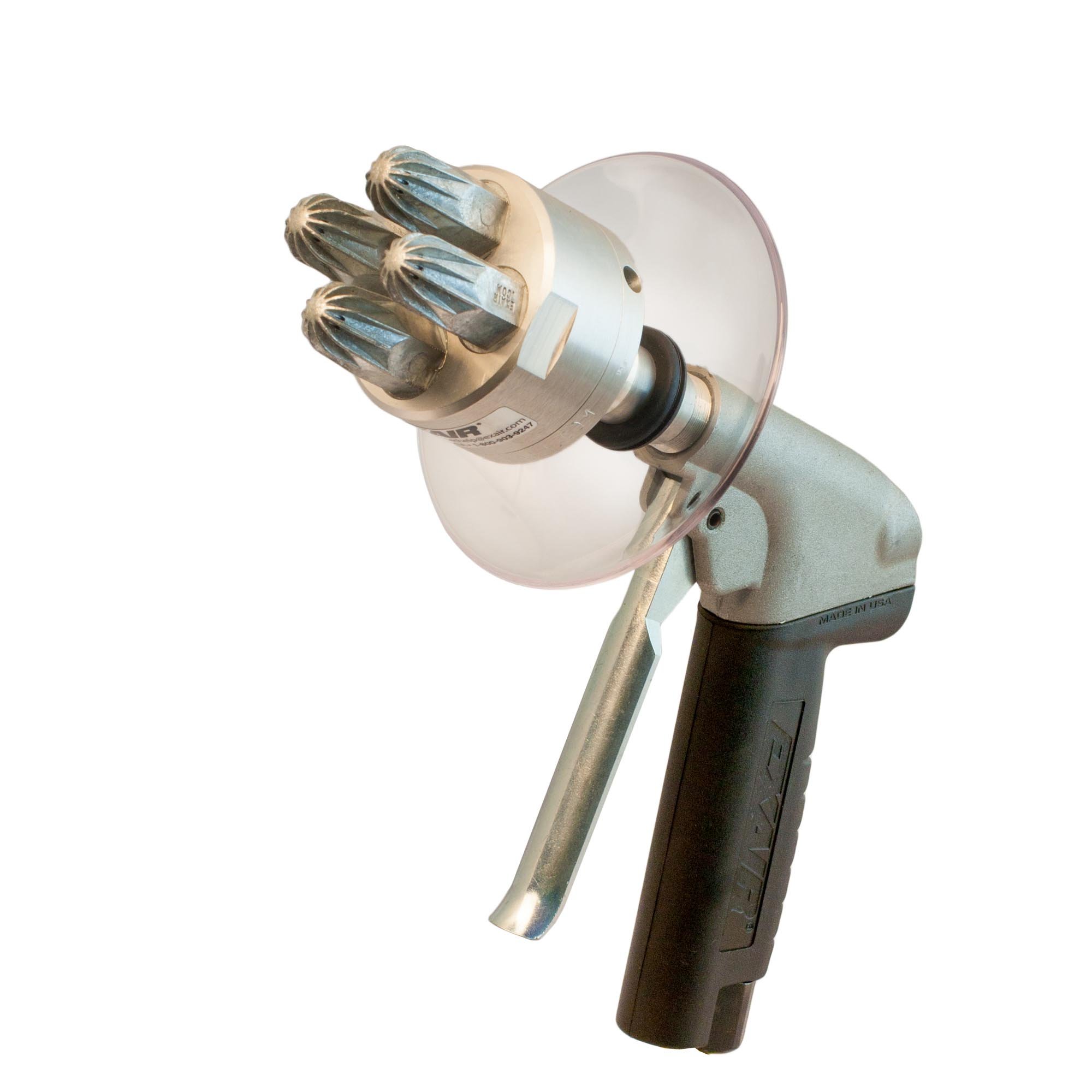

Model 1340-CS Heavy Duty Safety Air Gun with Chip Shield Nozzle: 1111-4 Super Air Nozzle Cluster
Inlet: 3/8 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	56	1,585	3.2	1,451	82

Model 1360SS-CS Heavy Duty Safety Air Gun with Chip Shield Nozzle: 1106SS Stainless Steel Super Air Nozzle
Inlet: 3/8 FNPT	Air Consumption		Force*		Sound Level
	SCFM	SLPM	Lbs	Grams	dBA
	60	1,699	3.3	1,497	87
	Also available: 1360-CS with 1106 Zinc Aluminum Super Air Nozzle and Chip Shield 1360-PEEK-CS with 1106-PEEK PEEK plastic Super Air Nozzle and Chip Shield

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Applications

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Part drying

Advantages

• Lightweight
• Comfortable to operate during extended use
• Powerful blast of air
• Reduced compressed air cost
• Improved blowoff performance
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements

Materials

Heavy Duty Safety Air Gun Body

• Durable cast aluminum with ergonomic rubber grip.

Nozzle Options

• Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
• Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).
• PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C).

Accessories:

Aluminum Extension Pipe - extends the reach of your Heavy Duty Safety Air Gun. Extension Pipes are available in 6" (152mm) to 72" (1829mm) lengths.





Coiled Hose with Swivel - Heavy duty compressed air hose that's coiled to conveniently store it when not in use. Available in 12' (3.7m) lengths.



Safety Air Gun Standards and Certifications

EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
