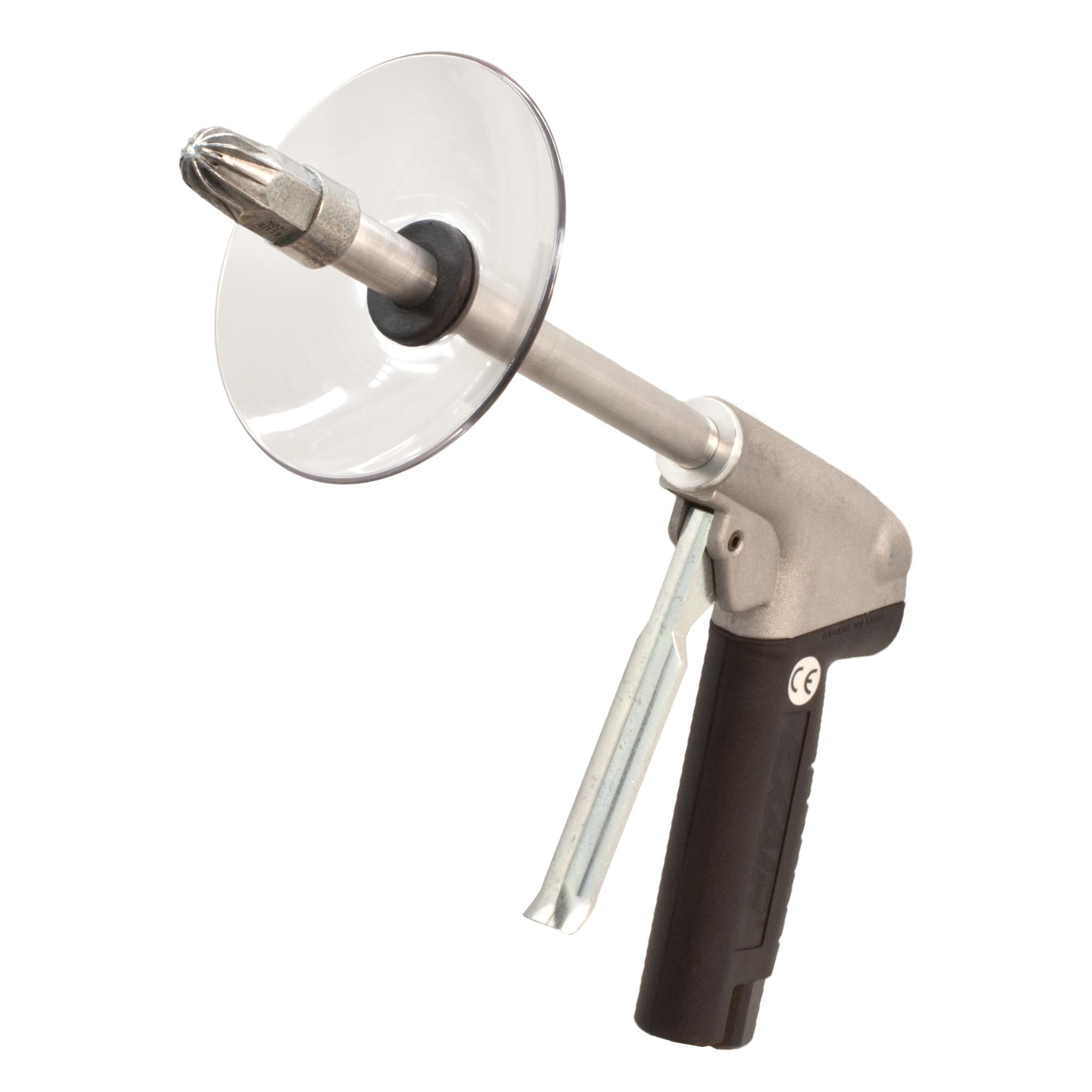

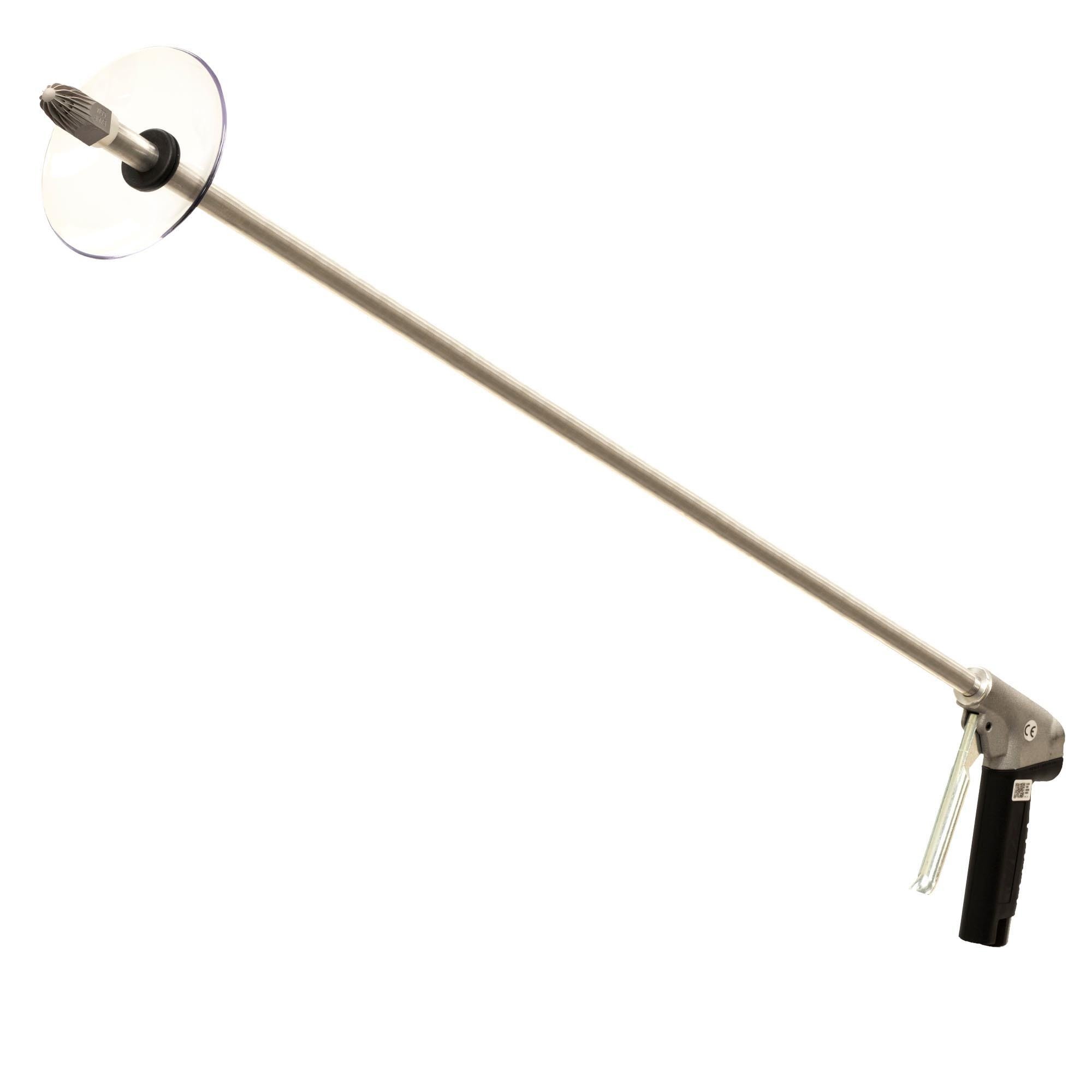

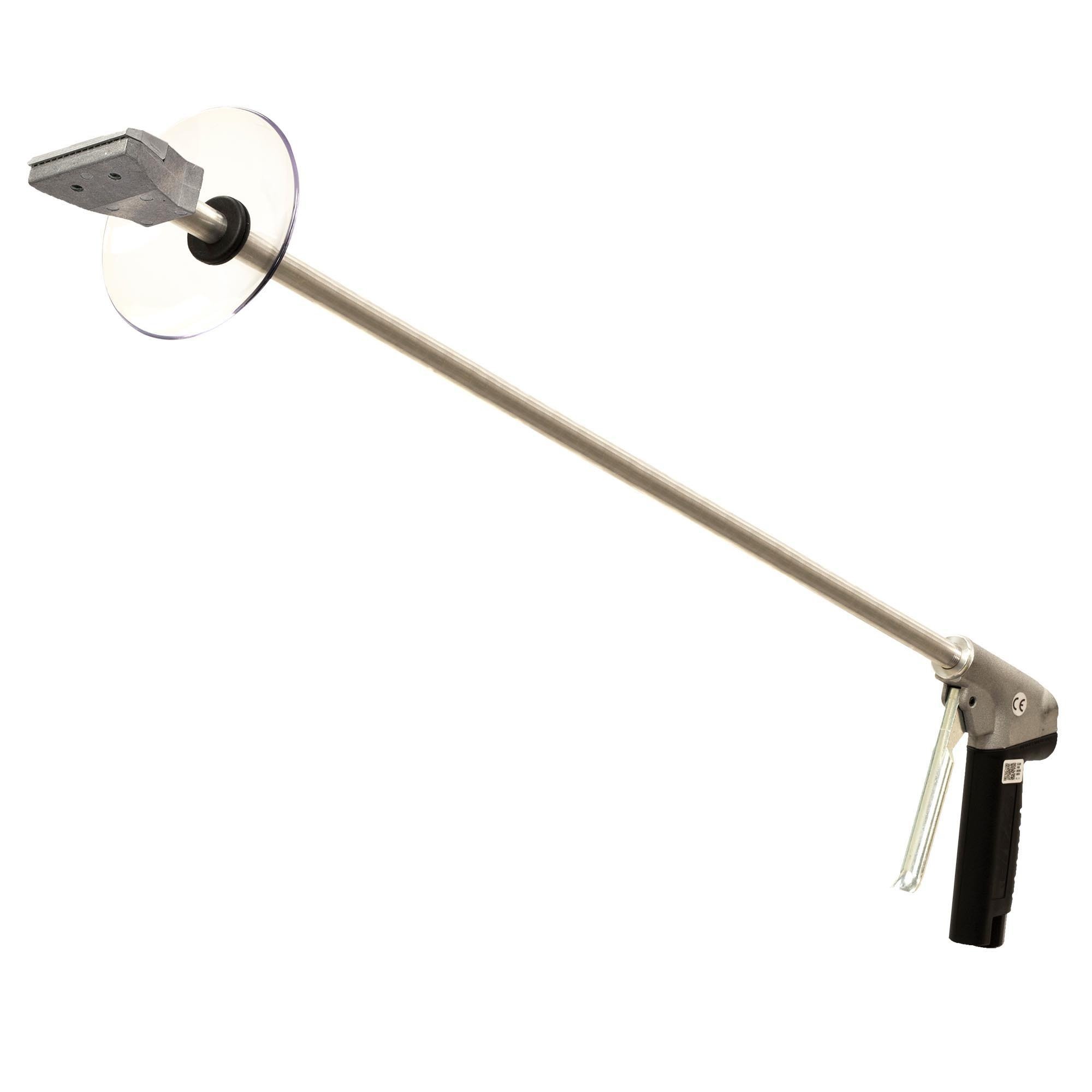

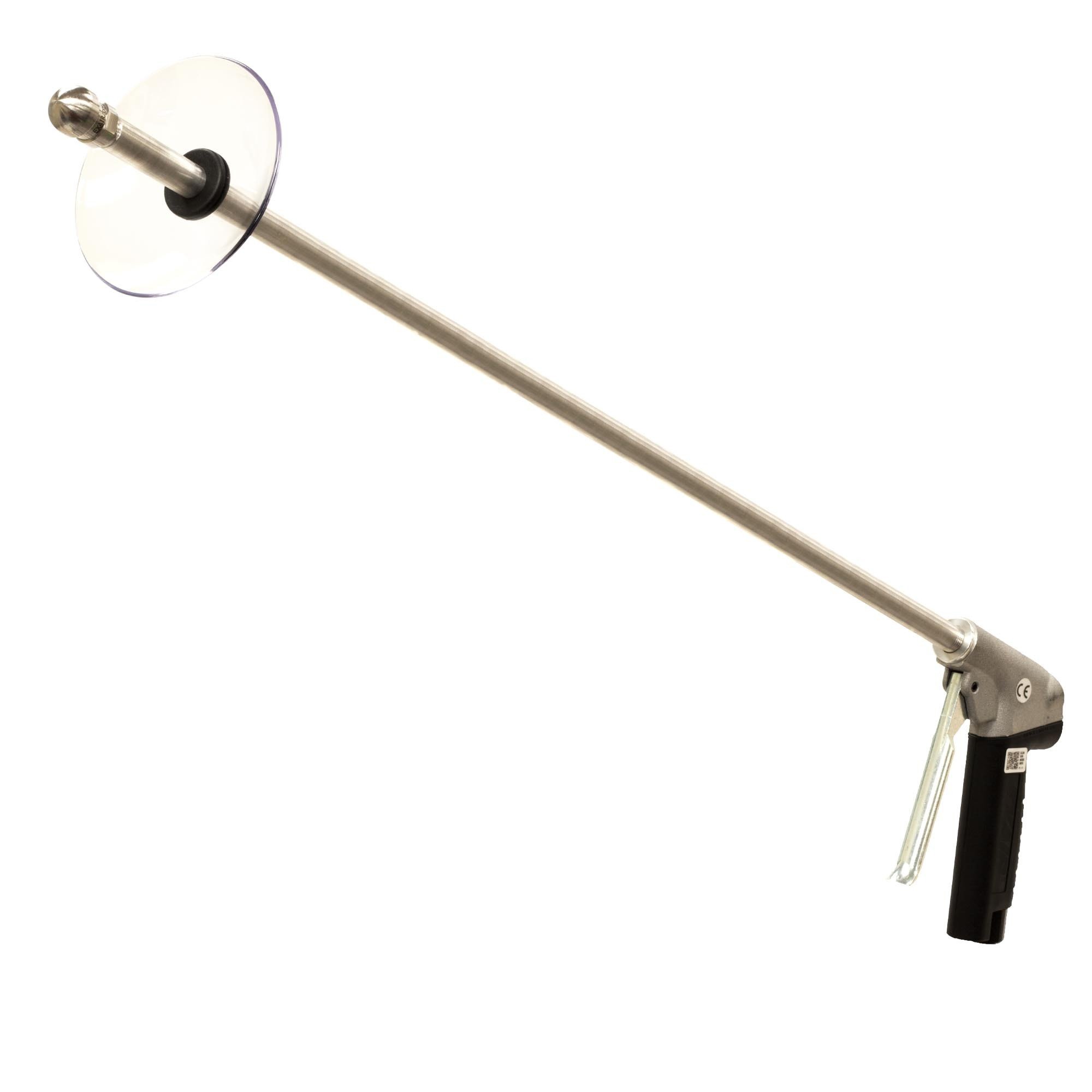

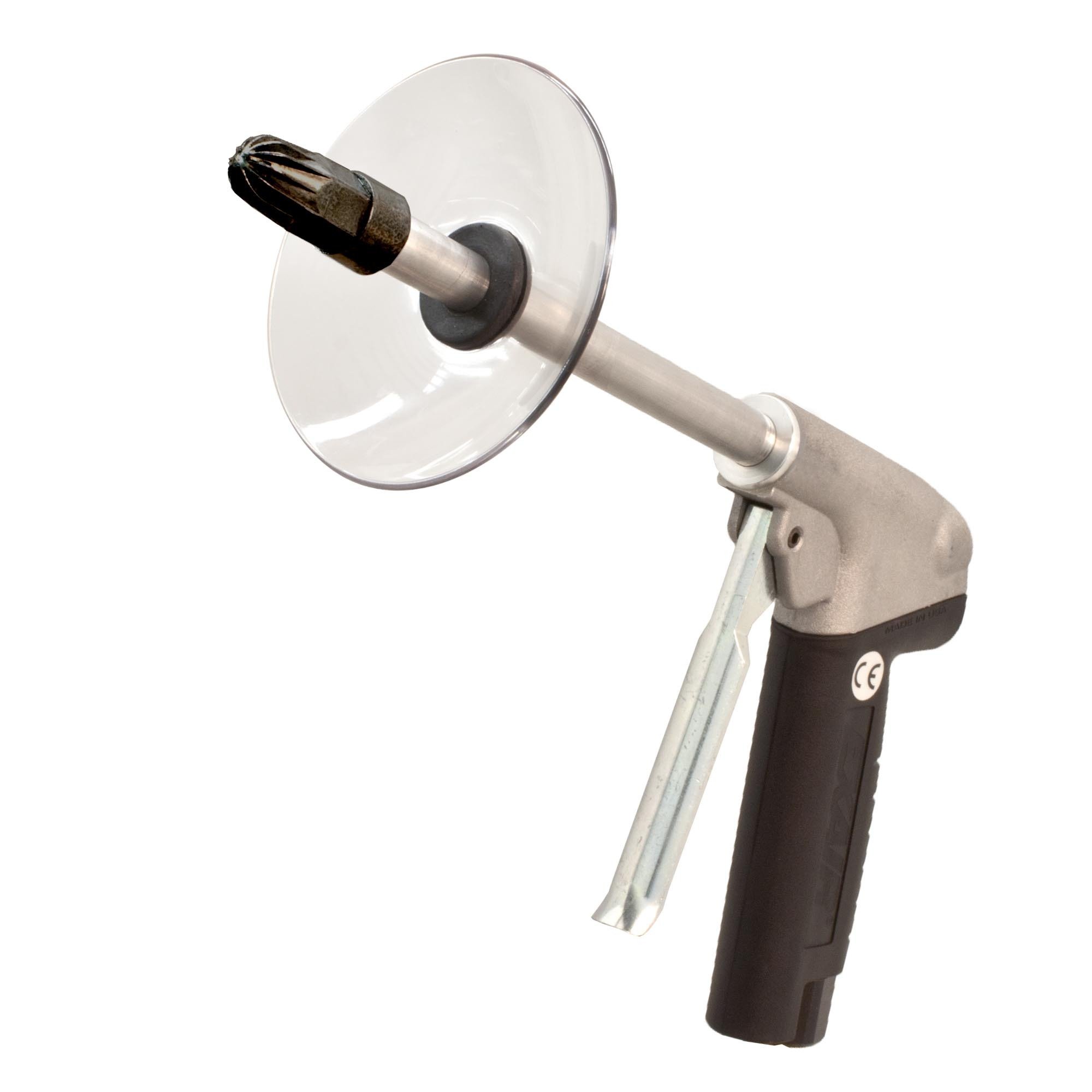

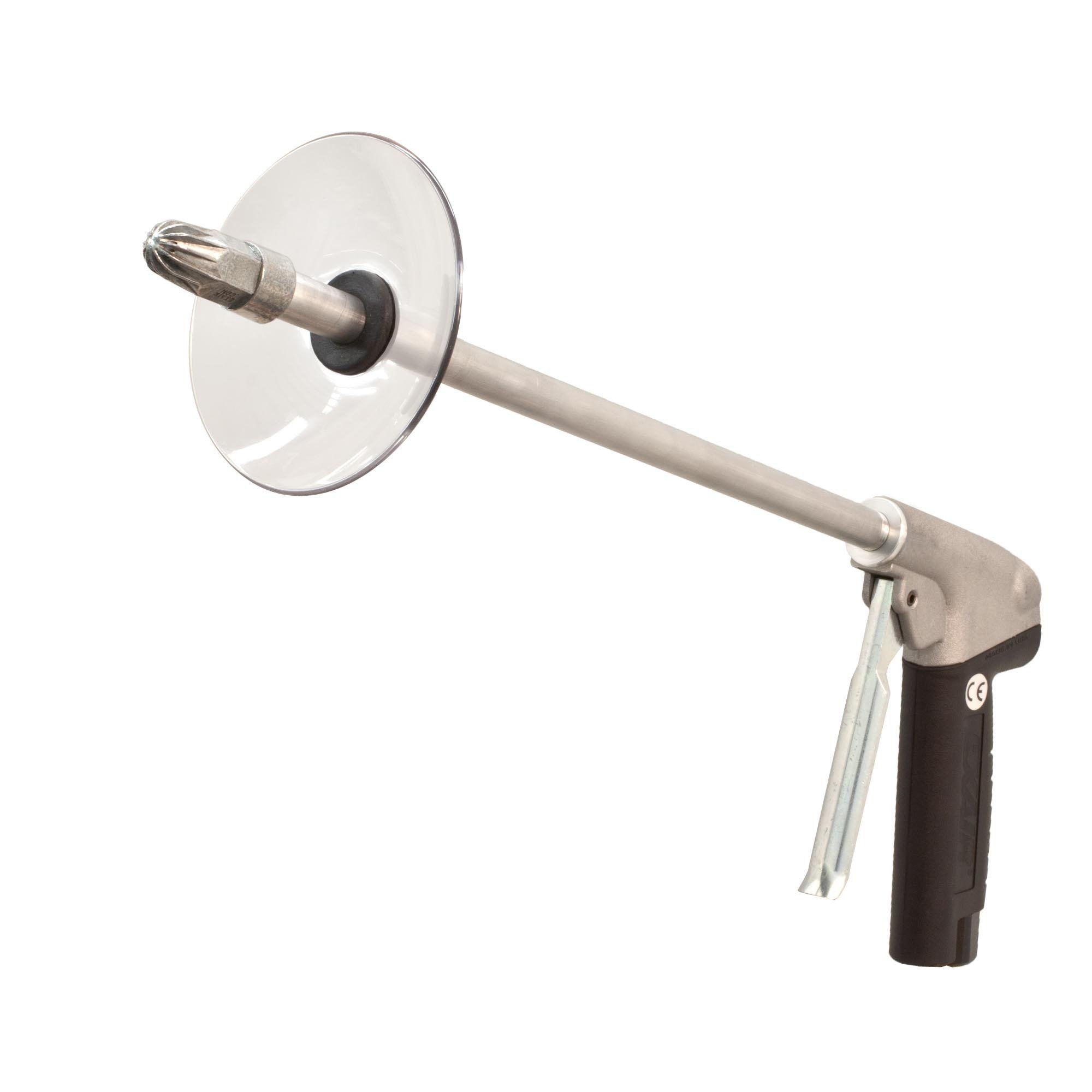

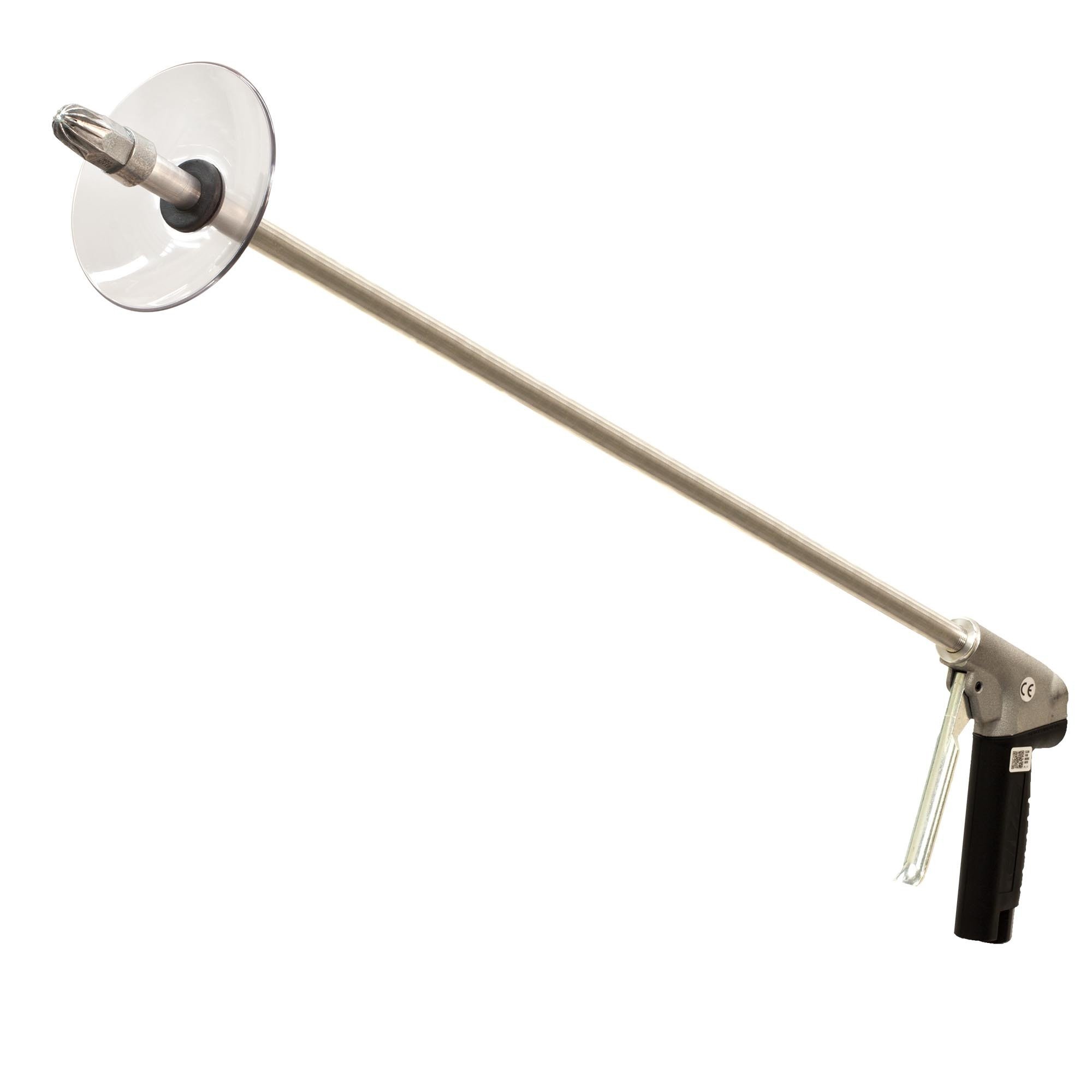

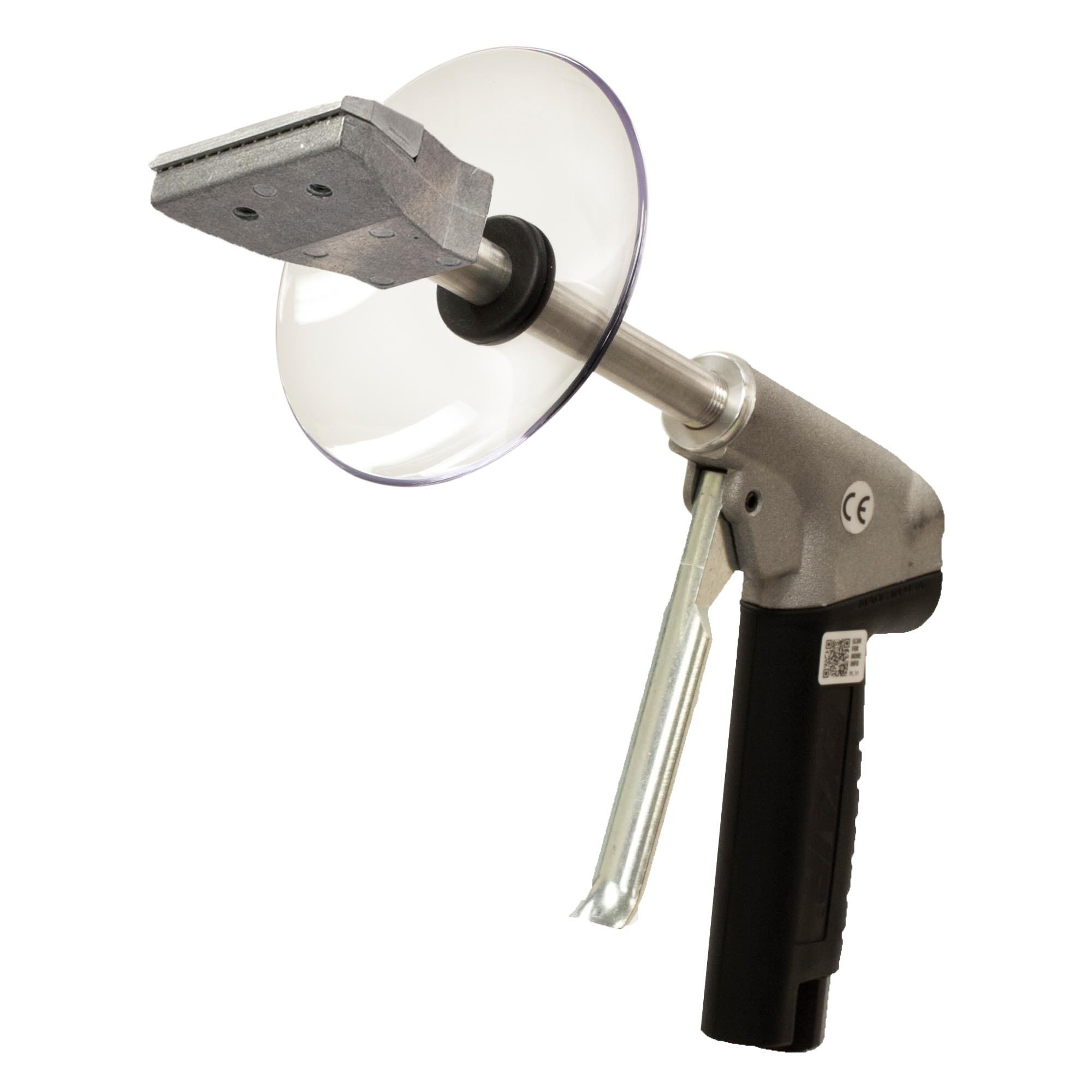

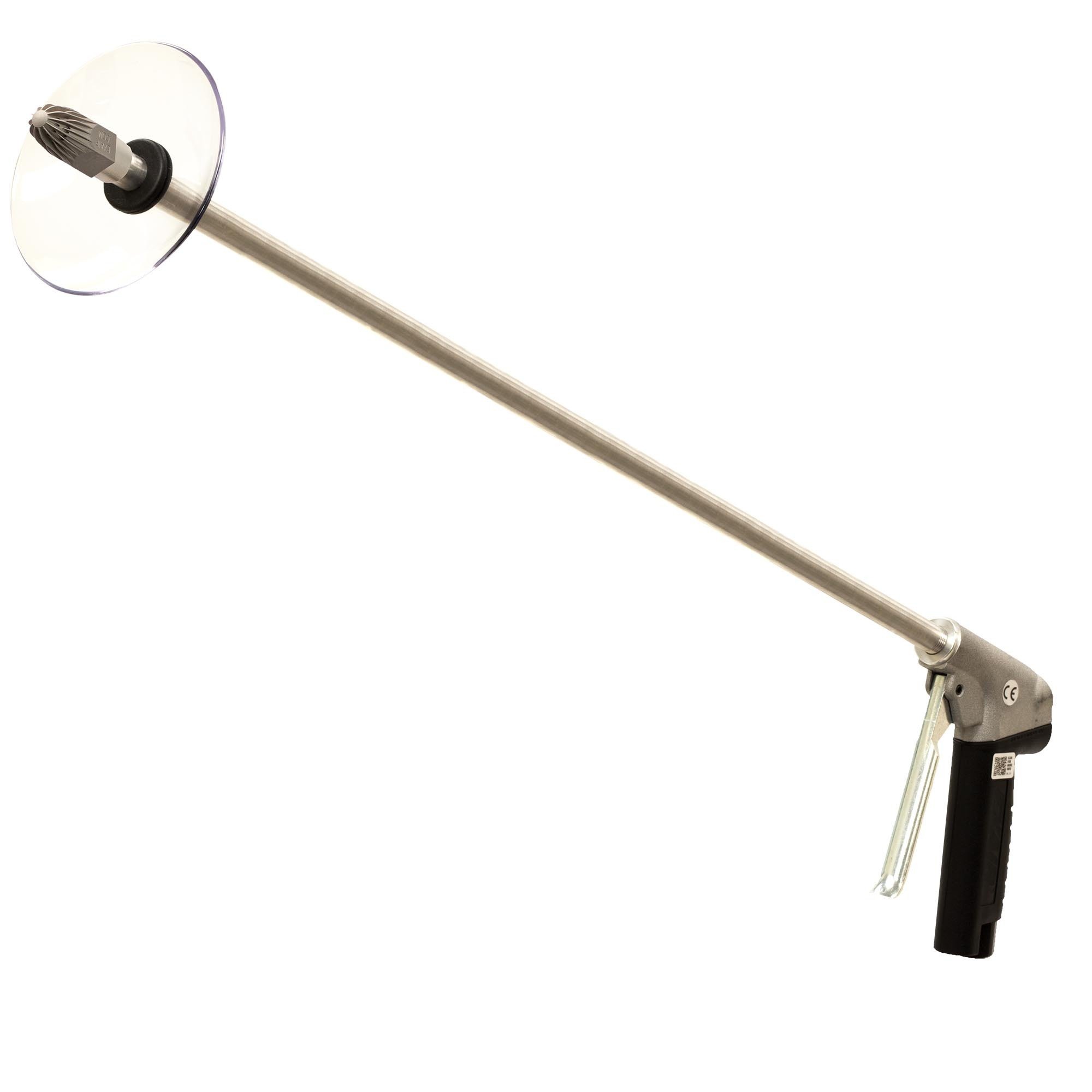

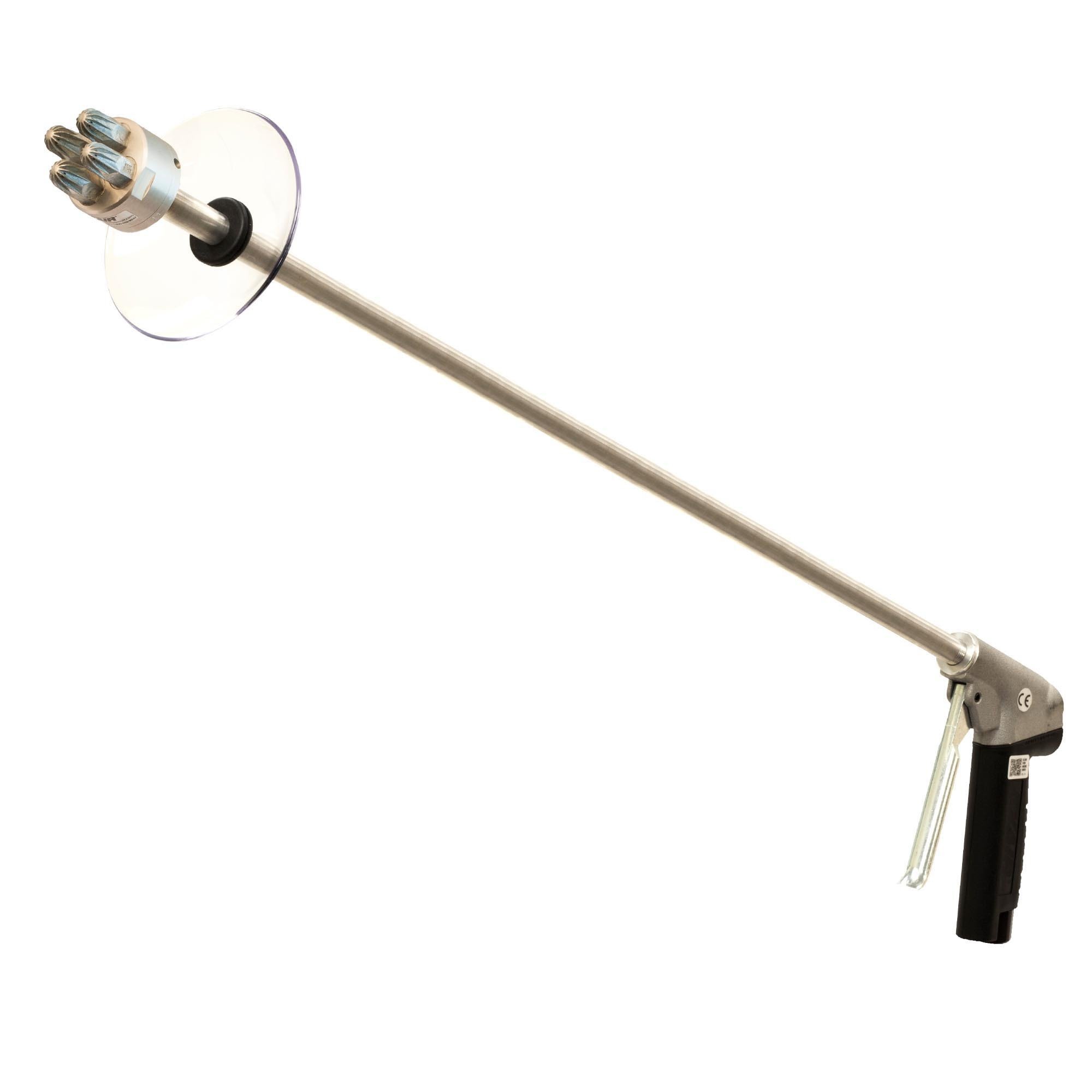

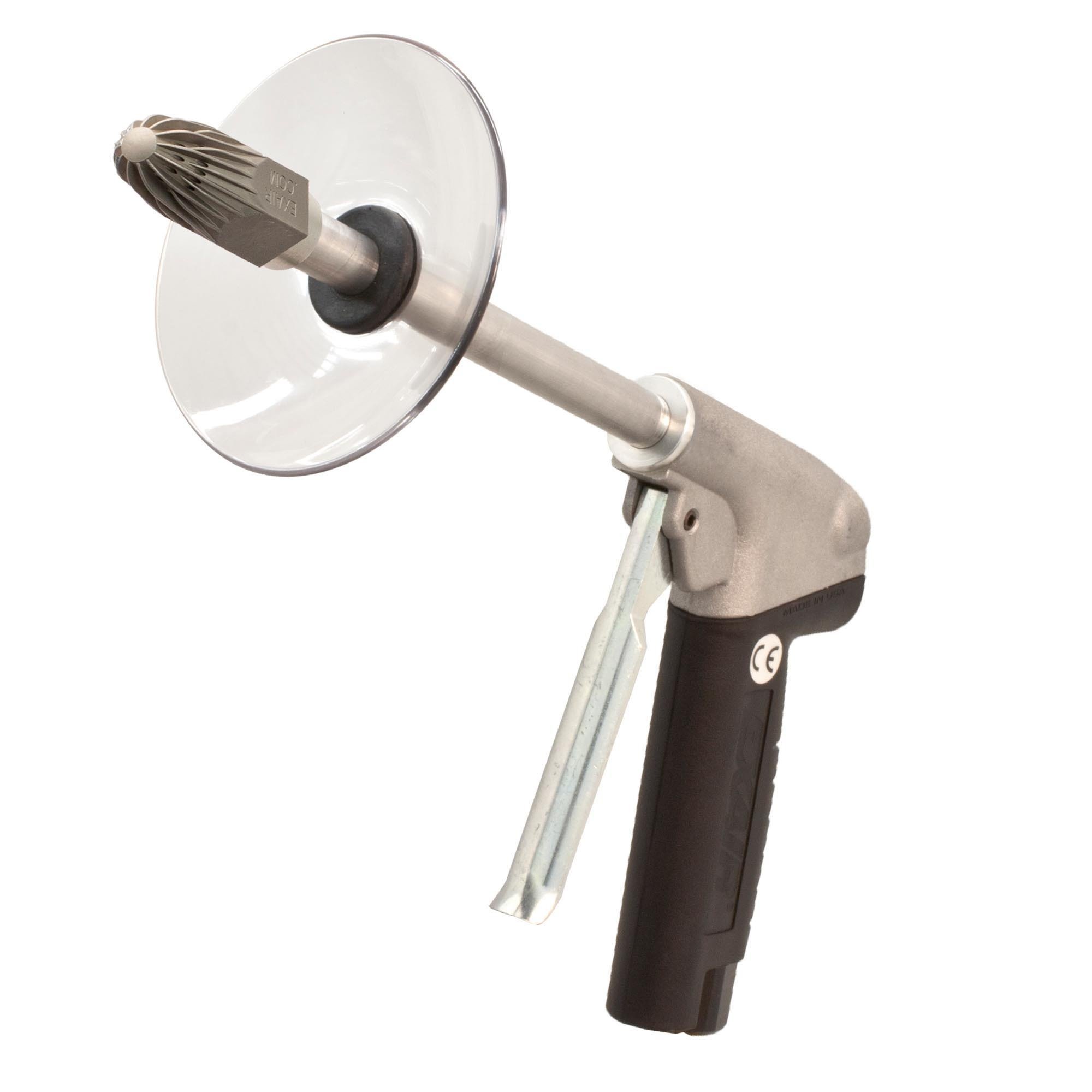

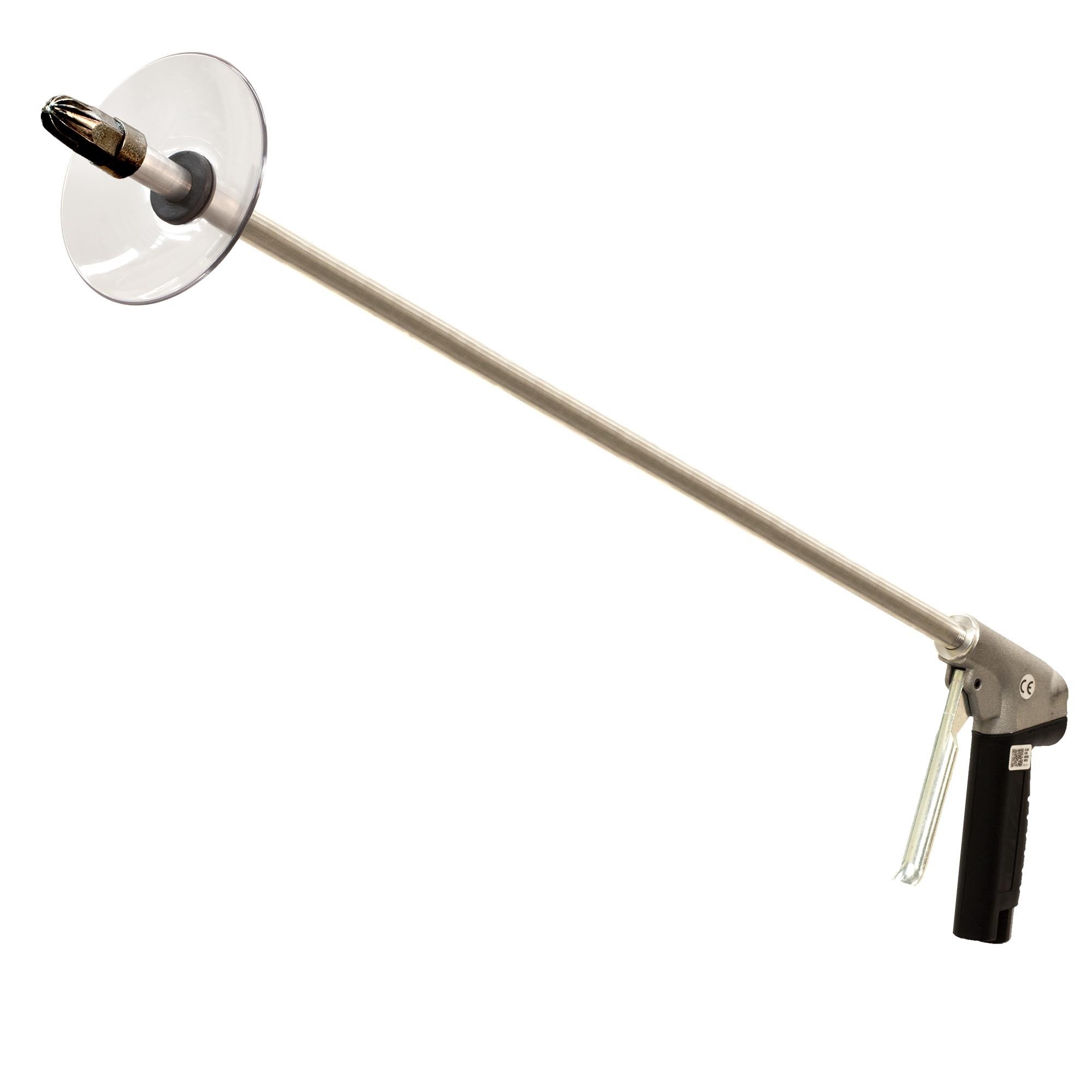

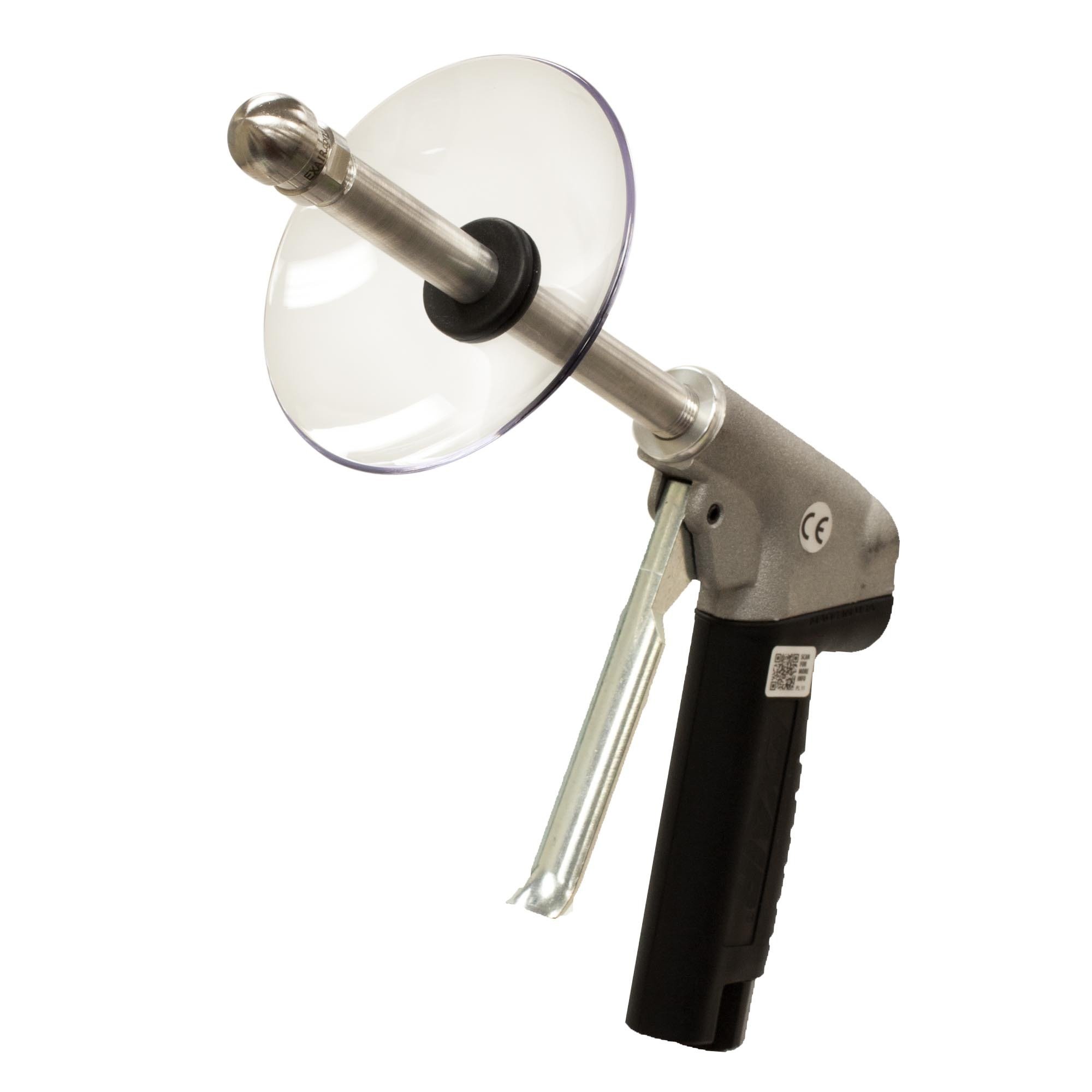

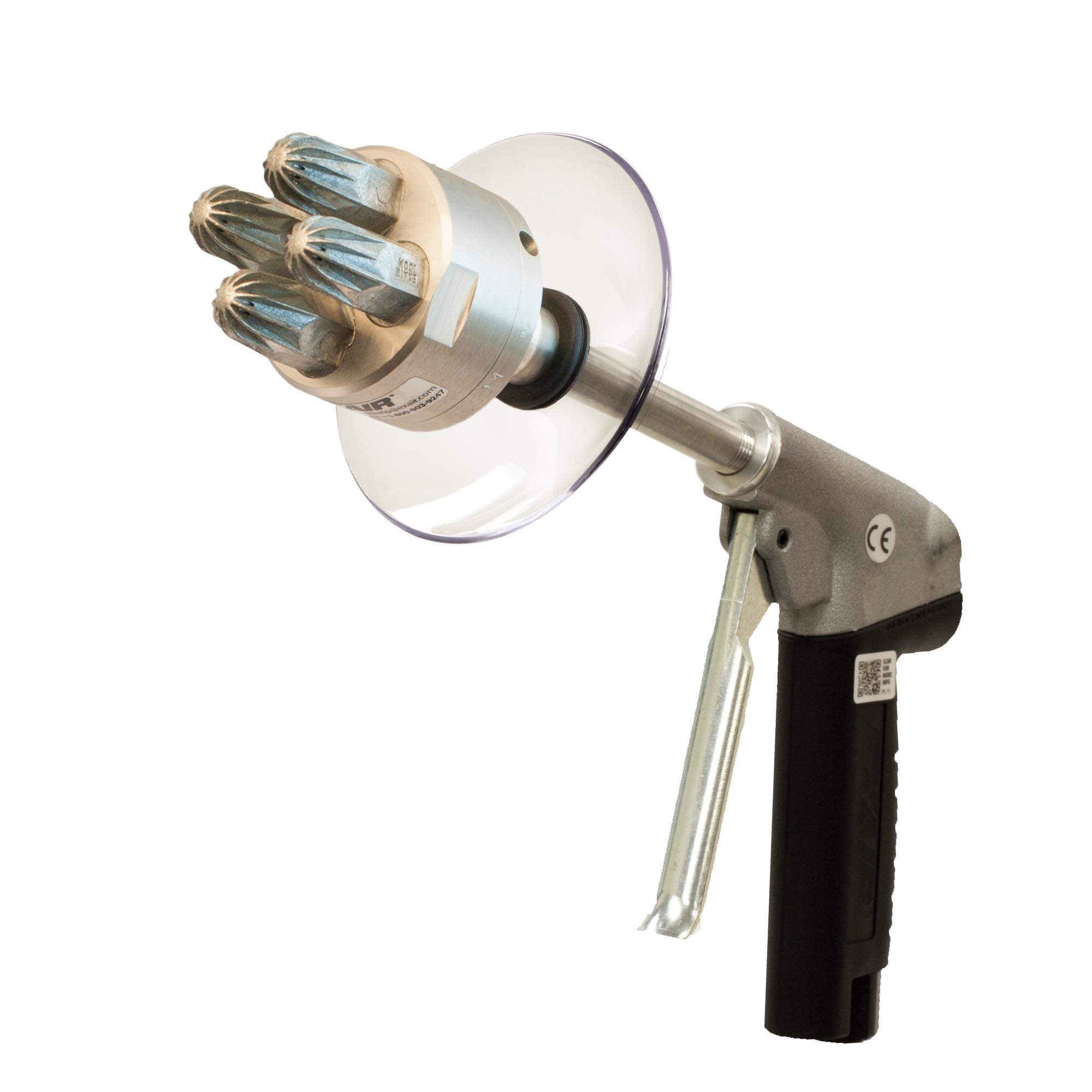

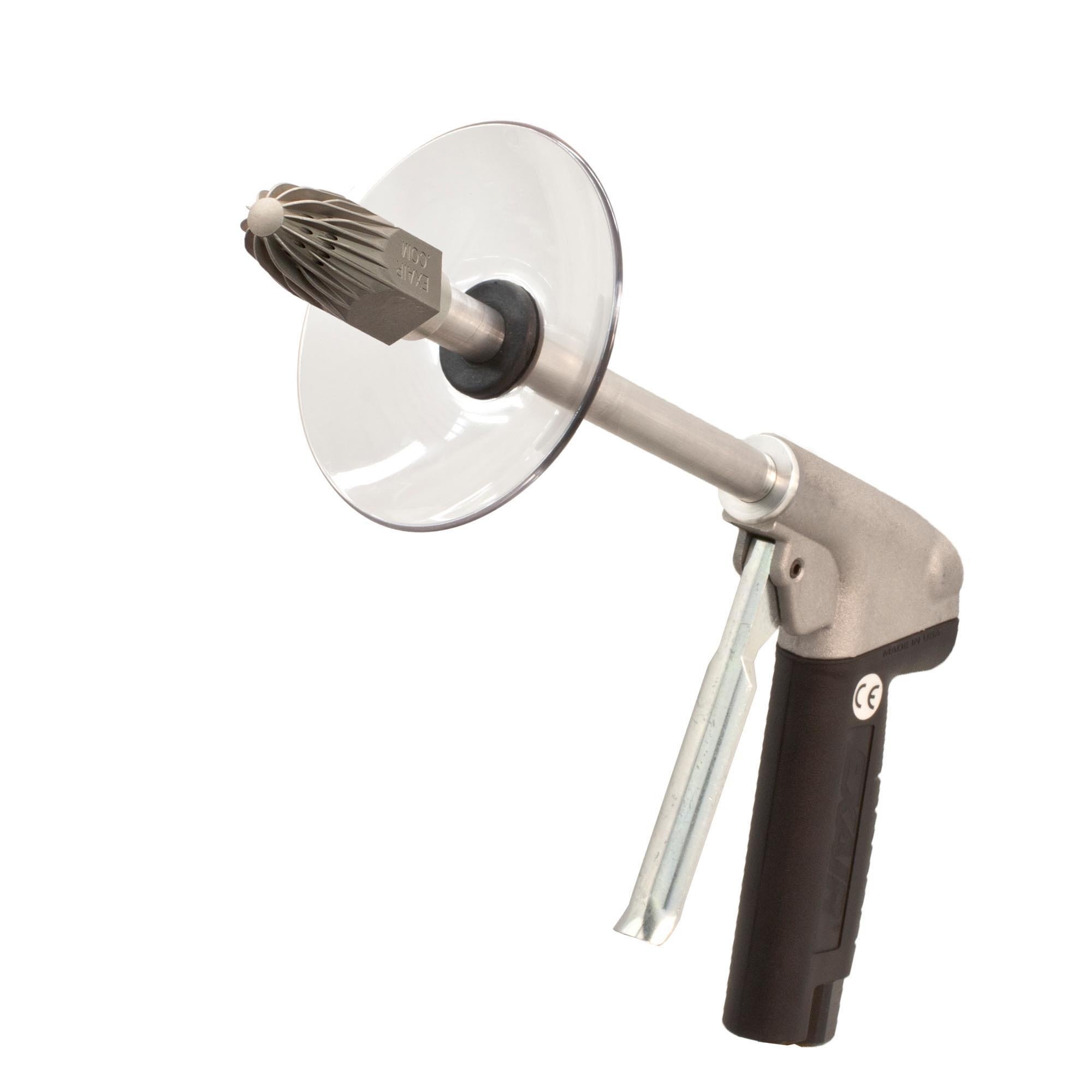

Add a Chip Shield to prevent chip blowback toward the operator and add an Aluminum Extension Pipe to make it easier to reach into deep machine spaces and high spots while using the Heavy Duty Safety Air gun. EXAIR's Heavy Duty Safety Air Gun is a powerful air gun that delivers high force for use in rugged, industrial environments. The 3/8 NPT compressed air inlet increases the compressed air flow available to the Super Air Nozzle, resulting in higher force and flow than other air guns. The durable cast curved trigger makes it comfortable for hours of use without fatigue. These guns with EXAIR engineered nozzles minimize compressed air use, maintain OSHA pressure standard 1910.242(b) and reduce noise exposure by remaining under OSHA standard 29 CFR 1910.95(a) decibel limits.
| Product | Flow | Nozzle Type | Force | Extension Pipe Length | Chip Shield | Air Inlet |
|
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
6" (152mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
12" (305mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
18" (457mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
24" (610mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
36" (914mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
48" (1219mm |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
60" (1524mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) |
St. Steel 1/4 NPT Super Air Nozzle |
13 oz / 368 grams |
72" (1829mm) |
Included |
3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 6" (152mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 12" (305mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 18" (457mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 24" (610mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 36" (914mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 48" (1219mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 60" (1524mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | Zinc-Alum. 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 72" (1829mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 6" (152mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 12" (305mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 18" (457mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 24" (610mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 36" (914mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 48" (1219mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 60" (1524mm) | Included | 3/8 FNPT |
 |
14 SCFM (396 SLPM) | PEEK (Plastic) 1/4 NPT Super Air Nozzle | 13 oz / 368 grams | 72" (1829mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 6" (152mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 12" (305mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 18" (457mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 24" (610mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 36" (914mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 48" (1219mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 60" (1524mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | St. Steel 1/4 NPT Back Blow Air Nozzle | 22 oz / 624 grams | 72" (1829mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 6" (152mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 12" (305mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 18" (457mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 24" (610mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 36" (914mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 48" (1219mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 60" (1524mm) | Included | 3/8 FNPT |
|
22 SCFM (622 SLPM) | St. Steel 2" Flat Super Air Nozzle | 22 oz / 624 grams | 72" (1829mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 6" (152mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 12" (305mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 18" (457mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 24" (610mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 36" (914mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 48" (1219mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 60" (1524mm) | Included | 3/8 FNPT |
 |
22 SCFM (622 SLPM) | Zinc-Alum. 2" Flat Super Air Nozzle | 22 oz / 624 grams | 72" (1829mm) | Included | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 6" (152mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 12" (305mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 18" (457mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 24" (610mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 36" (914mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 48" (1219mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 60" (1524mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | PEEK Plastic 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 72" (1829mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 6" (152mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 12" (305mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 18" (457mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 24" (610mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 36" (914mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 48" (1219mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 60" (1524mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | St. Steel 3/8 NPT Super Air Nozzle | 1.9 lbs / 850 grams | 72" (1829mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 6" (152mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 12" (305mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 18" (457mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 24" (610mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 36" (914mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 48" (1219mm) | N/A | 3/8 FNPT |
 |
35 SCFM (991 SLPM) | Zinc-Alum. 3/8 Super Air Nozzle | 1.9 lbs / 850 grams | 72" (1829mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 6" (152mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 12" (305mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 18" (457mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 24" (610mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 36" (914mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 48" (1219mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 60" (1524mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | St. Steel 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 72" (1829mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 6" (152mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 12" (305mm) | Included | 3/8 FNPT |
 |
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 18" (457mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 24" (610mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 36" (914mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 48" (1219mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 60" (1524mm) | Included | 3/8 FNPT |
|
37 SCFM (1039 SLPM) | Zinc-Alum. 2" HP Flat Super Air Nozzle | 2.2 lbs / 1,134 grams | 72" (1829mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 6" (152mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 12" (305mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 18" (457mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 24" (610mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 36" (914mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 48" (1219mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 60" (1524mm) | Included | 3/8 FNPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 72" (1829mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 6" (152mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 12" (305mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 18" (457mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 24" (610mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 36" (914mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 48" (1219mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 60" (1524mm) | Included | 3/8 FNPT |
 |
60 SCFM (1699 SLPM) | St. Steel 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 72" (1829mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 6" (152mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 12" (305mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 18" (457mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 24" (610mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 36" (914mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 48" (1219mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 60" (1524mm) | Included | 3/8 FNPT |
|
60 SCFM (1699 SLPM) | Zinc-Alum. 1/2 NPT Super Air Nozzle | 3.3 lbs / 1.50 kg | 72" (1829mm) | Included | 3/8 FNPT |
**Stay Set Hose Length Not Applicable
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Part drying
Advantages:
- Lightweight
- Comfortable to operate during extended use
- Powerful blast of air
- Reduced compressed air cost
- Improved blowoff performance
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
Materials
Heavy Duty Safety Air Gun Body
- Durable cast aluminum with ergonomic rubber grip.
Nozzle Options
- Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
- Zinc aluminum alloy nozzles are good for general purpose applications. Maximum temperature: 250°F (121°C).
- PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C).
Safety Air Gun Standards and Certifications
EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
