EXAIR's compressed air operated Chip Vac is an industrial duty vacuum designed specifically for vacuuming chips. It creates a powerful direct flow action that vacuums metal, wood or plastic chips into an ordinary drum. Designed for occasional use with dusty materials, the included filter bag keeps the surrounding air clean.(drum not included, except with 6193-5 Mini Chip Vac System). EXAIR’s Mini Chip Vac System delivers the same cleaning power for small jobs. It comes complete with a 5 gallon drum and all the tools.
Product Drum Capacity System Type Vac Type Filter Air Inlet
exair-chip-vac-system-6193-5 5 Gallon Chip Vac Standard System includes Chip Vac, shutoff valve, 5 gallon drum, lid, filter bag, hose and tools. Chip Vac N/A 1/4 NPT

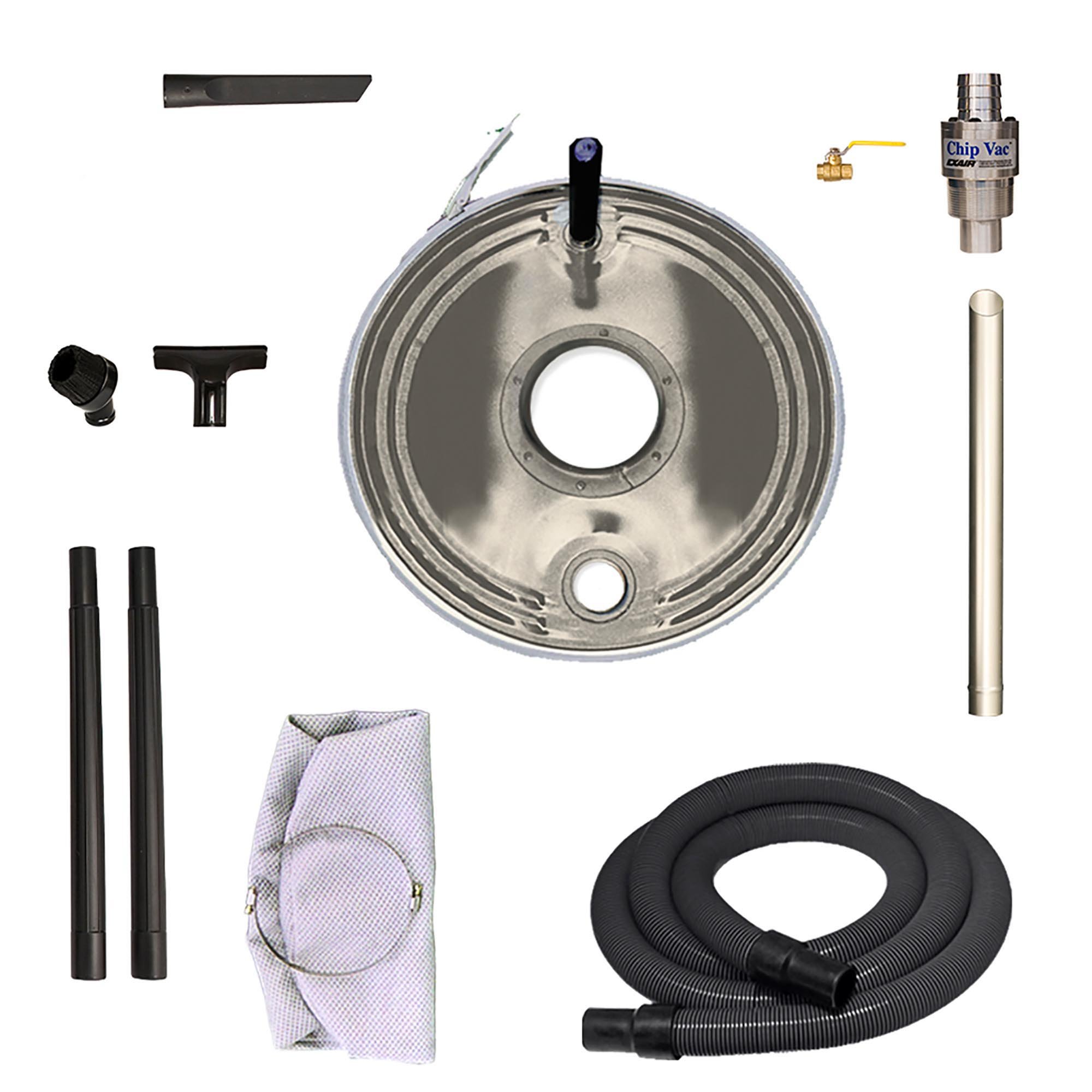

exair-chip-vac-system-6193-30 30 Gallon Chip Vac Standard System includes Chip Vac, shutoff valve, lid, filter bag, hose and tools (drum not included). Chip Vac N/A 1/4 NPT
exair-chip-vac-system-6193 55 Gallon Chip Vac Standard System includes Chip Vac, shutoff valve, 5 gallon drum, lid, filter bag, hose and tools. Chip Vac N/A 1/4 NPT

Applications:

  • CNC's
  • Lathes
  • Saws
  • Mills
  • Drills
  • Grinders
  • Routers
  • Molding machines
  • Absorbent pick-up

Advantages:

  • No moving parts
  • Low cost
  • No motors to clog or wear out
  • No electricity
  • Chips go directly into a drum
  • Powerful direct flow action
  • Includes accessories
  • 50% quieter than electric vacs

Chip Vac Styles

Five styles are available:

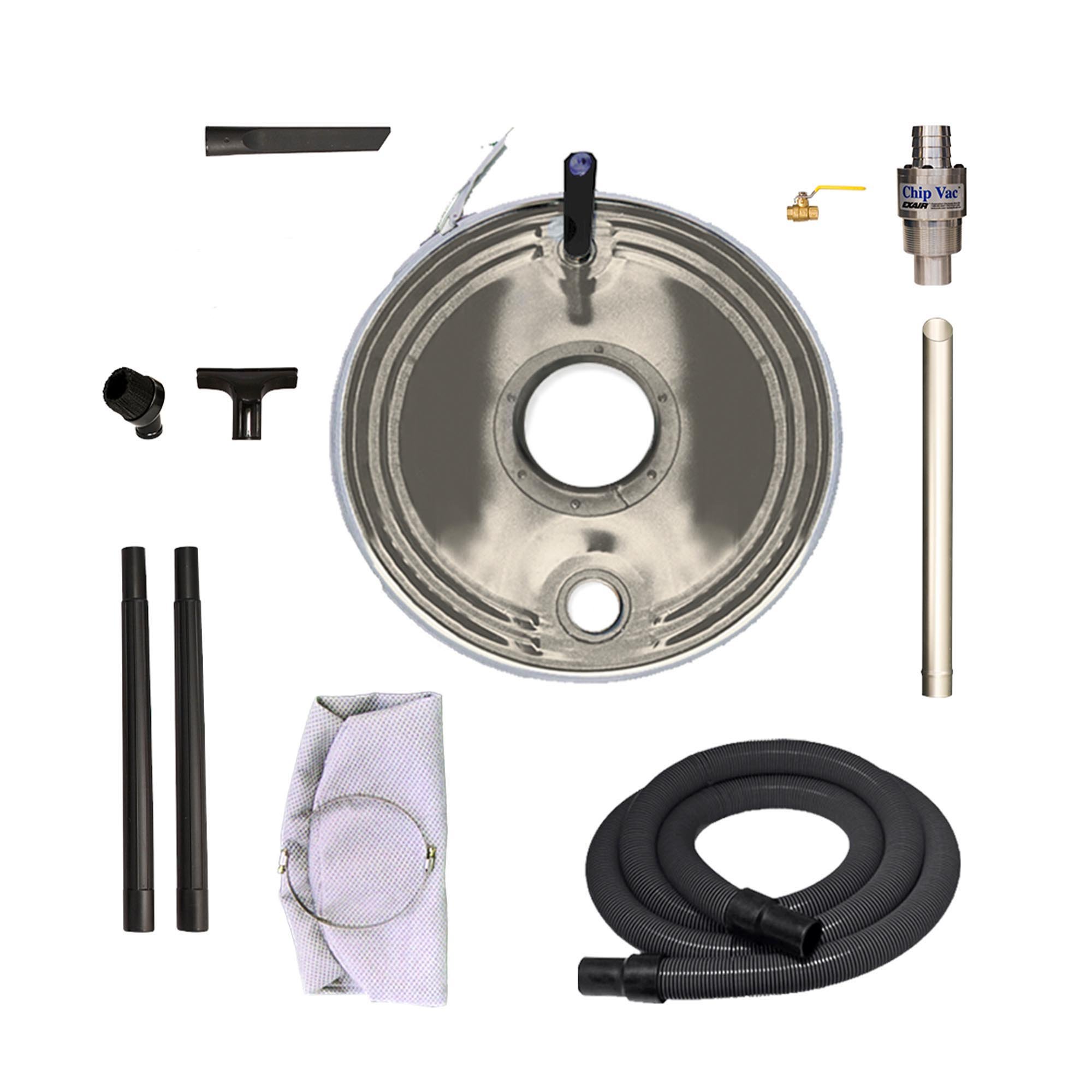

exair-chip-vac-system-6193The standard Chip Vac is good for general purpose chip cleanup and transfer. It includes the Chip Vac vacuum, lever lock drum lid, auto-safety shutoff valve, filter bag, 10' (3m) of flexible vacuum hose at 1-1/2" (38mm) I.D., chip wand, two extension wands, crevice tool, brush and skimmer.



exair-deluxe-chip-vac-6293Deluxe Chip Vac System improves on the Chip Vac by adding features that make it easier to use for everyday tasks. It includes everything that comes with the Chip Vac and adds a drum dolly and a tool holder. All are sized to fit your closed head drum (30, 55 or 110 gallons).



exair-chip-vac-system-6393-30The Premium Chip Vac System upgrades your Chip Vac system all the way by adding a 30, 55 or 110 gallon drum to the Deluxe Chip Vac System. The Chip Vac's standard tools are replaced with heavy duty aluminum tools and the standard vacuum hose is replaced with a 10' (3m) static resistant hose. To make sure you can get your new Chip Vac where it needs to go, 20' (6.1m) of compressed air hose with quick connects fittings is also included.

exair-chip-vac-system-6193-5

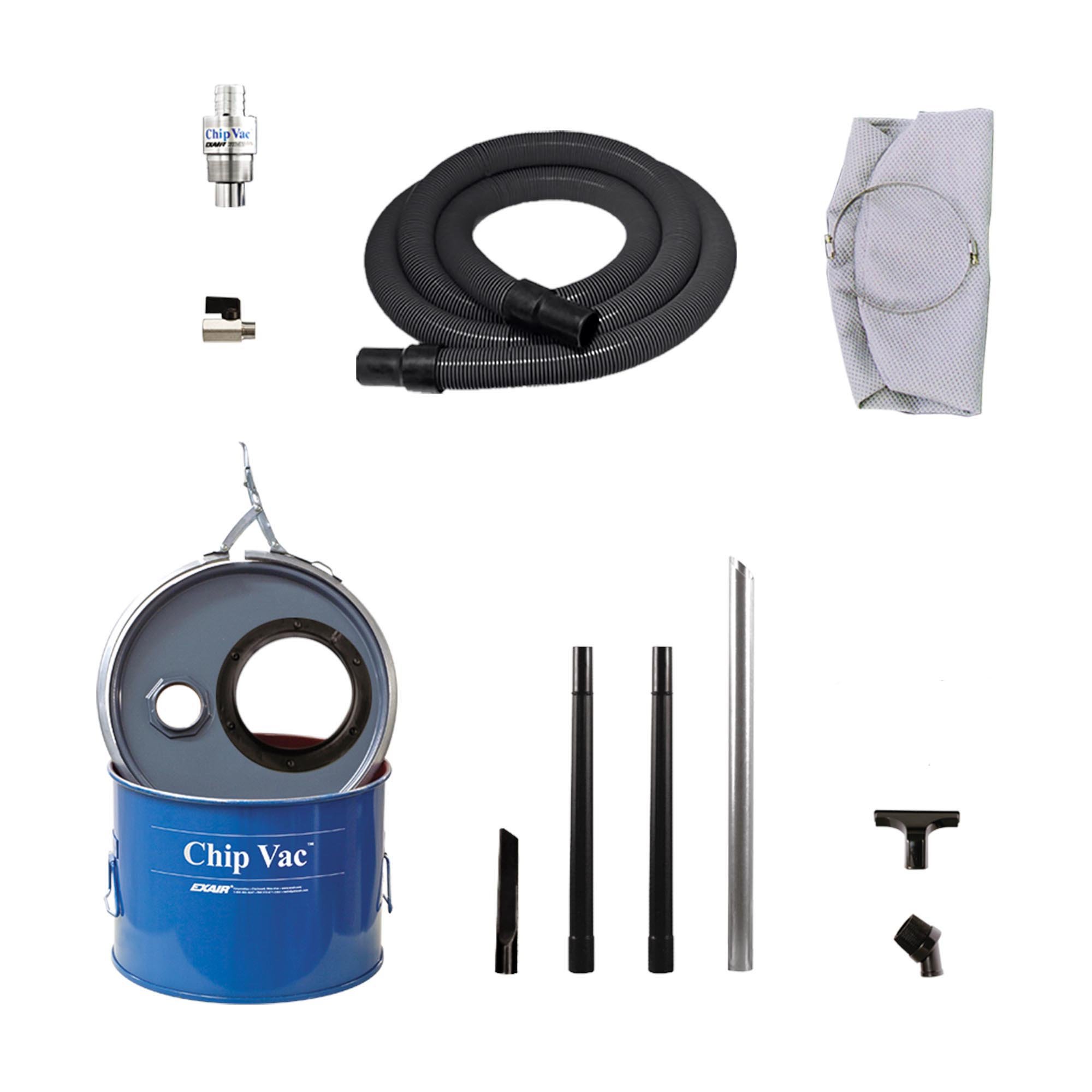

The 5 Gallon Mini Chip Vac has the same features as the Chip Vac but is sized to work with a 5 gallon drum. The Mini Chip Vac System includes the Chip Vac vacuum, a 5 gallon drum with lid and locking ring, 10' (3m) of 1-1/2" (38mm) I.D. flexible vacuum hose, aluminum chip wand, two extension wands, crevice tool, brush and skimmer tool.

exair-deluxe-chip-vac-6293-5The 5 Gallon Deluxe Chip Vac makes the 5 Gallon Mini Chip Vac easier to use in multiple locations by adding a drum dolly.



Performance:

Chip Vac System Performance

Drum Size Pressure Supply Air Consumption Inlet Sound Level
Gallon PSIG BAR SCFM SLPM NPT dBA
30, 55, & 110 80 5.5 40 1,132 3/8 77
5 80 5.5 33 934 3/8 77

 What's Included:

  • Chip Vac vacuum assembly
  • Lever lock drum lid
  • Manual shutoff valve
  • Filter bag
  • 10' (3m) flexible vacuum hose at 1-1/2" (38mm) I.D.
  • Chip wand
  • Two extension wands
  • Crevice tool
  • Brush
  • Skimmer

Drum Not Included except with Mini Chip Vac System

How EXAIR's Chip Vac Works:

exair-chip-vac-system-how-it-works

Compressed air, normally 80-100 PSlG (5.5 - 6.9 BAR), flows through the inlet (1) into an annular plenum chamber (2). It is then injected into the throat through directed nozzles (3). These jets of air create a vacuum at the intake (4) which draws material in, accelerates it through the unit (5), and directs it to the bottom of the drum. The airflow exhausts through the port in the drum lid. Airborne particles are trapped by the filter bag (6).

Warning: Do not use with combustible dust.

Chip Vac Standards and Certifications:




CE CompliantOSHA Safe!EXAIR's Chip Vacs comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.



Conflict Mineral FreeLook for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.

Resources

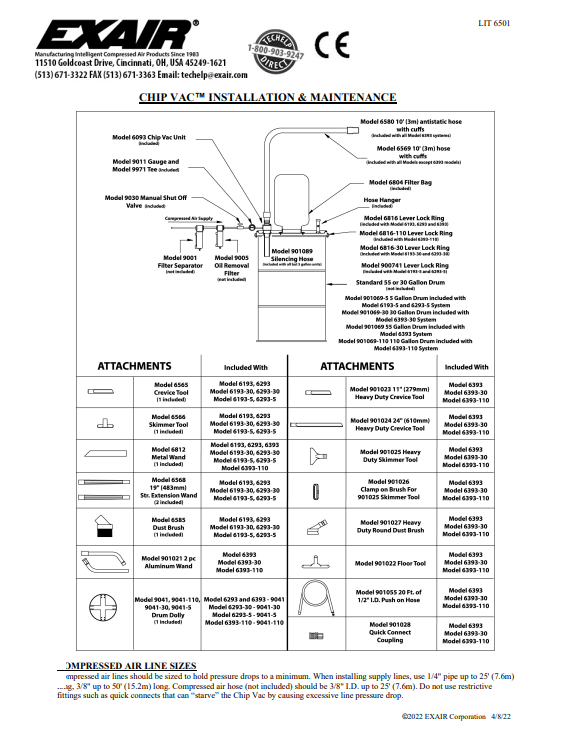

EXAIR Chip Vac Install Sheet

EXAIR Chip Vac Install Sheet

Download

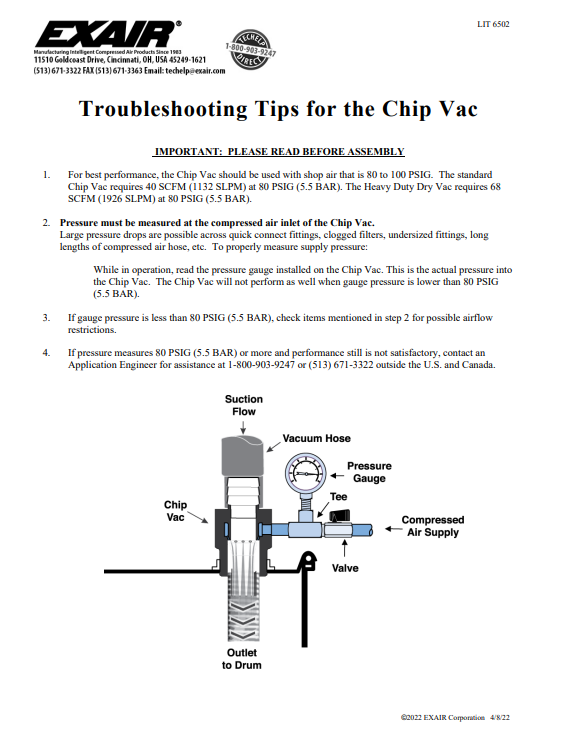

EXAIR Chip Vac Troubleshoot Sheet
