EXAIR's Back Blow Air Nozzles are engineered to clean inside of pipe, tube, hose or channel. An array of holes provide a forceful 360 degree air flow to clear out coolant, chips or debris created from machining processes. This nozzle prevents blowing chips further into a pipe or out the end, which could create a safety hazard. Since air flow is directed back toward the operator personal protective equipment is recommended. They deliver high performance suitable for a wide range of diameters from 1/4 Inch (6.3mm) up to 16 Inch (406mm)!
| Product | Material | Air Inlet | Pipe Inside Diameter |
 |
Type 316 Stainless Steel | 1/4 FNPT | 7/8" - 4" (22-102mm) |
 |
Type 316 Stainless Steel | 1 FNPT | 2" - 16" (51-406mm) |
 |
Type 316 Stainless Steel | M4x0.5 | 1/4" - 1" (6-25mm) |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Materials:
- Type 316 Stainless Steel high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)
Accessories:
Chip Shields - should be used to protect operators from flying debris.
|
| Extensions provide the necessary reach to clean out your pipe, tube, hose or channel. Available up to 72" (1829mm) long. | |
| Model | Description |
| 9492 | 6" (152mm) Aluminum, M4x0.5 |
| 9493 | 12" (152mm) Aluminum, M4x0.5 |
| 9495 | 24" (152mm) Aluminum, M4x0.5 |
| 9497 | 36" (152mm) Aluminum, M4x0.5 |
| 9188 | 12" (305mm) Aluminum, 1/4 NPT |
| 9189 | 18" (477mm) Aluminum, 1/4 NPT |
| 9190 | 24" (610mm) Aluminum, 1/4 NPT |
| 9191 | 36" (914mm) Aluminum, 1/4 NPT |
| 9192 | 48" (1219mm) Aluminum, 1/4 NPT |
| 9193 | 60" (1524mm) Aluminum, 1/4 NPT |
| 9194 | 72" (1829mm) Aluminum, 1/4 NPT |
| 900353 | 12" (305mm) Aluminum, 1 NPT |
| 901254 | 36" (914mm) Aluminum, 1 NPT |
| 901259 | 72" (1829mm) Aluminum, 1 NPT |
Back Blow Air Nozzle Performance |
||||
| Model | Air Consumption | Sound Level | Use with | |
| SCFM | SLPM | dBA | Inside Diameters | |
| 1004SS | 4.5 | 127 | 75 | 1/4" – 1" (6.3-25.4mm) |
| 1006SS | 22 | 622 | 80 | 7/8" – 4" (22-102mm) |
| 1008SS | 57 | 1,614 | 89 | 2" – 16" (51-406mm) |

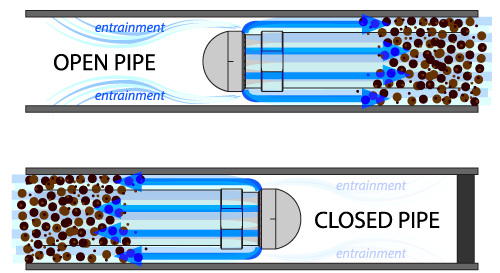

How the Back Blow Air Nozzle Works:
Back Blow Air Nozzle Dimensions & Airflow |

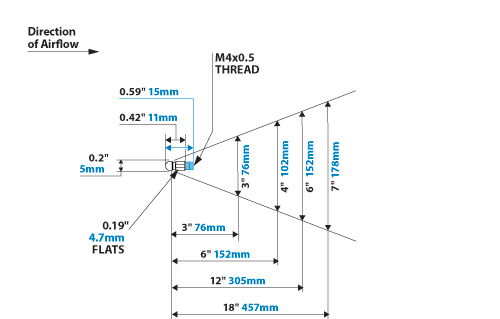

| Model 1004SS Back Blow Air Nozzle |
|
|

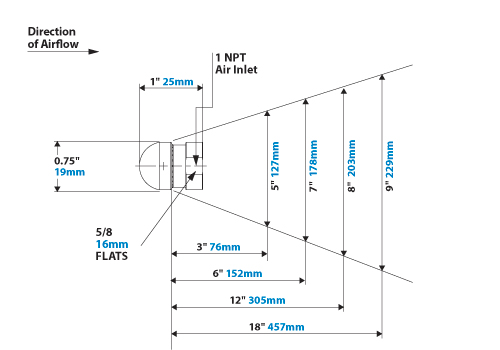

| Model 1006SS Back Blow Air Nozzle |
|
|

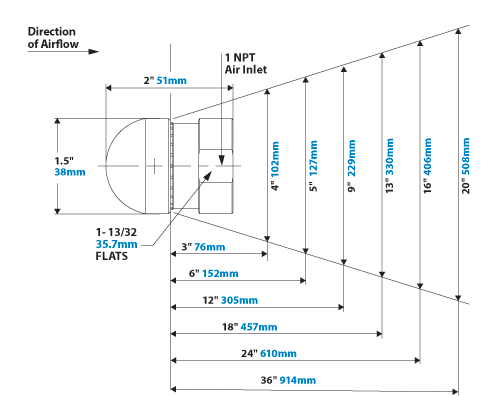

| Model 1008SS Back Blow Air Nozzle |
|
|
Back Blow Air Nozzle Standards and Certifications
EXAIR Back Blow Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
