EXAIR Adjustable Air Nozzle with Stay Set Hose and Magnetic Base

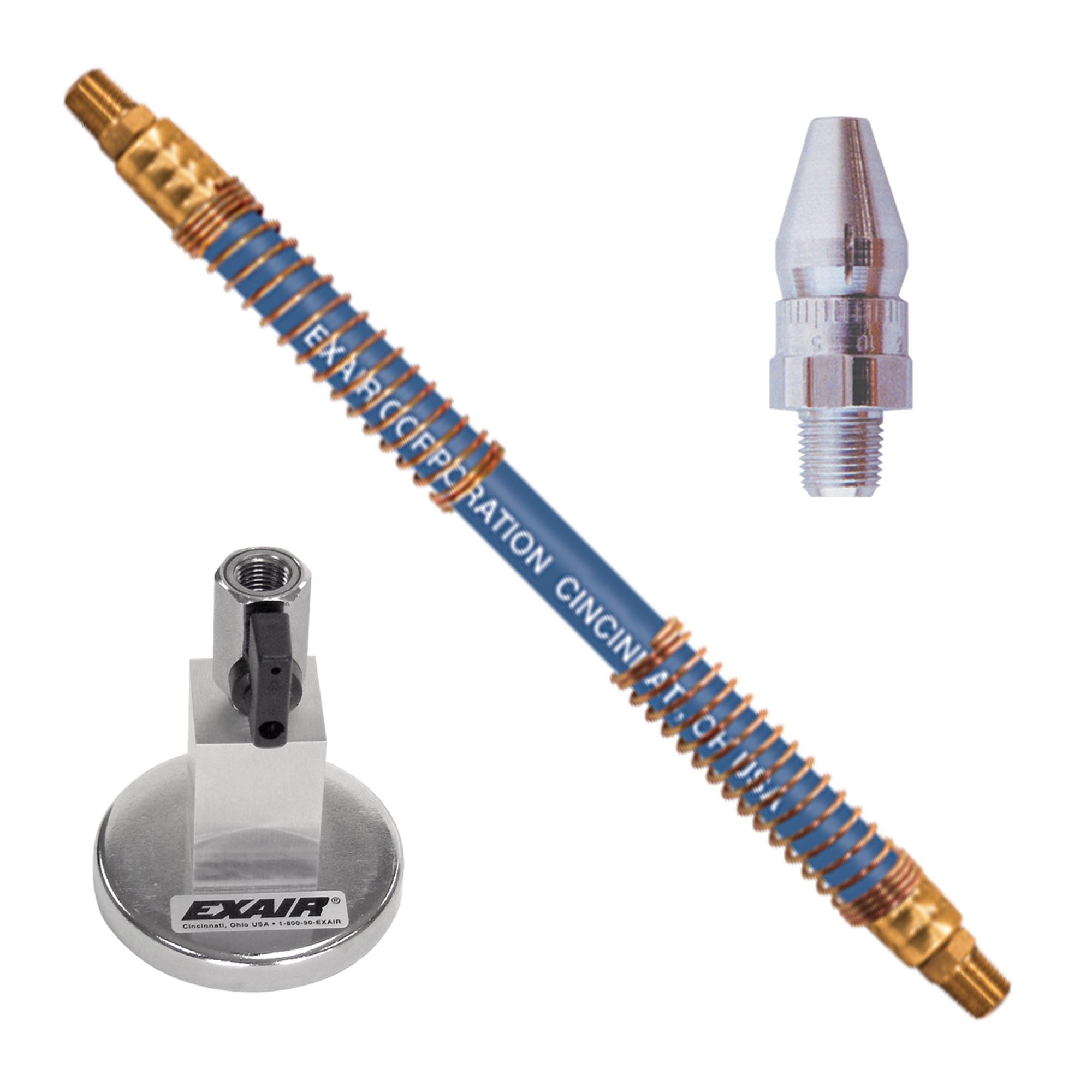

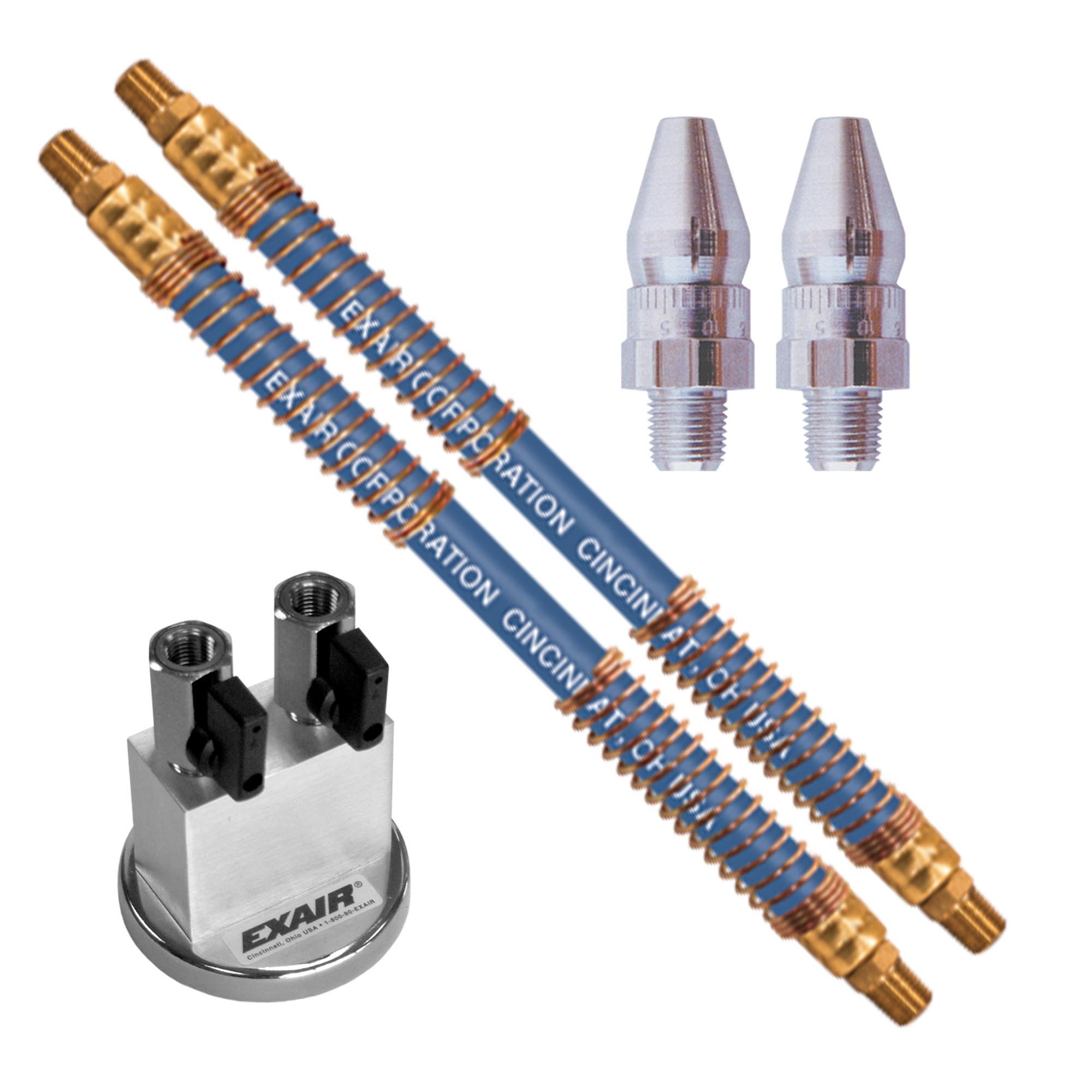

The EXAIR Adjustable Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required and a One or Two Outlet Magnetic Base for firm attachment to magnetic surfaces. EXAIR's Adjustable Air Nozzles are suitable for a wide variety of blowoff applications. The design allows you to tune in the force and flow to the application requirements, thereby minimizing air consumption. A micrometer-like dial indicates the gap setting. A set screw in the end can be tightened so the air nozzle holds the setting.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets
exair-adjustable-air-nozzle-1009-9356 Aluminum 13 SCFM 1/4 MNPT 6" (152mm) 1
exair-adjustable-air-nozzle-1009-9456 Aluminum 13 SCFM 1/4 MNPT 6" (152mm) 2
exair-adjustable-air-nozzle-1009ss-9356 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 6" (152mm) 1
exair-adjustable-air-nozzle-1009ss-9456 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 6" (152mm) 2
exair-adjustable-air-nozzle-1009-9362 Aluminum 13 SCFM 1/4 MNPT 12" (305mm)
exair-adjustable-air-nozzle-1009-9462 Aluminum 13 SCFM 1/4 MNPT 12" (305mm) 2
exair-adjustable-air-nozzle-1009ss-9362 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 12" (305mm)
exair-adjustable-air-nozzle-1009ss-9462 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 12" (305mm) 2
exair-adjustable-air-nozzle-1009-9368 Aluminum 13 SCFM 1/4 MNPT 18" (457mm) 1
exair-adjustable-air-nozzle-1009-9468 Aluminum 13 SCFM 1/4 MNPT 18" (457mm) 2
exair-adjustable-air-nozzle-1009ss-9368 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 18" (457mm) 1
exair-adjustable-air-nozzle-1009ss-9468 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 18" (457mm) 2
exair-adjustable-air-nozzle-1009-9374 Aluminum 13 SCFM 1/4 MNPT 24" (610mm)
exair-adjustable-air-nozzle-1009-9474 Aluminum 13 SCFM 1/4 MNPT 24" (610mm) 2
exair-adjustable-air-nozzle-1009ss-9374 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 24" (610mm)
exair-adjustable-air-nozzle-1009ss-9474 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 24" (610mm) 2
exair-adjustable-air-nozzle-1009-9380 Aluminum 13 SCFM 1/4 MNPT 30" (762mm) 1
exair-adjustable-air-nozzle-1009-9480 Aluminum 13 SCFM 1/4 MNPT 30" (762mm) 2
exair-adjustable-air-nozzle-1009ss-9380 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 30" (762mm) 1
exair-adjustable-air-nozzle-1009ss-9480 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 30" (762mm) 2
exair-adjustable-air-nozzle-1009-9386 Aluminum 13 SCFM 1/4 MNPT 36" (914mm) 1
exair-adjustable-air-nozzle-1009-9486 Aluminum 13 SCFM 1/4 MNPT 36" (914mm) 2
exair-adjustable-air-nozzle-1009ss-9386 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 36" (914mm) 1
exair-adjustable-air-nozzle-1009ss-9486 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 36" (914mm) 2

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Adjustable force and flow
  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • High velocity airstream
  • Installs with a socket wrench
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Models available in aluminum and stainless steel

Materials:

  • Aluminum - general purpose applications. Maximum temperature 150°F (66°C).
  • Type 303 Stainless Steel - high temperatures, corrosive environments. Maximum temperature 800°F (426°C).

Accessories:

swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel



Adjustable Air Nozzle Performance

Air Consumption Force* Sound Level
SCFM SLPM Ozs Grams dBA

13

368

12

340

79

*Force measured at 12" (305mm) from target with a .008" (0.20mm) factory setting.

Sound level measured at 3' (914mm)

All measurements taken at 80 PSIG (5.5 BAR)
