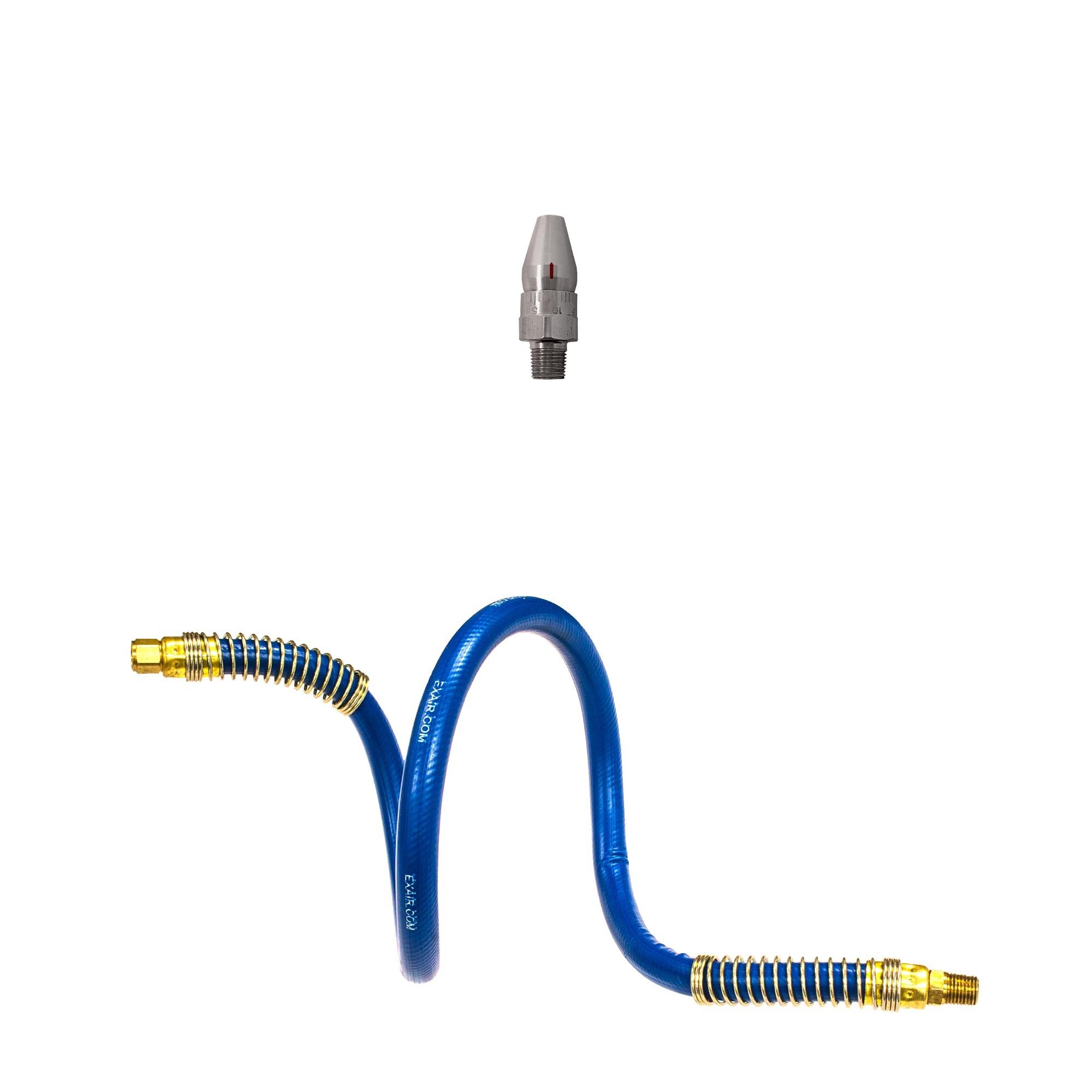

EXAIR Adjustable Air Nozzle with Stay Set Hose

EXAIR's Adjustable Air Nozzles are suitable for a wide variety of blowoff applications. The design allows you to tune in the force and flow to the application requirements, thereby minimizing air consumption. A micrometer-like dial indicates the gap setting. A set screw in the end can be tightened so the air nozzle holds the setting. The Adjustable Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required. The Stay Set Hose has memory and will not creep or bend.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets
exair-adjustable-air-nozzle-1009-9256 Aluminum  13 SCFM 1/4 MNPT 6" (152mm) Not Applicable
exair-adjustable-air-nozzle-1009ss-9256 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 6" (152mm) Not Applicable
exair-adjustable-air-nozzle-1009-9262 Aluminum  13 SCFM 1/4 MNPT 12" (305mm) Not Applicable
exair-adjustable-air-nozzle-1009ss-9262 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 12" (305mm) Not Applicable
exair-adjustable-air-nozzle-1009-9268 Aluminum  13 SCFM 1/4 MNPT 18" (457mm) Not Applicable
exair-adjustable-air-nozzle-1009ss-9268 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 18" (457mm) Not Applicable
exair-adjustable-air-nozzle-1009-9274 Aluminum  13 SCFM 1/4 MNPT 24" (610mm) Not Applicable
exair-adjustable-air-nozzle-1009ss-9274 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 24" (610mm) Not Applicable
exair-adjustable-air-nozzle-1009-9280 Aluminum  13 SCFM 1/4 MNPT 30" (762mm) Not Applicable
exair-adjustable-air-nozzle-1009ss-9280 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 30" (762mm) Not Applicable
exair-adjustable-air-nozzle-1009-9286 Aluminum  13 SCFM 1/4 MNPT 36" (914mm) Not Applicable
exair-adjustable-air-nozzle-1009ss-9268 Type 303 Stainless Steel 13 SCFM 1/4 MNPT 36" (914mm) Not Applicable

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Adjustable force and flow
  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • High velocity airstream
  • Installs with a socket wrench
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Models available in aluminum and stainless steel

Materials:

  • Aluminum - general purpose applications. Maximum temperature 150°F (66°C).
  • Type 303 Stainless Steel - high temperatures, corrosive environments. Maximum temperature 800°F (426°C).

Accessories:

swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel



magnetic-bases

Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.




Adjustable Air Nozzle Performance

Air Consumption Force* Sound Level
SCFM SLPM Ozs Grams dBA
13 368 12 340 79

*Force measured at 12" (305mm) from target with a .008" (0.20mm) factory setting.

Sound level measured at 3' (914mm)

All measurements taken at 80 PSIG (5.5 BAR)

How EXAIR Air Nozzles Work

anworksaEXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

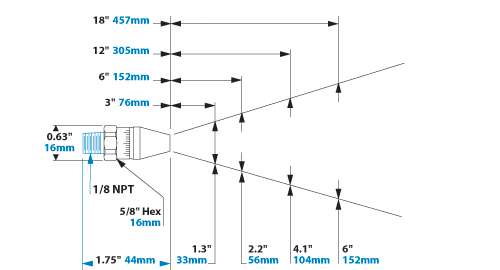

Adjustable Air Nozzle Dimensions & Airflow Pattern
