EXAIR's Adjustable Air Jets are an adjustable version of our High Velocity Air Jets. They are engineered to provide a powerful, directed airstream that is easily adjustable using the micrometer gap indicator. The focused blast of air is ideal for part ejection, chip removal and part drying.
| Product | Material | Air Jet Type | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |

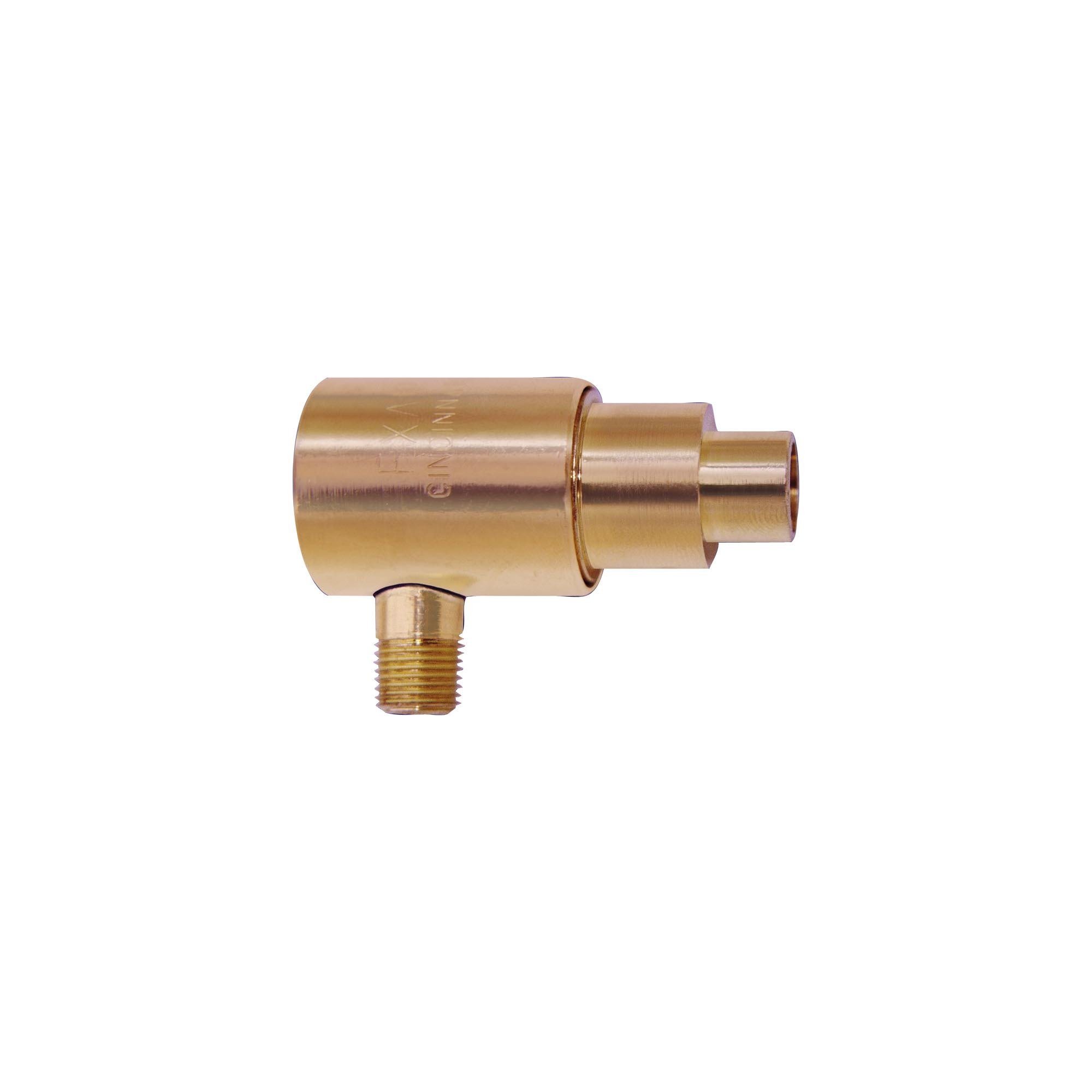

Brass | Adjustable Air Jet | 1/8 MNPT | Not Applicable | Not Applicable |
 |

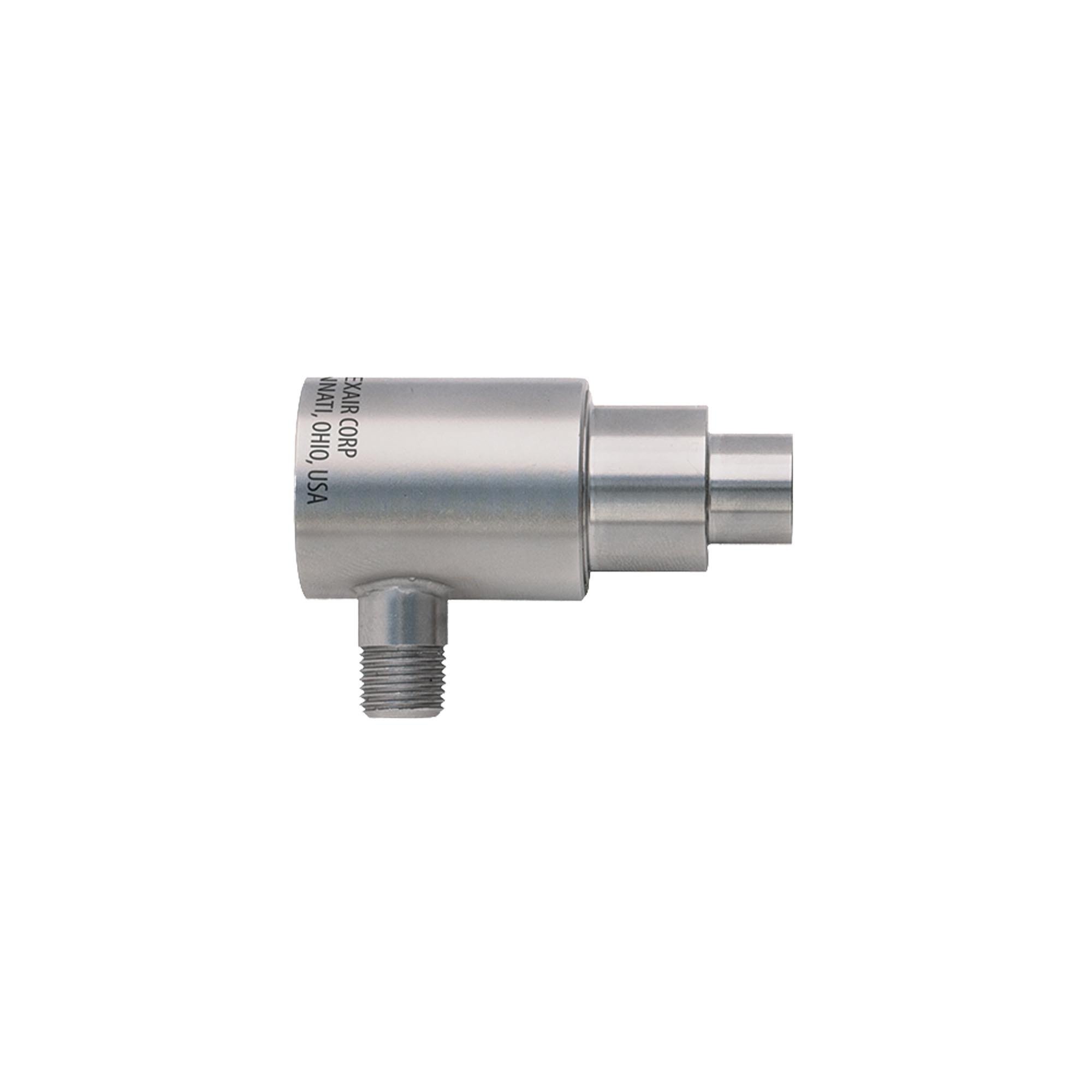

Type 303 Stainless Steel | Adjustable Air Jet | 1/8 MNPT | Not Applicable | Not Applicable |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Available in Brass and Type 303 Stainless Steel
Adjustable Air Jet Materials:
- Brass - general purpose applications. Maximum temperature 400°F (204°C).
- Type 303 Stainless Steel - high temperatures, corrosive environments. Maximum temperature 800°F (426°C).
Adjustable Air Jet Accessories:
Stay Set Hose - For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has "memory", it will not creep or bend. It always keeps the aim until physically moved to the next position.
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel
Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
Adjustable Air Jet Performance |
||||
| Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA |
| 18 | 509 | 16 | 454 | 83 |
|
*Force measured at 12" (305mm) from target with a .006" (0.15mm) setting Sound level measured at 3' (914mm) All measurements taken at 80 PSIG (5.5 BAR) |
||||

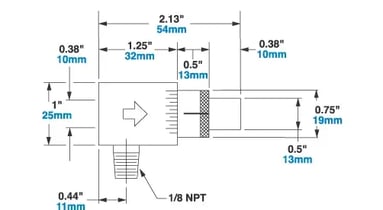

Dimensions - Adjustable Air Jet |
Models6019, 6019SS |

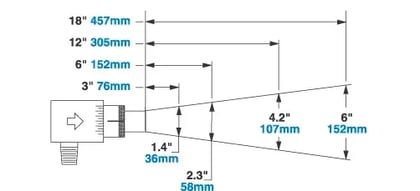

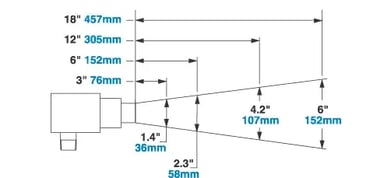

Airflow Pattern - Adjustable Air Jet |
Models6019, 6019SS |
How EXAIR Air Jets Work:

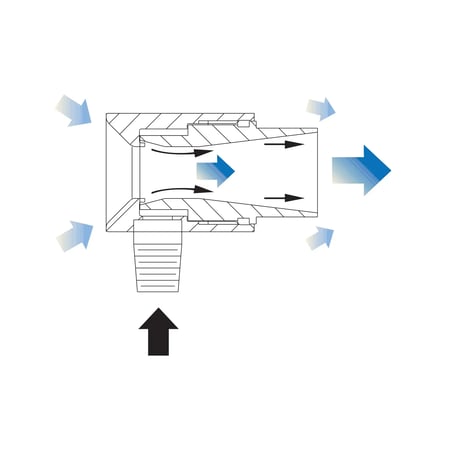

Air Jets utilize the Coanda effect (wall attachment of a high velocity fluid) to produce air motion in their surroundings. As illustrated above, a small amount of compressed air (black arrows) is throttled through an internal ring nozzle above sonic velocity. A vacuum is produced, pulling large volumes of surrounding, or free air, through the jet (blue arrows). Both the outlet and inlet can be ducted for remote positioning. If the end is blocked, flow simply reverses at well below OSHA dead end pressure requirements.
Adjustable Air Jet Dimensions and Airflow |
 |
Adjustable Air Jet Standards and Certifications
EXAIR Adjustable Air Jets comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
