| Product | Outlet Diameter | Material | EFC Electronic Flow Control | Includes Shim Set, Filter Separator, Pressure Regulator | |
 |
3/4" (19mm) | Aluminum | N/A | N/A | 1/8 FNPT |
 |
3/4" (19mm) | Stainless Steel | N/A | N/A | 1/8 FNPT |
 |
1-1/4" (32mm) | Aluminum | N/A | N/A | 1/4 FNPT |
 |
1-1/4" (32mm) | Stainless Steel | N/A | N/A | 1/4 FNPT |
 |

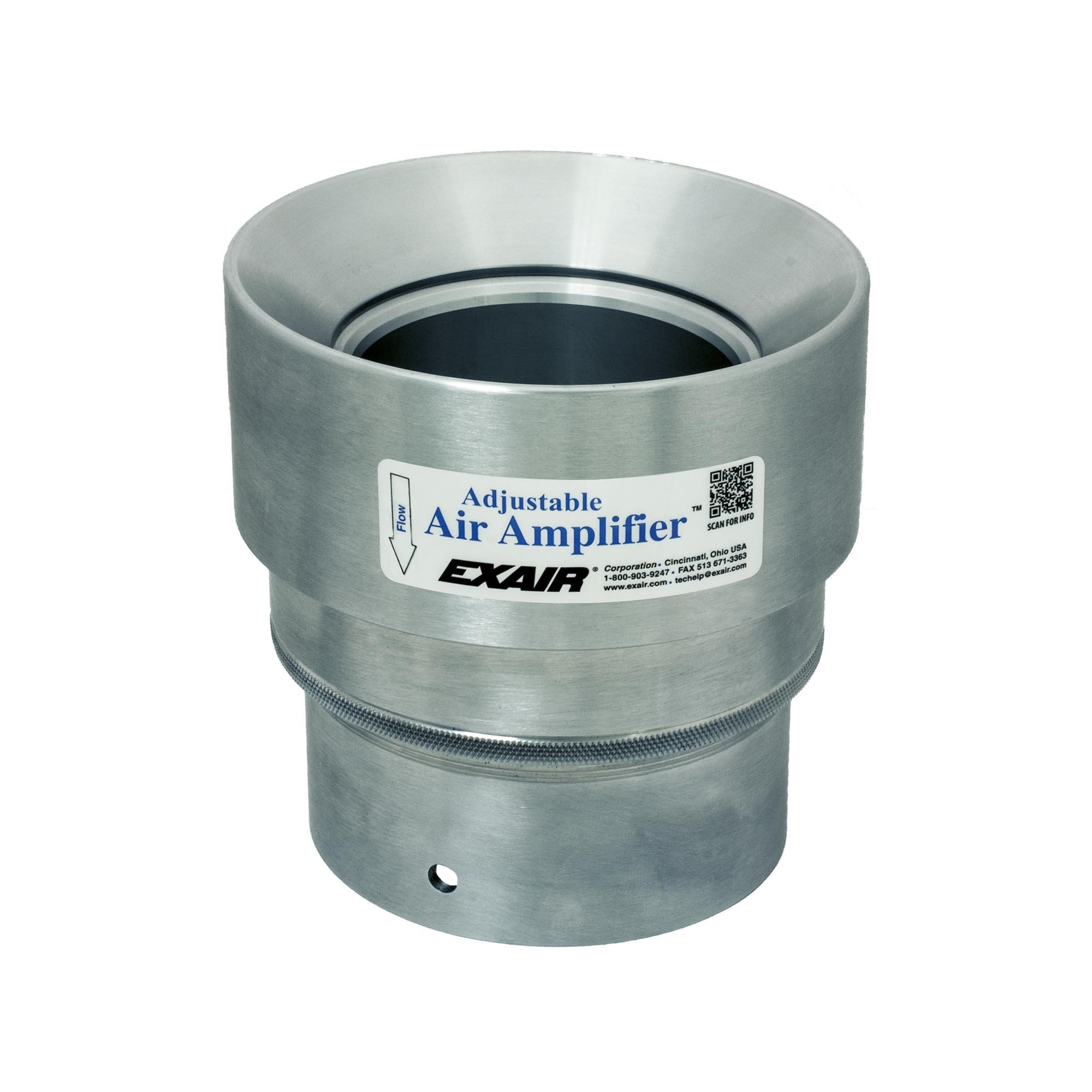

2" (51mm) | Aluminum | N/A | N/A | 3/8 FNPT |
 |

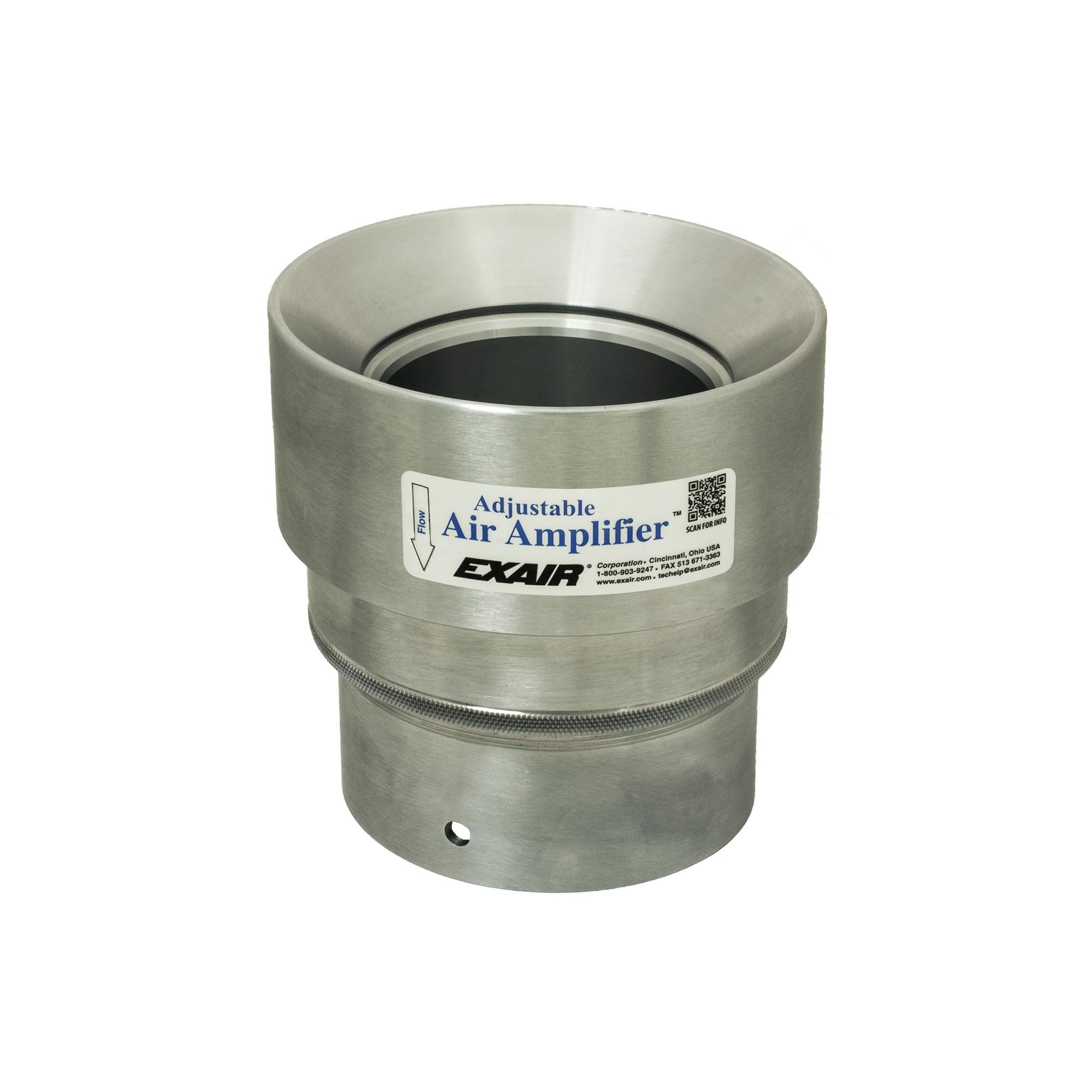

2" (51mm) | Stainless Steel | N/A | N/A | 3/8 FNPT |
 |

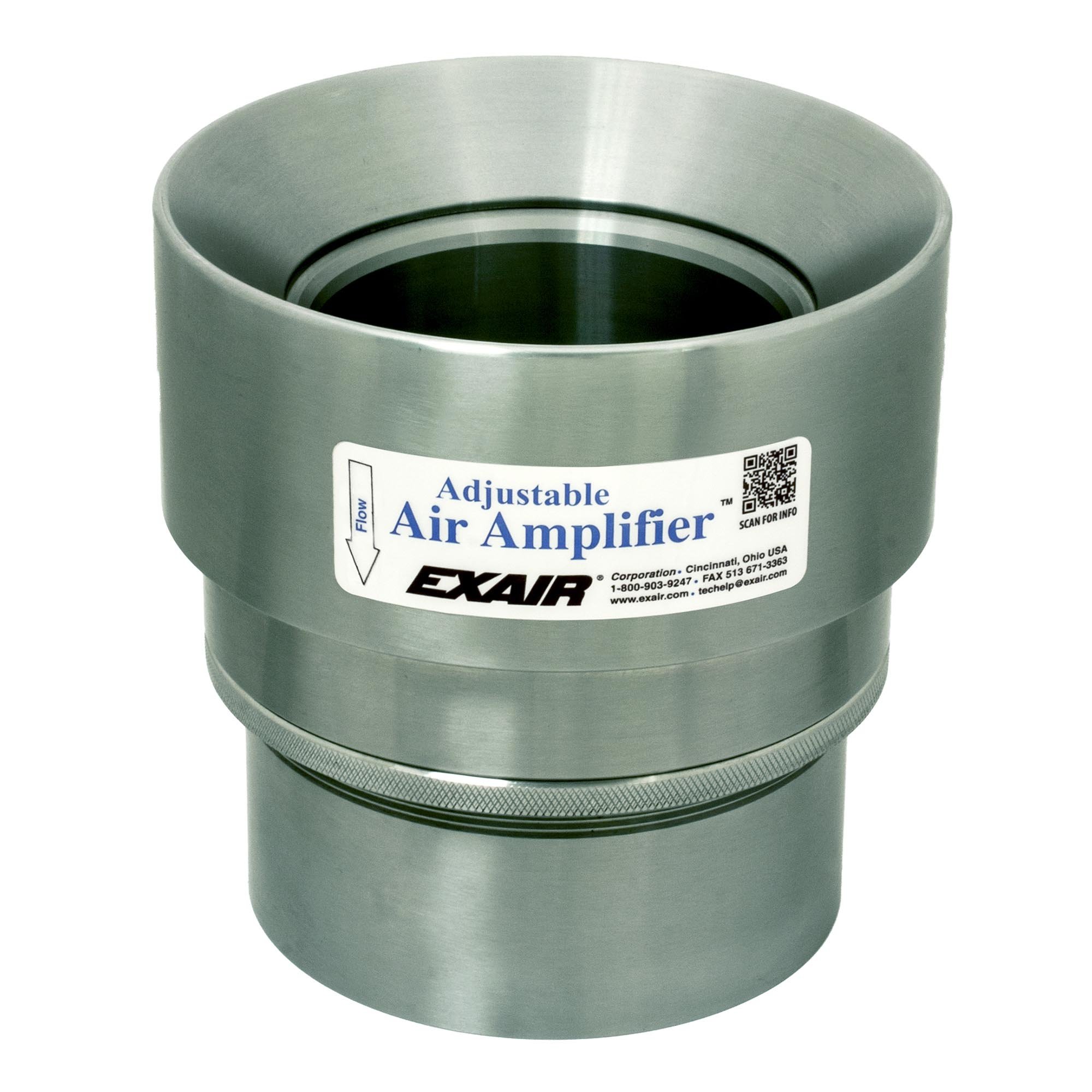

3" (76mm) | Aluminum | N/A | N/A | 1/2 FNPT |
 |
3" (76mm) | Stainless Steel | N/A | N/A | 1/2 FNPT |
 |
4" (102mm) | Aluminum | N/A | N/A | 1/2 FNPT |
 |

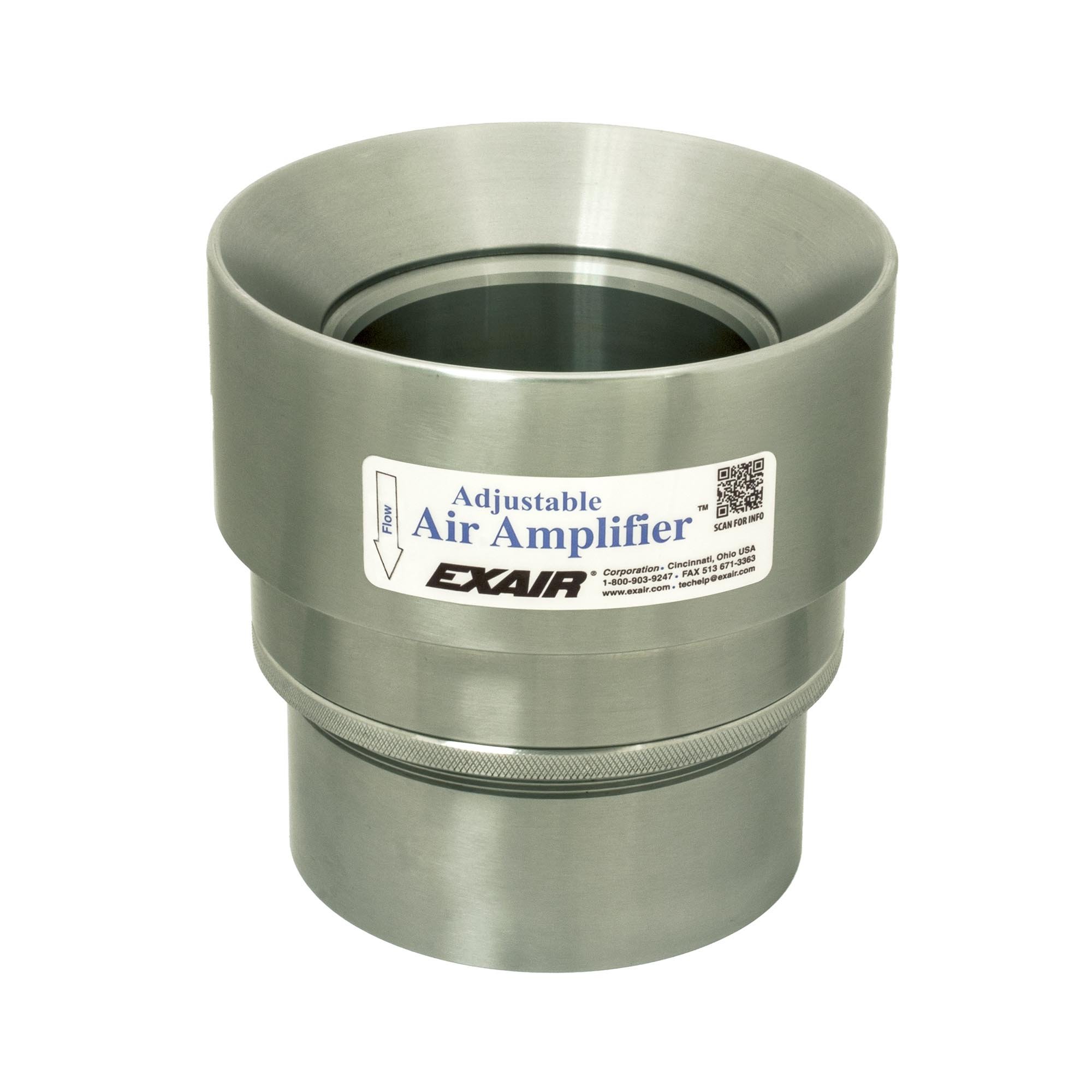

4" (102mm) | Stainless Steel | N/A | N/A | 1/2 FNPT |
Specifications:
Adjustable Air Amplifier Performance |
||||||||
| 80 PSIG (5.5 BAR) | Air Consumption | Amplification | Air Volume at Outlet | Air Volume at 6" (152mm) | Sound Level | |||
| Model # | SCFM | SLPM | RATIO | SCFM | SLPM | SCFM | SLPM | dBA |
| 6030, 6230, 6040, 6240 | 8.9 | 252 | 10 | 89 | 2,520 | 267 | 7,560 | 78 |
| 6031, 6231, 6041, 6241 | 12.9 | 365 | 16 | 206 | 5,833 | 618 | 17,500 | 81 |
| 6032, 6232, 6042, 6242 | 21.5 | 608 | 20 | 430 | 12,176 | 1,290 | 36,529 | 82 |
| 6033, 6233, 6043, 6243 | 35.2 | 997 | 22 | 774 | 21,917 | 2,323 | 65,780 | 83 |
| 6034, 6234, 6044, 6244 | 50 | 1,416 | 24 | 1,200 | 33,980 | 3,600 | 101,941 | 84 |
|
Tested with .002" (0.05mm) gap. |
||||||||
Applications:
- Vent welding smoke
- Cool hot parts
- Dry wet parts
- Clean machined parts
- Distribute heat in ovens/molds
- Ventilate confined areas
- Dust collection
- Exhaust tank fumes
Compared to Fans:
- Compact, lightweight, portable
- No electricity
- No moving parts - no maintenance
- Ends are easily ducted
- Instant on/off
- Variable force and flow
- No RF interference
Compared to Venturies and Ejectors:
- More air with lower compressed air consumption
- Higher flow amplification
- No internal obstructions
- Meets OSHA pressure and noise requirements
- Quiet
How Air Amplifiers Work:
Compressed air flows through the air inlet (1) into an annular chamber (2). It is then throttled through a small ring nozzle (3) at high velocity. This primary airstream adheres to the Coanda profile (4), which directs it toward the outlet. A low pressure area is created at the center (5), inducing a high volume flow of surrounding air into the primary airstream. The combined flow of primary and surrounding air exhausts from the Air Amplifier in a high volume, high velocity flow.
Air Amplifier Standards and Certifications
EXAIR Air Amplifiers comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
