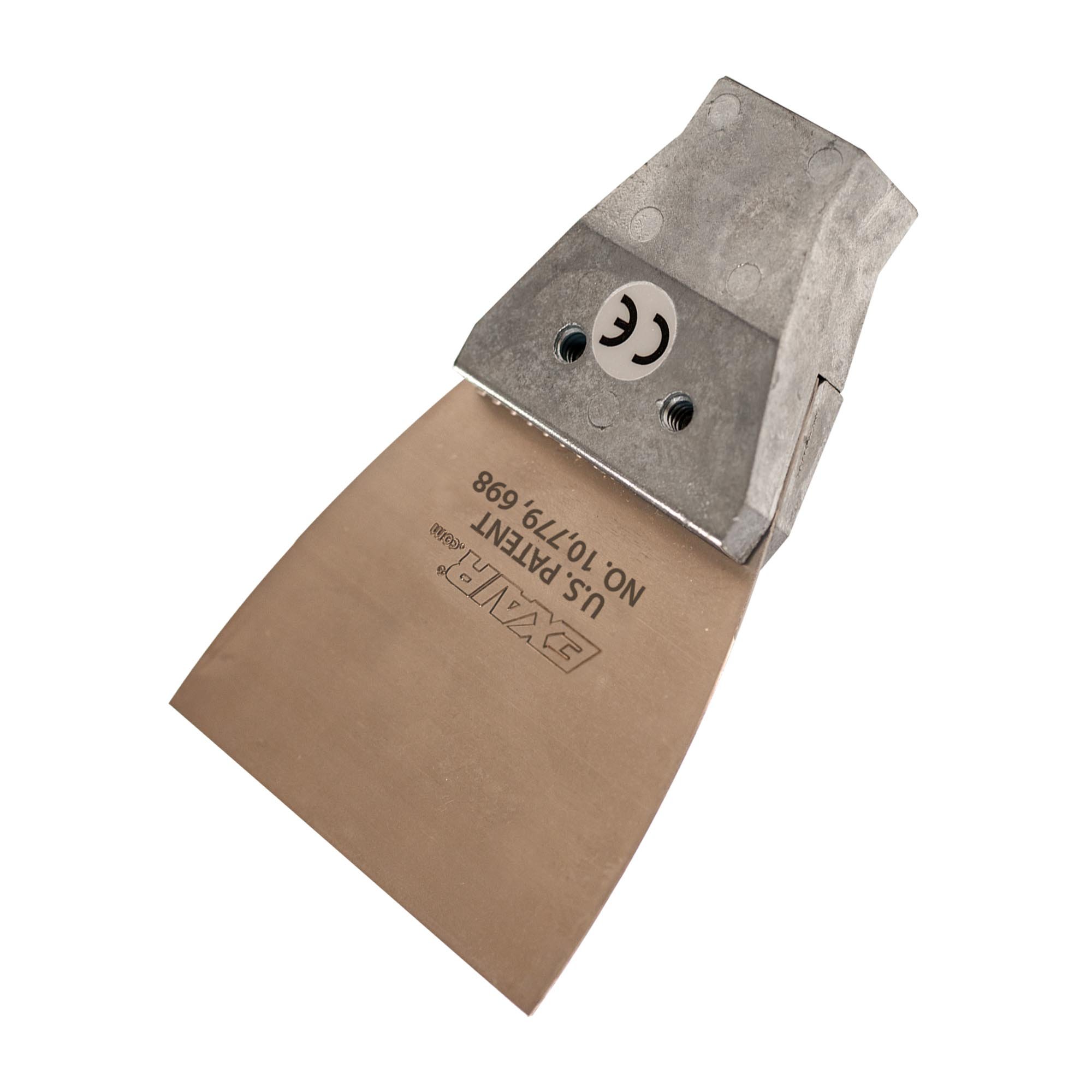

EXAIR's 2 Inch Super Air Scraper is a unique, highly efficient, corrosion resistant steel scraper used in conjunction with EXAIR's 2 Inch Flat Super Air Nozzle. The patented design of this scraper aids in the powerful compressed air flow removal of debris. This product is perfect for removal of caulk, sealant, adhesives, tape, paint, stickers, labels, grease, lubricant and difficult to sweet metal chips, flakes or discs all with minimal air consumption and noise. U.S. Patent No.: 10,779,698
| Product | Material | Flow | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
Zinc-Aluminum/Steel | 22 SCFM | 1/4 FNPT | Not Applicable | Not Applicable |
Applications:
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
Super Air Scraper Materials:
- Zinc Aluminum alloy - general purpose applications. Maximum temperature: 250°F (121°C).
- Steel Scraper is excellent for removal of caulk, gaskets, sealants, paint and more. Maximum temperature: 250°F (121°C).
Accessories:
Shim Sets - Shim sets for the 2" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm) and .020" (0.51mm) thick shim.
Scraper Blade - This corrosion resistant steel blade provides the scraping functionality of our Model 1144 2" Super Air Scraper.
Model 1144 2" Super Air Scraper |
|||||
Inlet: 1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Ozs | Grams | dBA | |
| 22 | 622 | 22 | 624 | 77 | |
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

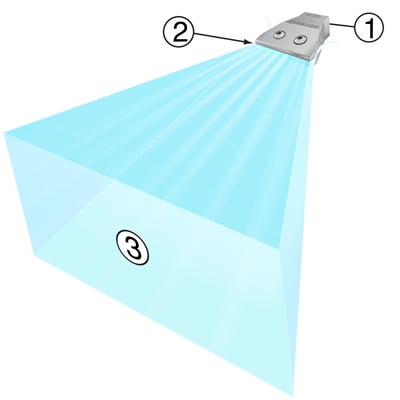

How the Flat Super Air Nozzle Works
Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle. The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line. This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle. Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1. The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.

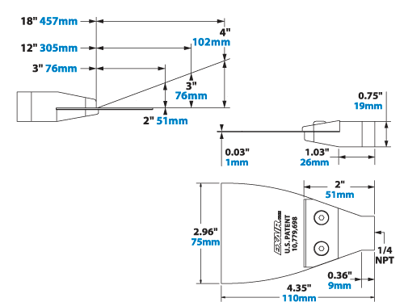

2" Super Air Scraper Dimensions and Airflow (2" Flat Super Air Nozzle with steel scraper) |
2" Super Air Scraper Dimensions and Airflow |
Super Air Scraper Standards and Certifications
EXAIR's Super Air Scrapers comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
