The 2 Inch Flat Super Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where repositioning or aiming is required. The Stay Set Hose has memory and will not creep or bend. The 2 Inch Flat Super Air Nozzle is available in zinc/aluminum alloy or Type 316 stainless steel. EXAIR™s 2 Inch High Power Flat Super Air Nozzles produce a flat 2 Inch (51mm) wide airstream with a strong blowing force of 2.2 pounds (1,134 grams). The adjustable force is more than three times that of ordinary air nozzles. It uses EXAIR™s patented technology to maximize entrained airflow while reducing noise levels.
| Product | Material | Flow | Air Inlet | Stay Set Hose Length | Number of Mag Base Outlets |
 |
Zinc-Aluminum | 37 SCFM | 1/4 MNPT | 6" (152mm) | Not Applicable |
 |
Type 316 Stainless Steel | 37 SCFM | 1/4 MNPT | 6" (152mm) | Not Applicable |
 |
Zinc-Aluminum | 37 SCFM | 1/4 MNPT | 12" (305mm) | Not Applicable |
 |
Type 316 Stainless Steel | 37 SCFM | 1/4 MNPT | 12" (305mm) | Not Applicable |
 |
Zinc-Aluminum | 37 SCFM | 1/4 MNPT | 18" (457mm) | Not Applicable |
 |
Type 316 Stainless Steel | 37 SCFM | 1/4 MNPT | 18" (457mm) | Not Applicable |
 |
Zinc-Aluminum | 37 SCFM | 1/4 MNPT | 24" (610mm) | Not Applicable |
 |
Type 316 Stainless Steel | 37 SCFM | 1/4 MNPT | 24" (610mm) | Not Applicable |
 |
Zinc-Aluminum | 37 SCFM | 1/4 MNPT | 30" (762mm) | Not Applicable |
 |
Type 316 Stainless Steel | 37 SCFM | 1/4 MNPT | 30" (762mm) | Not Applicable |
 |
Zinc-Aluminum | 37 SCFM | 1/4 MNPT | 36" (914mm) | Not Applicable |
 |
Type 316 Stainless Steel | 37 SCFM | 1/4 MNPT | 36" (914mm) | Not Applicable |
Applications:
-
Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages:
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
2" High Power Flat Super Air Nozzle Materials:
- Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
- Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)
Accessories:

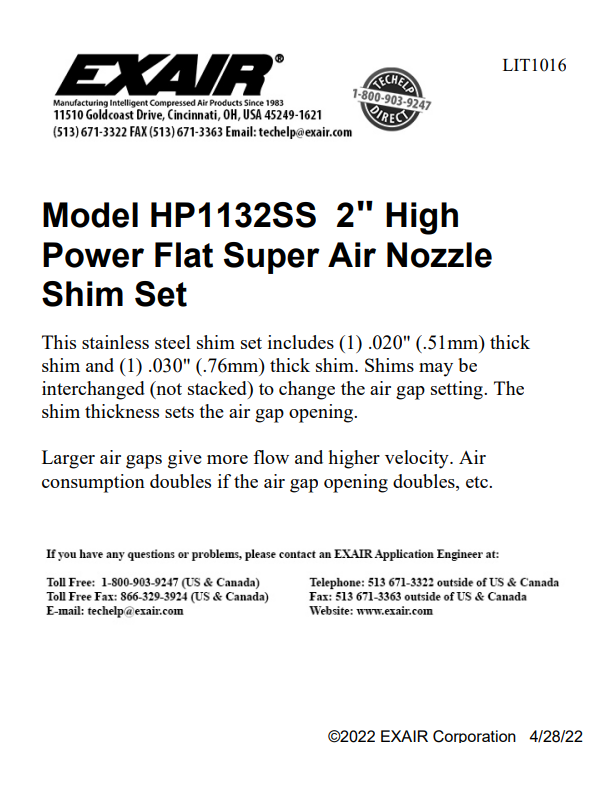

Shim Sets - Shim sets for the 1" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm), and .020" (0.51mm) thick shim.
Stay Set Hose - For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses™ are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has “memory”, it will not creep or bend. It always keeps the aim until physically moved to the next position.
Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.
Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.
2" High Power Flat Super Air Nozzle Performance |
|||||
| Air Consumption | Force* | Sound Level | |||
| Model | SCFM | SLPM | Lbs | Grams | dBA |
| HP1125/HP1125SS | 37 | 1,039 | 2.2 | 998 | 83 |
|
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR). .025" (0.64mm) shim installed. |
|||||
How EXAIR Flat Super Air Nozzles Work
Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle. The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line. This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle. Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1. The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.

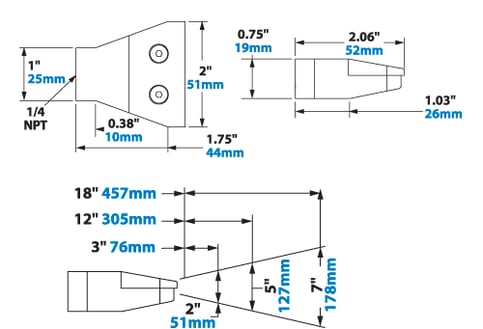

2" High Power Flat Super Air Nozzle Dimensions and Airflow |
2" High Power Flat Super Air Nozzle Dimensions and Airflow
|
2" High Power Flat Super Air Nozzle Standards and Certifications
EXAIR 2" High Power Flat Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
