EXAIR 2 Inch Flat Super Air Nozzle™ with Stay Set Hose and Magnetic Base

EXAIR's 2 Inch Flat Super Air Nozzle is the 2 Inch wide version of our highly efficient, 1 Inch Flat Super Air Nozzle. The patented (U.S. Pat 5402938) design uses a special shim to maintain the critical position of the component parts. The result is a wide, forceful stream of high velocity, laminar airflow with minimal air consumption and noise. Force and flow may be easily increased or decreased by installing a different shim. The 2 Inch Flat Super Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required and a One or Two Outlet Magnetic Base for firm attachment to metallic machinery. The 2 Inch Flat Super Air Nozzle is available in zinc/aluminum alloy or Type 316 stainless steel.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets

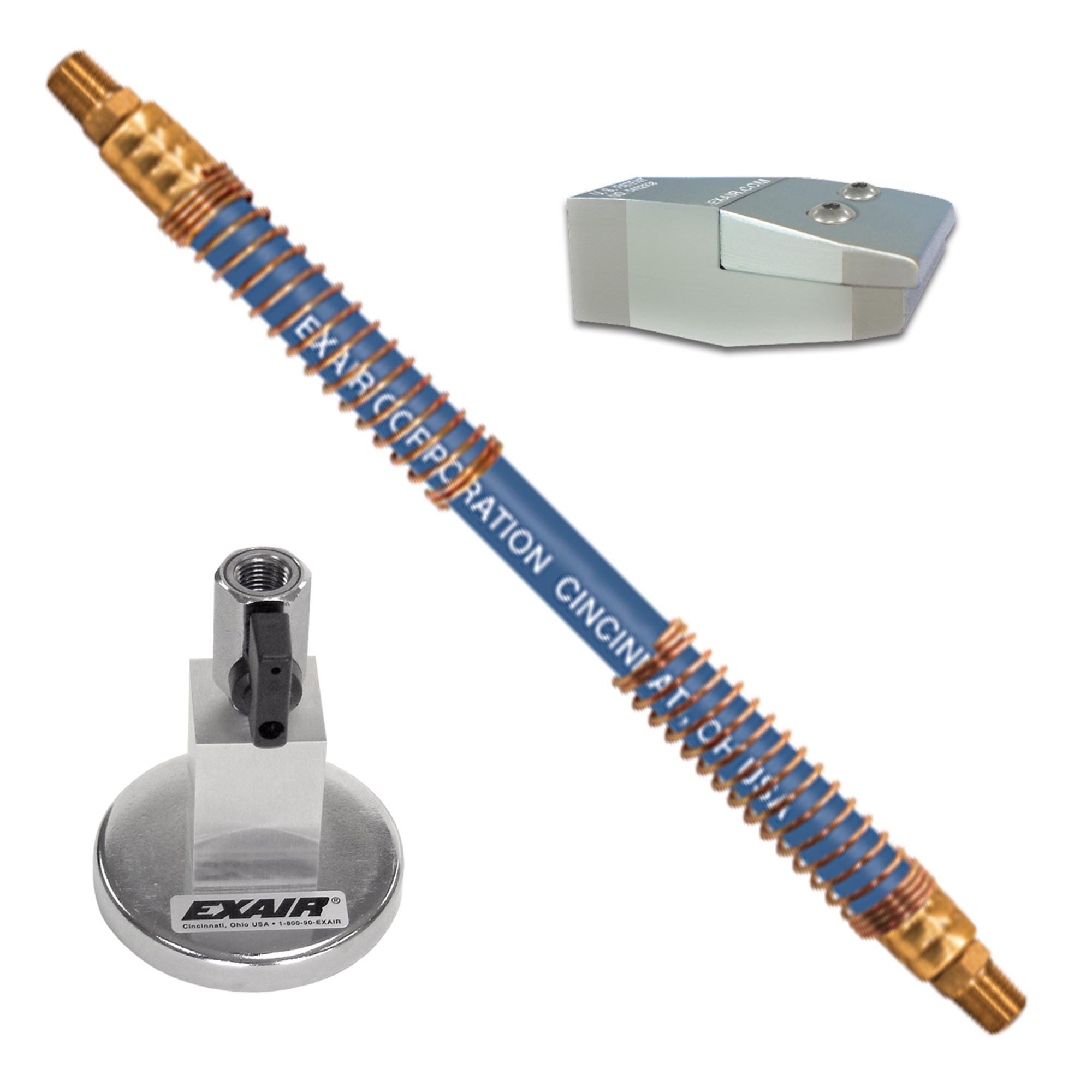

exair-2in-flat-super-air-nozzle-1122ss-9306 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 6" (152mm) 1

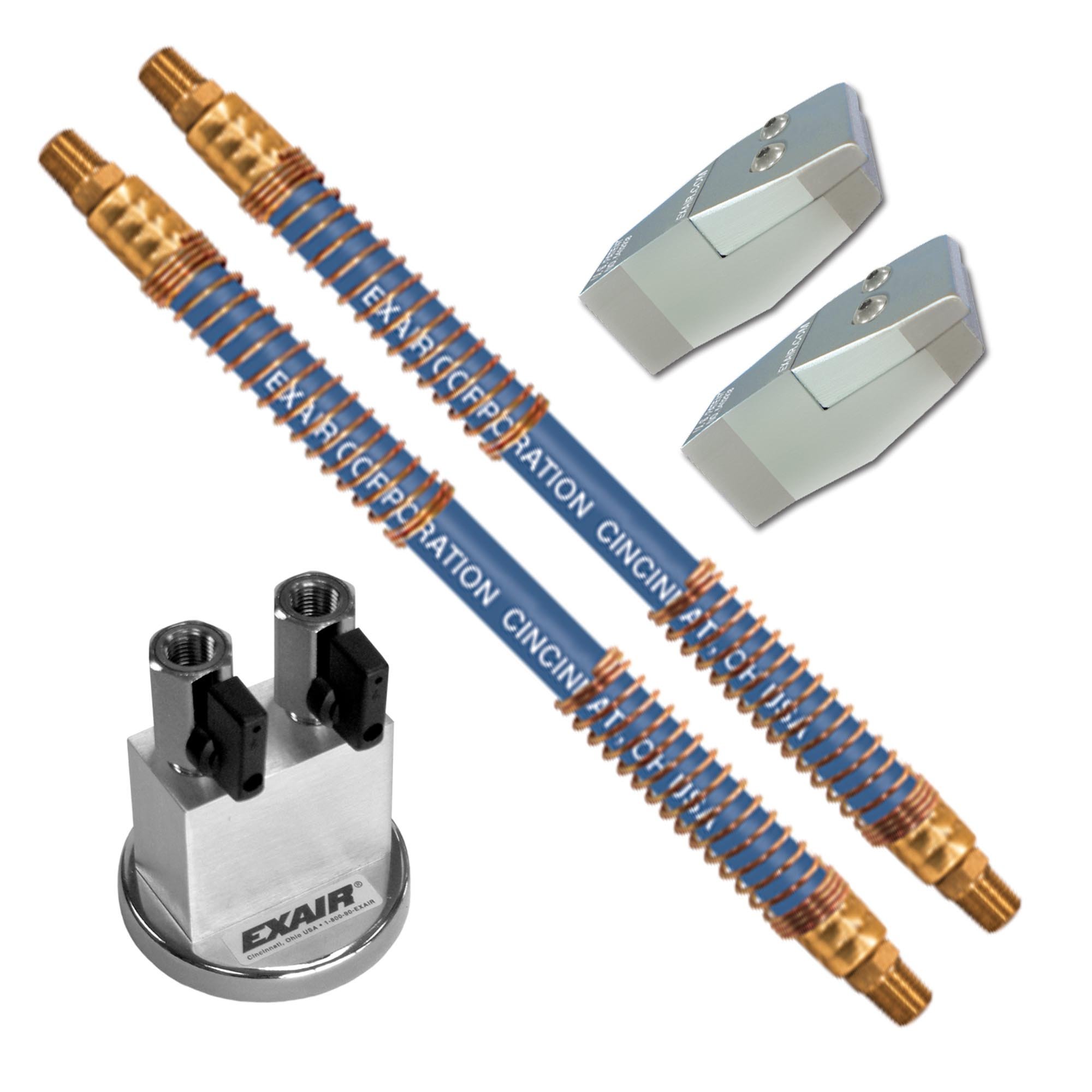

exair-2in-flat-super-air-nozzle-1122ss-9406 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 6" (152mm) 2
exair-2in-flat-super-air-nozzle-1122-9306 Zinc-Aluminum 22 SCFM 1/4 MNPT 6" (152mm) 1
exair-2in-flat-super-air-nozzle-1122-9406 Zinc-Aluminum 22 SCFM 1/4 MNPT 6" (152mm) 2
exair-2in-flat-super-air-nozzle-1122ss-9312 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 12" (305mm)
exair-2in-flat-super-air-nozzle-1122ss-9412 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 12" (305mm) 2
exair-2in-flat-super-air-nozzle-1122-9312 Zinc-Aluminum 22 SCFM 1/4 MNPT 12" (305mm)

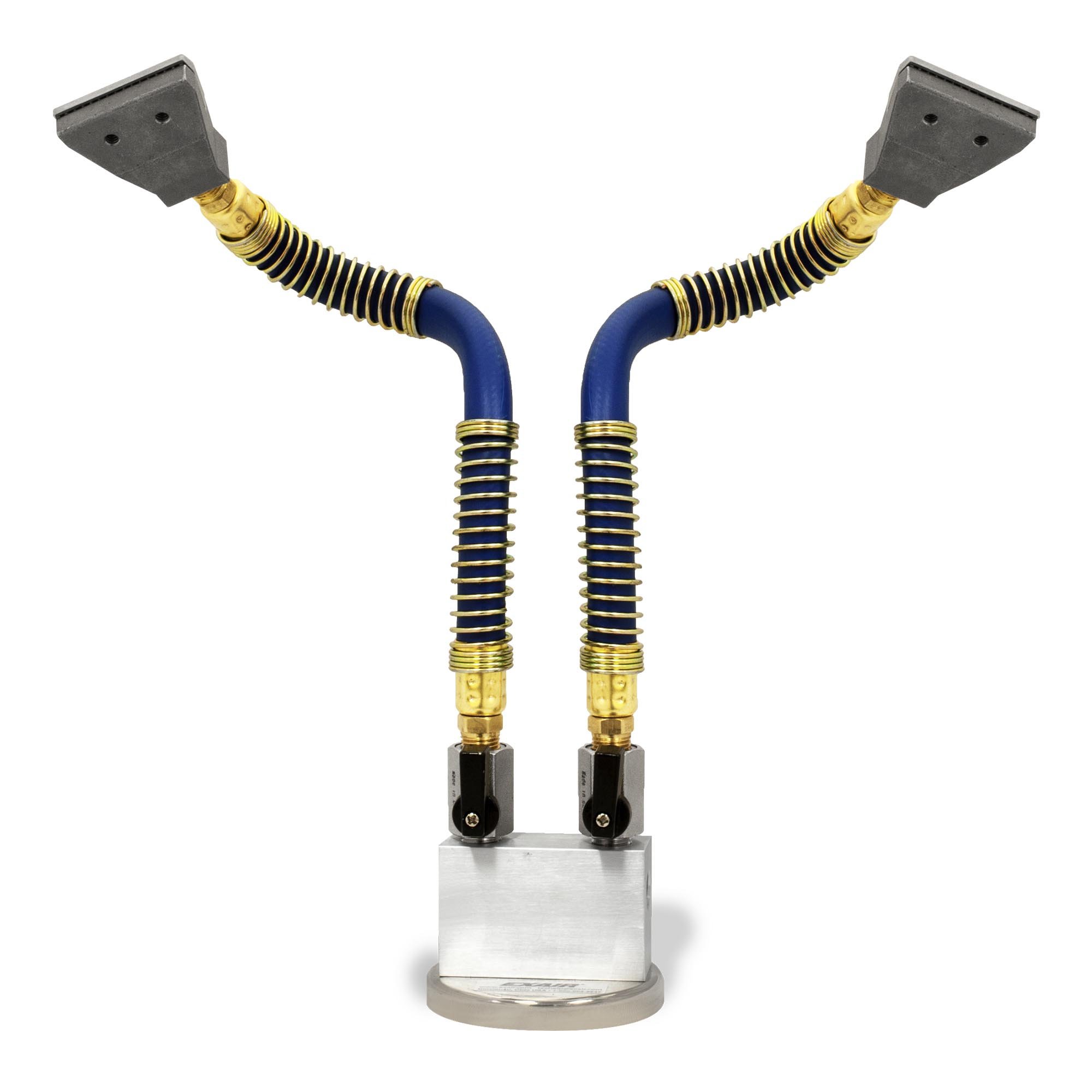

exair-2in-flat-super-air-nozzle-1122-9412 Zinc-Aluminum 22 SCFM 1/4 MNPT 12" (305mm) 2
exair-2in-flat-super-air-nozzle-1122ss-9318 Type 316 Stainless Steel 22 SCFM 1/4 MNPT  18" (457mm) 1
exair-2in-flat-super-air-nozzle-1122ss-9418 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 18" (457mm) 2
exair-2in-flat-super-air-nozzle-1122-9318 Zinc-Aluminum 22 SCFM 1/4 MNPT 18" (457mm) 1
exair-2in-flat-super-air-nozzle-1122-9418 Zinc-Aluminum 22 SCFM 1/4 MNPT 18" (457mm) 2
exair-2in-flat-super-air-nozzle-1122ss-9324 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 24" (610mm)
exair-2in-flat-super-air-nozzle-1122ss-9424 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 24" (610mm) 2
exair-2in-flat-super-air-nozzle-1122-9324 Zinc-Aluminum 22 SCFM 1/4 MNPT 24" (610mm) 1
exair-2in-flat-super-air-nozzle-1122-9424 Zinc-Aluminum 22 SCFM 1/4 MNPT 24" (610mm) 2
exair-2in-flat-super-air-nozzle-1122ss-9330 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 30" (762mm) 1
exair-2in-flat-super-air-nozzle-1122ss-9430 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 30" (762mm) 2
exair-2in-flat-super-air-nozzle-1122-9330 Zinc-Aluminum 22 SCFM 1/4 MNPT 30" (762mm) 1
exair-2in-flat-super-air-nozzle-1122-9430 Zinc-Aluminum 22 SCFM 1/4 MNPT 30" (762mm) 2
exair-2in-flat-super-air-nozzle-1122ss-9336 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 36" (914mm) 1
exair-2in-flat-super-air-nozzle-1122ss-9436 Type 316 Stainless Steel 22 SCFM 1/4 MNPT 36" (914mm) 2
exair-2in-flat-super-air-nozzle-1122-9336 Zinc-Aluminum 22 SCFM 1/4 MNPT 36" (914mm) 1
exair-2in-flat-super-air-nozzle-1122-9436 Zinc-Aluminum 22 SCFM 1/4 MNPT 36" (914mm) 2

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Improved blowoff performance
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Improved production

2" Flat Super Air Nozzle Materials:

  • Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
  • Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).

Accessories:

Shim-Set-for-2-inch-flat-super-air-nozzle

Shim Sets - Shim sets for the 2" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm), and .020" (0.51mm) thick shim.





swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel



2" Flat Super Air Nozzle Performance

Air Consumption Force* Sound Level
Model SCFM SLPM Ozs Grams dBA
1122/1122SS 21.8 622 22 624 77

*Force measured at 12" (305mm) from target.

Sound level measured at 3' (914mm).

All measurements taken at 80 PSIG (5.5 BAR).

.015" (0.38mm) shim installed.

How EXAIR Air Nozzles Work

anworksaEXAIR Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

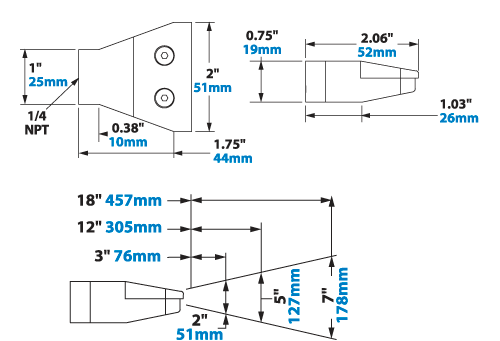

2" Flat Super Air Nozzle Dimensions and Airflow

exair-2in-flat-super-air-nozzle-dim
2" Flat Super Air Nozzle Dimensions and Airflow

2" Flat Super Air Nozzle Standards and Certifications

OSHA Safe!CE CompliantEXAIR 2" Flat Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.



Conflict Mineral FreeLook for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.

Resources

EXAIR Air Nozzles and Safety Air Guns Install Sheet

EXAIR Air Nozzles and Safety Air Guns Install Sheet

Download

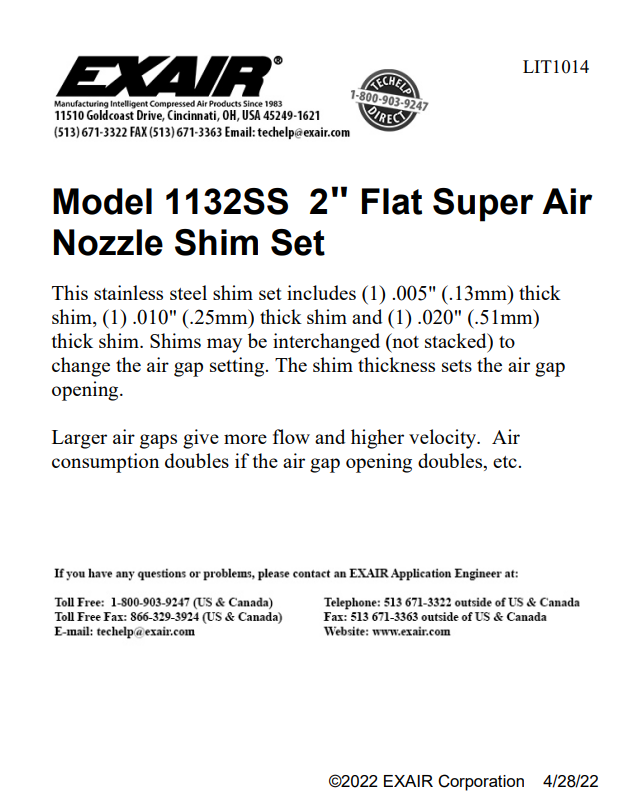

EXAIR 2 inch Super Air Nozzle Shim Set Install Sheet
